| Capacity & Range Specifications | Power & Battery System | |
|---|---|---|
| Capacity 1 | 12-54mm [1/2''-2''] for PEX, Carbon, Stainless & Copper Pipe | Battery: 18V 4.0ah Li-ion |
| Capacity 2 | 12-108mm [1/2''-4''] for PEX, Carbon, Stainless & Copper Pipe | Charger: AC100V-240V 50-60Hz |
| Output Force | 31KN - 88KN | Charging Time: Approx. 60 mins |
| Stroke (15-50) | 42mm | Tool Size: 590x165x85mm (with battery) |
| Stroke (65-100) | 80mm | Weight: 9kg (with battery) |
| Cycle Time (15-50) | 7 seconds per cycle | Oil Type: Shell Tellus S2V HV15 (100ml) |

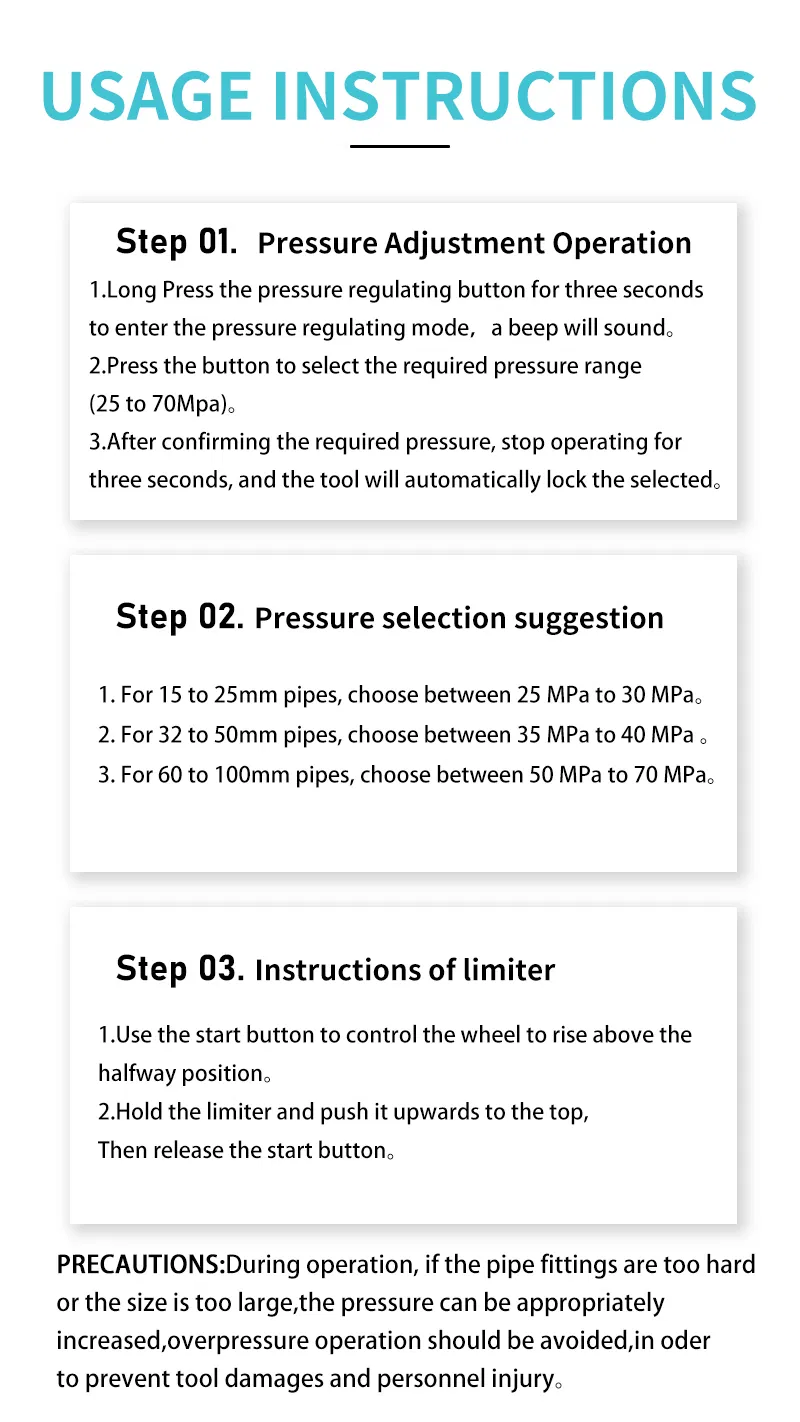

| Cycle Time (65-100) | 14 seconds per cycle | Pressure Range: 25 to 70Mpa |

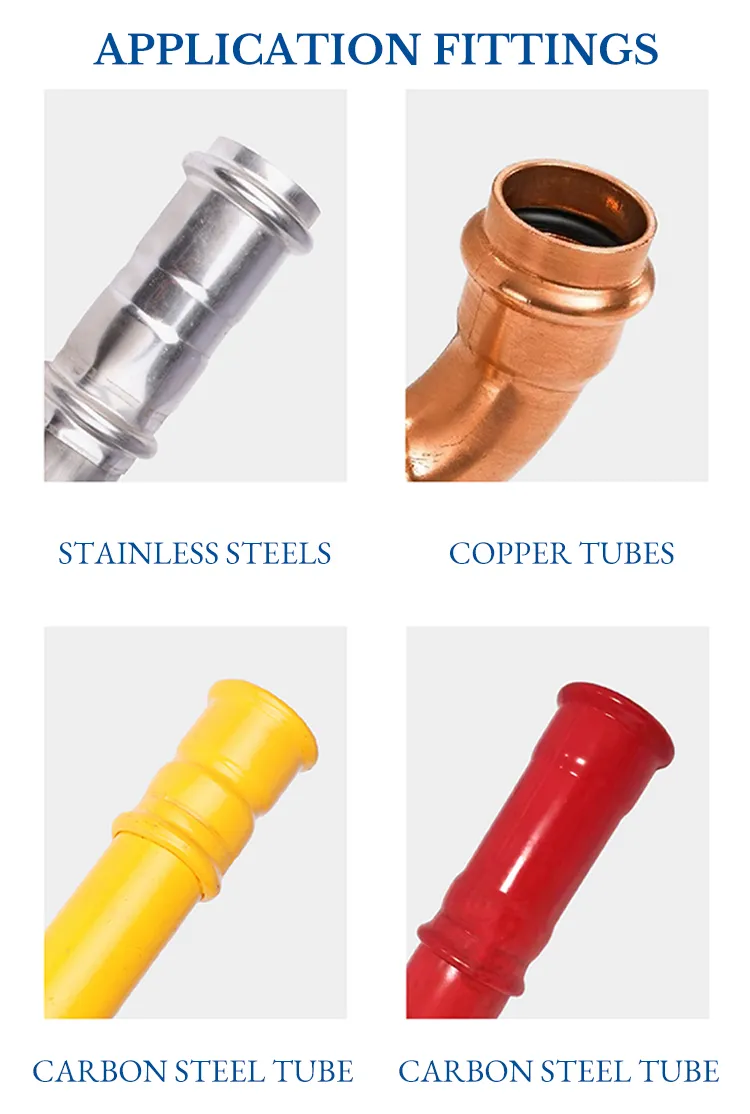

| Applicable Temp. | -20 to 40ºC | Applicable Pipes: Thin-wall Stainless, Carbon Steel, Copper, PEX, etc. |

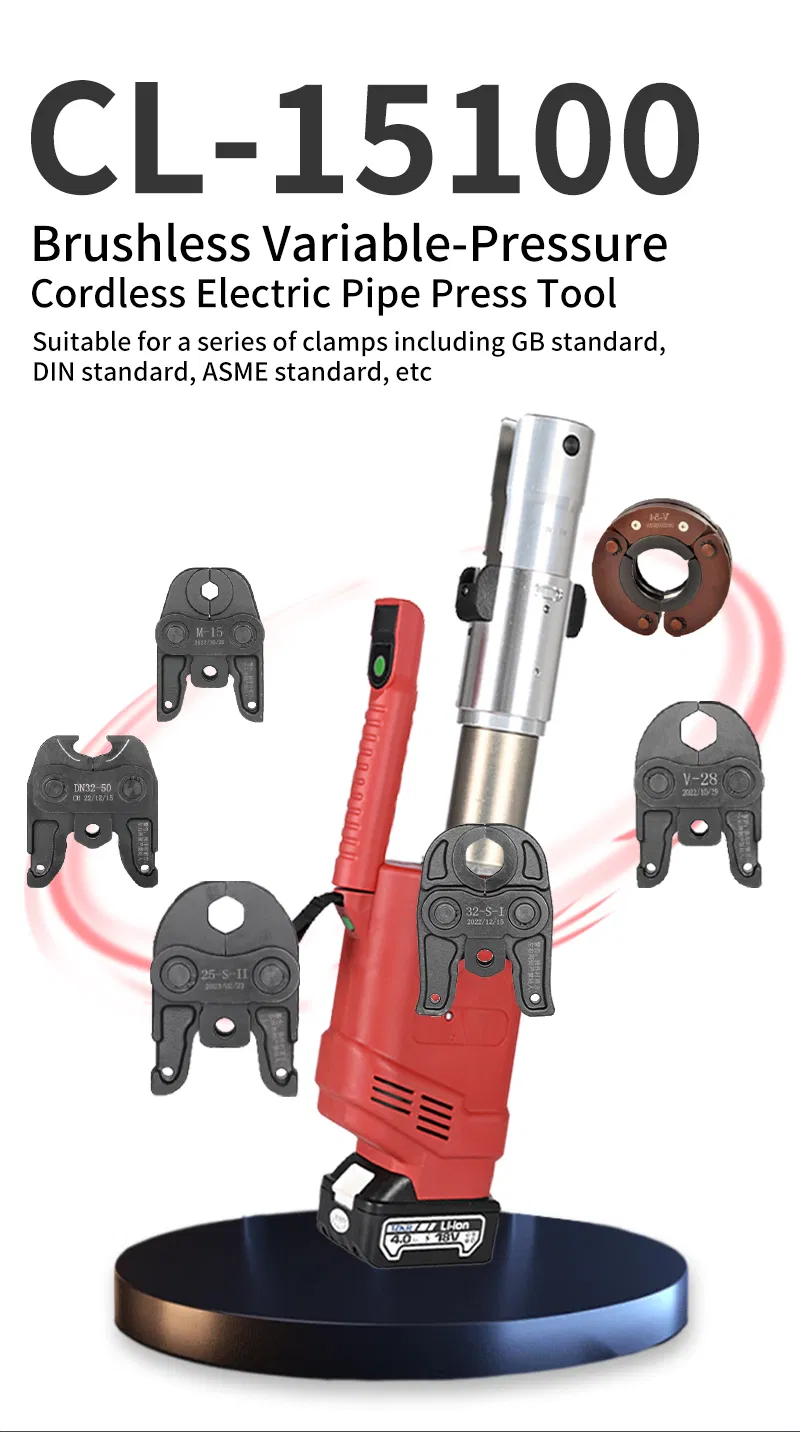

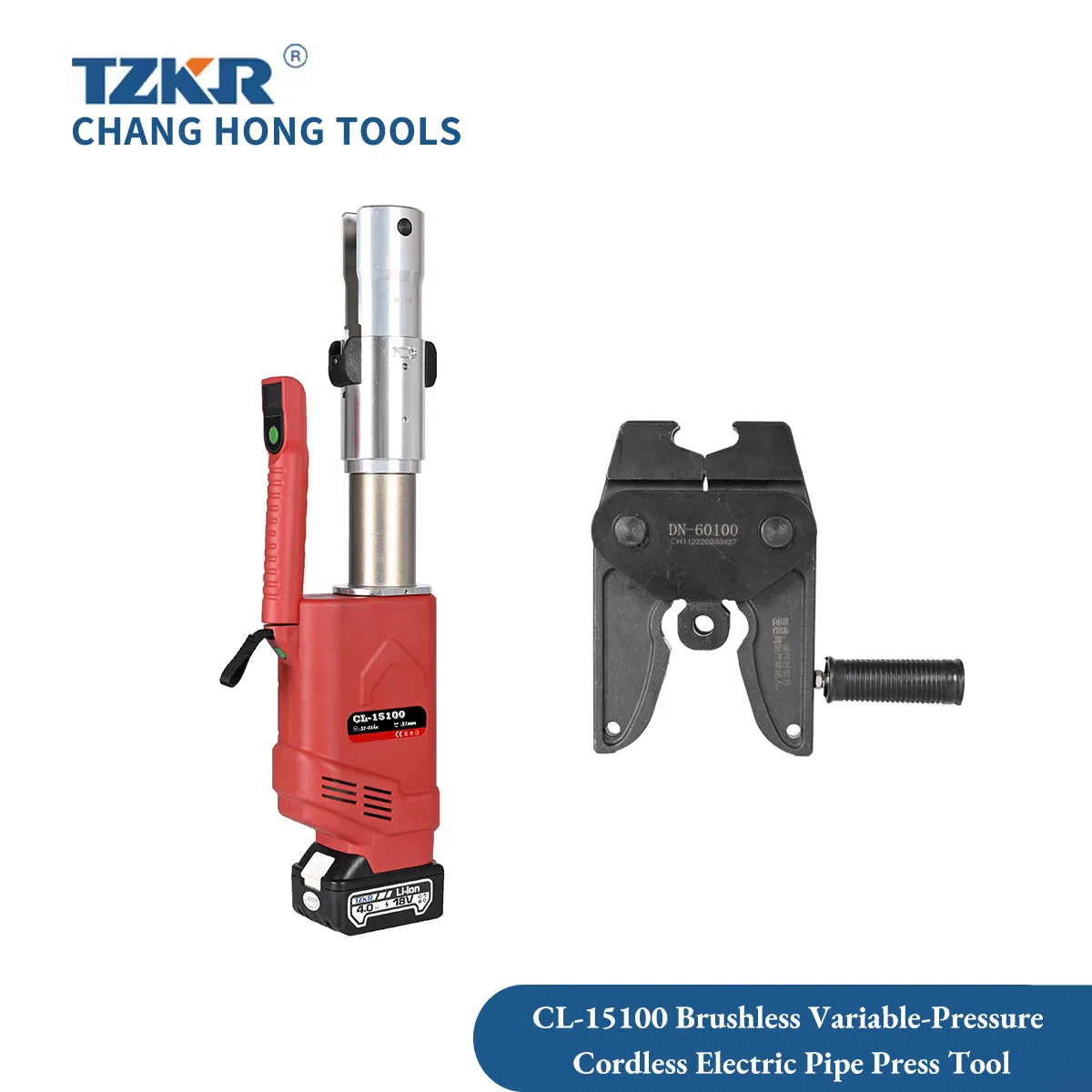

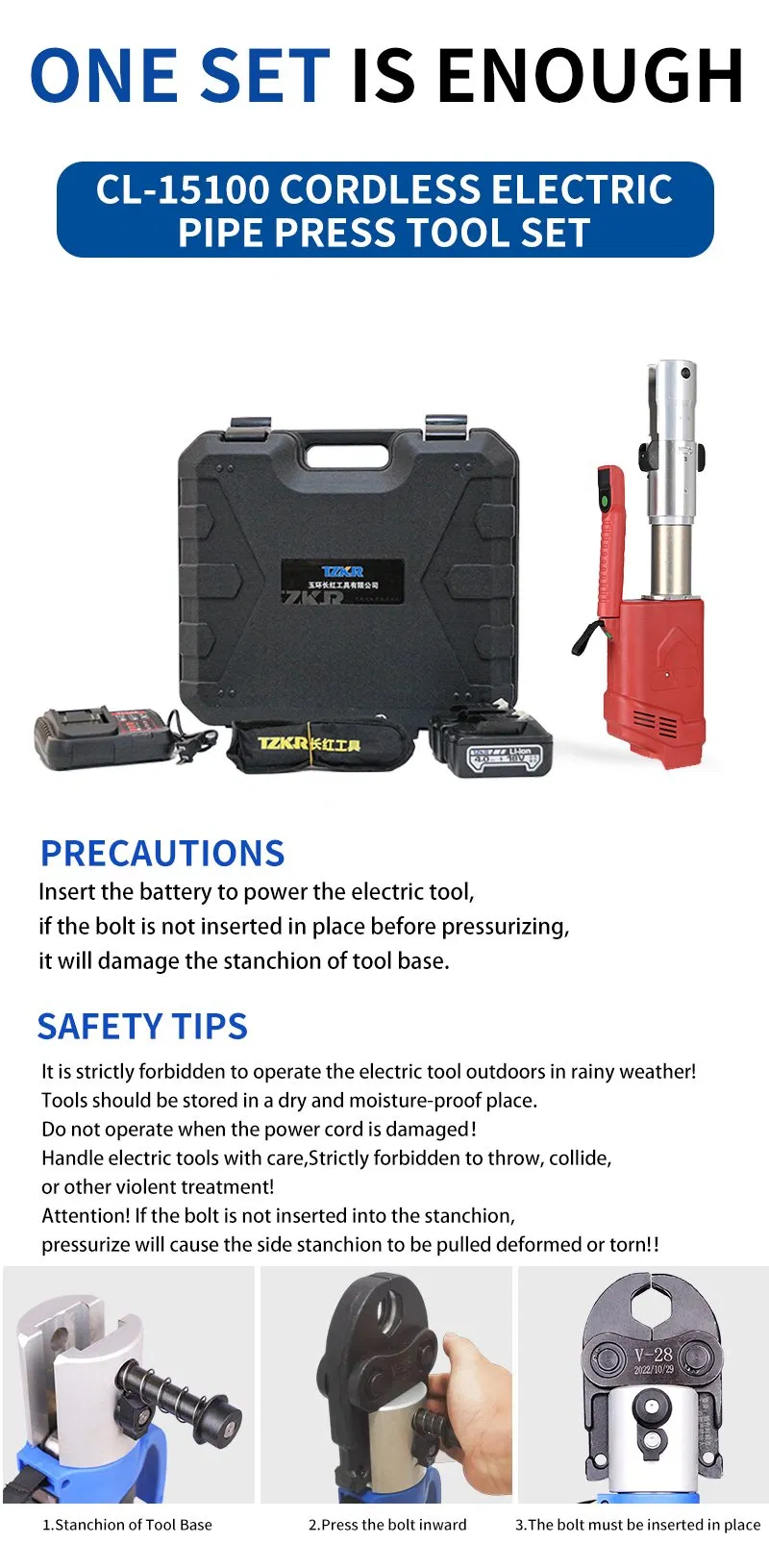

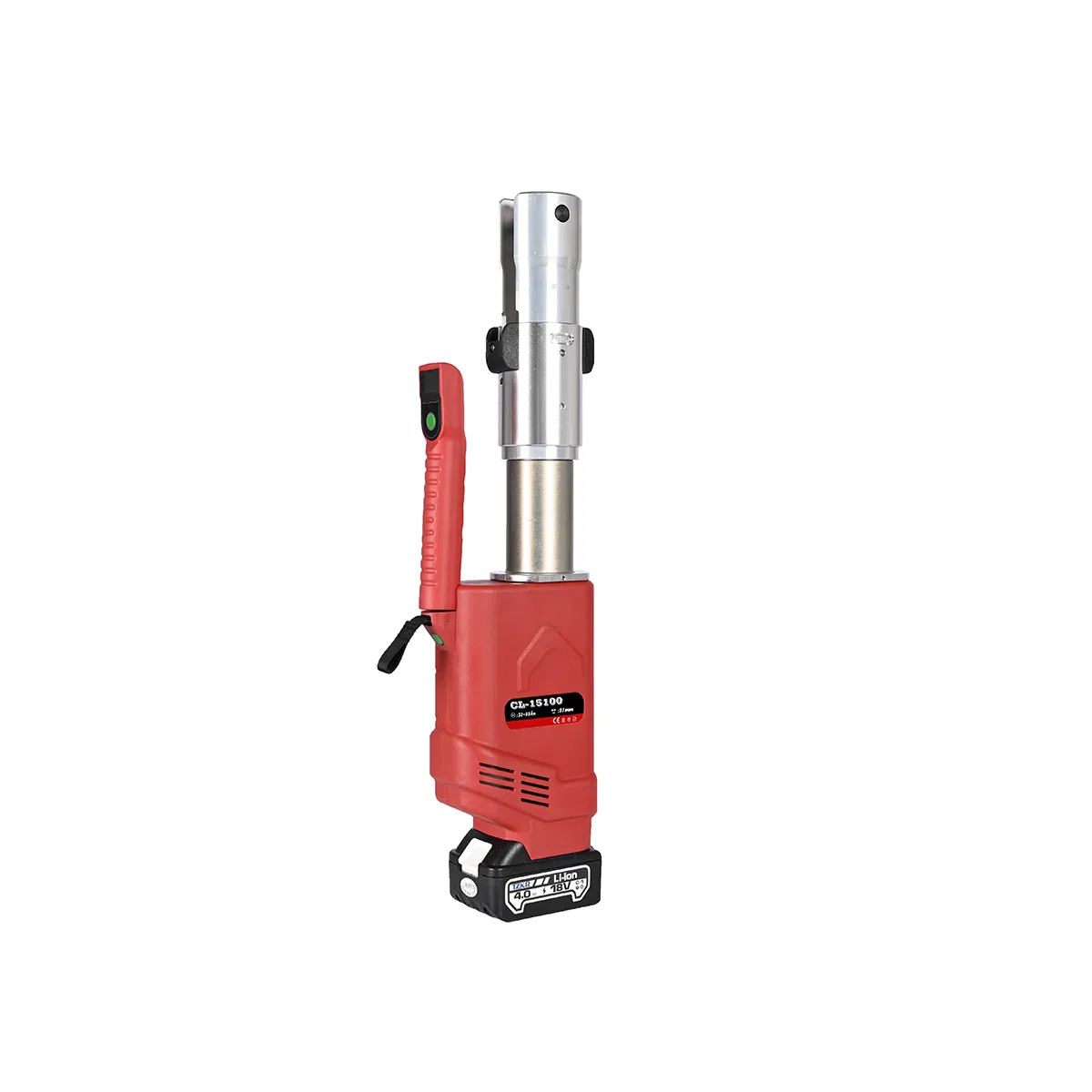

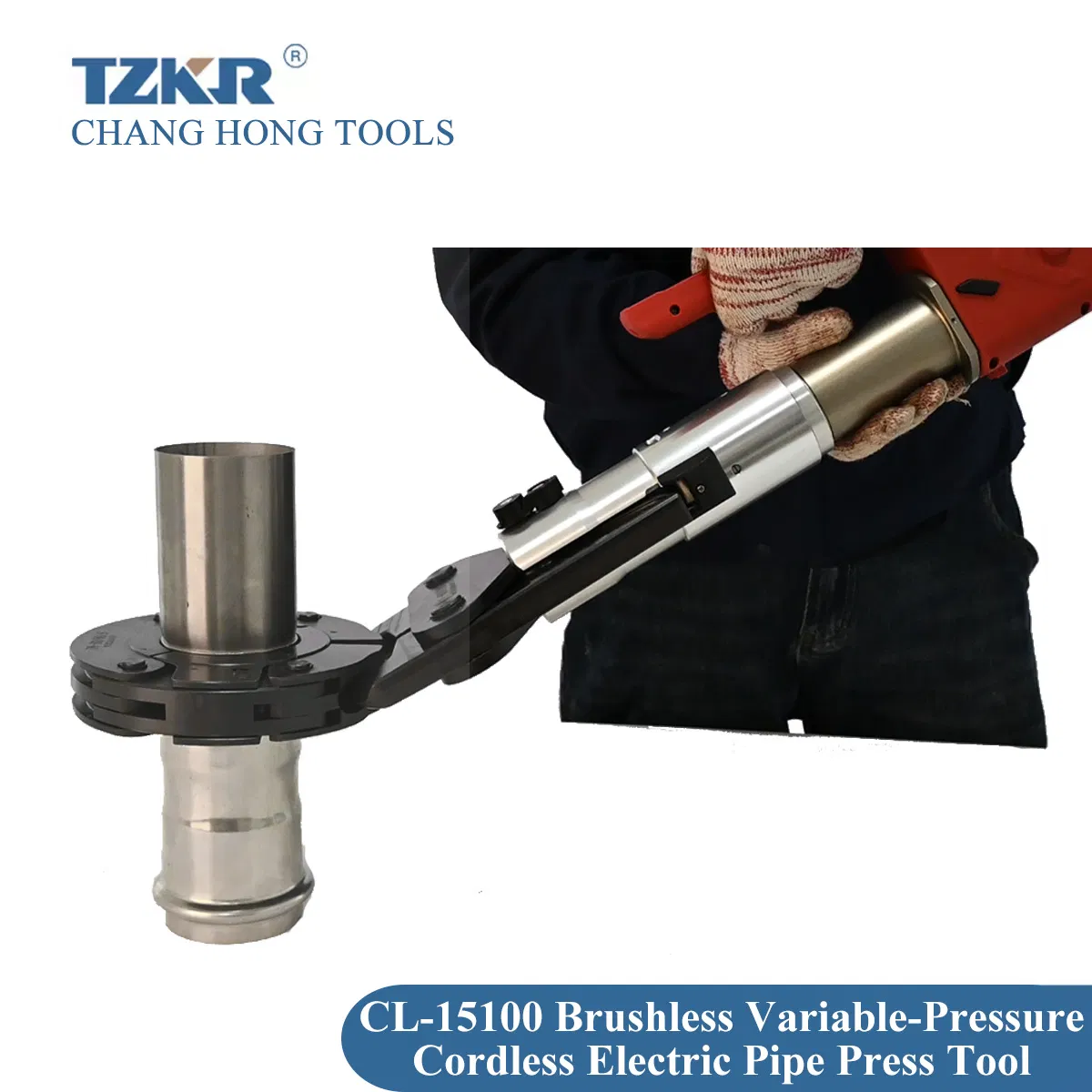

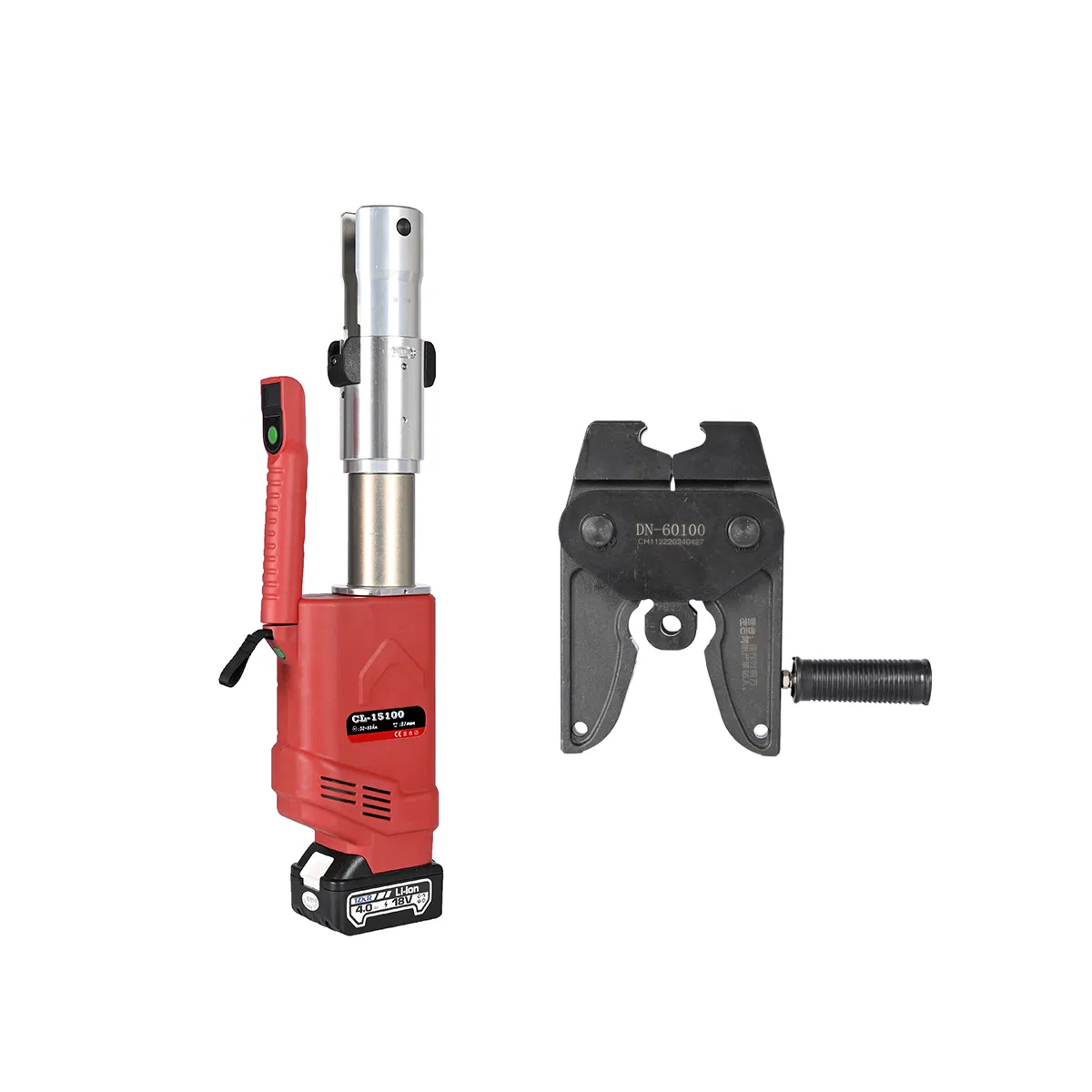

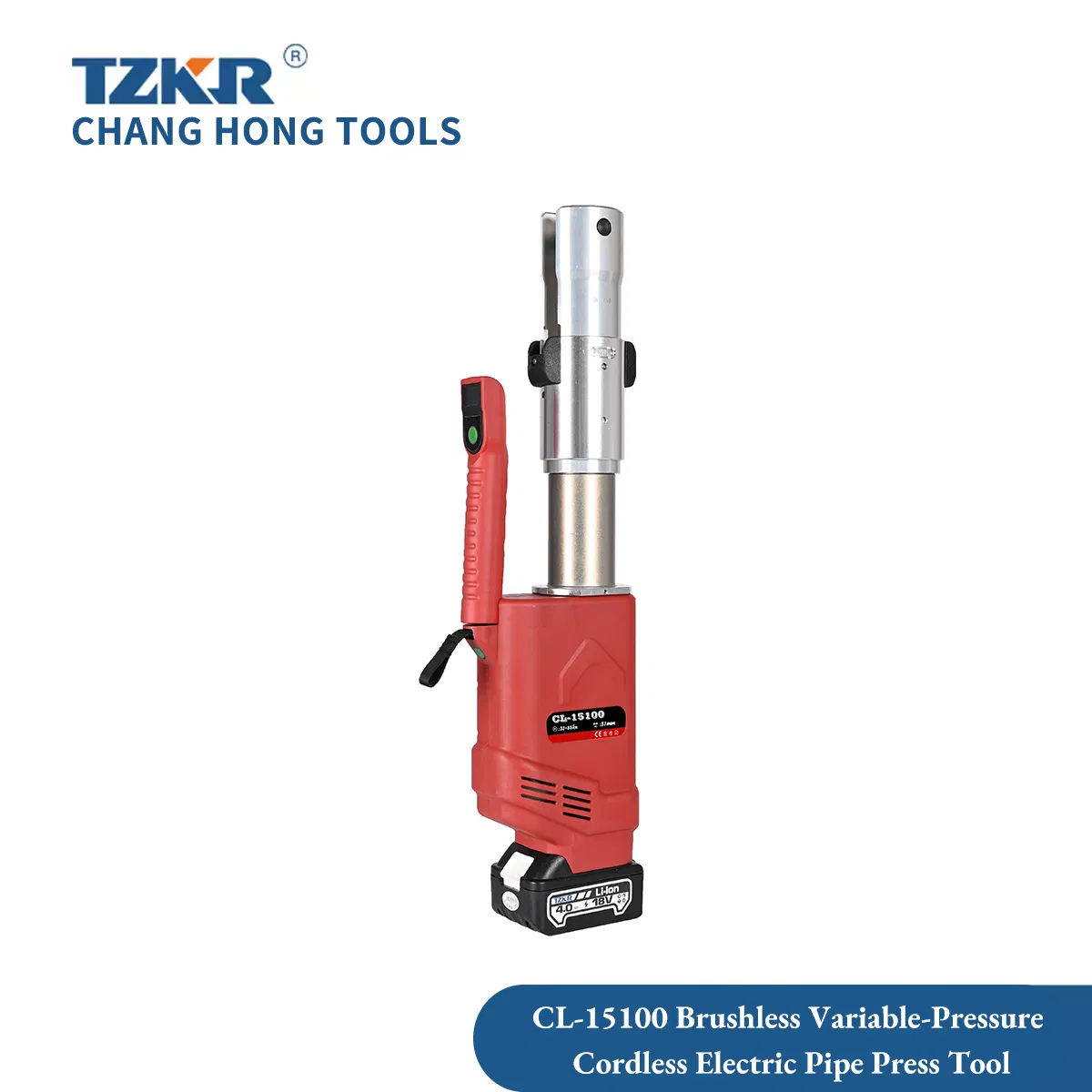

| CL-15100 Brushless Motor Cordless Crimping Tool Kit | ||
|---|---|---|
| Packing List Item | Weight / Size | Quantity |
| Crimping Tool Kit (without jaws and battery) | 5.92kg | 1 |
| Battery (18V 4.0AH Li-ion) | - | 2 |
| Charger & Cable | - | 1 |
| Backstrap | - | 1 |
| User manual | - | 1 |
| Packing Case | 2.38kg (650*500*150mm) | 1 |
| Carton Box | 0.74kg (650*500*150mm) | 1 |
