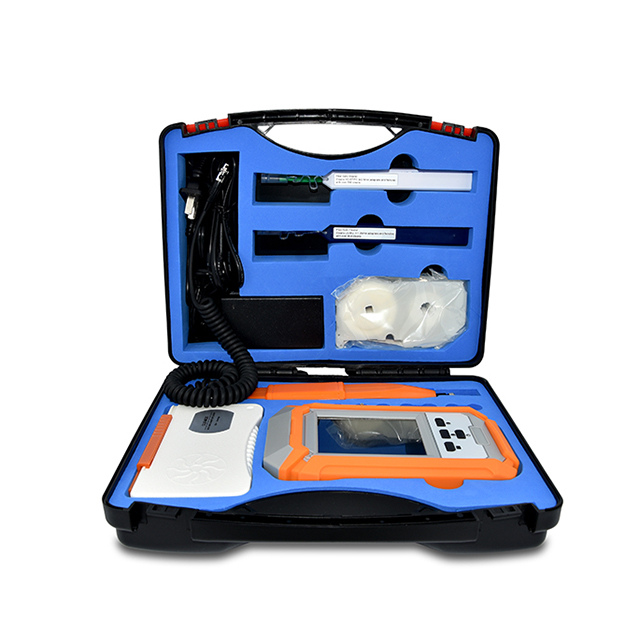

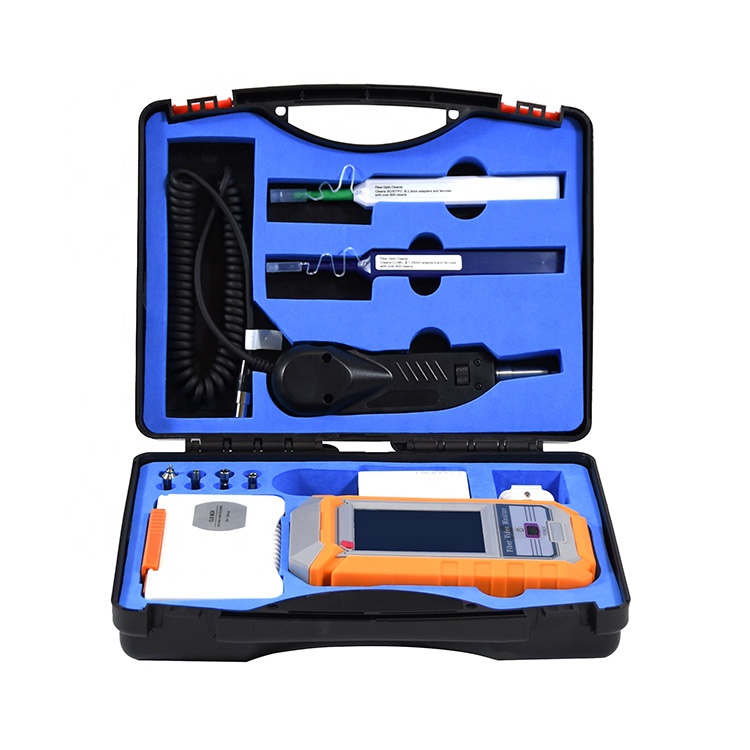

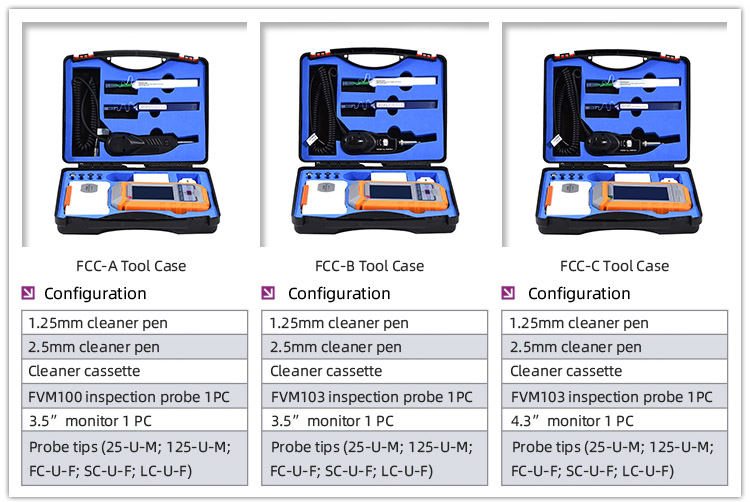

| FCC-A Set | |
|---|---|
| 1 | FVM100 Inspection Probe |
| 2 | 3.5 Inch Monitor |
| 3 | 5 Standard Tips |
| 4 | 1.25mm Cleaner Pen |
| 5 | 2.5mm Cleaner Pen |
| 6 | Cleaner Cassette |

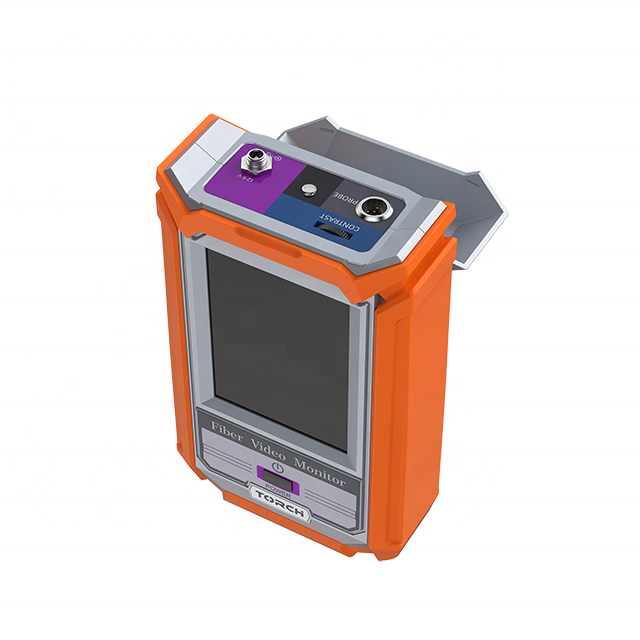

| 3.5 Inch Monitor Specs | |
|---|---|
| Display | 3.5" TFT Active Matrix |
| Pixels | 2.2 million |
| Working Time | >8 hrs |
| Weight | 400g |
| Volume | 170x100x45mm |
| Built-in Li Battery | 3.7V 3000mAh 11.1Wh |

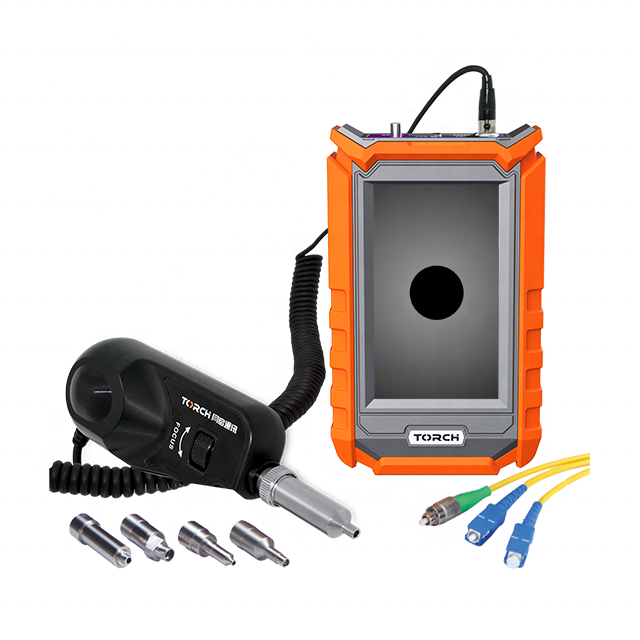

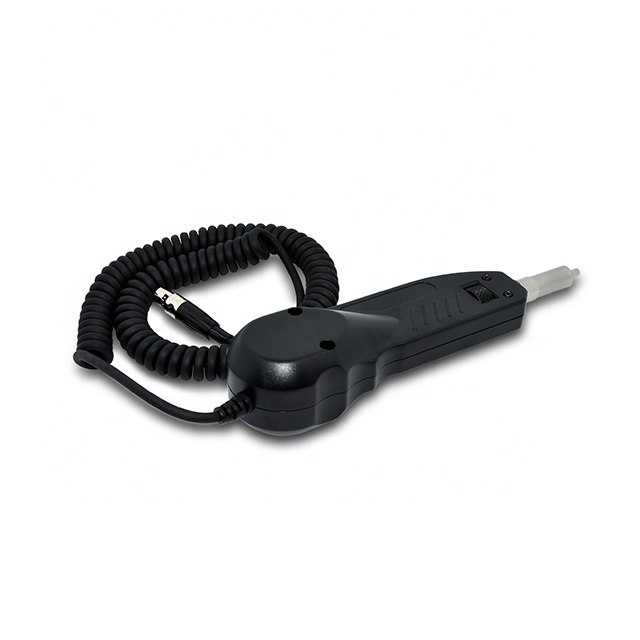

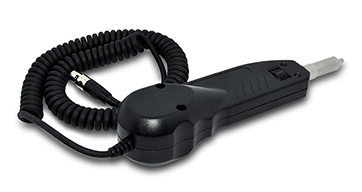

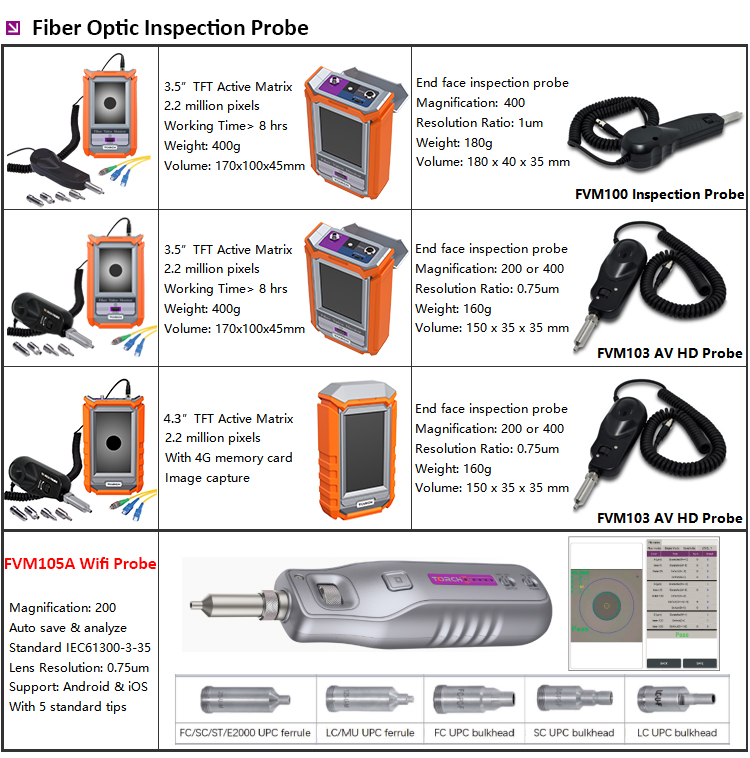

| FVM100 Inspection Probe | |
|---|---|
| Magnification | 400X |
| Resolution Ratio | 1um |
| Weight | 180g |
| Volume | 180 x 40 x 35 mm |

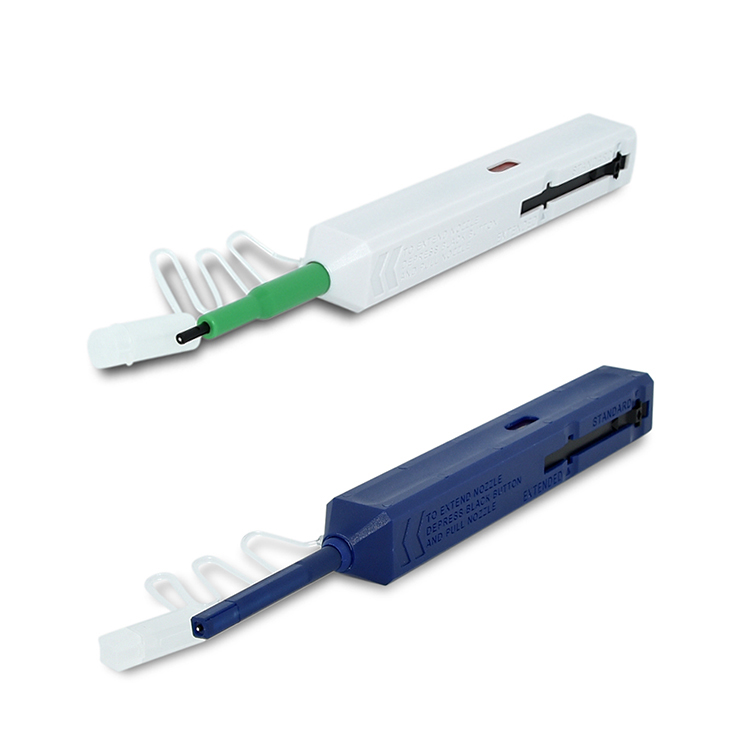

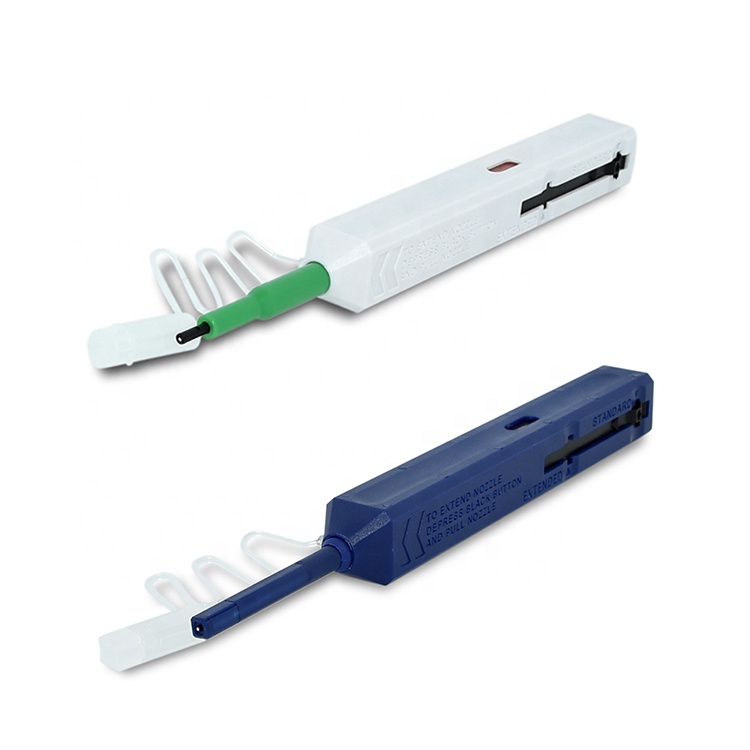

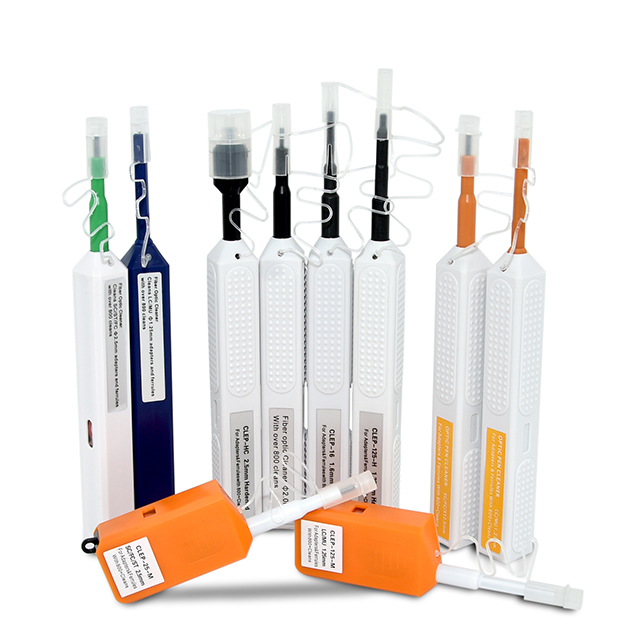

| Fiber Optic Cleaner Pen | |
|---|---|
| CLEP-25-O |
• For 2.5 mm SC/FC/ST/E2000 • 800+ times cleans per unit • Size: 185*25*25mm |
| CLEP-125-O |
• For 1.25mm LC/MU • 800+ times cleans per unit • Size: 185*25*25mm |

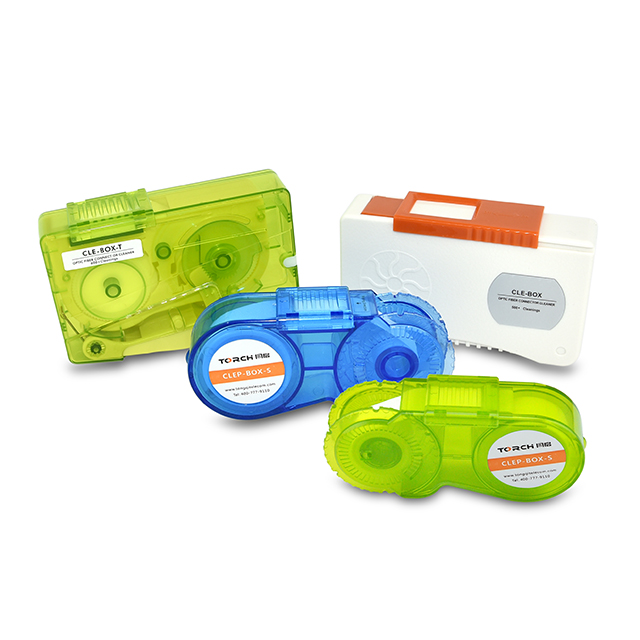

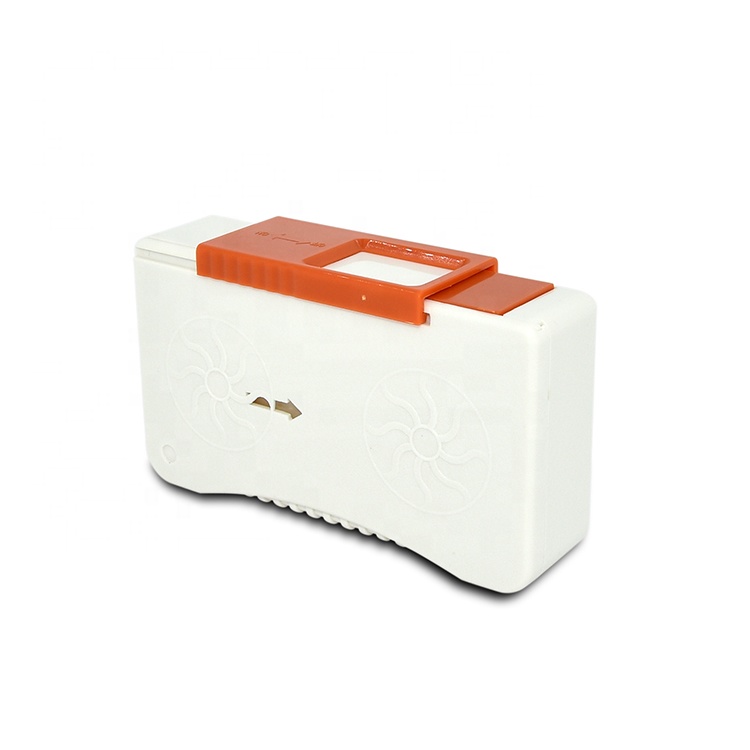

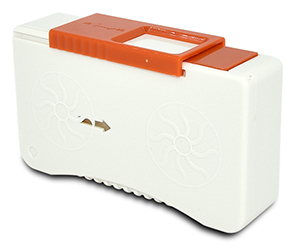

| Fiber Optic Cleaner Cassette | |
|---|---|
| CLE-BOX |
• Non-alcohol superfine fiber • Cleans all ferrules (SC/FC/ST/LC/MU/E2k etc) • Cleaning time 500+ |

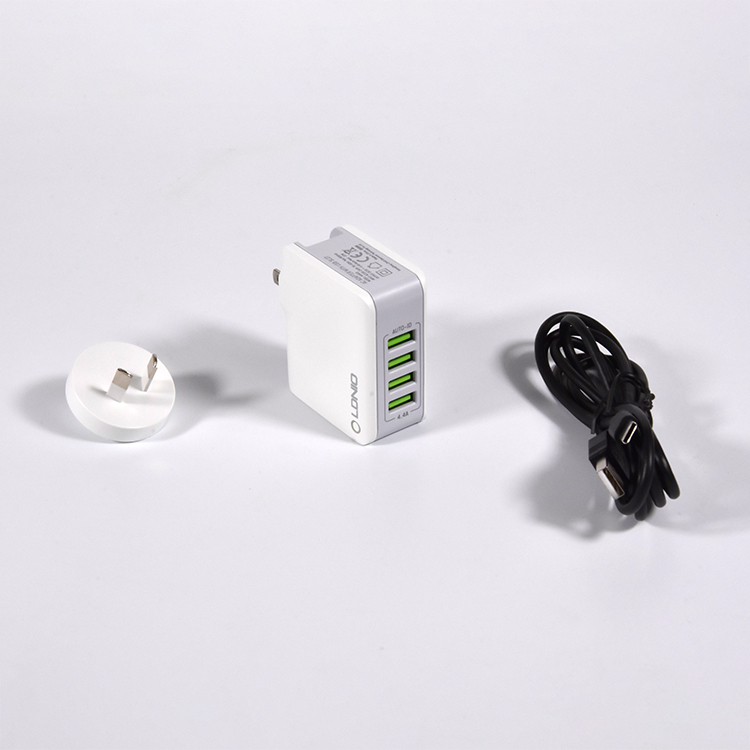

| Power Plug Specs | |
|---|---|
| Input | AC100-240V 50-60Hz Max 800mA |
| Output | DC5V 4.4A [Auto Max] 22W |
| 5 Standard Tips (FM100-E) | |
|---|---|
| 25-U-M | SC/FC/ST PC Ferrule |
| 125-U-M | LC/MU PC Ferrule |
| SC-U-F | SC PC Adapter |
| FC-U-F | FC PC Adapter |
| LC-U-F | LC PC Adapter |
