2026 Hualong 5 Axis CNC Bridge Saw Marble Granite Stone Cutting Machine for Granite by Top Chinese Manufacturer

1 / 5

2026 Hualong 5 Axis CNC Bridge Saw Marble Granite Stone Cutting Machine for Granite by Top Chinese Manufacturer

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info.

Model NO.HKNC-825

UsageGranite, Marble

ApplicationMachinery & Hardware, Stone Industry

Source Voltage380V

AutomationAutomatic

Cutting AbilityHigh Speed

ControlCNC

CertificationISO, CE

ConditionNew

Control SystemCNC From Italy

Key Selling PointsFlexible Manufacturing

LubricationAutomatic

Weight6500kgs

Dimension(L*W*H)6800*3400*3900mm

NestingAutomatic/Manual

Warranty of Core Components1 Year

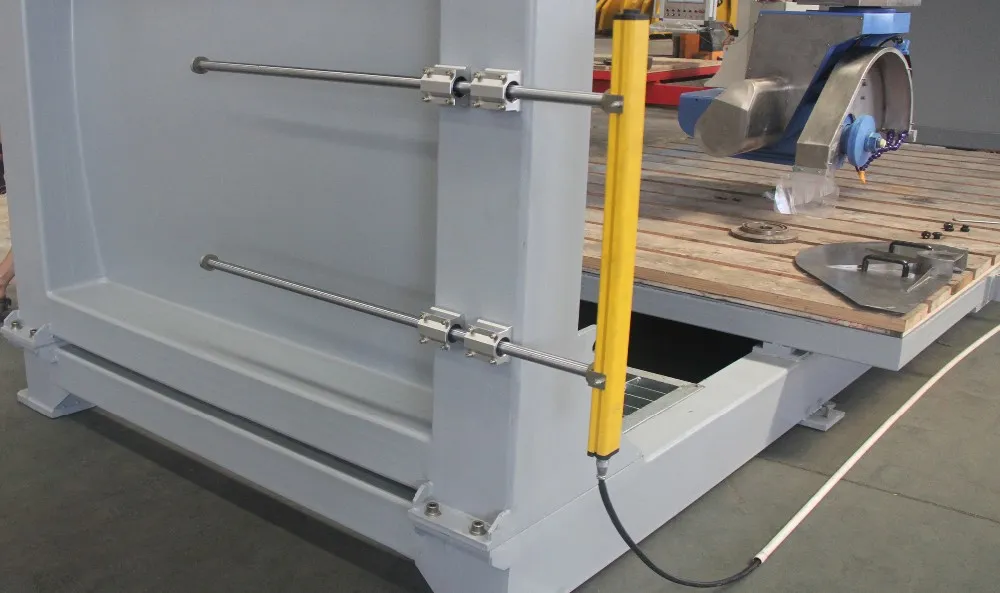

Safety GuardInfrared Induction Door

Video Outgoing-InspectionProvided

Cutting Thickness (Max)290mm

Power27.35kw

Max. Blade Diameter800mm

Applicable IndustriesStone Processing

Transport PackageCovered by Plastic Film / Packed in Pl

Specification6800*3400*3900mm

HS Code84641010

Production Capacity50 Pieces/Month

Product Description

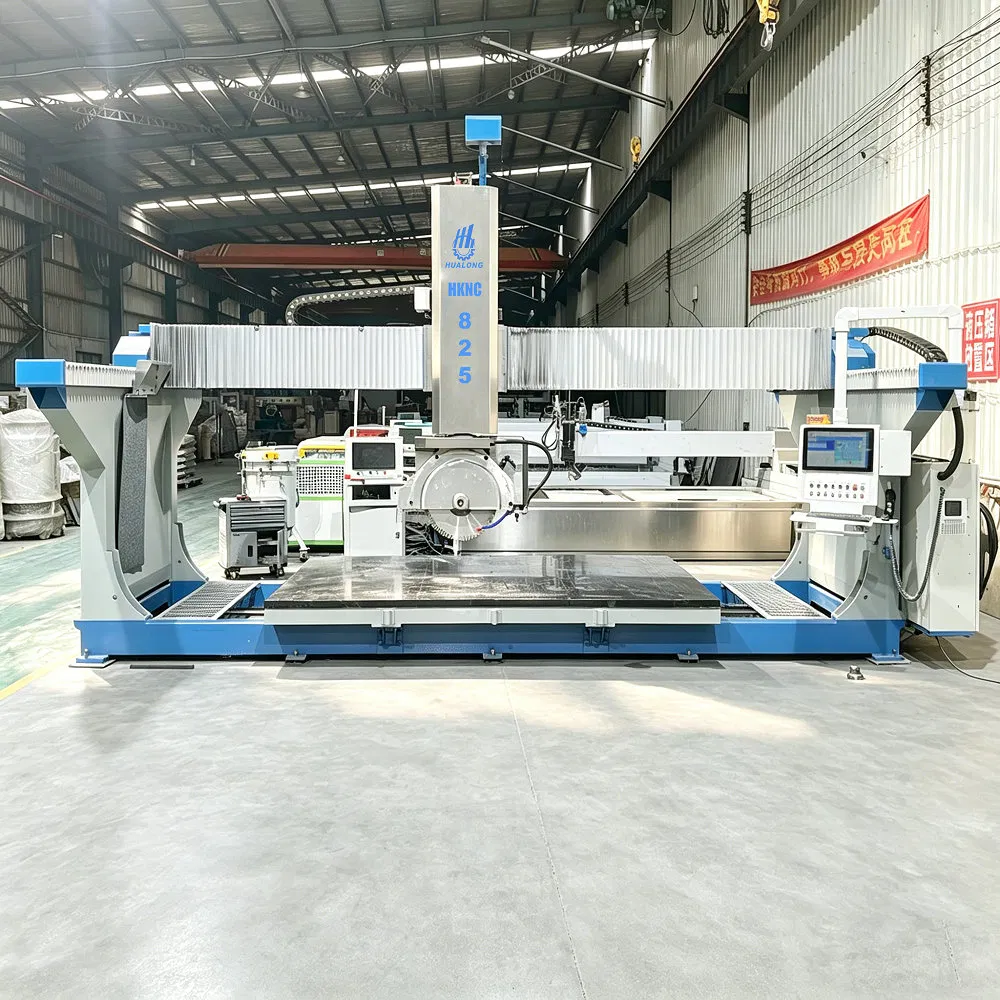

5 Axis CNC Bridge Saw Marble Granite Stone Cutting Machine for Granite

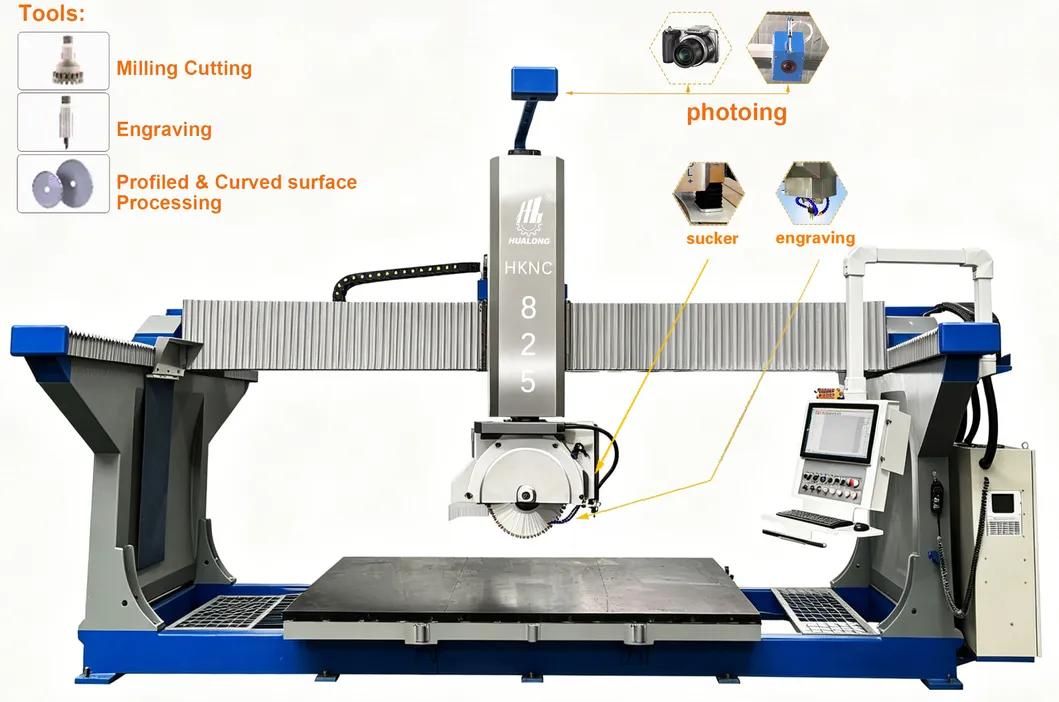

CNC stone bridge saw Machine HKNC-825 with 5 axis linkage control, can implement different complex curved surface processing, profiling, such as kitchen countertop, bathroom vanity countertop, tombstone, art decoration slab & rock sculpture...

Technical Data of HKNC-825

Configuration	Parameter Item	Unit	Value
Configuration Details	Diameter of saw blade	mm	Φ400 - Φ800
	Dimension of working platform	mm	3500 x 2100
	Power of main motor	kw	22
	Power of tool slide reciprocating motor	kw	1.15
	Power of crossbeam shifting motor	kw	1.15
	Power of hydraulic station motor	kw	2.2
	Power of elevator motor	kw	0.85
	Gross power	kw	27.35
Performance Parameters	Max. length of horizontal cutting	mm	3500
	Max. thickness of cutting	mm	290
	Max. lifting travel of cutter	mm	650
	Water consumption	m³/h	2
Measurement	Gross weight	kg	6500
Measurement	Dimension (L x W x H)	cm	6800x3400x3900

Technical Drawing of 5 Axis CNC Bridge Saw

Main Features

Full 5 axis interpolation

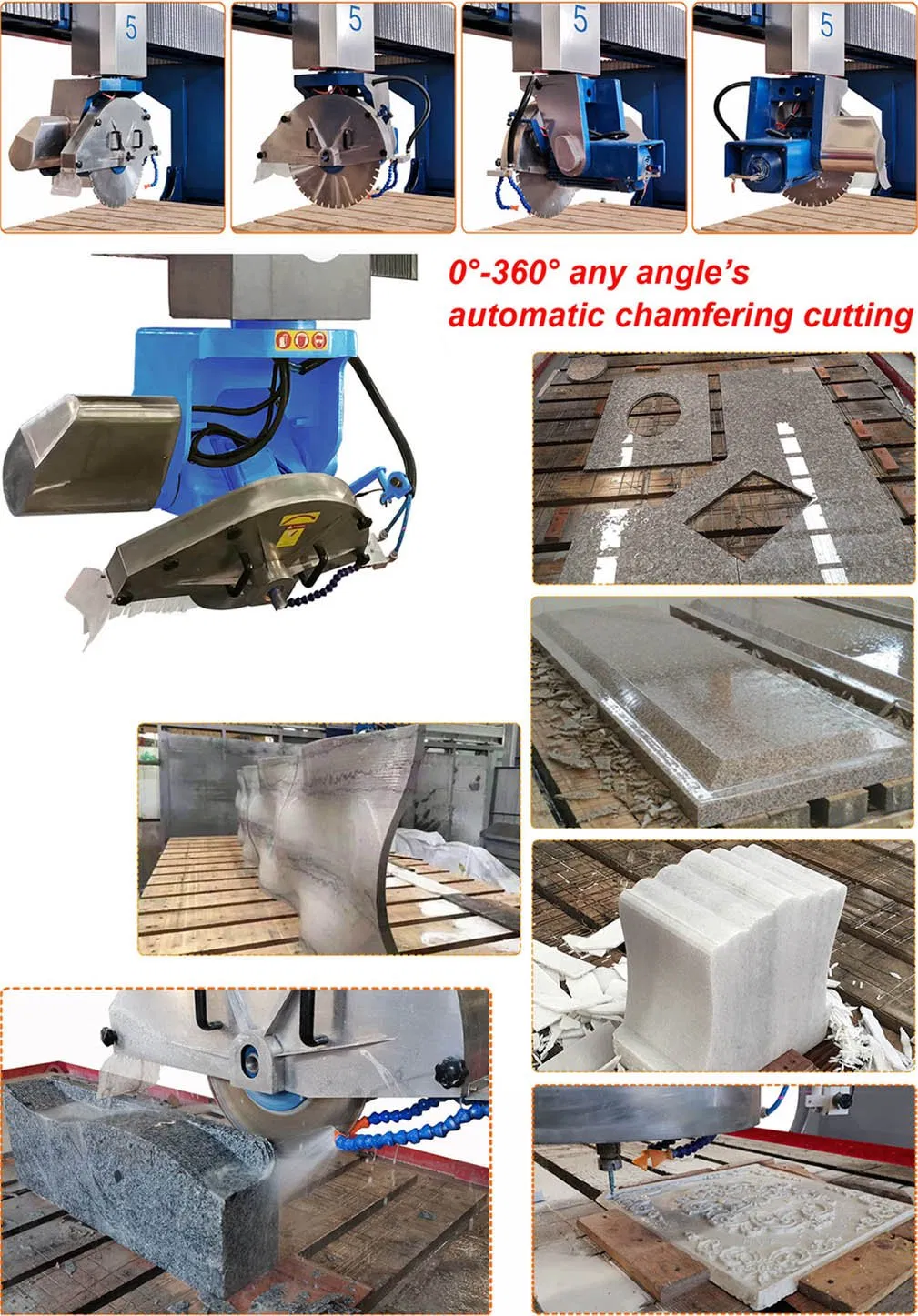

Automatic 0° to 360° head rotation and 0°-90° blade tilting.
Digital brushless servo motors from Italy create a reliable controlling power for 5 axises' movement.
Professional CNC system and software from Italy make work smart and easy.
Combine functions of carving, milling, cutting, drilling into an organic whole for complex processing.

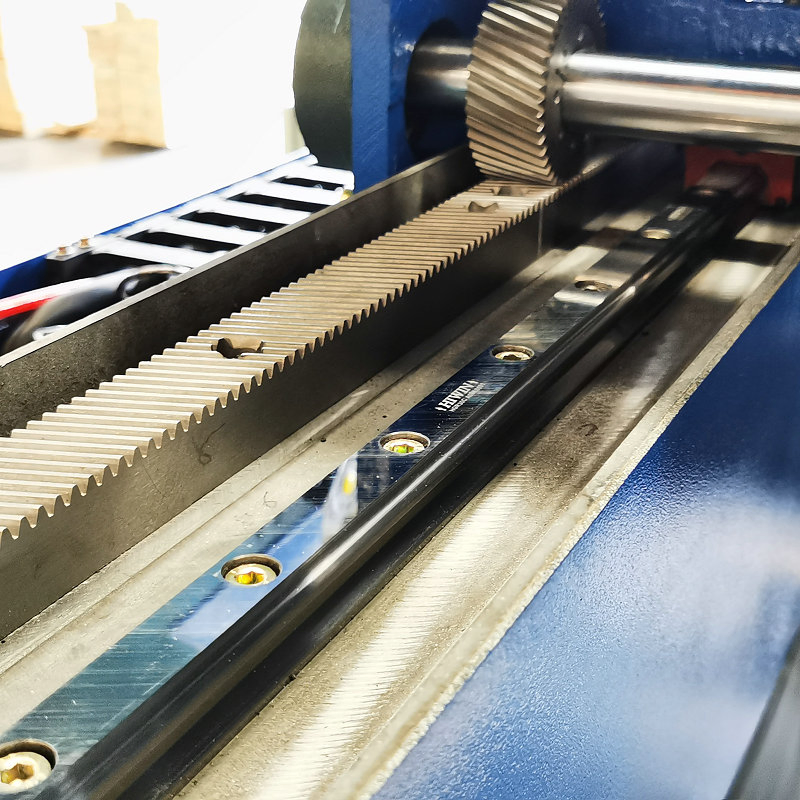

Crossbeam and carling adopt linear guide to move, which ensure high precision of cutting and long life.
Overhead camera for slab photographing and cutting layout planning, avoiding slab defects.

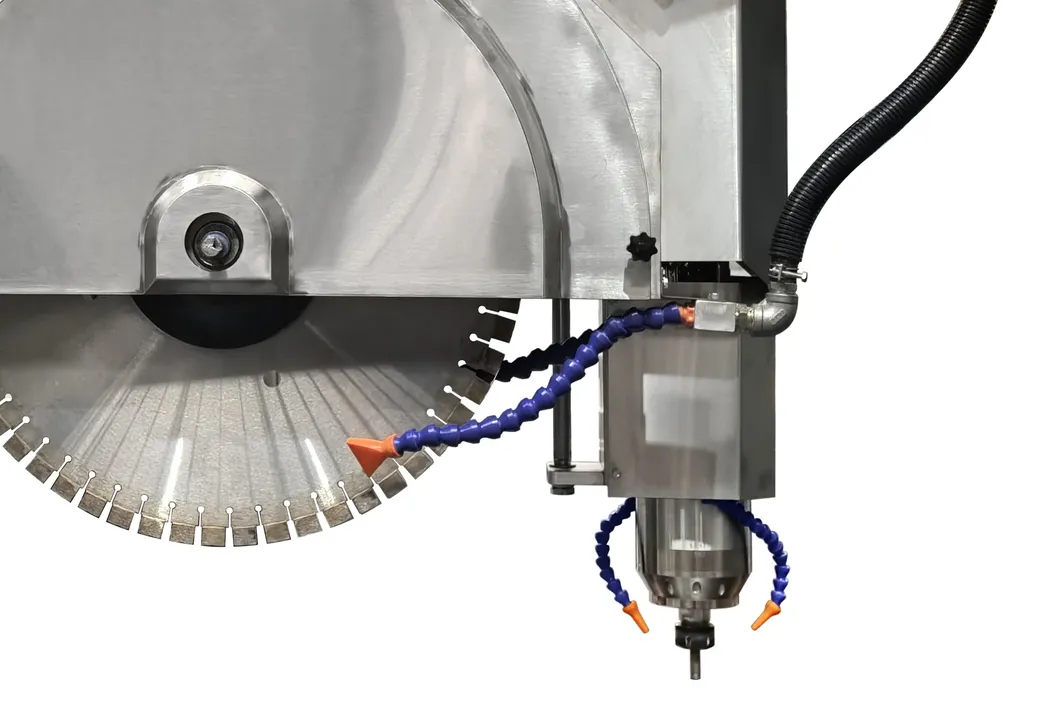

Sole engraving module (Optional)

Sole engraving module with electric spindle excellent for 2D carving.

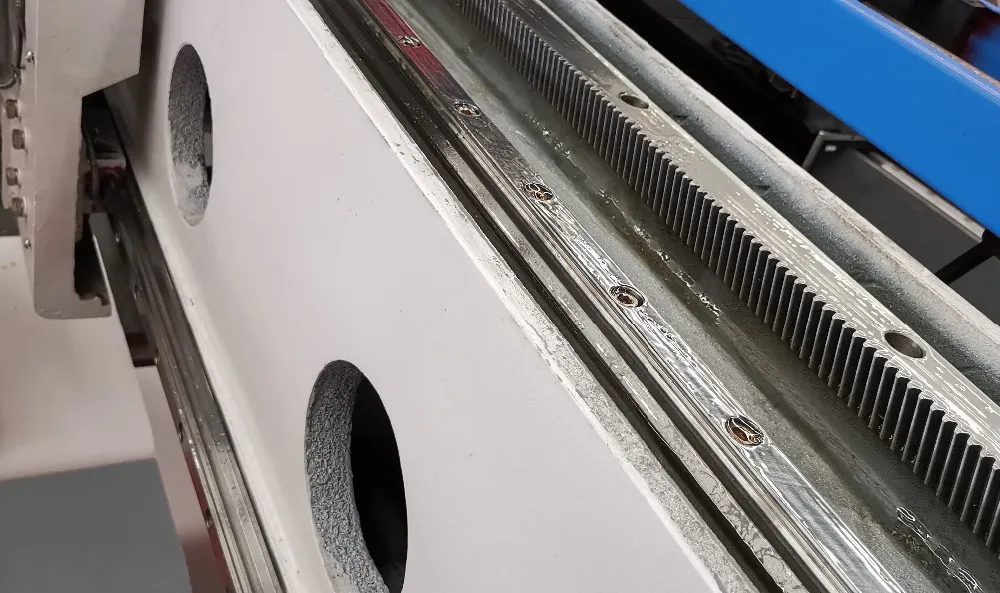

Linear Guide

Famous products, top quality linear guides used on crossbeam and carling for good performance and long life.

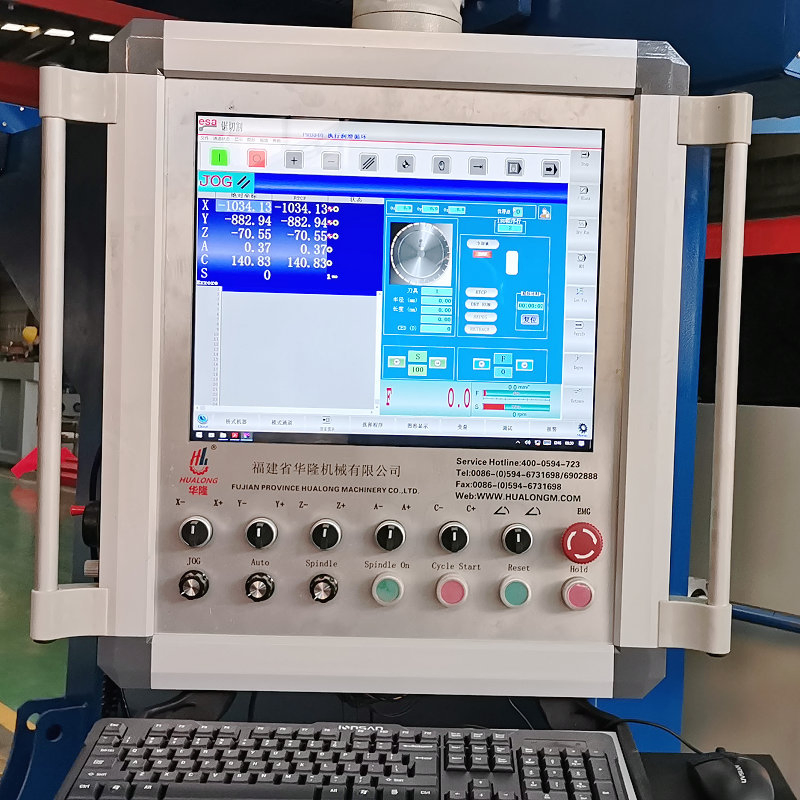

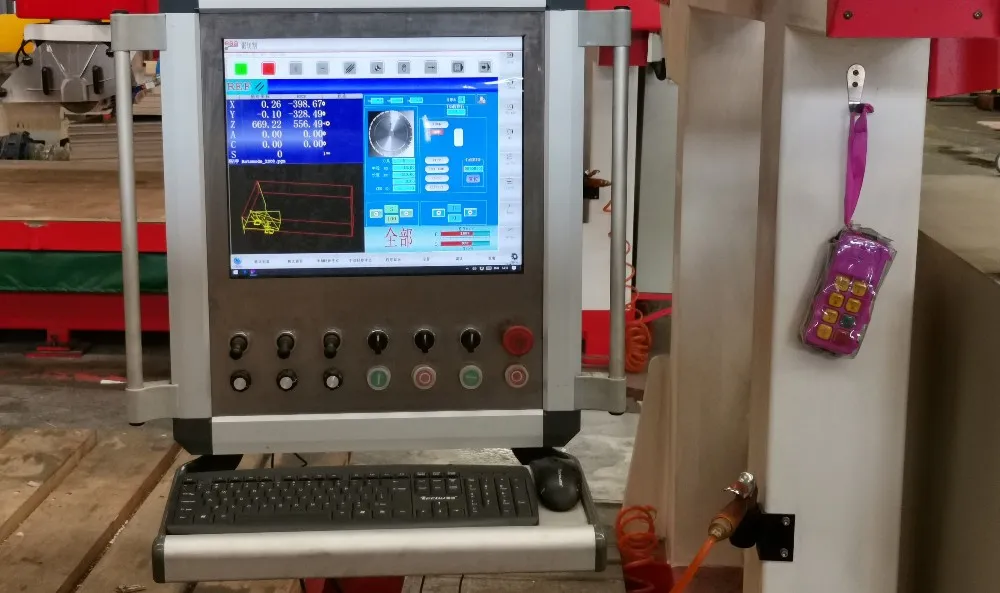

Control System

Advanced micro computer control system with touch screen, supporting multiple programming methods including manual programming and PC processing operations.

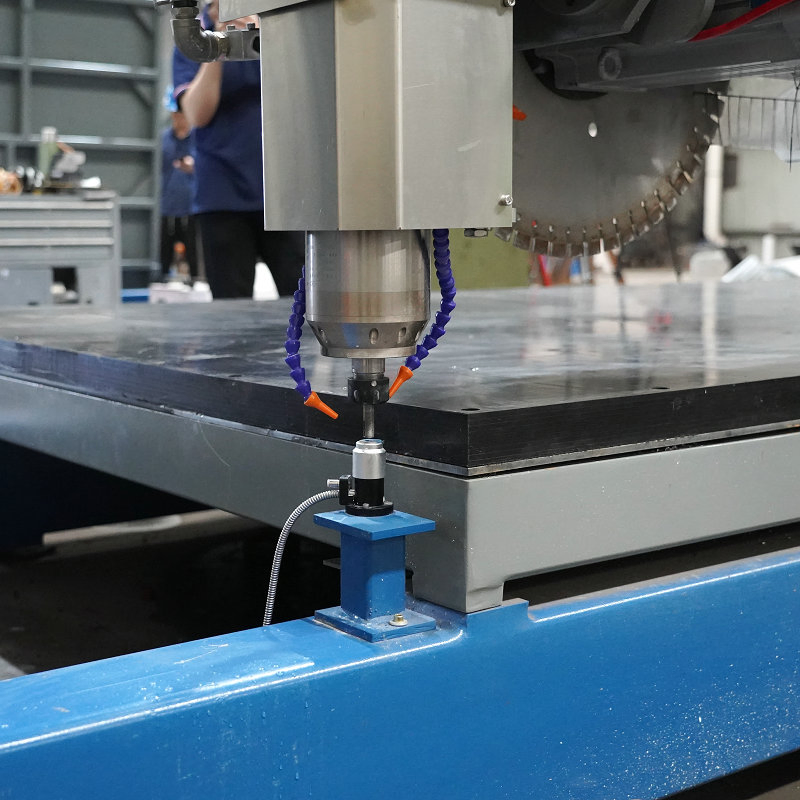

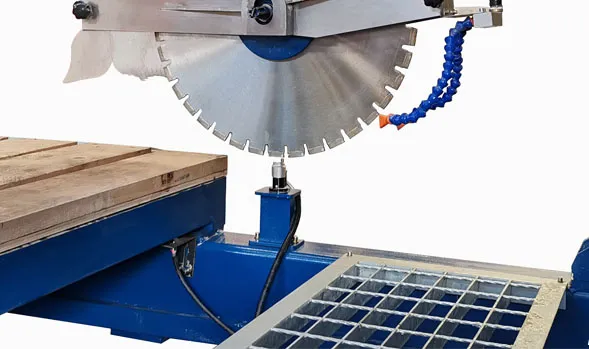

Tool Measuring System (Optional)

Blade diameter or tool length presetter enables the machine to process stone with ultimate accuracy.

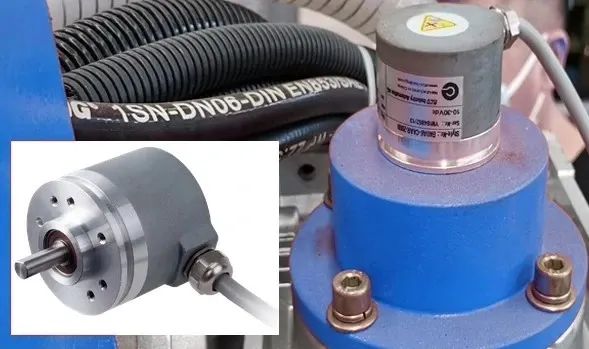

Incremental Encoder

High-precision determination of head movement in X, Y, Z directions and worktable rotation to ensure precise positioning.

Laser Reticule Apparatus (Optional)

Assists in verifying and calibrating the position of the stone slab before starting the processing cycle.

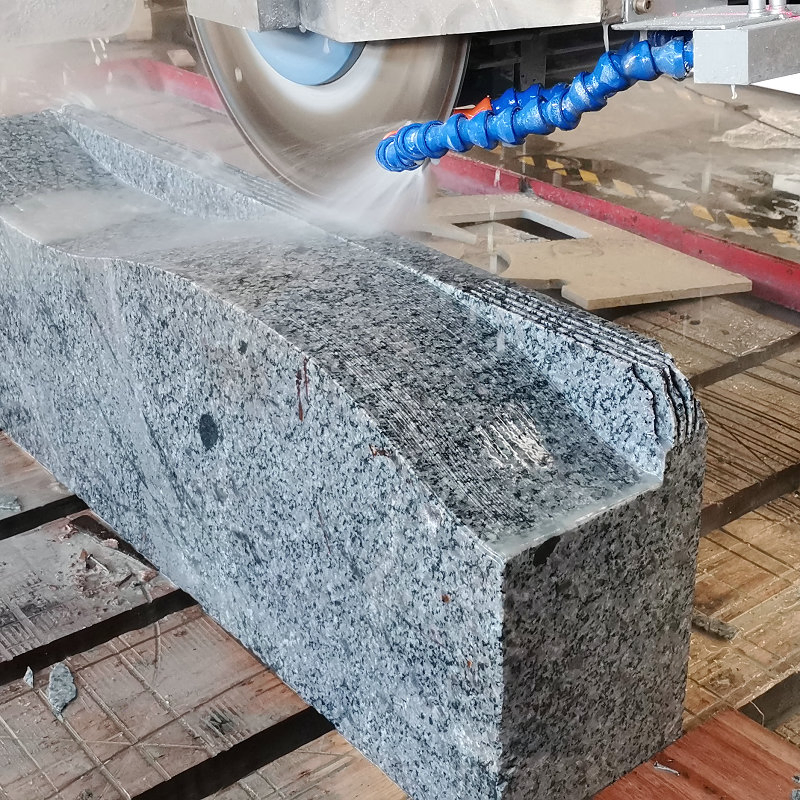

Processing Gallery & Layouts

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, we are a professional and top stone machine manufacturer with more than 30 years of experience in China. We also have authorized agents worldwide to handle after-sales service.

Q: Can I get a machine configured according to my requirements?

A: Yes, we welcome OEM and ODM orders to meet custom machine specifications.

Q: This is my first time using this kind of machine, is it easy to operate?

A: Guided setup videos and an English instruction manual are provided. Additionally, free online support is available until you are confident in operating the machine.

Q: What is your MOQ and delivery policy?

A: The minimum order quantity is 1 set. Delivery can be arranged directly to your port or door. Competitive pricing and freight options will be calculated based on your destination.

Q: How does your after-sales service work?

A: Free lifelong online technical guidance is provided. Local dealers in many countries are available for on-site machine installation and maintenance.

Q: What happens if the machine breaks down?

A: Many systems feature remote troubleshooting functions, allowing diagnostics and fixes via remote control and video guides. For replacement needs, guided manuals are provided, and local agents are available to handle mechanical repairs.
