Overview
| Mould Cavity |
Single Cavity |
| Plastic Material |
Customizable |
| Process Combination Type |
Customizable |
| Application |
Household Appliances, Furniture, Commodity |
| Runner |
Hot Runner |
| Design Software |
a |
| Installation |
Fixed |
| Certification |
CE, ISO |
| Customized |
Customized |
| After-sales Service |
- |
| Toothed Portion Shape |
Spur Gear |
| Product Name |
Water Meter Drive Gear |
| Material |
Polyphenylene Sulfide (PPS), Glass-Filled 30% |
| Secondary Process |
Ultrasonic Welding (for Hub Assembly) |
| Applications |
Residential Cold Water Meter |
| Transport Package |
Wooden Case |
| Specification |
Per Customer's Requirement |
Product Description

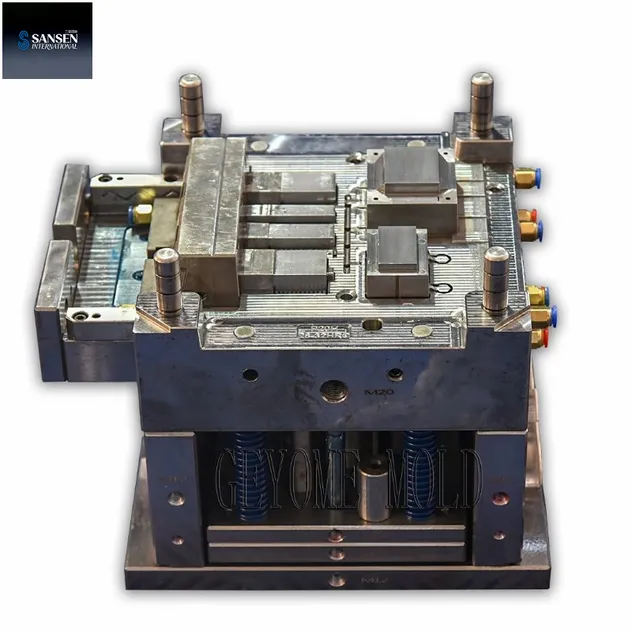

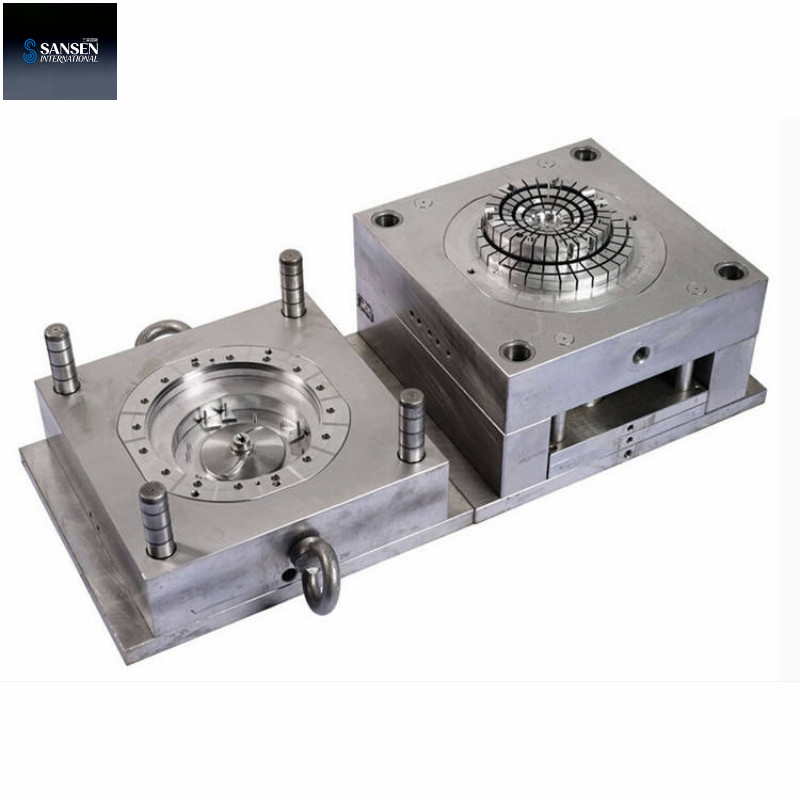

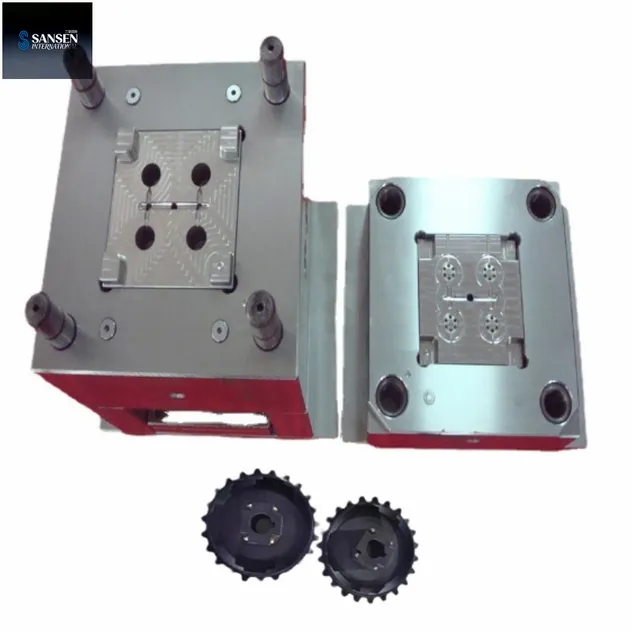

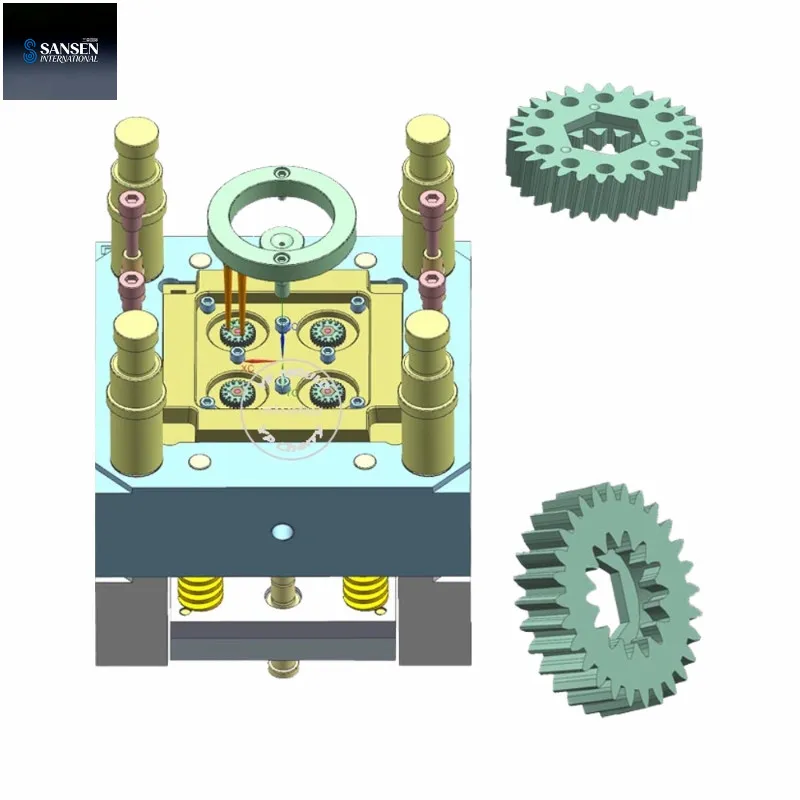

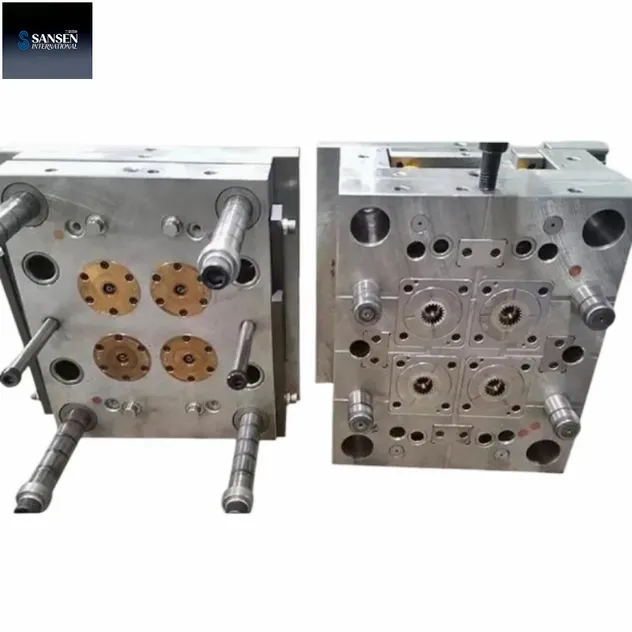

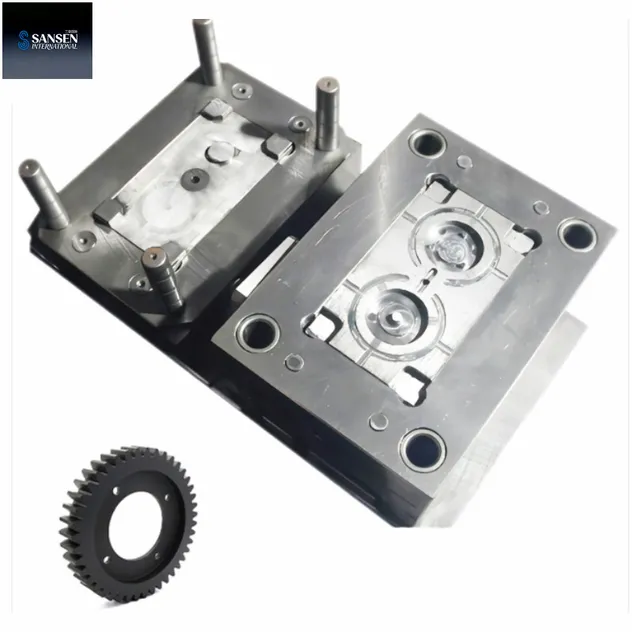

Precision Gear Injection Molds for Manufacturing High-Precision Transmission Parts
Specializing in the design and manufacturing of ultra-precise injection molds for high-performance plastic gears. These molds are engineered specifically for critical applications in water meters and electricity meters, where dimensional accuracy, low friction, and long-term reliability are paramount.
Product Features & Advantages
- Micron-Level Precision: Guarantees exceptional gear geometry, tooth profile accuracy, and minimal concentricity deviation for smooth, consistent meshing and optimal meter performance.
- High-Wear Resistance & Longevity: Molds are constructed from premium hardened steels and utilize advanced surface treatments to withstand abrasive materials and ensure a superior production lifecycle.
- Optimized for Engineering Plastics: Expertly designed for processing high-strength, low-wear engineering plastics such as POM, PA (Nylon), and PPS, which are essential for durable, functional meter gears.
- Stability for Mass Production: Incorporates balanced runner systems and precise temperature control to ensure consistent part quality, batch after batch, meeting stringent industry standards.
| Gear Type |
Spur Gears, Worm Gears, Bevel Gears, Planetary Gears |
| Module (Metric) |
0.3 - 1.5 (or specify) |
| Material |
POM (Acetal), PA6/PA66 (Nylon), PPS, other engineering plastics |
| Cavity Number |
1, 2, 4, 8, or as required for volume |
| Mold Steel |
S136, 2344 (H13), 8407, others for wear resistance |
| Surface Treatment |
Polish, Texture, Nitriding, Chrome Plating |
| Certification |
ISO 9001, PPAP, Dimensional Report (provided upon request) |
Company Profile
We are an international enterprise group dedicated to collaborative innovation and manufacturing of the entire value chain of the vehicle industry and molds. Extending globally, we integrate R&D, manufacturing, and sales, and are committed to providing global automotive customers with high-quality and systematic solutions.
The group has invested heavily to build a modern intelligent manufacturing base. We have introduced dozens of large-scale intelligent injection molding machines such as Toshiba 3000T/1800T, and equipped our facilities with advanced equipment such as high-end mold processing centers and three-coordinate measurement centers, forming a full-process closed-loop capability from mold development to component production. We have the scale delivery capability of several million sets of high-end car interior and exterior parts and components.

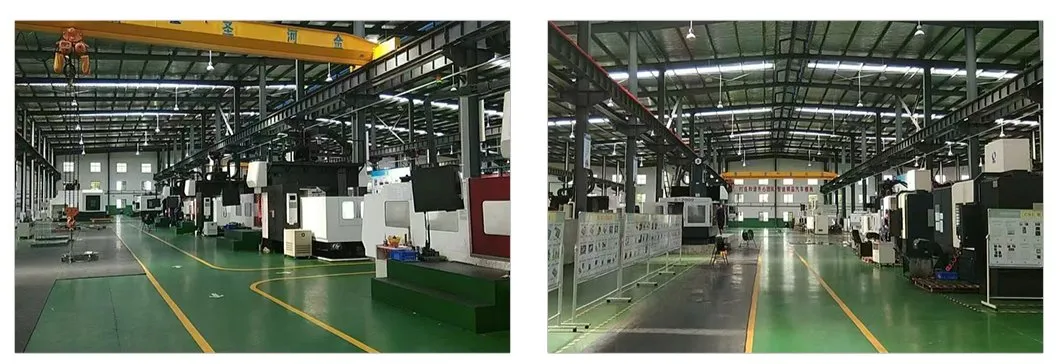

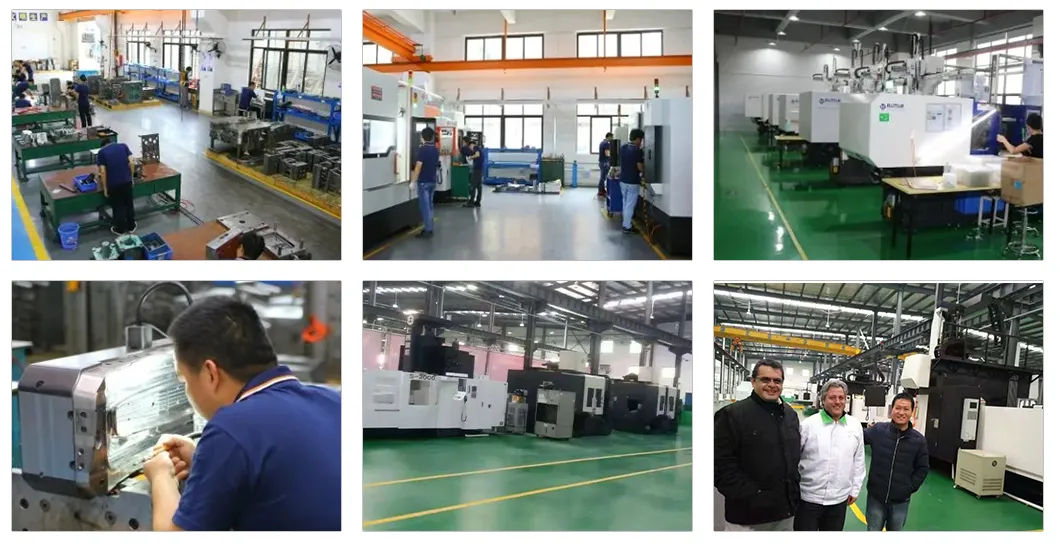

Our Factory
Certifications
Cooperative Brand
FAQ
Where can I get product & price information?
Please send us your requirements, and we will contact you as soon as we receive your inquiry.
How long does it take to get a sample?
It depends on your specific items, but generally within 1 to 20 days.
Can you provide design services?
Yes, of course. Just provide product requirements and applications, and we will design for you. We can also provide customized hardware based on your ideas, samples, or drawings.
What kinds of information do you need for a quote?
Please provide the product drawing in PDF format. It is even better if you can provide it in .dwg, .stp, .igs, or .stl formats.
What materials are typically used for high-precision transmission gears?
We specialize in processing high-strength, low-wear engineering plastics such as POM (Acetal), PA (Nylon), and PPS to ensure dimensional stability and wear resistance.
What quality standards are applied to your manufacturing processes?
Our operations are compliant with ISO 9001 standards, and we provide comprehensive quality reports, including dimensional checks and PPAP documentation upon request.
