Sophisticated Geometry Tool for Customizable Gear Mold in Flow Meters

Customization:	Available
Warranty:	1years
Shaping Mode:	Injection Mould

Basic Info.

Mould Cavity Single Cavity

Plastic Material Customizable

Process Combination Type Customizable

Application Household Appliances, Furniture, Commodity

Runner Hot Runner

Design Software CAD/UG

Installation Fixed

Certification CE, ISO

Customized Customized

After-sales Service -

Toothed Portion Shape Spur Gear

Product Name Water Meter Drive Gear

Material Polyphenylene Sulfide (PPS), Glass-Filled 30%

Secondary Process Ultrasonic Welding (for Hub Assembly)

Applications Residential Cold Water Meter

Transport Package Wooden Case

Specification Per Customer's Requirement

Product Description

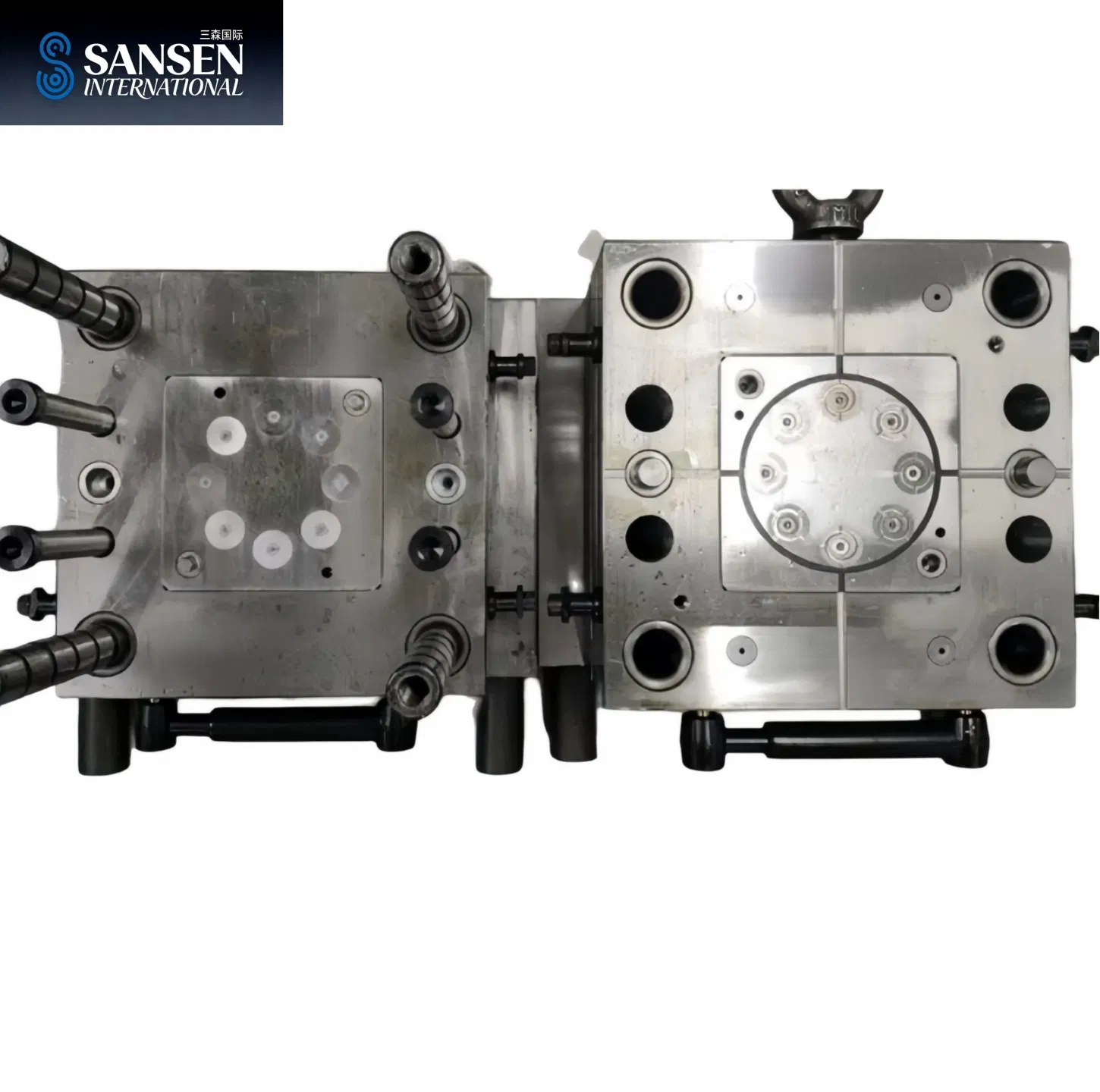

Sophisticated Geometry Tool for Customizable Gear Mold in Flow Meters

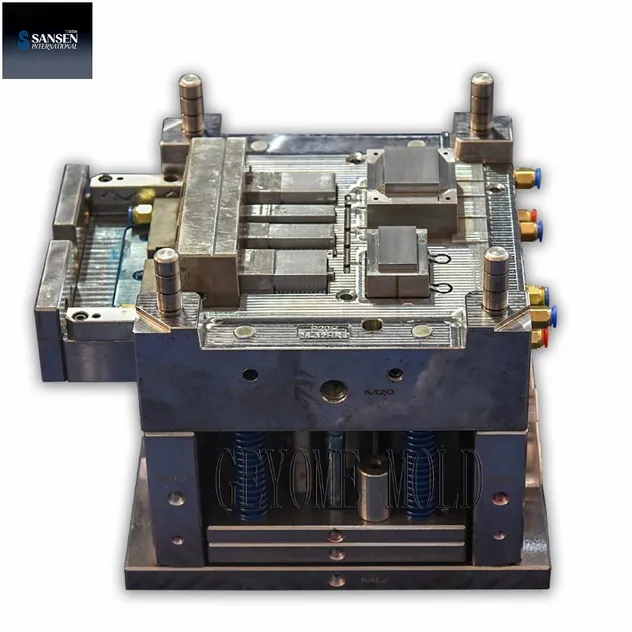

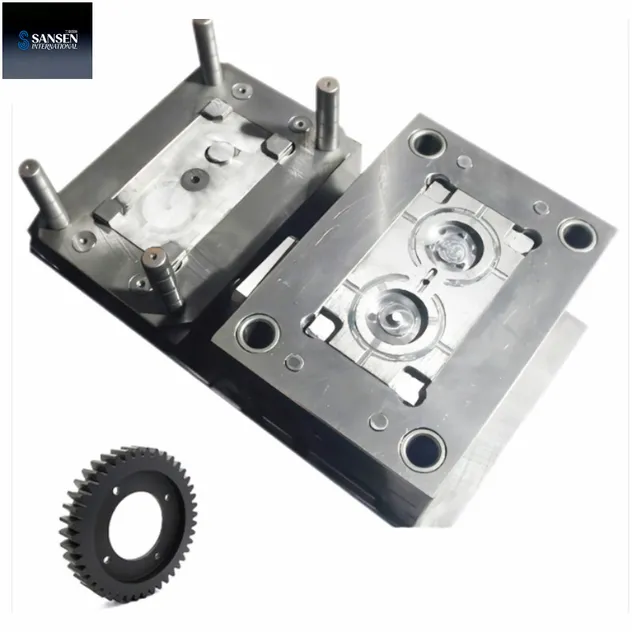

Precision Gear Injection Molds for Manufacturing High-Precision Transmission Parts

Specializing in the design and manufacturing of ultra-precise injection molds for high-performance plastic gears. These molds are engineered specifically for critical applications in water meters and electricity meters, where dimensional accuracy, low friction, and long-term reliability are paramount.

Product Features & Advantages:

Micron-Level Precision: Guarantees exceptional gear geometry, tooth profile accuracy, and minimal concentricity deviation for smooth, consistent meshing and optimal meter performance.
High-Wear Resistance & Longevity: Molds are constructed from premium hardened steels and utilize advanced surface treatments to withstand abrasive materials and ensure a superior production lifecycle.
Optimized for Engineering Plastics: Expertly designed for processing high-strength, low-wear engineering plastics such as POM, PA (Nylon), and PPS, which are essential for durable, functional meter gears.
Stability for Mass Production: Incorporates balanced runner systems and precise temperature control to ensure consistent part quality, batch after batch, meeting stringent industry standards.

Ideal for manufacturers of metering components seeking reliable, high-volume production tooling.

Parameter	Details / Specifications
Gear Type	Spur Gears, Worm Gears, Bevel Gears, Planetary Gears
Module (Metric)	0.3 - 1.5 (or specify)
Material	POM (Acetal), PA6/PA66 (Nylon), PPS, other engineering plastics
Cavity Number	1, 2, 4, 8, or as required for volume
Mold Steel	S136, 2344 (H13), 8407, others for wear resistance
Surface Treatment	Polish, Texture, Nitriding, Chrome Plating
Certification	ISO 9001, PPAP, Dimensional Report (provided upon request)

Company Profile

We are an international enterprise group dedicated to collaborative innovation and manufacturing of the entire value chain of the vehicle industry and molds. Extending globally, we integrate R&D, manufacturing, and sales, and are committed to providing global automotive customers with high-quality and systematic solutions.

The group has invested heavily in assets to build a modern intelligent manufacturing base. It has introduced dozens of large-scale intelligent injection molding machines such as Toshiba 3000T/1800T, and is equipped with advanced equipment such as high-end mold processing centers and three-coordinate measurement centers, forming a full-process closed-loop capability from mold development to component production. It has the scale delivery capability of several million sets of high-end car interior and exterior parts and components.

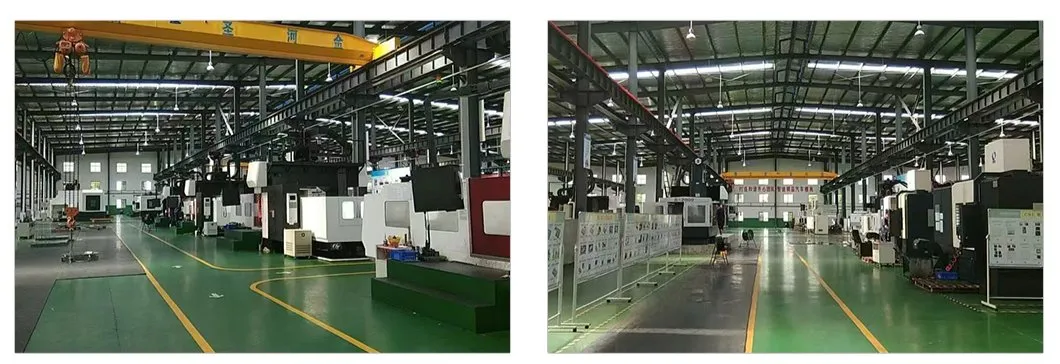

Our Factory
