Hydraulic Crimping (Curving) Bending Roll Froming Machine

1 / 5

Hydraulic Crimping (Curving) Bending Roll Froming Machine

Customization:	Available
After-sales Service:	Online Support ,Free Spare Parts
Warranty:	24 Months

Send Inquiry

Product Description

Basic Info

Model NO.FMS-Crimping

Tile TypeCrimping Machine

CertificationCE, ISO

ConditionNew

CustomizedCustomized

UsageRoof, Wall, Floor

Transmission MethodMachinery

Angle RangeLess Than 90 Degree

Radius Min500mm (Semi-Circle Radius550)

Main Motor Power4kw

Hydraulic Station Power4kw

Transport PackageNaked with Plastic Film

Specification1600mm*1200mm *1350mm

TrademarkFMS

OriginChina

HS Code84552210

Production Capacity50sets/Month

Packaging & Delivery

Package Size160.00cm * 120.00cm * 130.00cm

Package Gross Weight800.000kg

Product Description

1. Suitable Material to Process

Specification Type	Detail Requirements
Material Type	Pre-painted steel coil, galvanized steel coil, galvalume steel coil
Material Thickness	0.3mm - 0.8mm
Material Width	1200mm

2. Technique Parameters of Main Machine

Appearance Size	1600mm × 1200mm × 1350mm
Install Method	Horizontal
Angle Range	Less than 90 degree
Operating Speed	90 degree / 4min
Work Stations	2 Stations
Raw Material Thickness	0.3mm - 0.8mm
Minimum Radius	500mm (Semi-circle Radius 550mm)
Main Motor Power	4KW
Hydraulic Station Power	4KW
Mold Material	40Cr, quenching and azotizing
Control Method	PLC (Delta), Encoder (Omron)
Press Head Design	Pillar style press head
Power Supply	415V, 50HZ, 3 PHASES

Warranty & Maintenance

In correct operation and maintenance, the machines are 12 months quality guarantee from time of loading, life guarantee repair; within quality guarantee period, except for failures caused by human error, spare parts will be provided freely; after the quality guarantee period, only charge the cost of the spare parts. Free technical supporting and maintenance consulting in lifetime.

Installation Support

If necessary, we can send one technician to your factory to install the machine; you need assist our technician to get the visa and pay for the two-way flight tickets, local accommodation (at least three-star hotel with air condition), food, visa cost. And you need pay 200USD/day for technician extra. The total time will be calculated as per the time that shown on the flight tickets when our technician leaves China and arrives back to China.

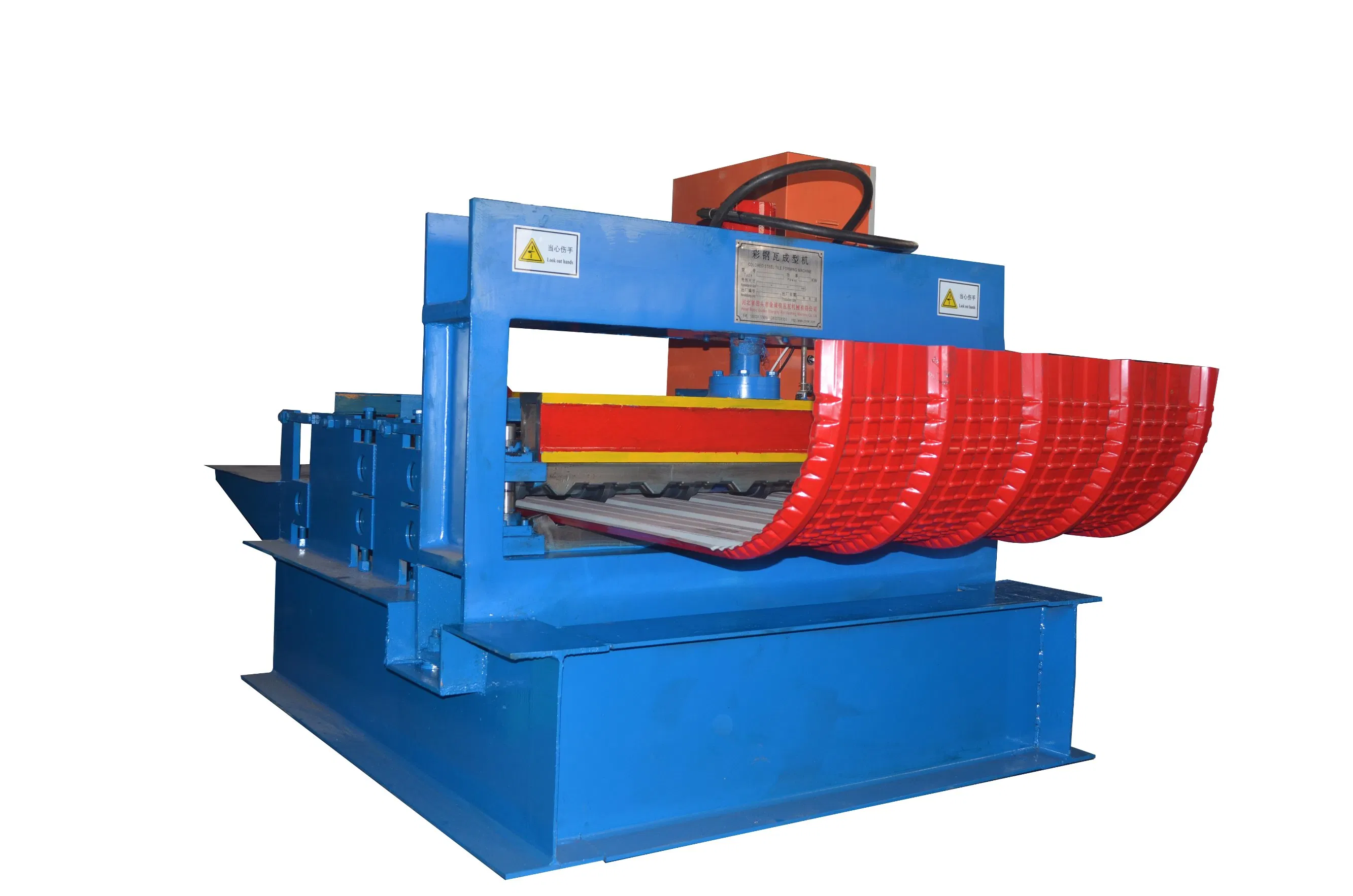

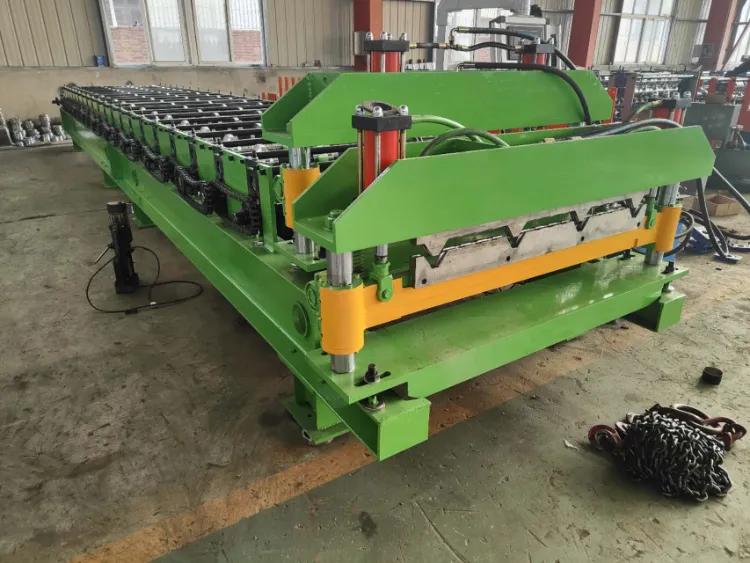

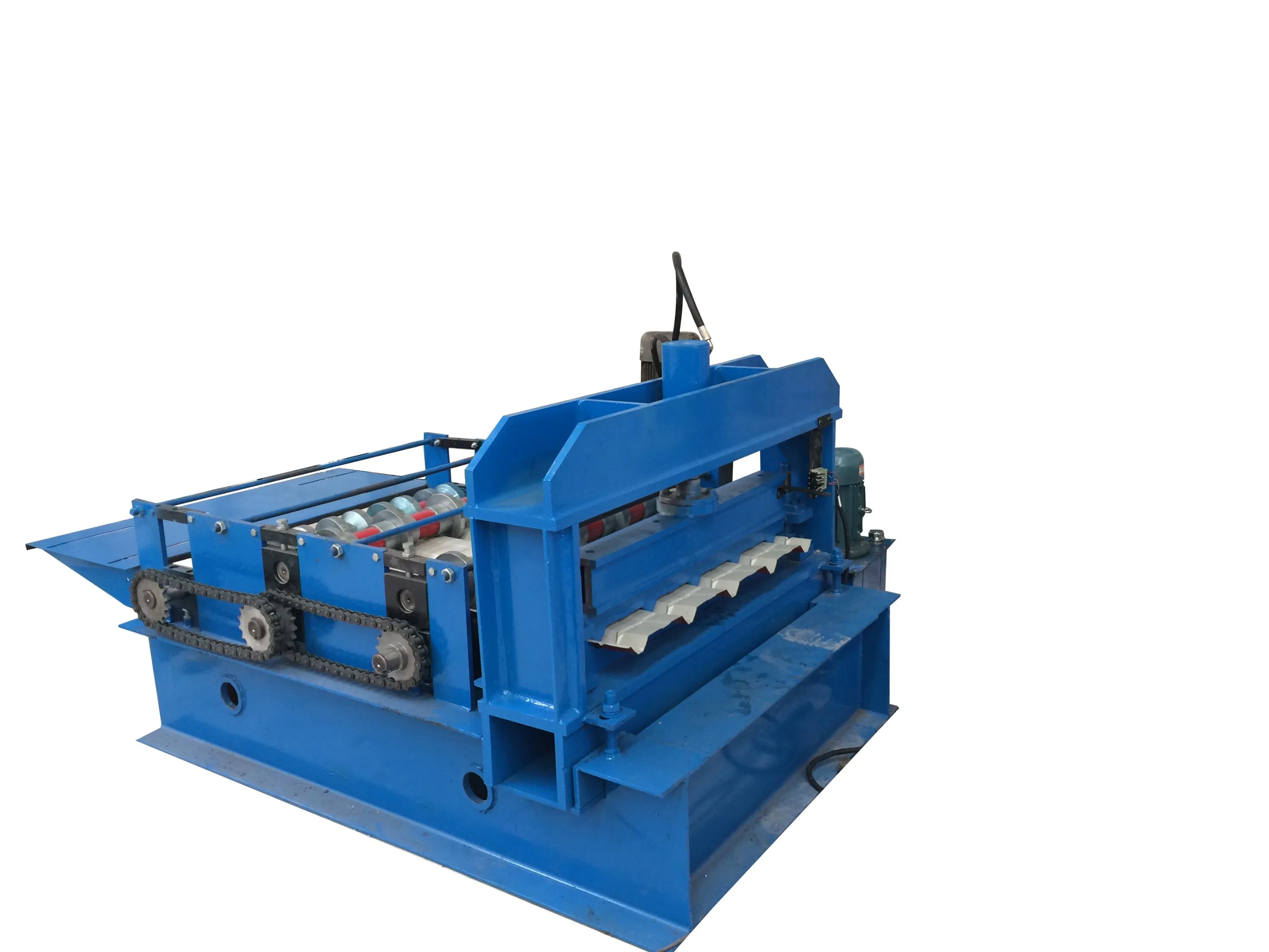

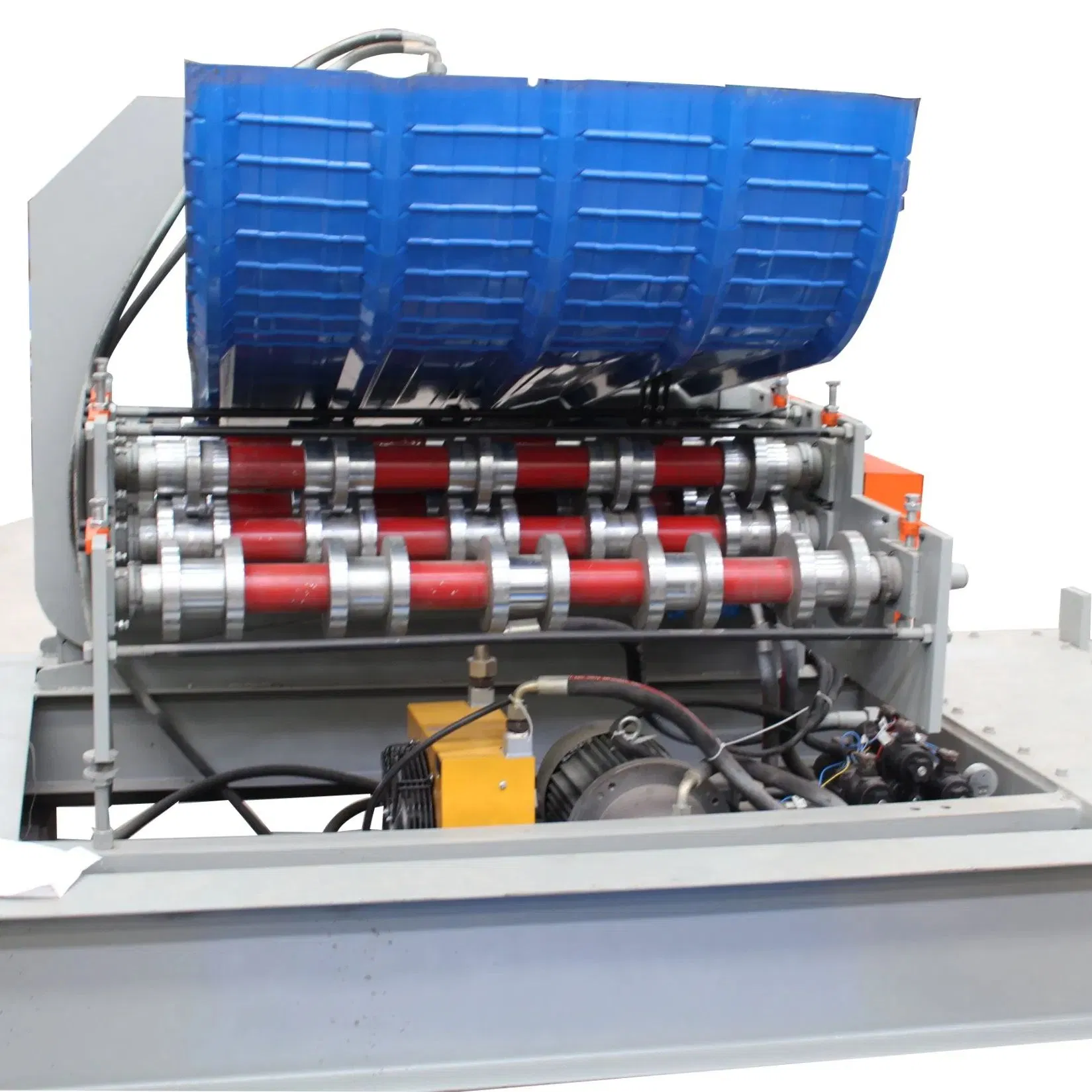

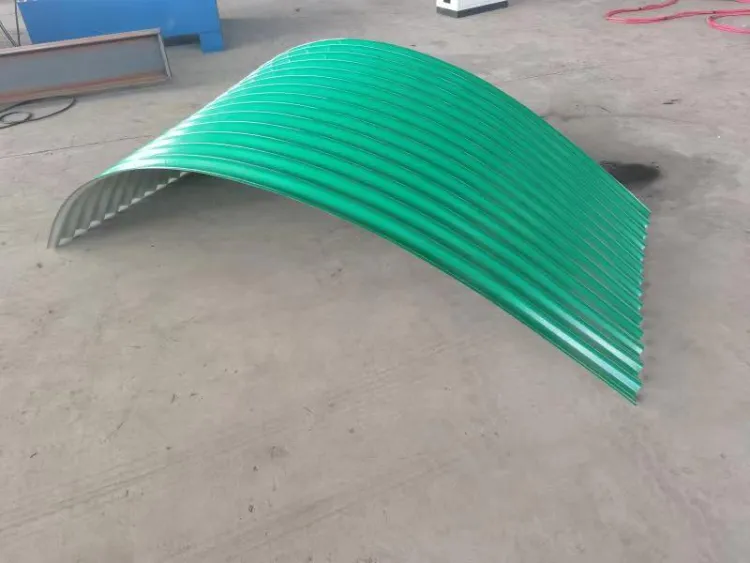

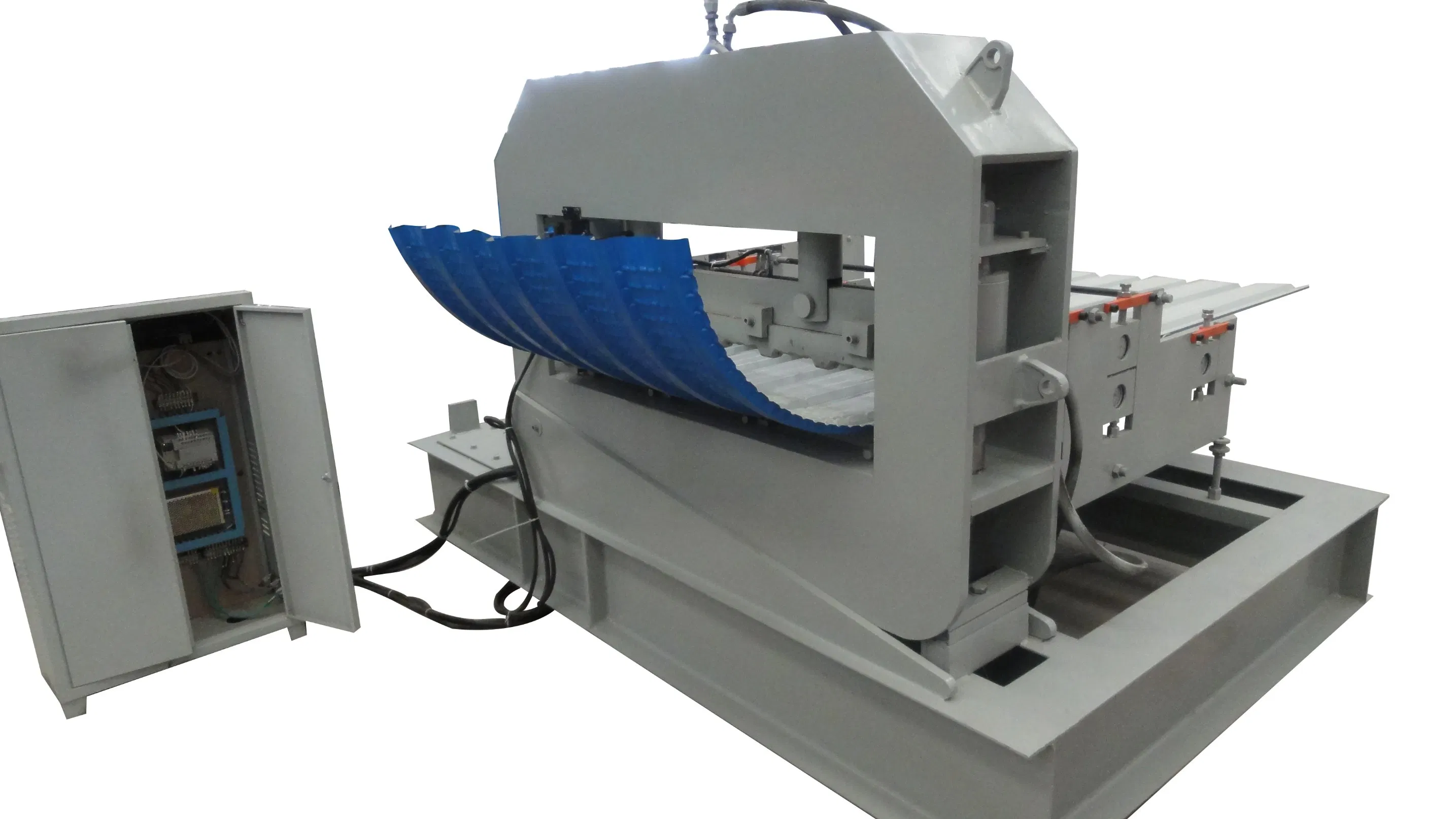

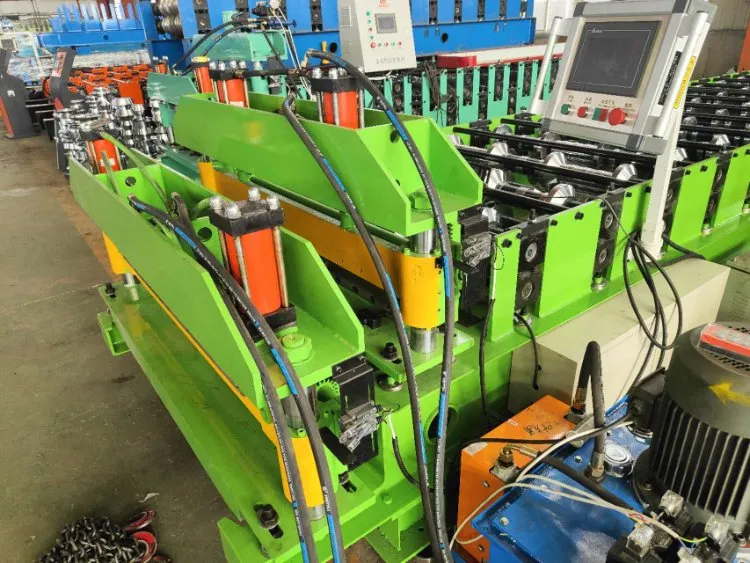

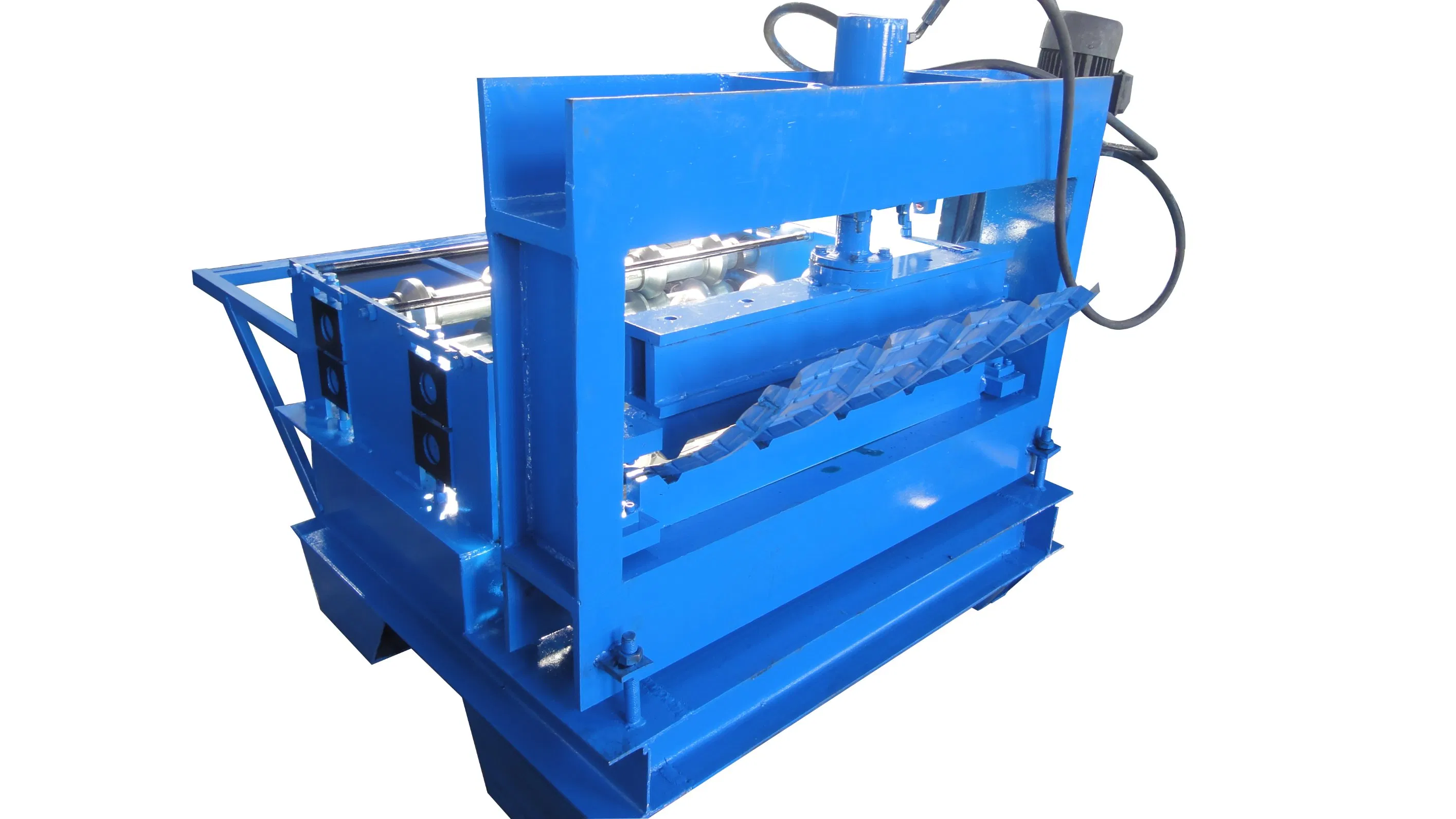

Product Images

Frequently Asked Questions

Q1: What thickness and width of steel coils can the FMS-Crimping machine process?

A: The machine is suitable for processing materials (pre-painted steel coil, galvanized steel coil, galvalume steel coil) with a thickness range of 0.3mm to 0.8mm and a maximum width of 1200mm.

Q2: What are the power specifications required for this crimping machine?

A: It requires a power supply of 415V, 50HZ, 3 PHASES. The main motor power is 4KW, and the hydraulic station power is also 4KW.

Q3: What is the bending angle range and minimum radius capacity?

A: The angle range is less than 90 degrees with a working speed of 90 degrees per 4 minutes. The minimum bending radius is 500mm (semi-circle radius of 550mm).

Q4: How long is the warranty and what does it cover?

A: Under proper operation and maintenance, the machine comes with a 12-month quality guarantee from the time of loading. During this period, non-human error failures are covered with free replacement spare parts. We also provide lifetime free technical support and repair consultation.

Q5: Can a technician be dispatched to assist with installation?

A: Yes, if required, a technician can be sent to your factory. The buyer must cover travel-related expenses (visa fees, round-trip flight tickets, local accommodation of at least a 3-star AC hotel, and meals) along with a service charge of 200 USD/day per technician.

Q6: What control method and mold materials are used in this machine?

A: The control method features a Delta PLC and Omron Encoder system. The mold is made of high-quality 40Cr steel, subjected to quenching and azotizing treatments for enhanced durability.
