Self drilling anchor bolt combines drilling, grouting and anchoring together. It ensures the anchoring effect in complex ground conditions. It's safe, reliable and efficient.
R Thread size: R25, R32, R38, R51, T76, T111
T Thread size: T30, T40, T52, T73, T76, T103, T127, T130
Thread standard: ISO10208, ISO1720
1) Hot-dip galvanized: EN ISO 1461:2009
2) Epoxy coated

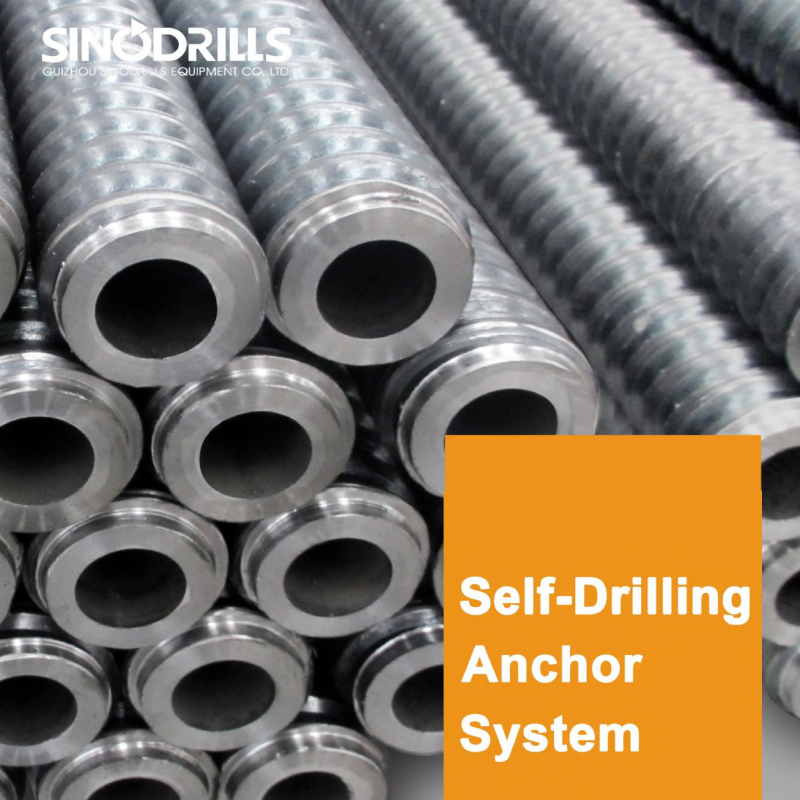

The Self Drilling Anchor system is comprised of a hollow threaded anchor bar with a sacrificial drill bit that performs drilling, anchoring and grouting in a single operation. Self drilling anchor system is mainly used in slope stabilization, tunneling pre-support, foundations with micro piles etc jobs, which is widely used in mining, tunneling, railway, metro construction etc projects.
Self Drilling Anchor Bolts are a bolting solution for unstable ground conditions such as sand, gravel, silt, and clay, and in soft to medium fractured rock formations. For projects facing such ground conditions, self-drilling anchors should be considered as the main productivity solution. Self-Drilling Anchors are designed for optimized installation, tailored to the project’s needs.

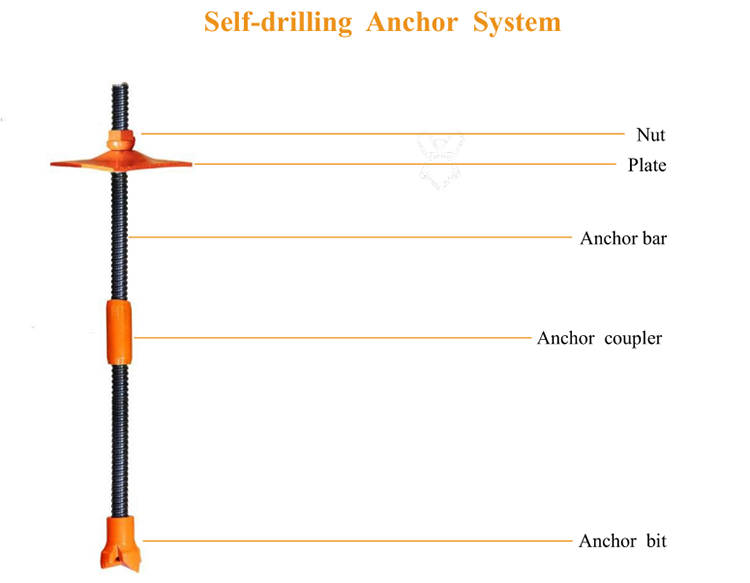

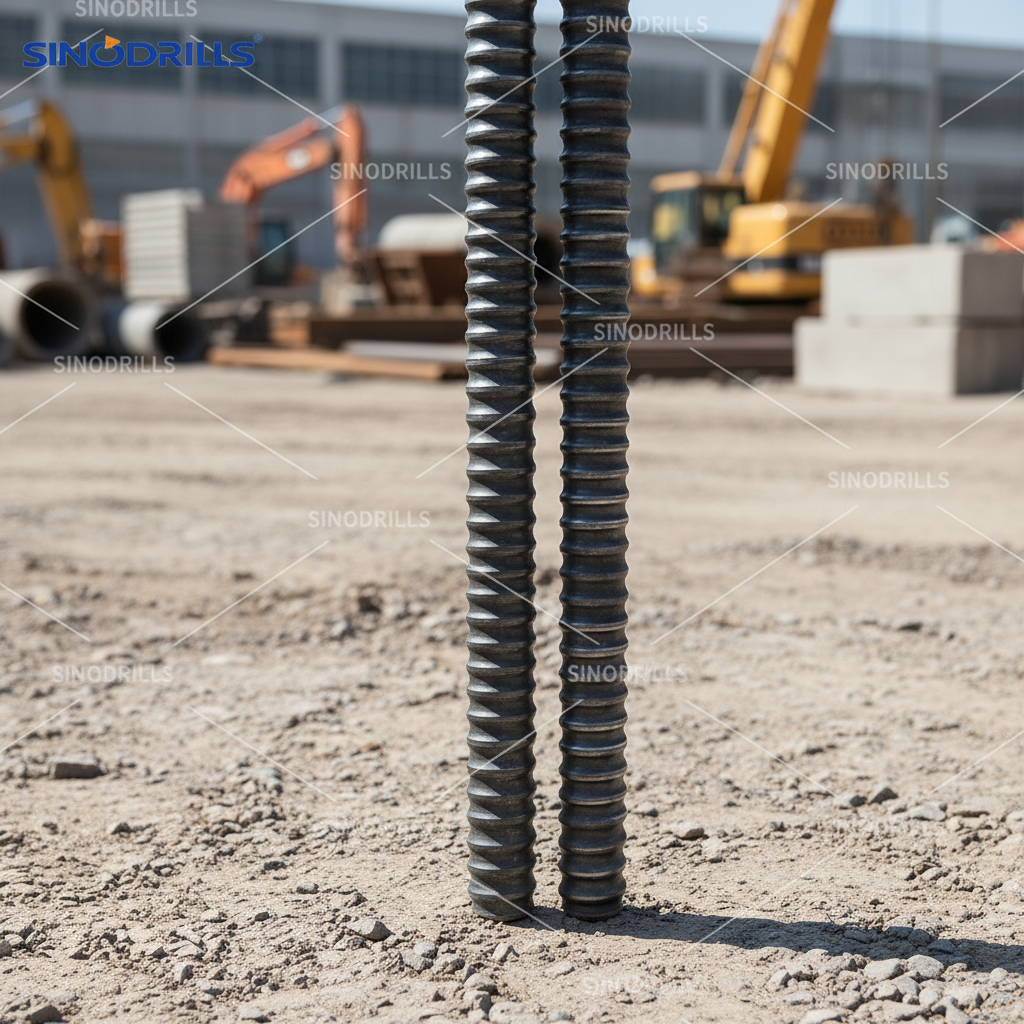

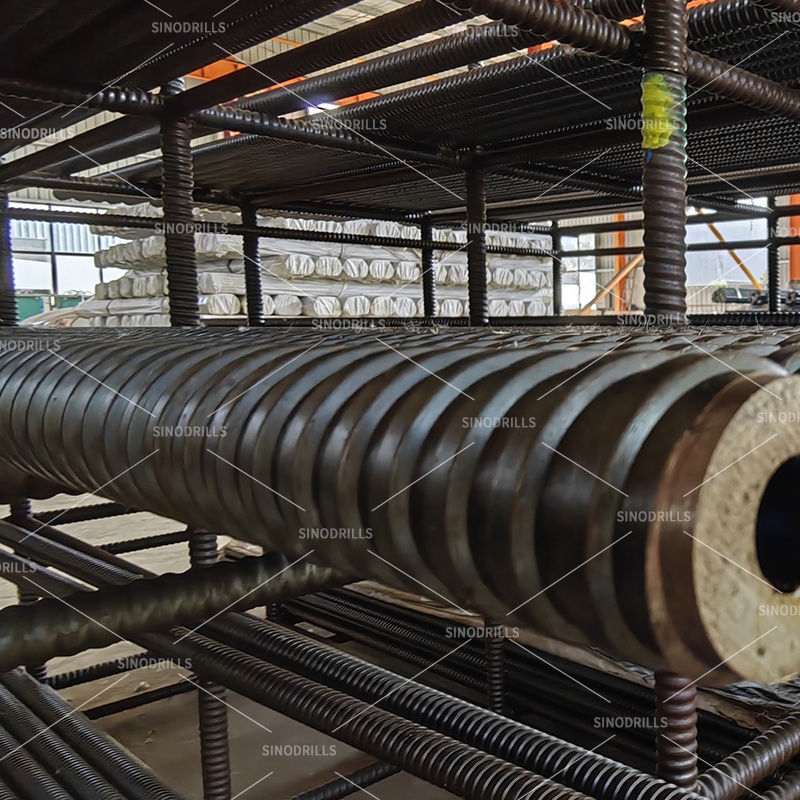

A self-drilling anchor bolt is composed of a hollow anchor bolt, anchor nut, anchor plate, anchor coupler, drill bit, and centralizer. By drilling a hole in collapsing soil or loose rock, with an efficient hollow bar and a drill bit, and after the drilling operation injecting grout into the hollow bar and surrounding cavity, self-drilling anchors are a top productivity solution.

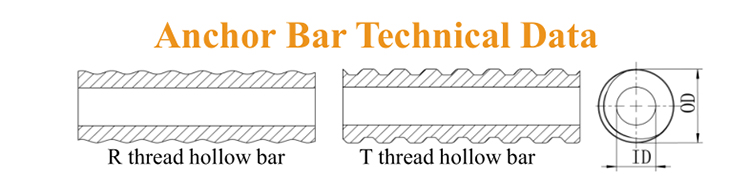

| Size | O.D (mm) | I.D (mm) | Ultimate Load (KN) | Yield Load (KN) | Weight (kg/meter) |
|---|---|---|---|---|---|
| R25N-14 | 25.0 | 14.0 | 200 | 150 | 2.3 |
| R32L-22 | 32.0 | 22.0 | 210 | 160 | 2.8 |
| R32N-21 | 32.0 | 21.0 | 280 | 230 | 2.9 |
| R32N-18.5 | 32.0 | 18.5 | 280 | 230 | 3.4 |
| R32S-17.5 | 32.0 | 17.5 | 360 | 280 | 3.5 |
| R32S-15 | 32.0 | 15.0 | 360 | 280 | 4.1 |
| R32SS-14 | 32.0 | 14.0 | 450 | 350 | 4.3 |
| R38N-21 | 38.0 | 21.0 | 500 | 400 | 4.8 |
| R38N-19 | 38.0 | 19.0 | 500 | 400 | 5.5 |
| R38S-18 | 38.0 | 18.0 | 560 | 460 | 6.0 |
| R51L-38 | 51.0 | 38.0 | 550 | 450 | 6.0 |
| R51L-36 | 51.0 | 36.0 | 550 | 450 | 7.6 |
| R51N-36 | 51.0 | 36.0 | 800 | 630 | 7.6 |
| R51N-33 | 51.0 | 33.0 | 800 | 630 | 8.4 |
| R51S-30 | 51.0 | 30.0 | 930 | 730 | 9.4 |
| T76N-49 | 76.0 | 49.0 | 1600 | 1200 | 16.5 |
| T76S-45 | 76.0 | 45.0 | 1900 | 1500 | 19.0 |
| T30-11 | 30.0 | 11.0 | 320 | 260 | 3.3 |
| T30-14 | 30.0 | 14.0 | 275 | 220 | 2.9 |
| T30-16 | 30.0 | 16.0 | 245 | 190 | 2.7 |
| T40-16 | 40.0 | 16.0 | 660 | 525 | 7.1 |
| T40-20 | 40.0 | 20.0 | 540 | 425 | 5.6 |
| T52-26 | 52.0 | 26.0 | 930 | 730 | 10.0 |
| T73-56 | 73.0 | 56.0 | 1035 | 830 | 10.8 |
| T73-53 | 73.0 | 53.0 | 1160 | 970 | 14.0 |
| T73-45 | 73.0 | 45.0 | 1600 | 1270 | 17.5 |
| T103-78 | 103.0 | 78.0 | 2270 | 1800 | 25.0 |
| T103-51 | 103.0 | 51.0 | 3600 | 2670 | 44.0 |
| Thread Design & Standard Information | |||||
| Thread direction | Left hand / Right hand | ||||
| Thread standard | ISO 10208 / ISO1720 / Other international standards | ||||

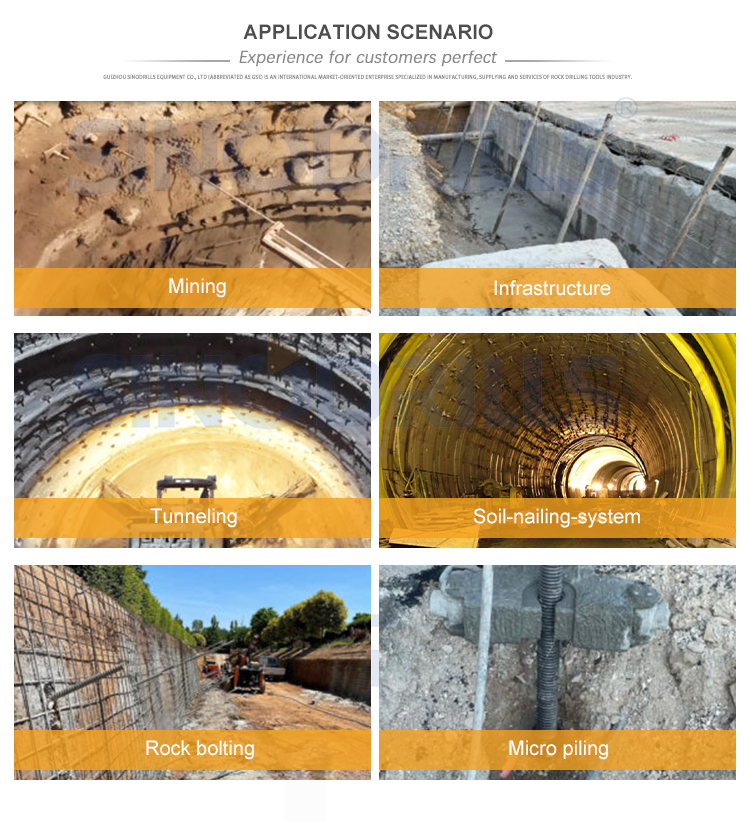

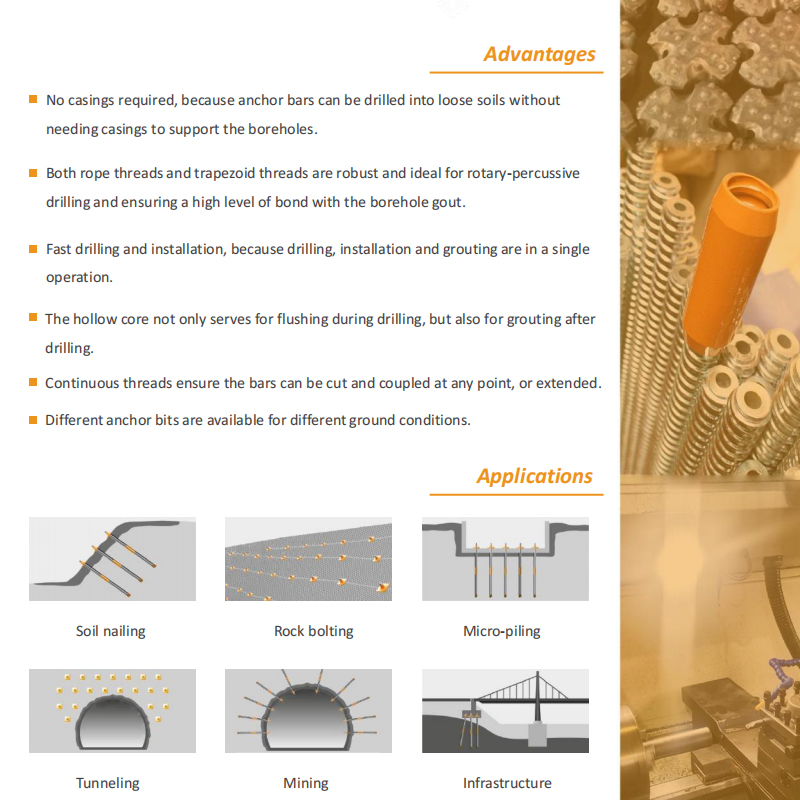

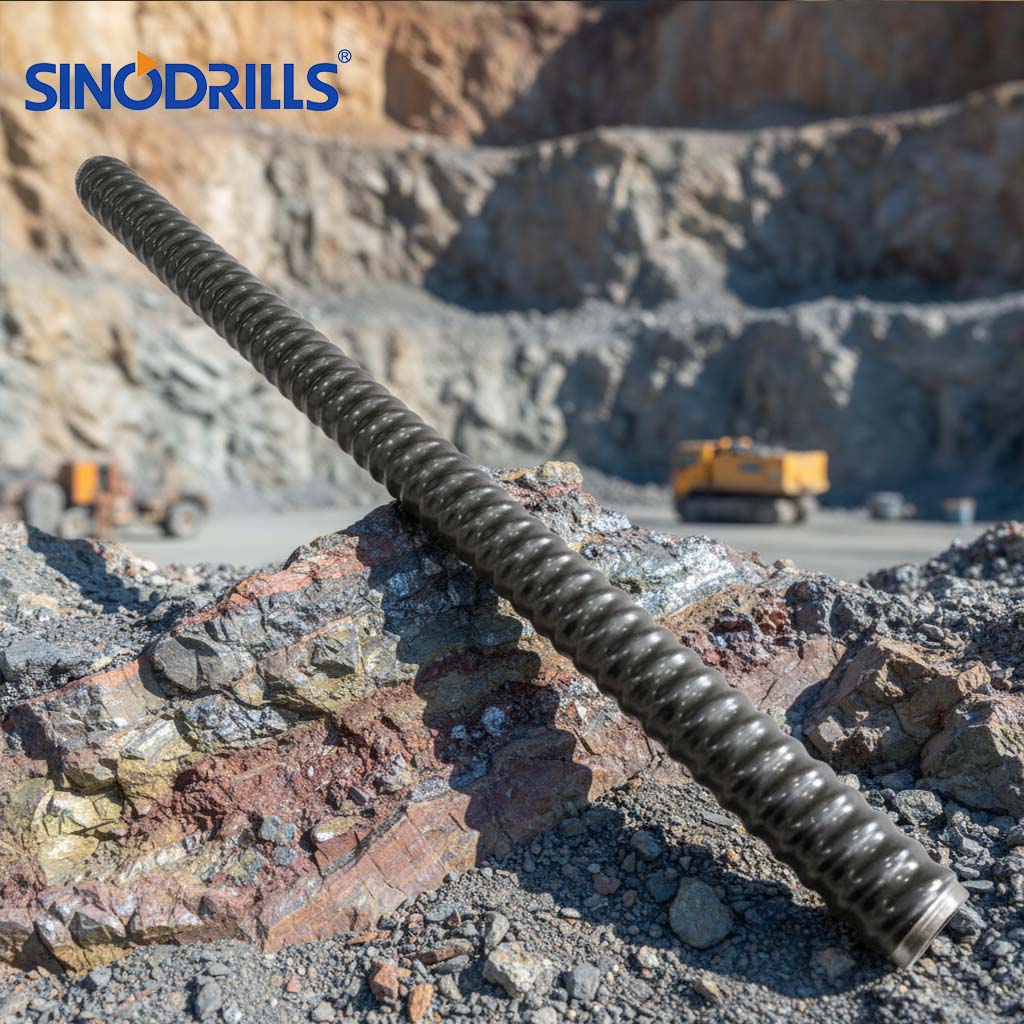

Self drilling anchor bolt system is mainly used for tunnel and underground engineering, slope engineering, ground and foundation engineering. It can be used for pre-construction support and can effectively enhance the stability of soil and rock mass.

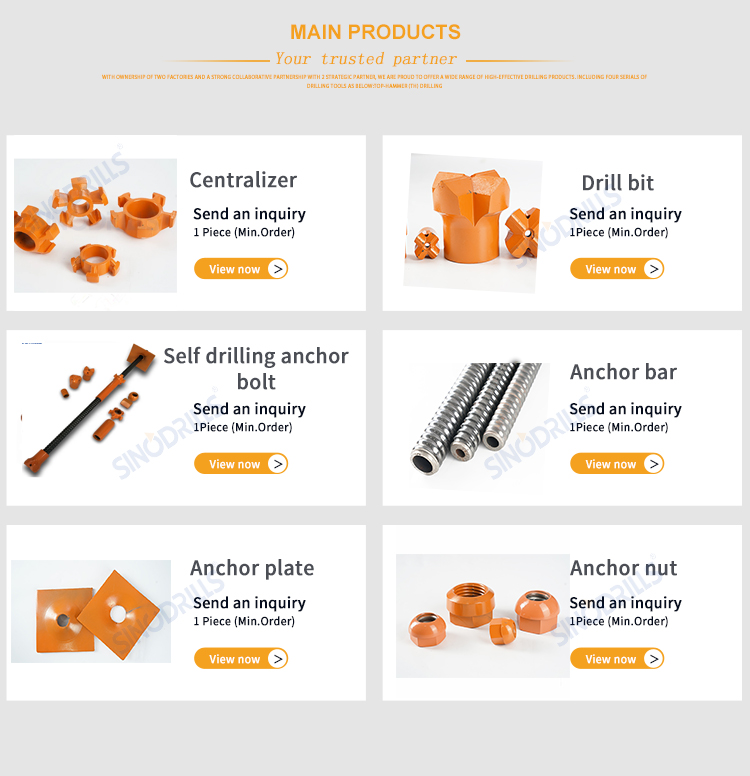

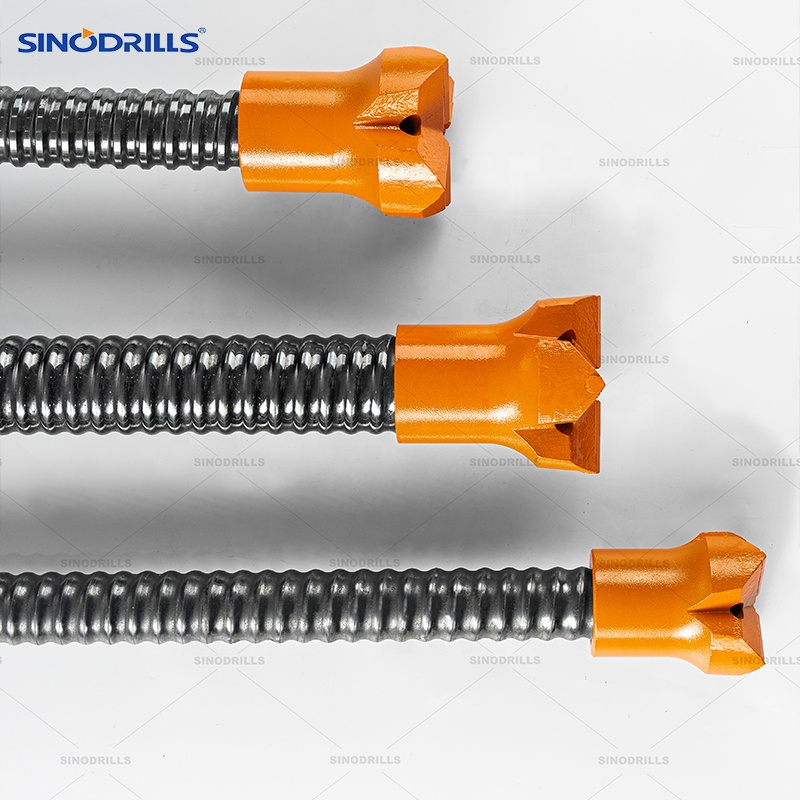

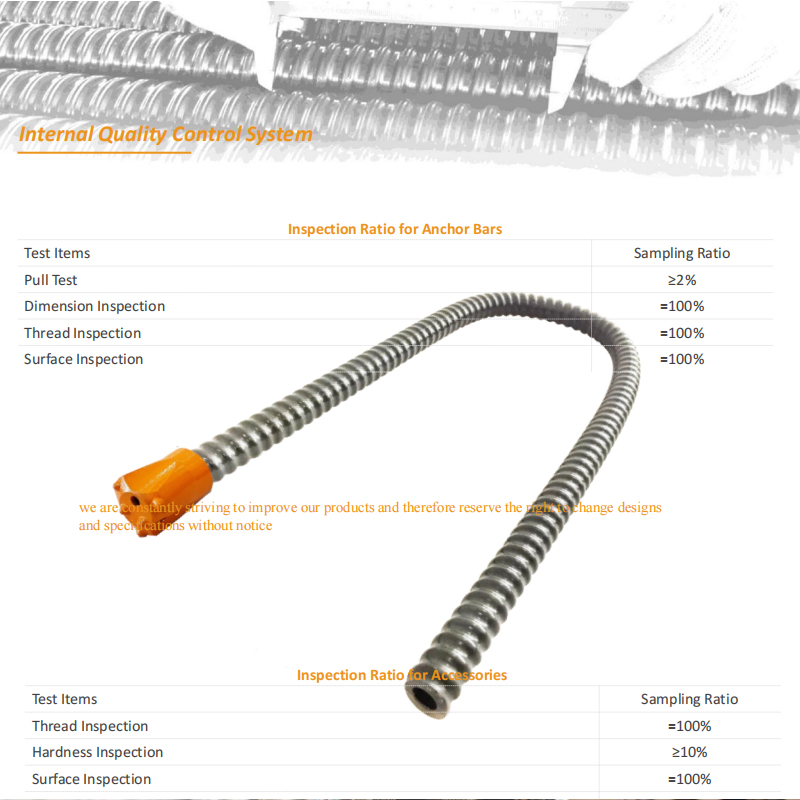

Self drilling anchor bolt is composed by hollow anchor bolt, anchor nut, anchor plate, anchor coupler, drill bit, centralizer, and the hollow anchor bars can be cut and lengthened by coupling on request. Customized products are also available based on your specific requirements.

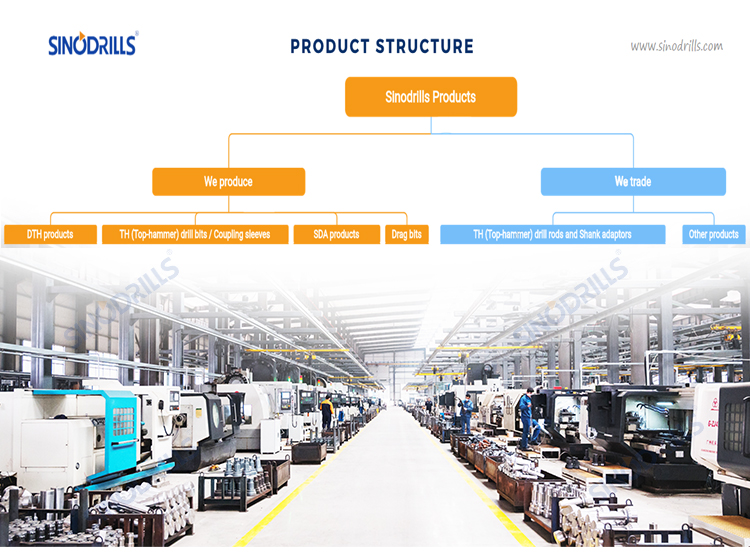

We are an international market-oriented enterprise specialized in manufacturing, supplying and services of rock drilling tools industry. Owning two factories and working in close collaboration with another two strategic cooperative partners, we supply a full range of drilling product, including four categories as below:
