Fast Drill Speed Anchoring Tunnel Boring Machine For Mineral Exploration
Product Description
The anchor drilling rig is mainly used in hydropower stations, railways and highways, in order to prevent and control various geological disasters, anchoring operations are carried out on landslides and dangerous rock masses. It is also suitable for the construction of deep foundation pit support, reinforcement hole for anti-float anchor and foundation grouting, blast-hole in blasting project, high pressure sprinkling stake and tunnel pipe support hole, etc.

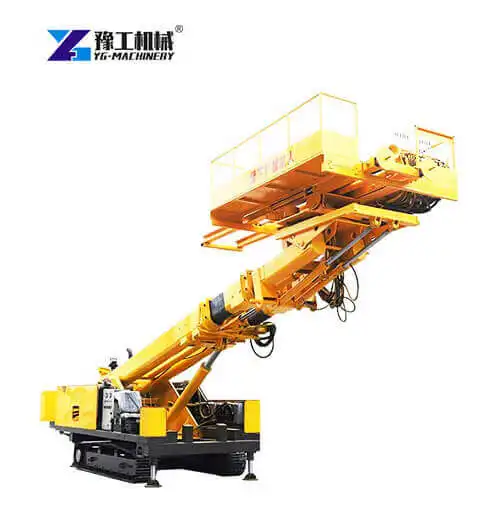

Crawler-type high-lift anchoring drilling rig is a high-efficiency drilling rig developed for anchoring, spraying and dewatering in subways, high-rise buildings, airports, ground source heat pumps and other deep foundation pits.
Technical Specification
Model
YG-MG40
YG-MG50
YG-MG70
Hole depth(m)
10-60
25-70
35-80
Hole diameter(mm)
90-180
90-165
90-200
Rod spec(mm)
Φ76*1500
Φ76*1500 / Φ89*1500
Φ76*1500 / Φ89*1500
Hole angle
0-90°
0-90°
0-90°
Output rotary speed(rpm)
90
70
70
Rated output torque(N*m)
2400
2500
3900
Power head max stroke(mm)
1800
1800
1800
Max lifting force(KN)
25
30
35
Power head max feeding force(KN)
20
25
25
Hydraulic system rated pressure(Mpa)
16
17-18
17-18
Rotary electric power
4-pole/7.5kw
Hydraulic
Hydraulic
Oil pump electric power(kw)
4
22
22
Electric voltage
380v
380v
380v
Weight(kg)
1000
1260
1460
Hydraulic station dimension(mm)
640*600*580
1850*780*1360
1850*810*1280
Dimension(mm)
2800*800*1400
3000*780*1360
3100*1000*1500
Anchor drilling machine mainly used in geological hazard prevention and control of the landslide and the displacement of anchorage and control structures of dangerous rock mass high slope rock mass of anchorage engineering, such as urban can also be used for deep foundation pit, the foundation reinforcement holes, blasting holes and drain hole drilling.
With simple structure, light weight, disintegration of relocation transportation convenience; Adopts full hydraulic pressure control, convenient operation; A second gear rotary speed and torque, can be selected according to actual needs, strong adaptability.
Small Anchoring Machine
Three phase asynchronous electric motor and double connect gear oil pump provide power for drilling rig.
It adopts hydro-cylinder feeding pattern with compact structure, big lifting force and good stability.
The radiator can reduce the oil temperature efficiently to avoid hydraulic oil from changing to low viscosity or destroyed because of the very high temperature of oil.
The up and down hydro-cylinder can adjust the angle of guide rail fast to satisfy drilling requirements from different angles.

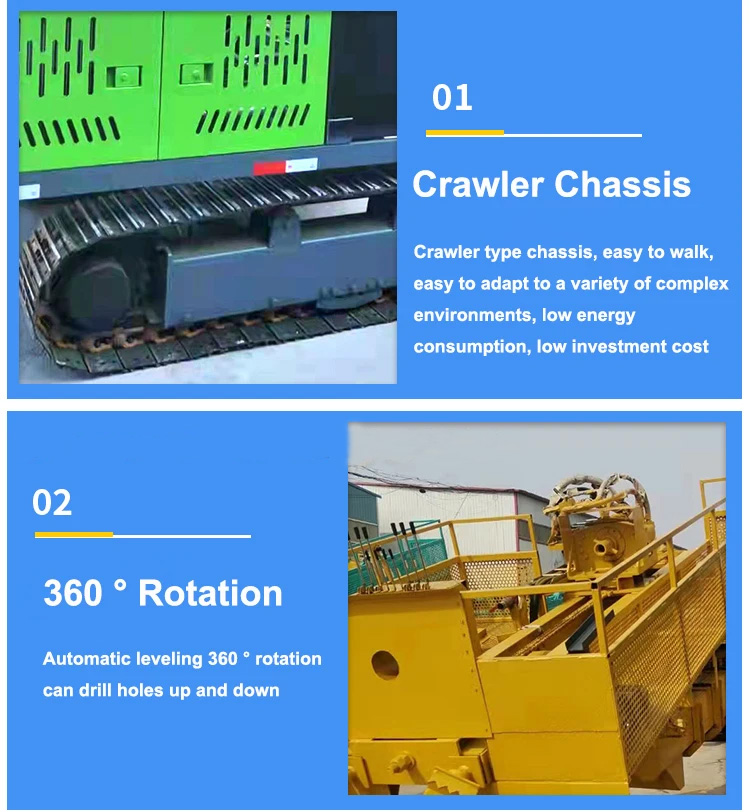

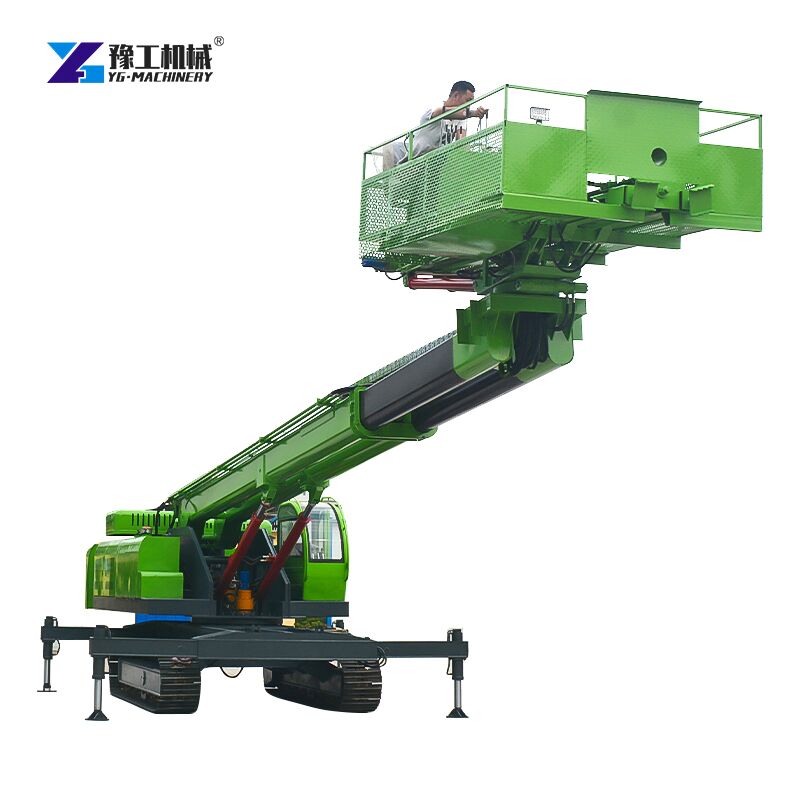

Crawler Type Anchoring Machine
The anchor drilling rig has compact structure, energy saving and high efficiency, low noise, environmental protection.
This machine adopts low speed and high torque motor to make the performance stable, reliable and has a long life.
This machine has a wide range of application and strong drilling ability.
The power head has a long stroke and the drilling efficiency is high.
The power head and the guide rail are connected by a new type of wear plate, and the guide rail wears little.
Drilling angle range is large, multi-functional design makes drilling positioning convenient and reliable.
Packing & Delivery
Manufacturing & Production
Frequently Asked Questions
Q1: What are the main applications of this anchoring drilling rig?
A1: It is primarily designed for hydropower stations, railways, and highways to prevent geological hazards like landslides. It is also widely used for deep foundation pit support, anti-float anchoring, tunnel pipe support, and blast-hole drilling.
Q2: Can the drilling rig handle different drilling angles?
A2: Yes, the guide rail's drilling angle can be adjusted from 0° to 90°, allowing the operator to satisfy diverse drilling requirements from various angles efficiently.
Q3: How does the hydraulic system prevent overheating?
A3: The drilling rig is equipped with an optimized radiator system that efficiently reduces oil temperature, avoiding low viscosity degradation and keeping the hydraulic components running smoothly.
Q4: Is the equipment easy to transport to remote construction sites?
A4: Yes, the machine is designed with a lightweight and simple structure. It allows for quick disintegration, making relocation and transportation extremely convenient for tough terrains.
Q5: What are the performance benefits of the Crawler Type Anchoring Machine?
A5: The crawler type utilizes a low-speed, high-torque hydraulic motor for stable performance, offers high drilling efficiency with a long stroke, and incorporates eco-friendly low-noise operation suitable for urban deep foundation pits.
Q6: What models are available and how deep can they drill?
A6: We offer models YG-MG40, YG-MG50, and YG-MG70. Depending on the model and geological conditions, maximum hole depth ranges from 10 meters up to 80 meters.
