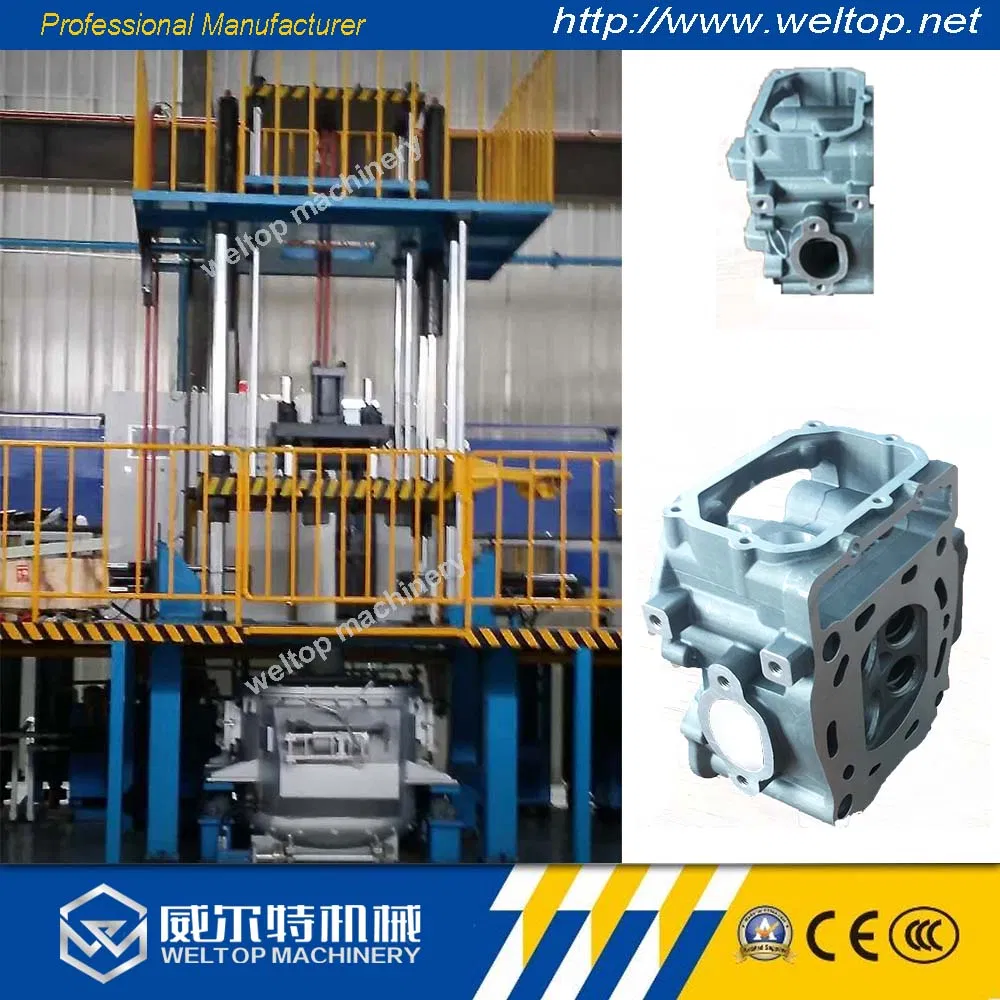

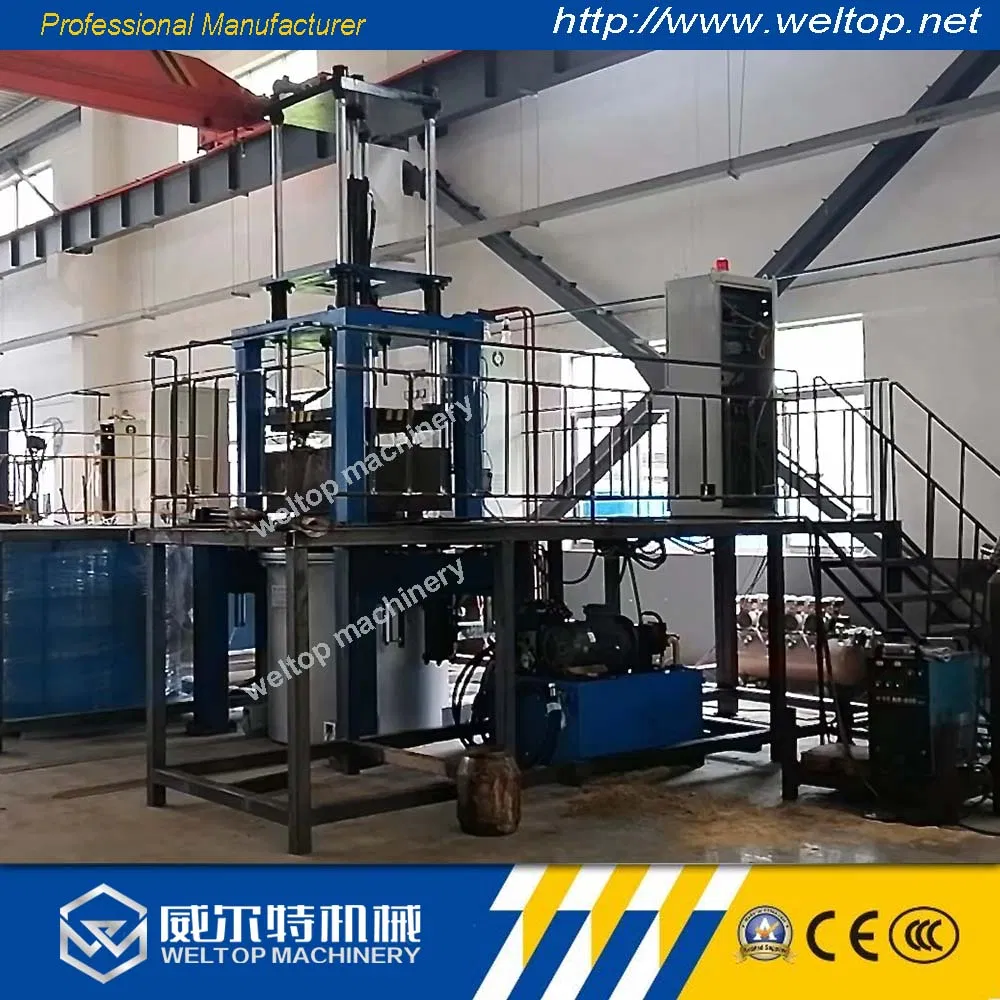

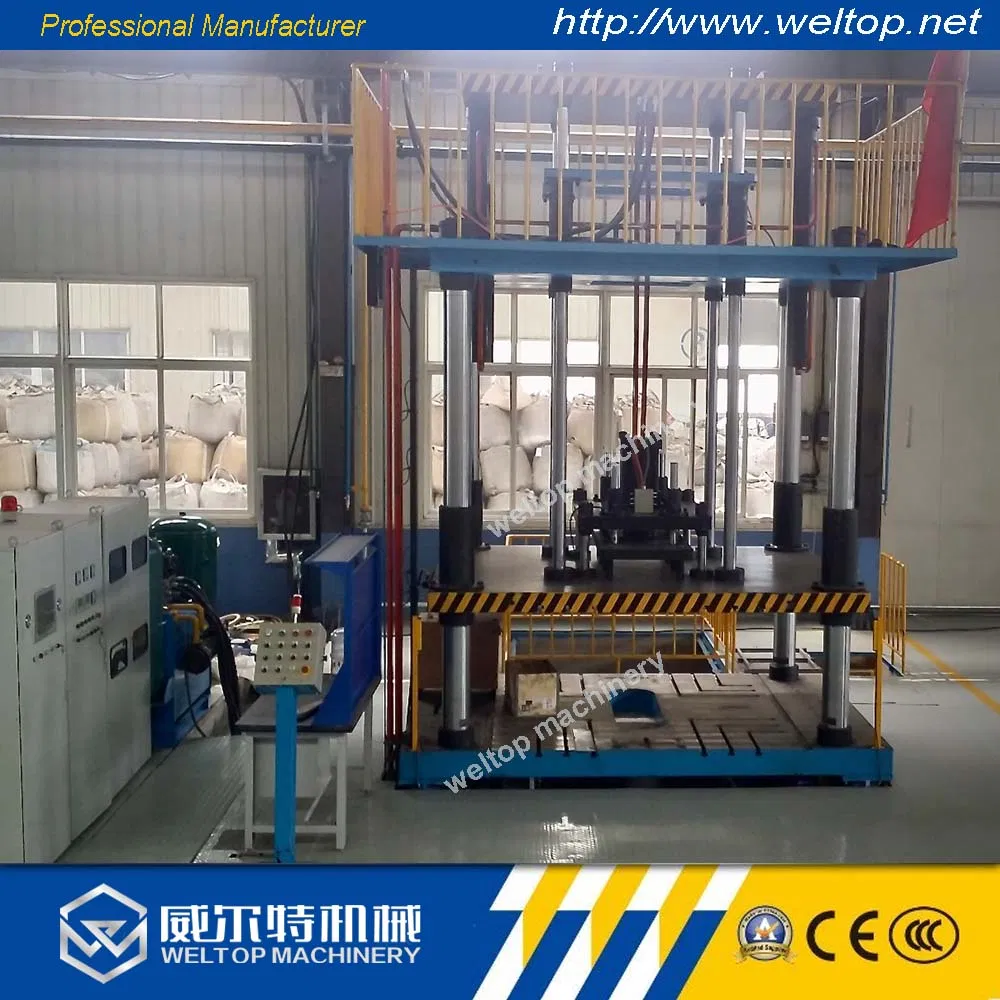

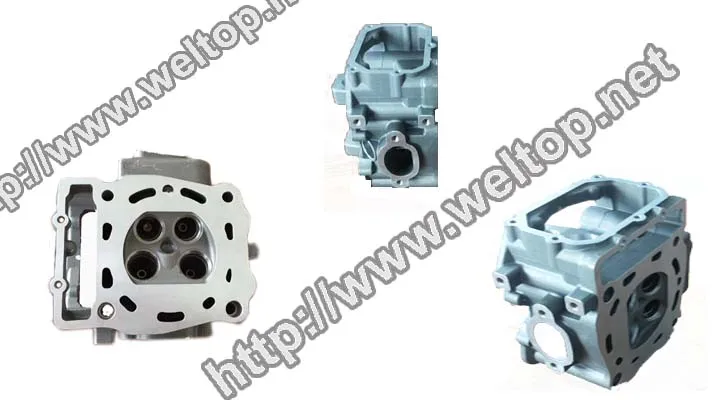

J455 500Kg low-pressure casting machine is a general-purpose equipment for low-pressure casting of aluminum alloy, which can be widely used in the production of aluminum alloy castings in automobile, motorcycle, instrument, textile machinery and aerospace industry. The machine consists of the main machine (including the closing mechanism, static mold four core drawing mechanism, frame, safety limit mechanism, picking up mechanism), hydraulic system, melting pool type holding furnace, liquid surface pressurization device, electrical control system and mold cooling system and other components.
Performance Characteristics
The closing mechanism is guided by four columns and adopts the closing method of fast closing and slow closing, which improves the working efficiency and reduces the impact on the mold. The rigidity of the machine is good because of the four-column structure;
The movable mold plate is equipped with safety limit device to prevent the movable mold plate from falling accidentally;

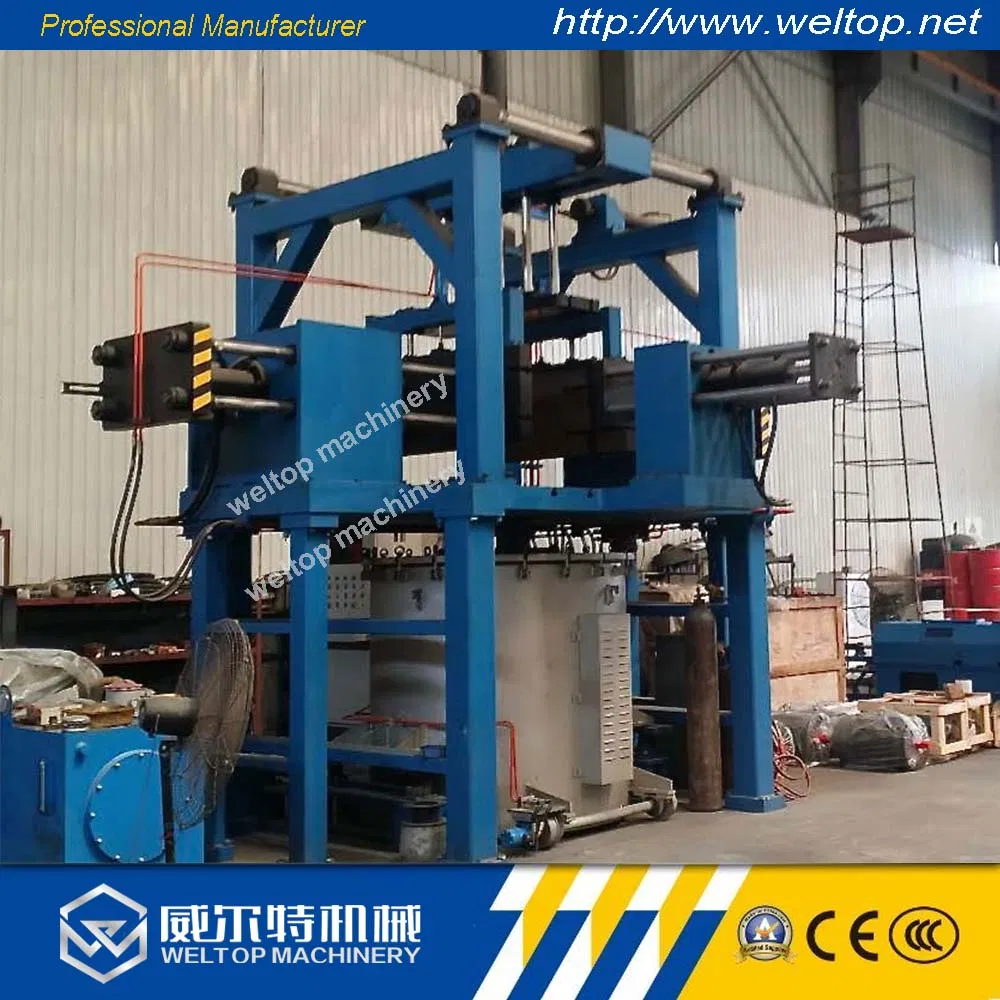

Four side dies are mounted on the octagonal base;
The pick-up tray adopts rotating oil cylinder, with smooth operation and adjustable up and down position;
Automatic hydraulic clamping mechanism is used for loading and unloading and fixing the moulds, which can be installed and dismantled quickly and positioned accurately and reliably;
The machine can be set up with multiple cooling circuits, each circuit can be air-cooled and water-cooled separately, and the cooling control of time mode or mold temperature automatic control mode can be selected;
Adopting molten pool type holding furnace with radiation heating and PID control, rated temperature range:680-750ºC, temperature control accuracy:±5ºC;

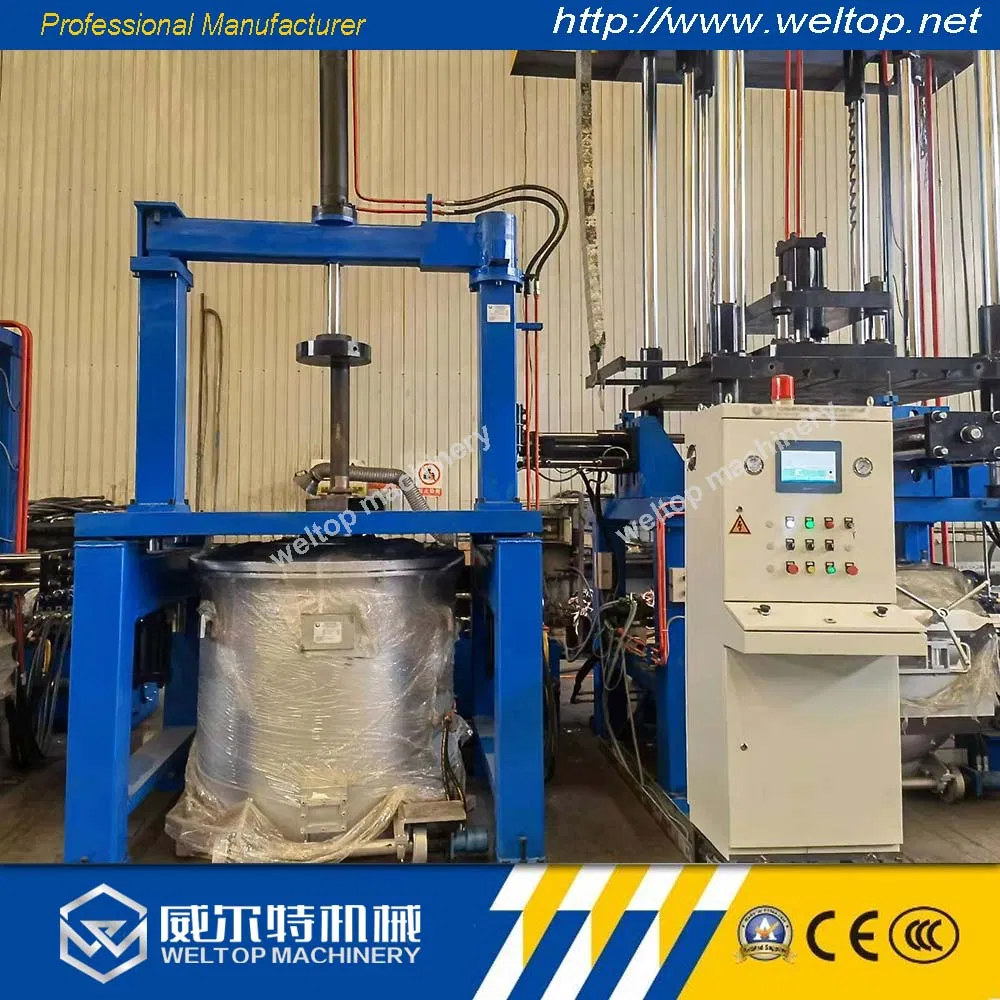

The furnace is fixed on the transmission trolley, and the lifting of the furnace body is completed by the lifting mechanism, and the front and rear smooth movement of the trolley is completed by the hydraulic motor drive;
The electrical control system adopts the monitoring method of upper and lower computer. Imported PLC is used as the lower control machine to complete the control of the main machine sequence action, liquid level pressurization and mold cooling of the low pressure casting machine. The imported human-machine interface or industrial control computer is used as the upper computer to complete the parameter setting and modification of the low-pressure casting machine, the monitoring and display of the pressure data and curve, and the working status and fault alarm of the machine. The monitoring method of upper and lower computer ensures that even when the upper computer fails, the lower control system can still operate automatically according to the preset process parameters, thus further improving the system stability;
The liquid level pressurization device adopts imported pneumatic proportional valve + high-precision pressure sensor to realize the detection and real-time closed-loop feedback control of the pressure in the holding furnace, with PID regulation. It has the functions of multi-stage linear pressurization, automatic tracking setting pressurization curve, insulation furnace leakage compensation, liquid level compensation, etc. High accuracy of pressure control and good repeatability ensure stable consistency of low-pressure pouring process and effectively improve casting yield.
Technical Parameters
NO.
Name
Value
Unit
1
Insulation furnace capacity (AL)
500
Kg
2
Dynamic template size
1780X1280
mm
3
Static template size
2000X1600
mm
4
Dynamic template stroke
1050
mm
5
Opening force
176
KN
6
Closing force
120
KN
7
Min. opening gear
795
mm
8
Distance between guide bars
1400X900
mm
9
Ejecting force
176
KN
10
Core pulling force
70
KN
11
Stroke of core pulling cylinder
200/150
mm
12
Oil pump motor power
11
KW
13
Power of insulation furnace
36
KW
Frequently Asked Questions
What is the primary application of the J455 low-pressure casting machine?
It is a general-purpose equipment used for the low-pressure casting of aluminum alloy, widely applicable for producing castings in industries such as automobile, motorcycle, instrumentation, textile machinery, and aerospace.
What is the capacity and temperature range of the holding furnace?
The holding furnace is a molten pool type with an aluminum capacity of 500 kg. It has a rated temperature range of 680-750ºC with a temperature control accuracy of ±5ºC, controlled via PID regulation.
How does the machine prevent accidental falls of the movable mold plate?
The movable mold plate is equipped with a dedicated safety limit device specifically designed to prevent the plate from falling accidentally during operations.
What kind of control system does the casting machine use?
The machine uses a dual system combining an imported PLC (lower control machine) for physical sequence actions, pressurization, and cooling, alongside an industrial control computer or human-machine interface (upper computer) for monitoring, parameters, and curves.
What standards and casting tolerances does the equipment support?
The system offers a precise casting tolerance of +/-0.2mm, adheres to the BS standard, and is certified with CE, RoHS, ISO 9001:2000, and ISO 9001:2008.
