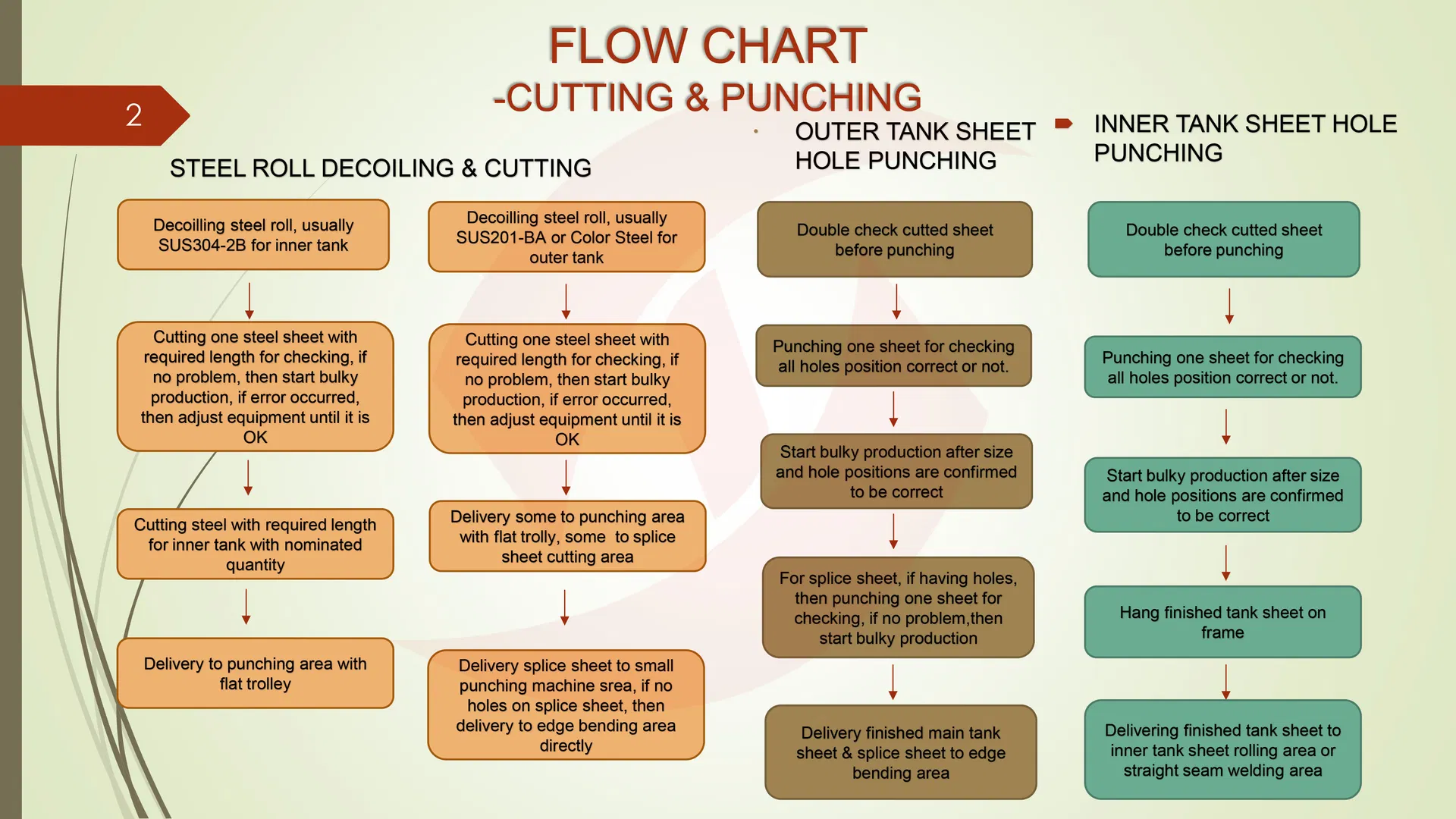

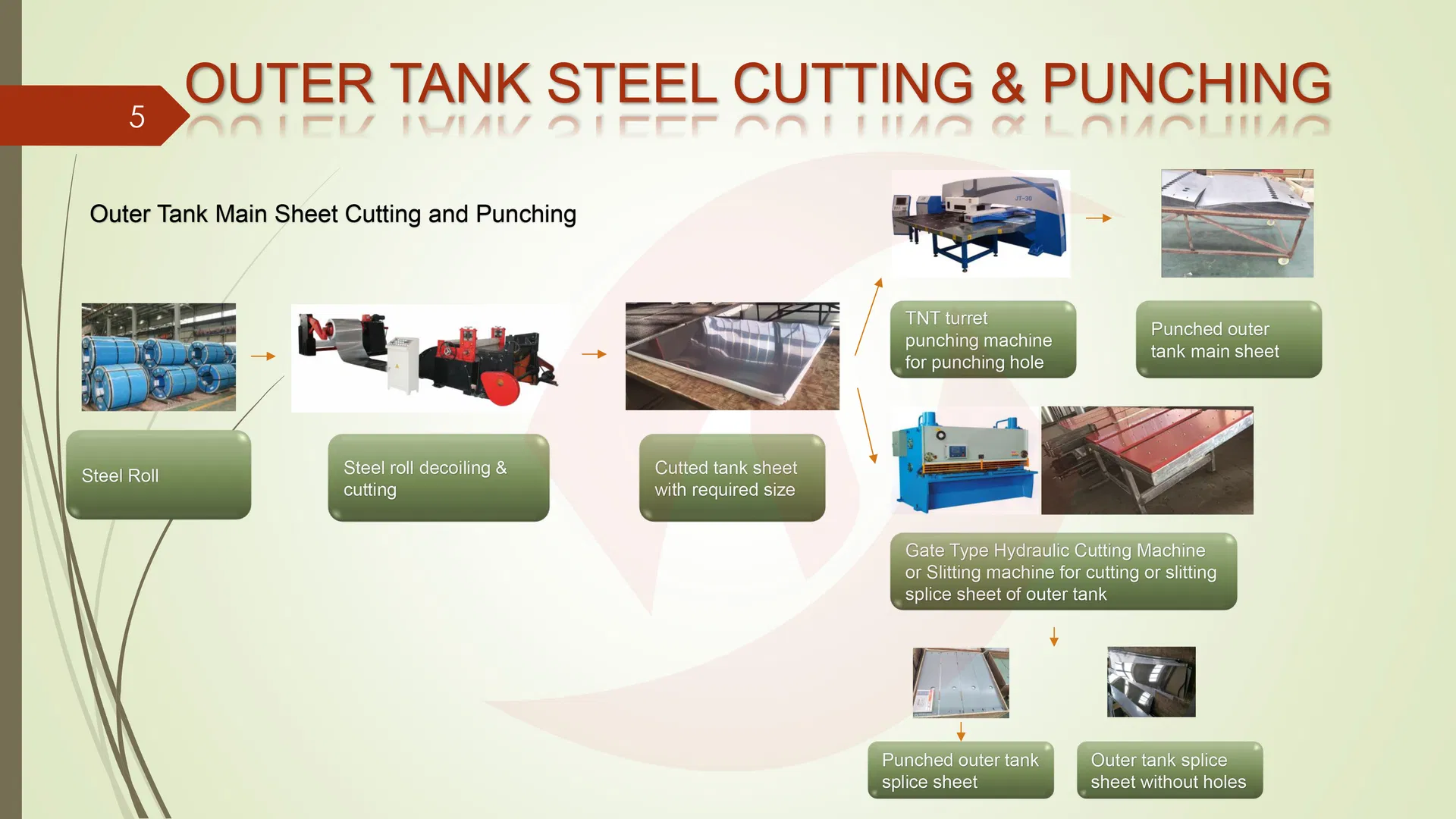

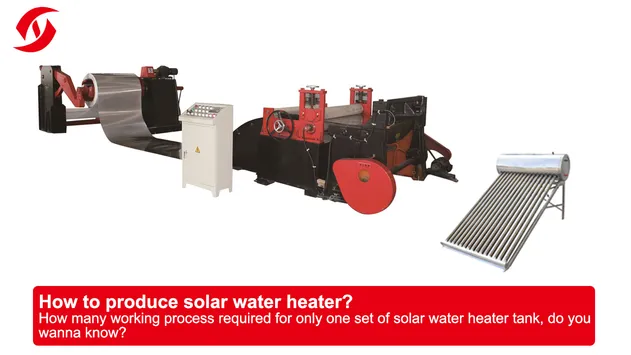

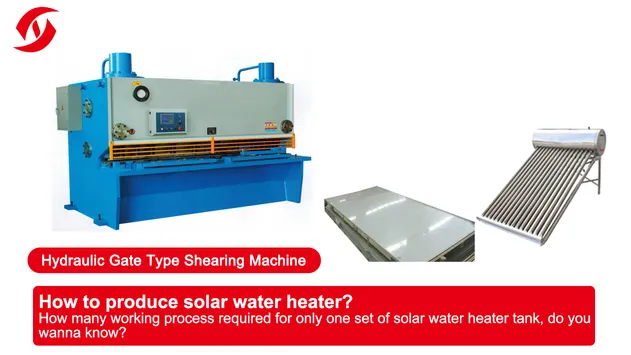

Uncoiling the Steel Coil and cutting the plate

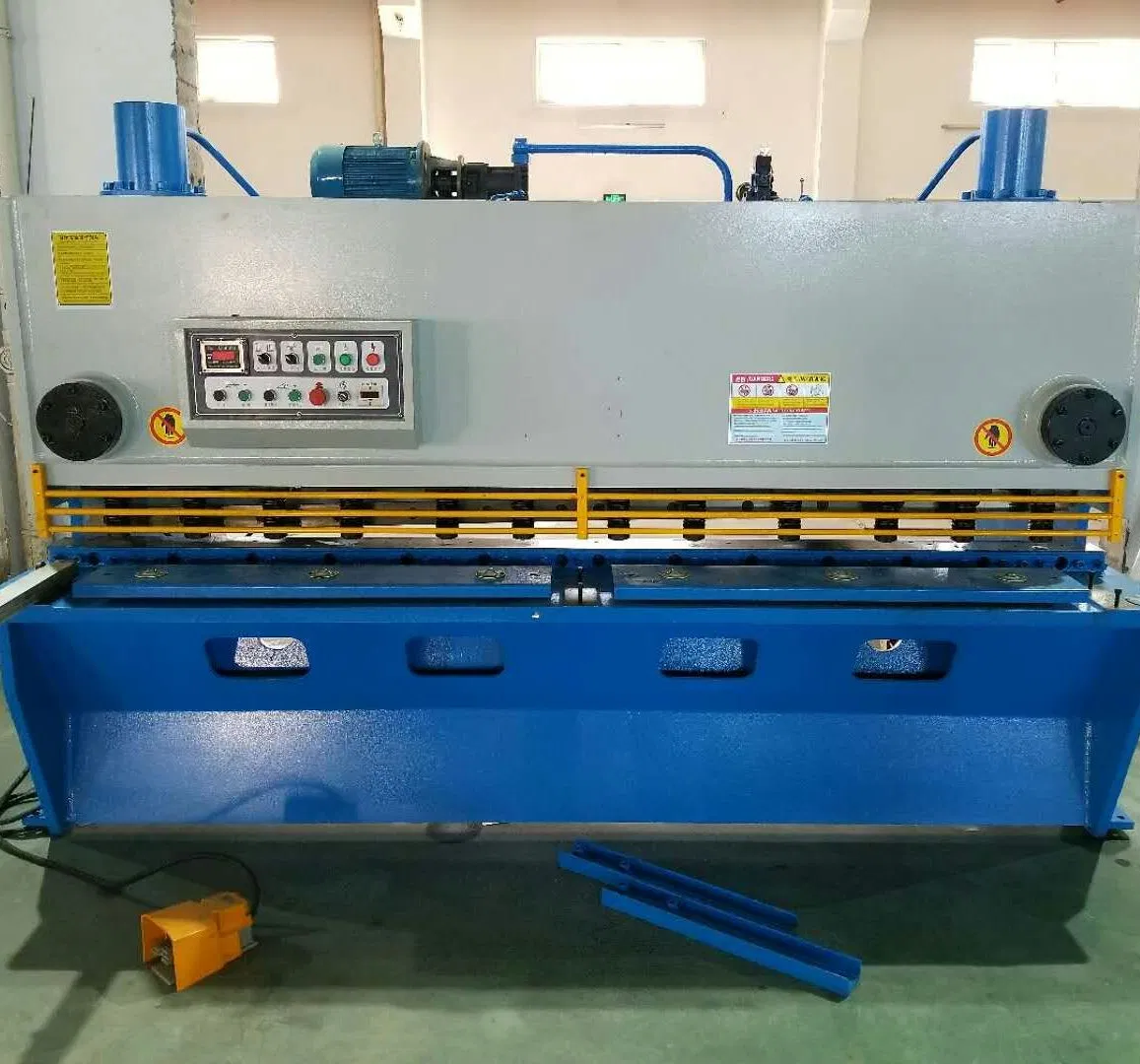

Cutting splice sheet of outer tank

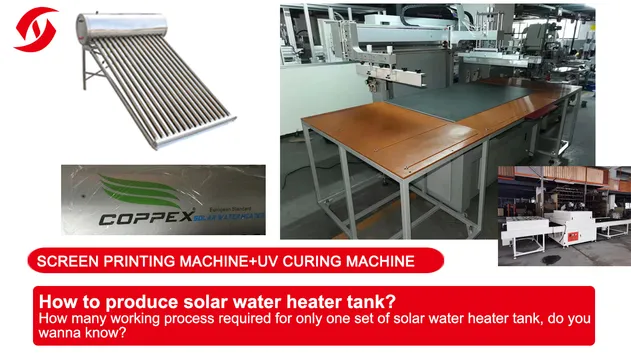

Printing and drying logo on outer tank sheet

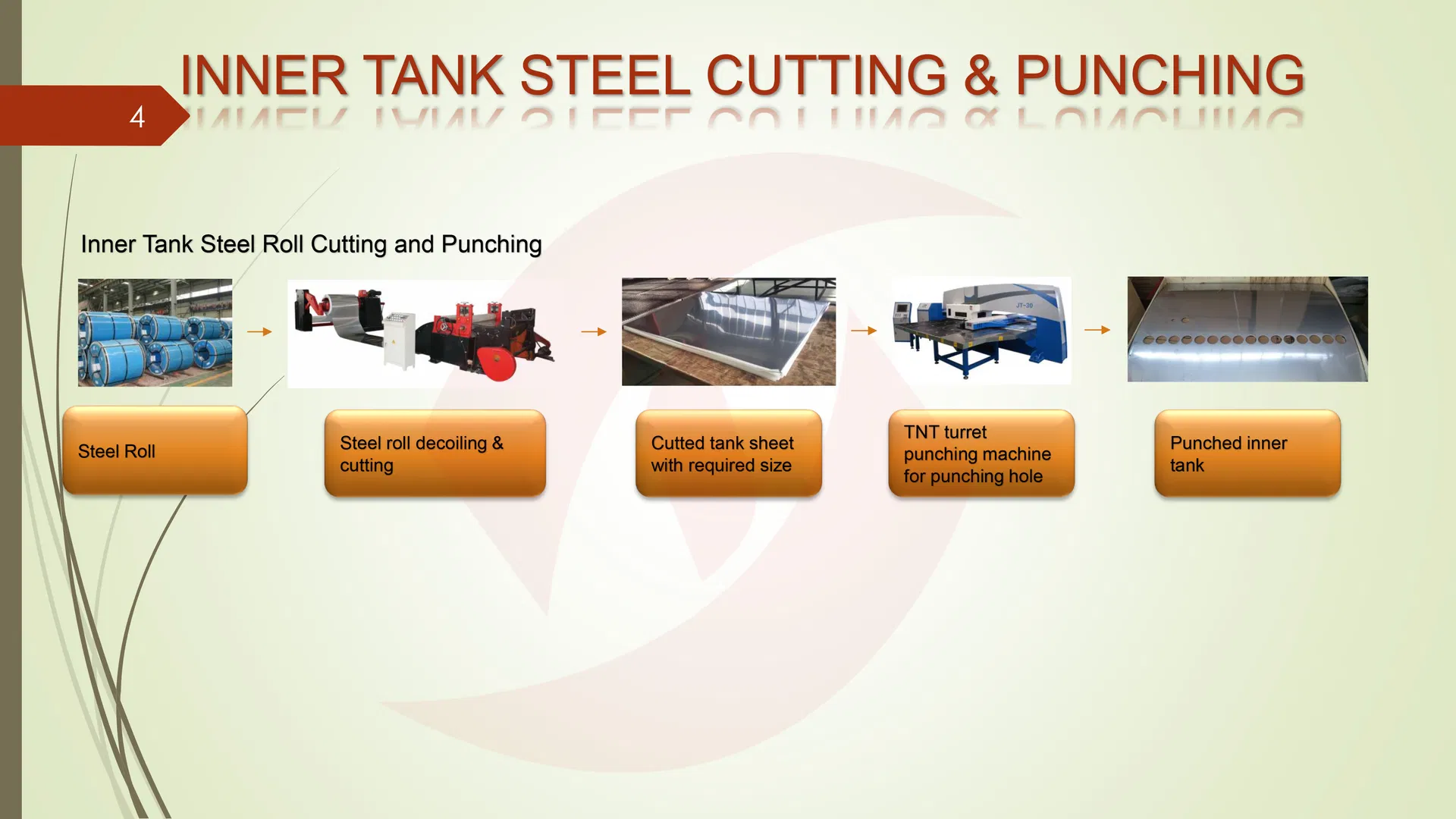

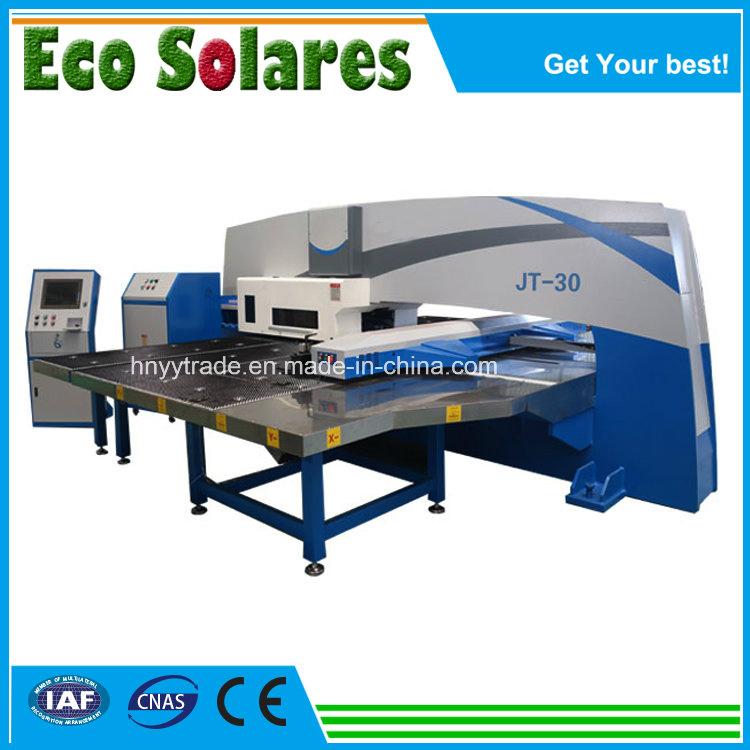

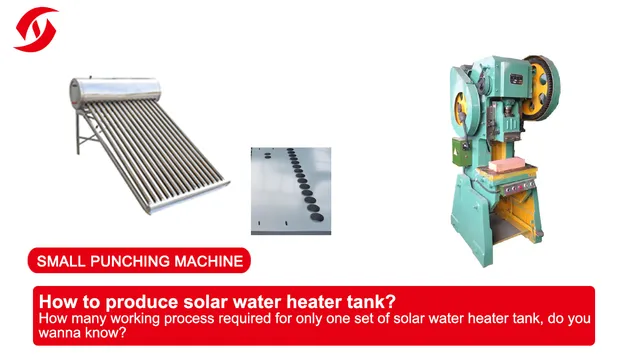

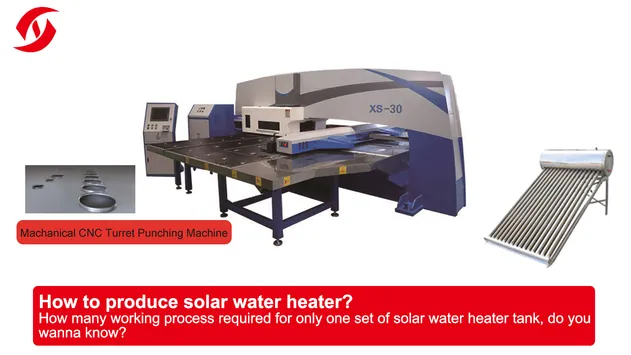

Punching Tank Holes (inner & outer tank body holes)
Punching splice sheet holes and cap function holes

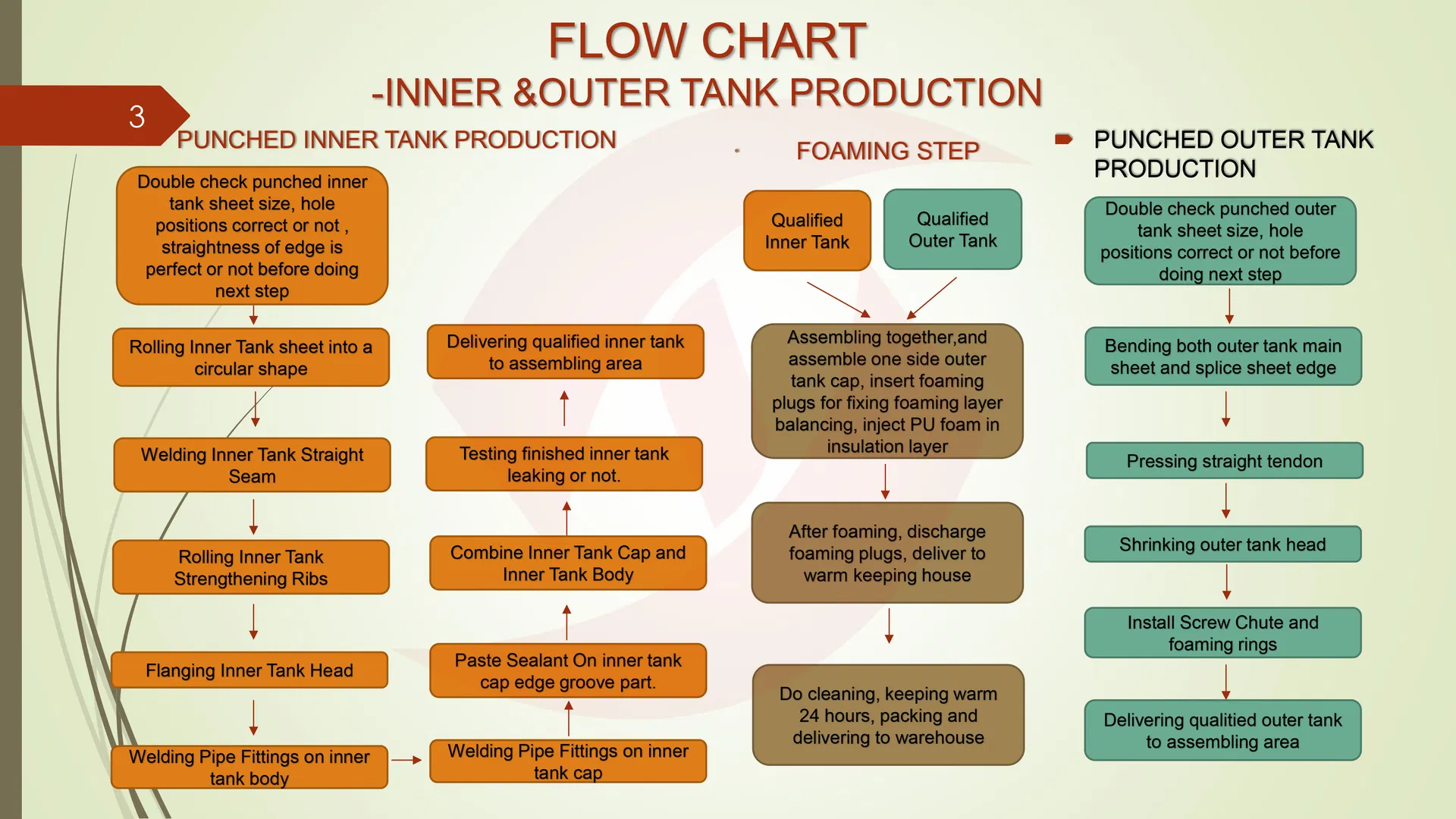

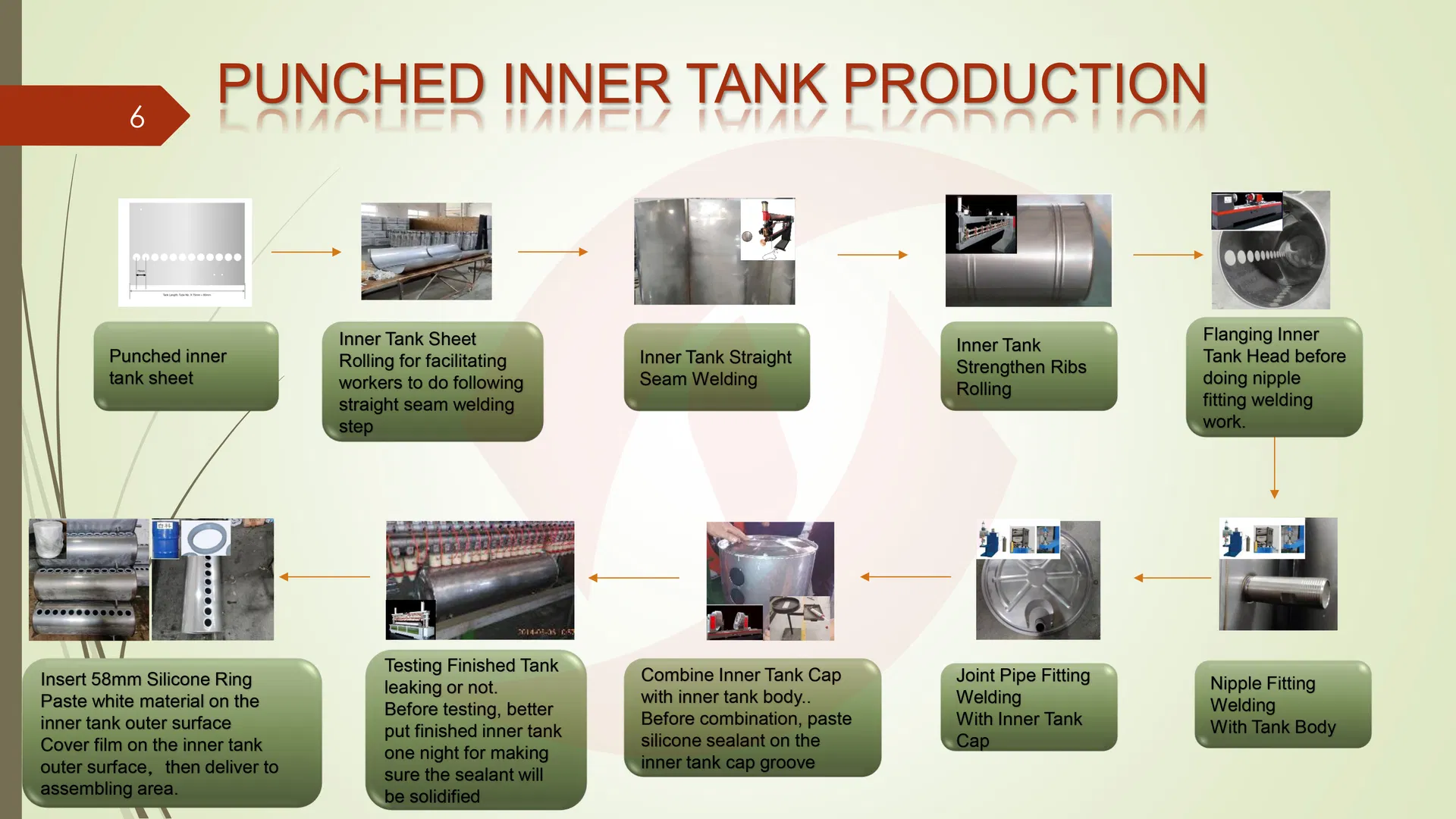

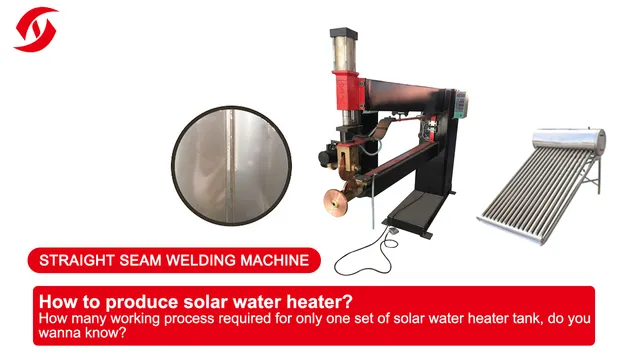

Welding inner tank straight seam

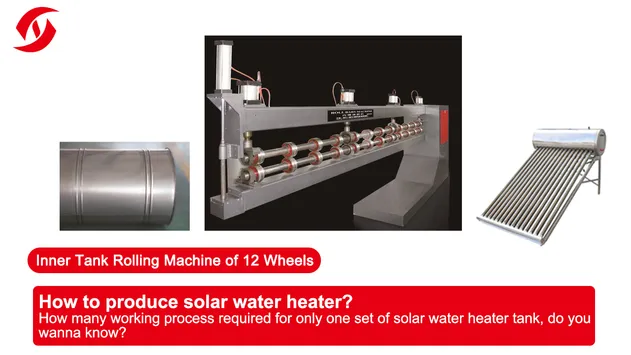

Enhancing the strength of the inner tanks via rolling annular convex tendons

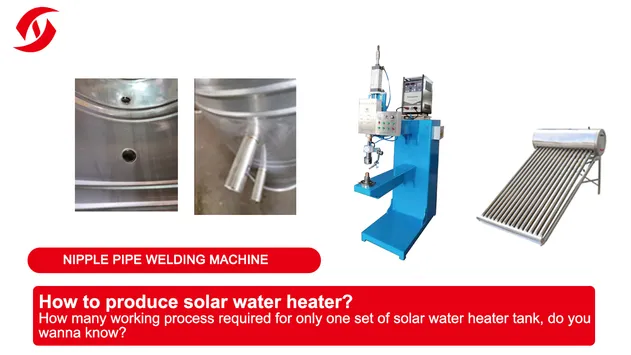

Welding the pipes with inner tank or inner tank covers

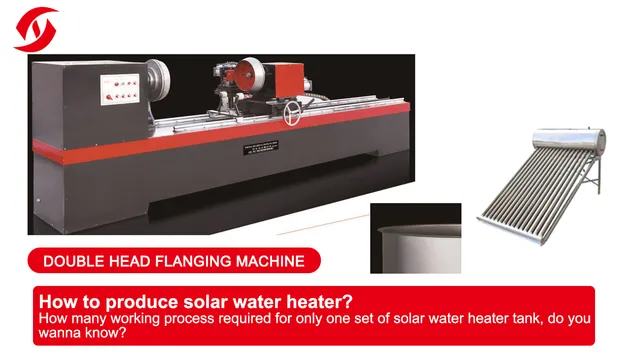

Flanging the inner tank double head

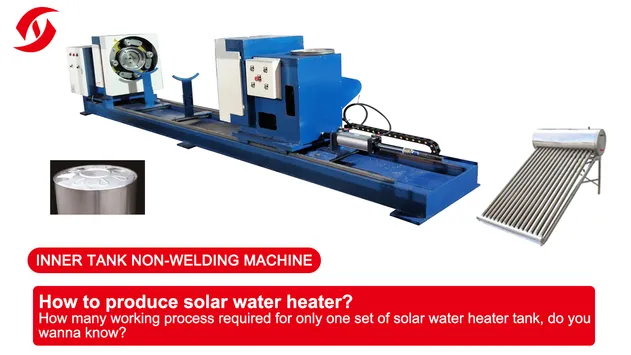

Combine the inner tank and cover using non-welding technology

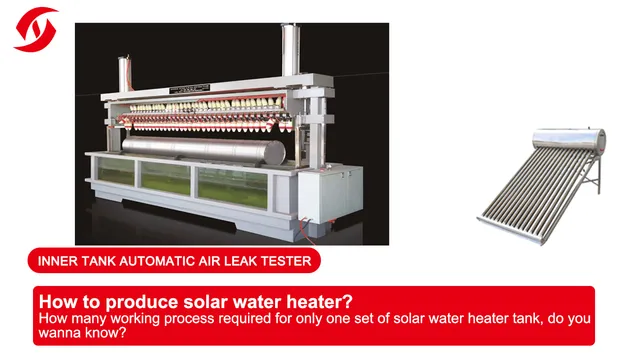

Check whether any leakage of the inner tank exists

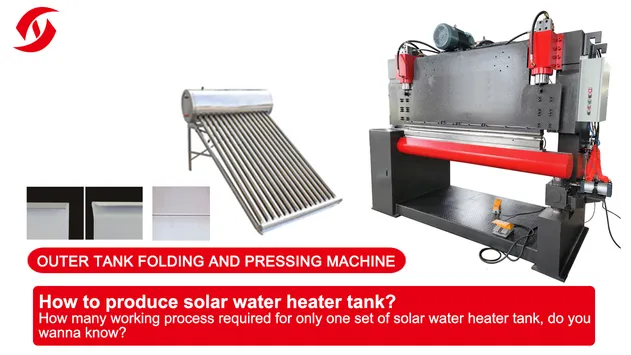

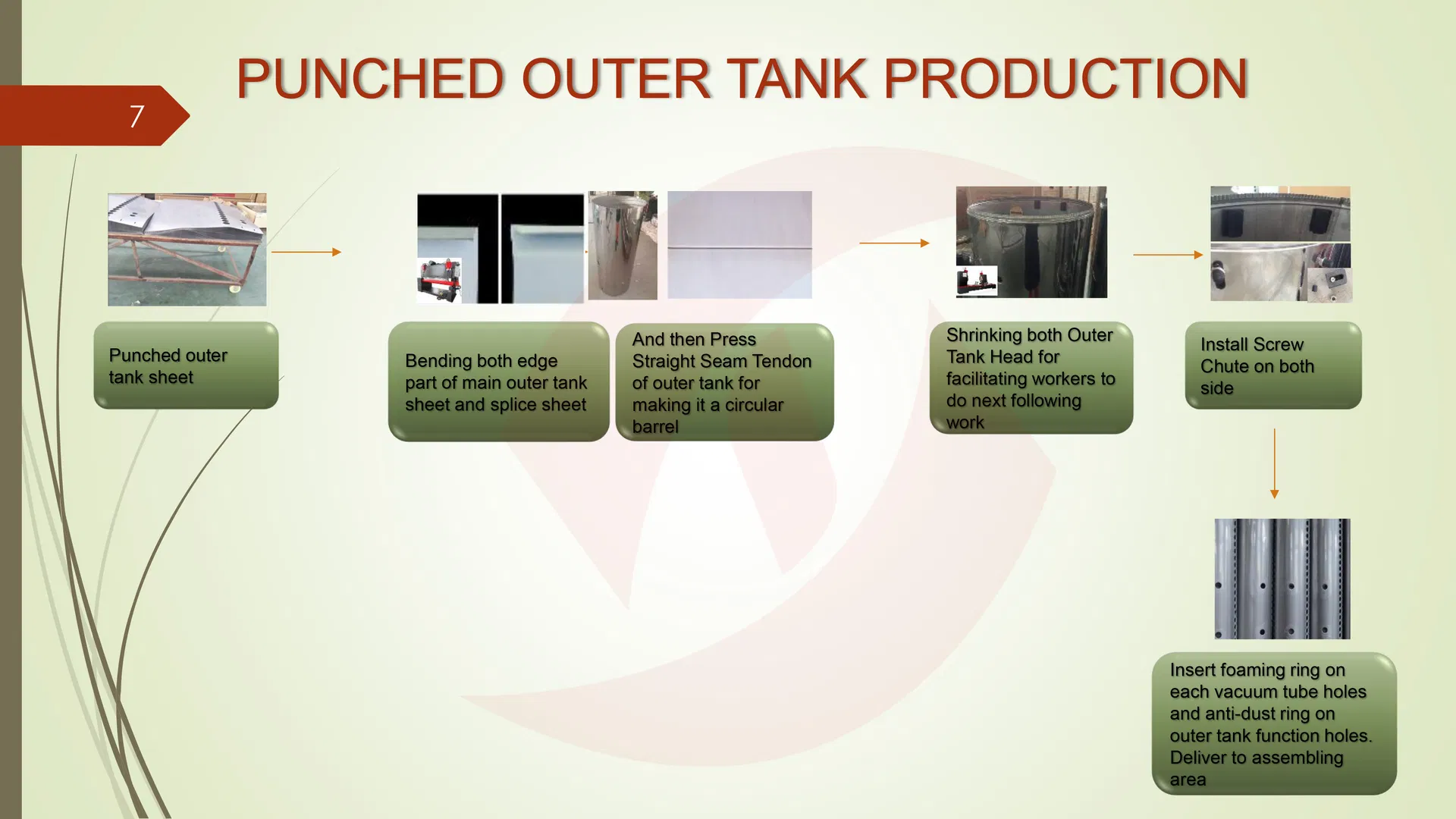

Bending the tank edge + Pressing straight seam

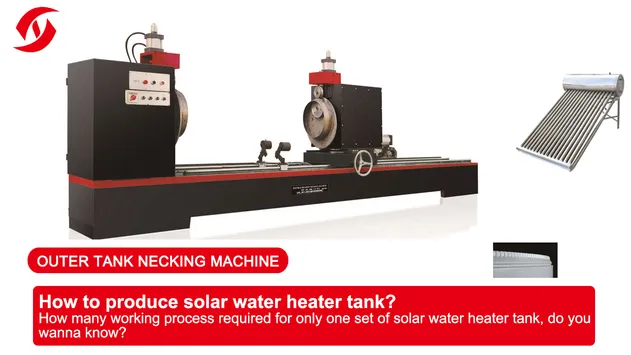

Making outer tank head into toothing shape for combining caps

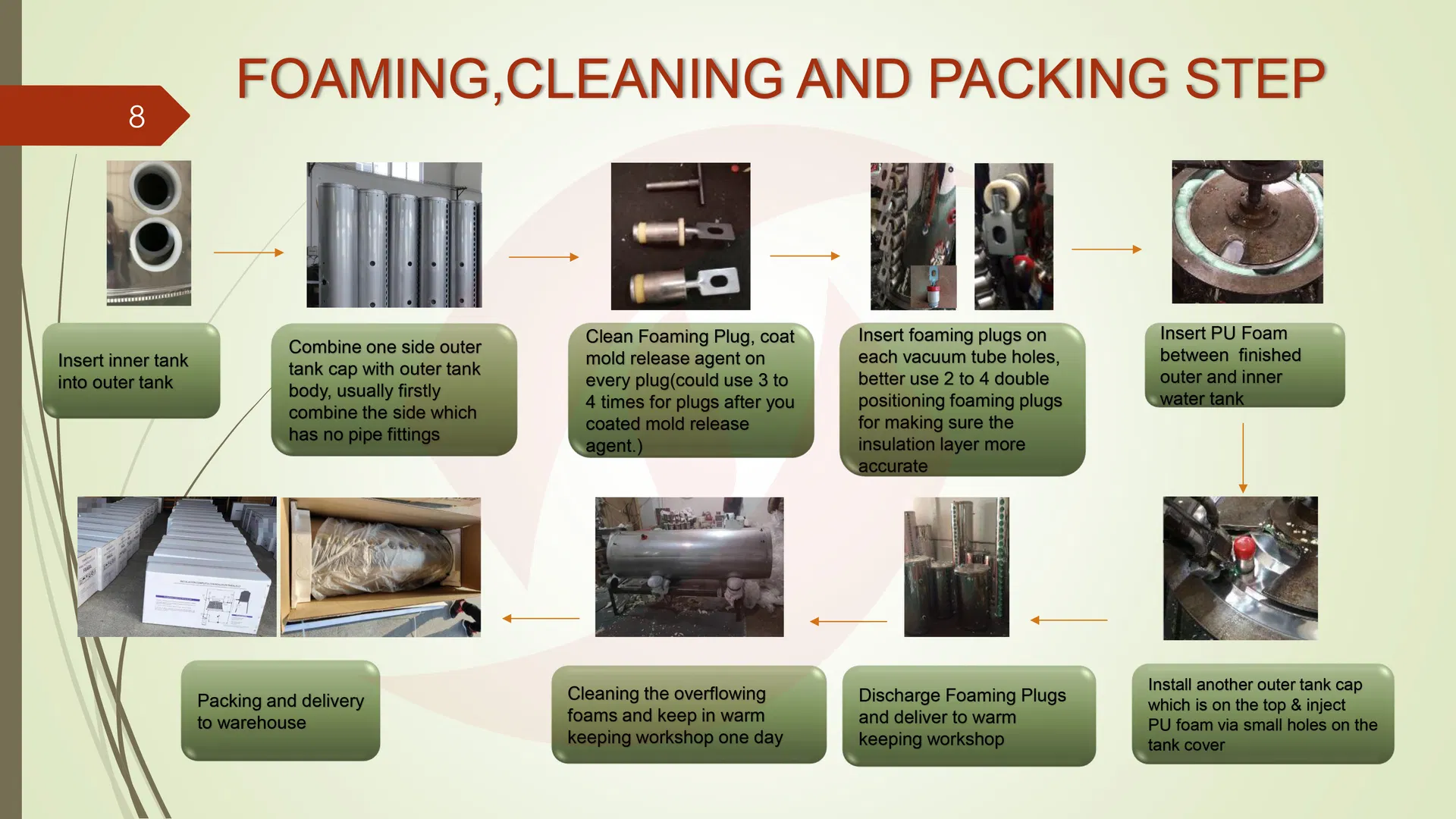

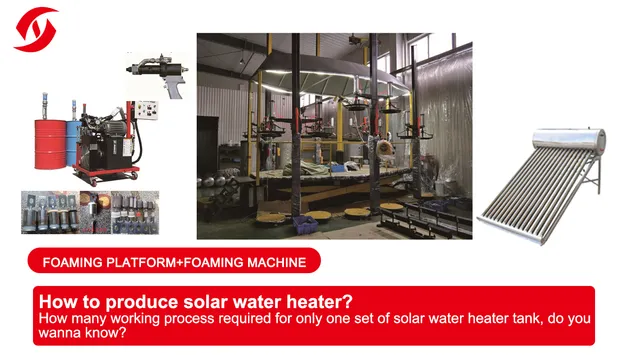

Fixing the assembled tank and inserting PU foam into insulating layer

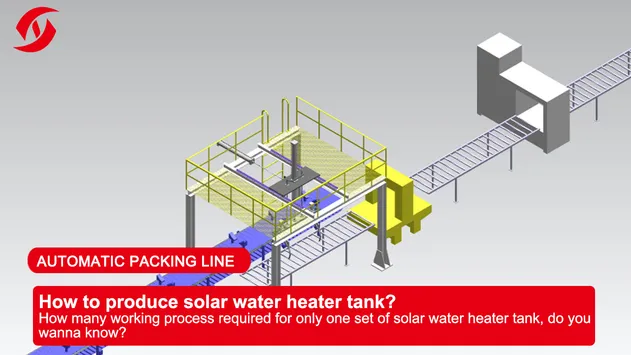

Packing the finished tanks securely

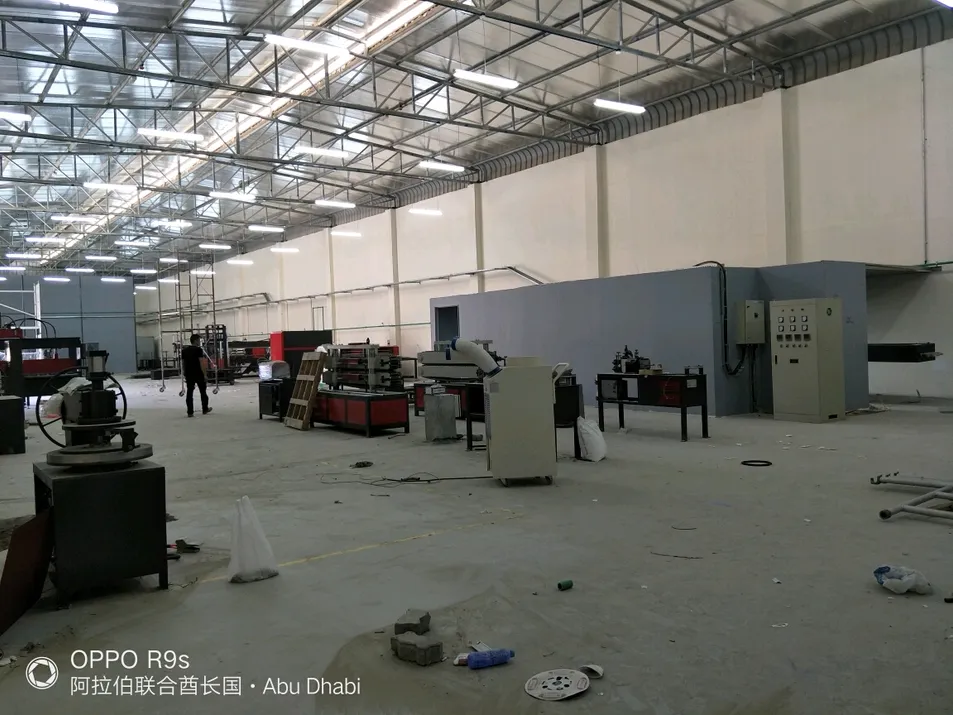

Complete solar water heater tank production line, corrugated pipe production and annealing line installed in Abu Dhabi, UAE.

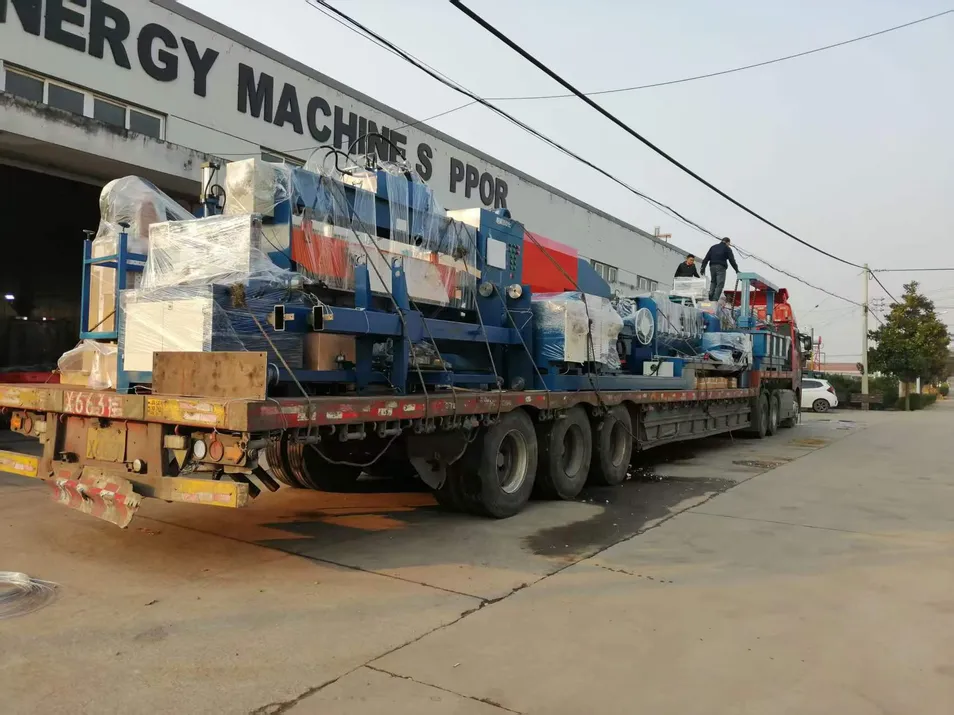

Complete solar water heater tank production line delivered to Vietnam via truck.

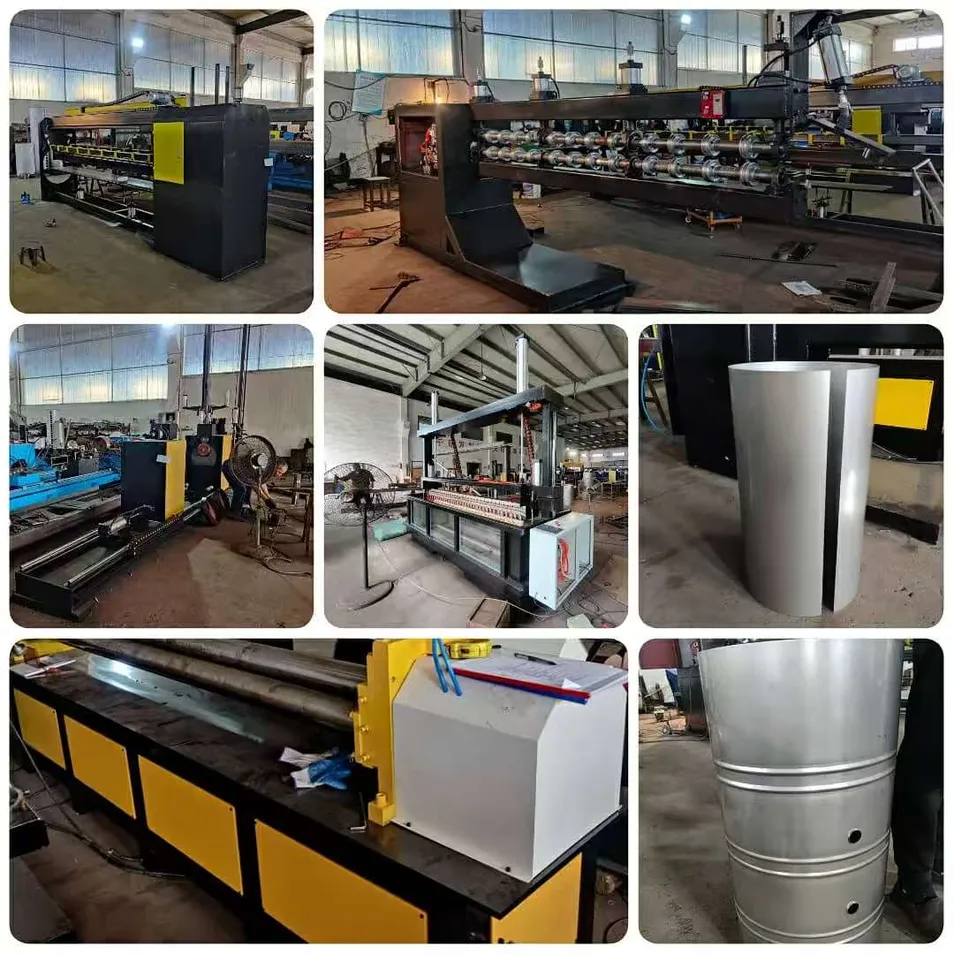

Complete solar water heater tank production line for Mexico market.

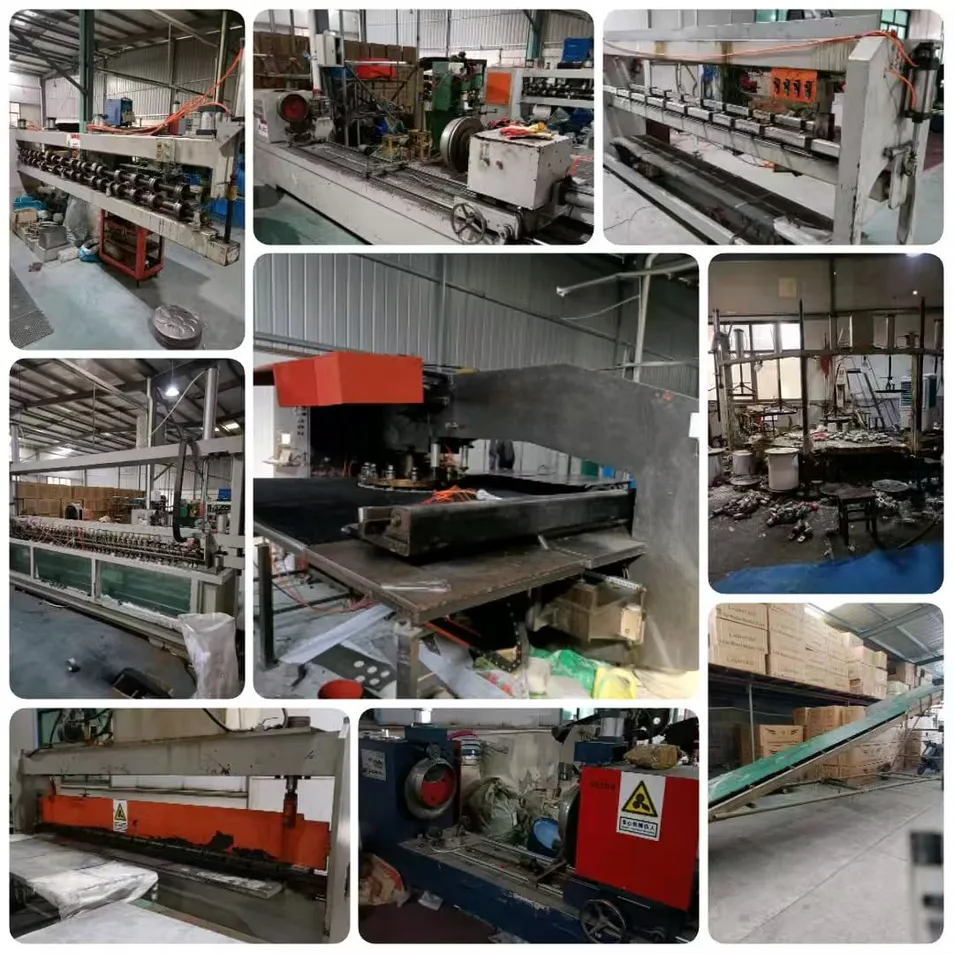

Complete solar water heater tank second hand production line for Middle East.

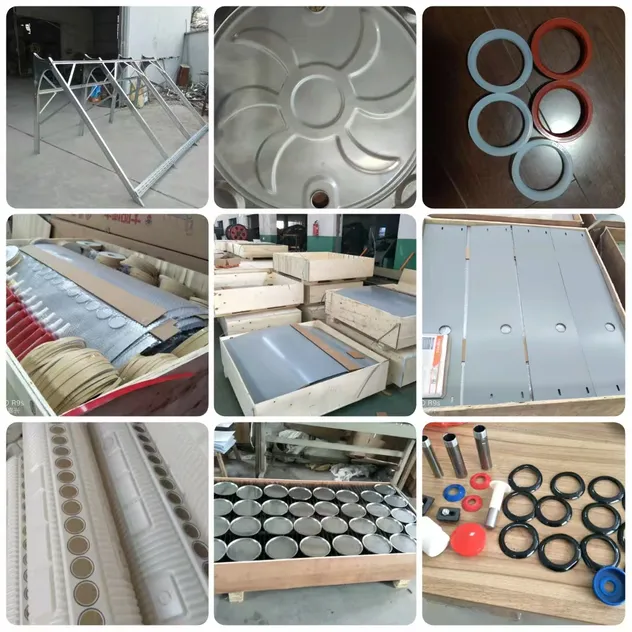

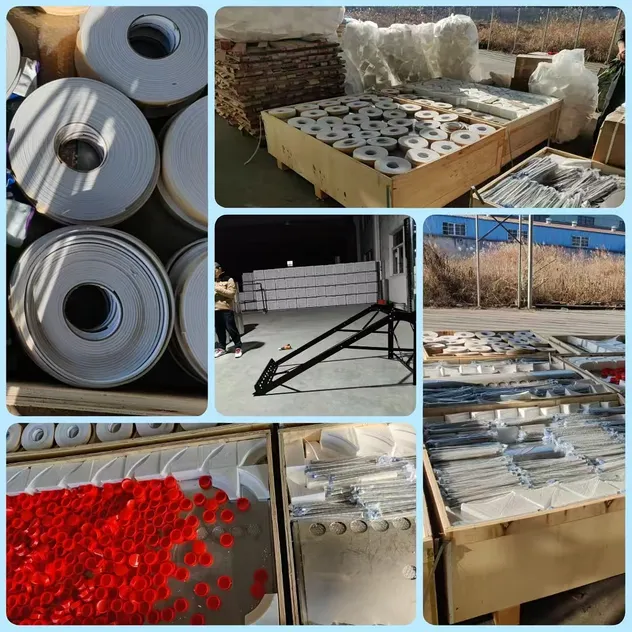

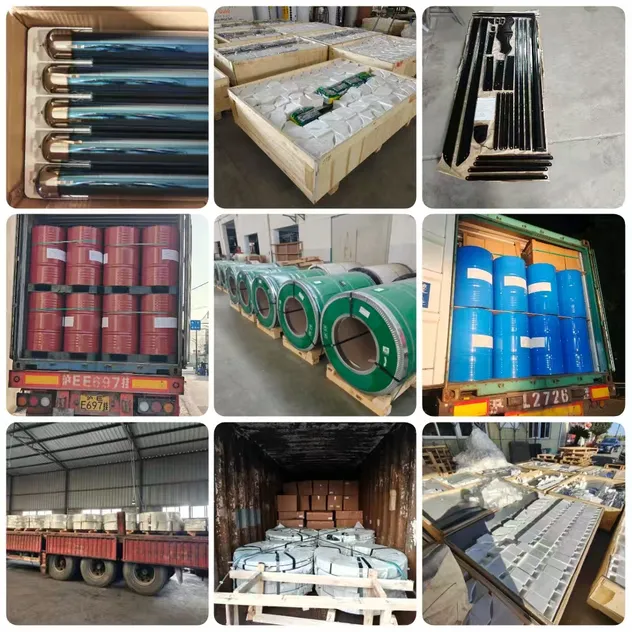

| RAW MATERIALS LIST REQUIRED FOR SOLAR WATER HEATER | |
|---|---|
| Tank Part: | Detail specifications for production |
| Inner Tank: | Stainless Steel Sheet with SUS304-2B, 316L; Inner Tank Cap with SUS304-2B/SUS316L Stainless Steel Material; Silicone Rings; Pipe Fittings |
| Outer Tank: | PVDF Coating Galvanised Steel Sheet (Pearl White, Ivory White, Silver Brushed, Silver Fluorine Titanium with High Gloss, Golden Yellow, Red, Green, etc.); SUS201-BA/SUS304-2B/SUS304-BA/SUS304 Hairline/SUS316L Stainless Steel; Outer Tank Cap; Anti-dust Rings; Bottom Decoration Cap; Heating Resistor Hole Nylon/Silicone/SUS304/SUS316L Plug & Red Plastic Cover; Heating Resistor Decoration Cover; Air Vent Cover |
| Insulation Layer: | POLYMERIC MDI, COMBINATION POLYETHER, MOLD RELEASE AGENT |
| Frame: | Galvanised Steel Type frame with color paint; SUS201 Frame; SUS304 Frame; Alloy Aluminum Frame |
| Vacuum Tube: | Cu/SS-ALN/ALN, Three target magnetron sputtering plating |
| Optional Accessories: | Assistant Tank, Electric Backup Heater, Check Valve, Magnesium Rod, etc. |

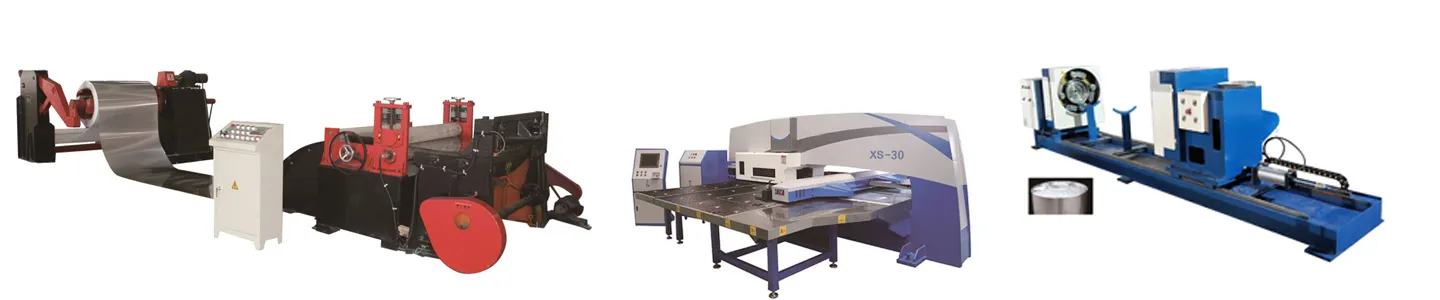

We supply complete machinery lines for low-pressure solar water heater tanks, high-pressure solar water heater tanks, support brackets, tank caps, corrugated pipe production/annealing lines, and flat plate or manifold solar collector assembly systems.
Yes, our equipment solutions are customizable. We configure the rolling, welding, punching, and foaming machines based on your design specifications, production capacity requirements, and material selection (such as SUS304/316 or galvanized steel).
We provide comprehensive material sourcing solutions, including inner tank sheets (SUS304-2B, 316L), outer tank sheets (PVDF coating galvanized steel, SUS201/304/316), PU foaming materials (Polymeric MDI & Polyether), bracket materials, vacuum tubes, and components like silicone rings and backup heaters.
The production line integrates an automatic air leak tester which pressurizes the inner tank to locate and flag any structural or weld seam defects, ensuring zero leakage before the foaming process.
The standard delivery time is 30 days. We have a production capacity of up to 200 sets of equipment per year to support projects of varying scales worldwide.
