Product Description

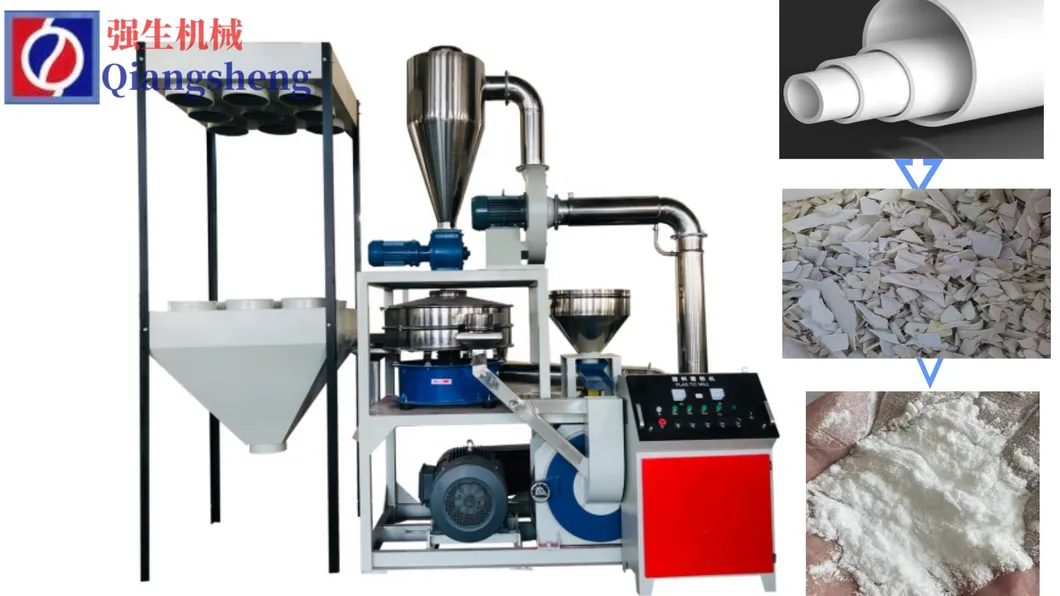

PVC PP PE Milling Machine

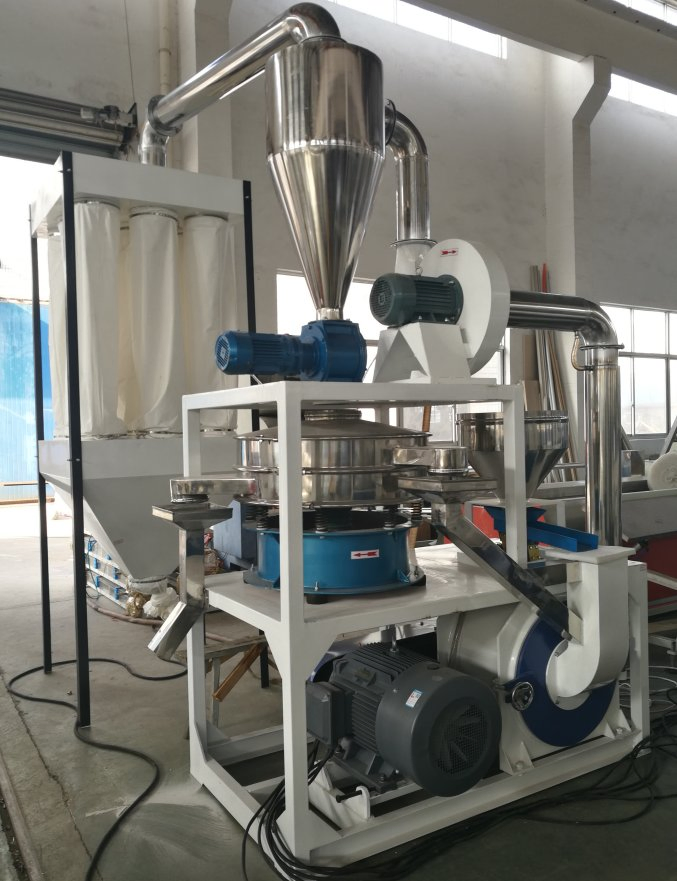

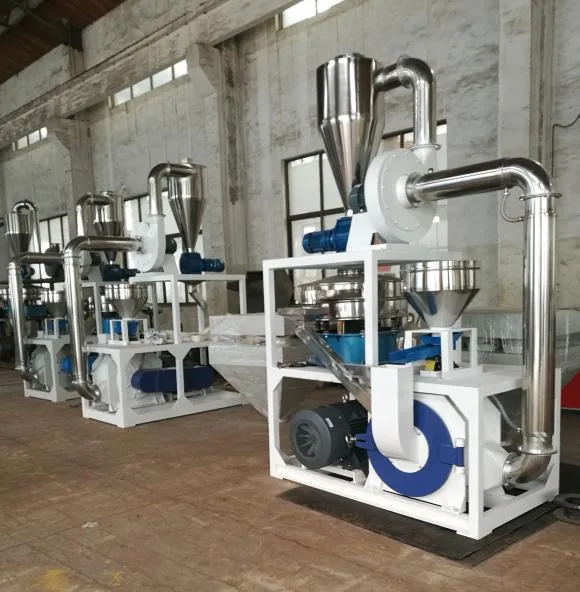

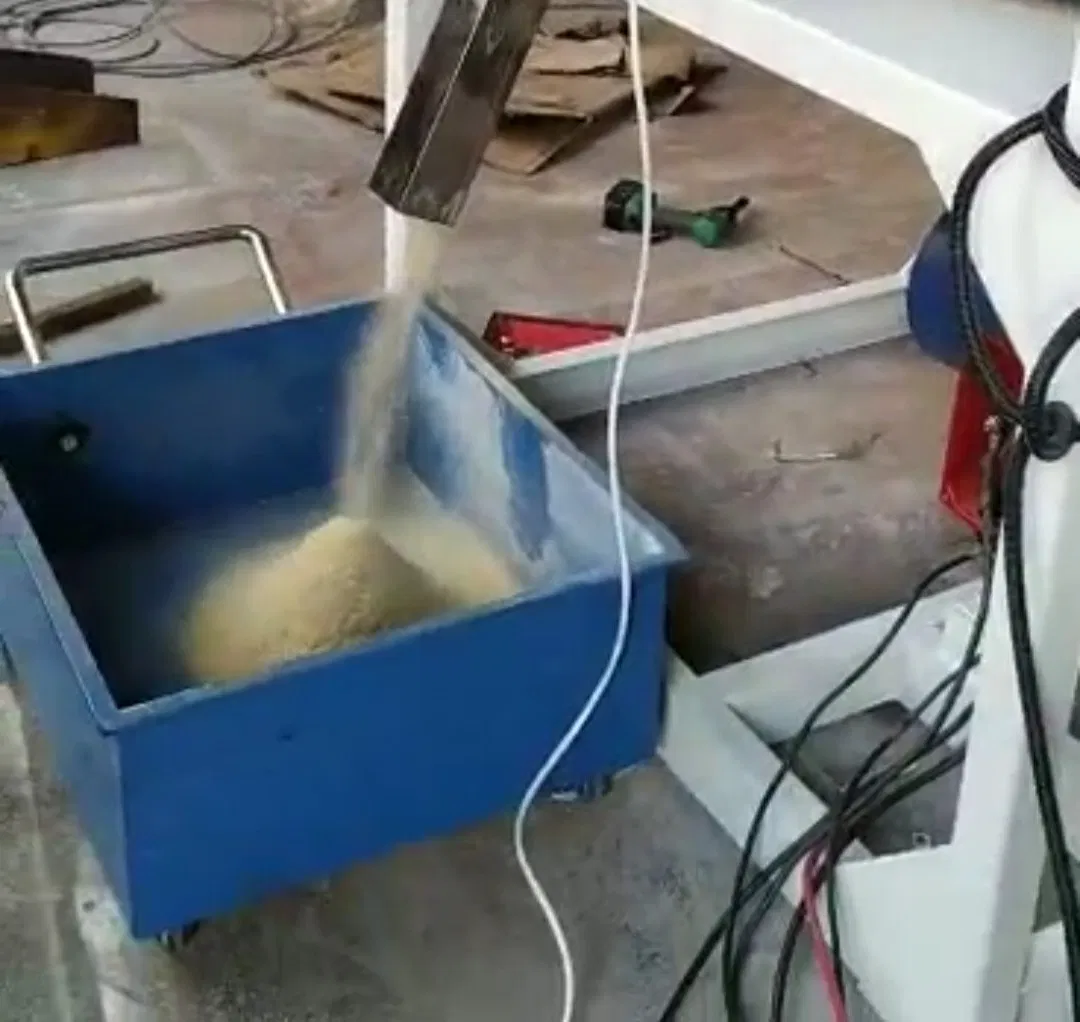

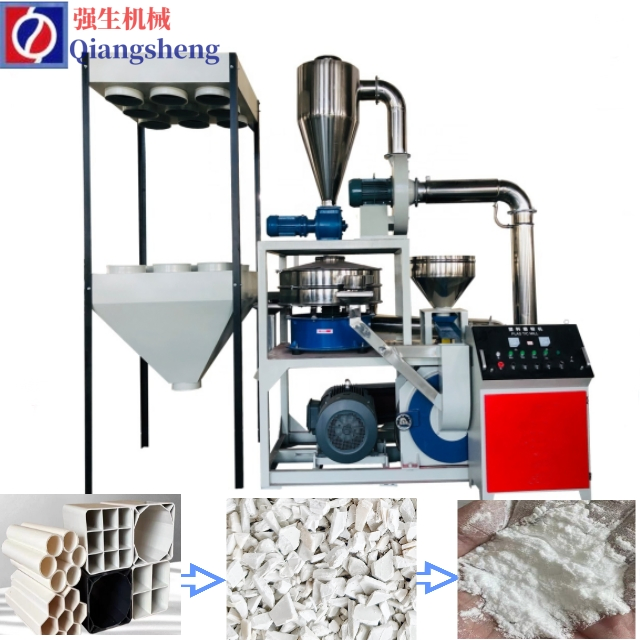

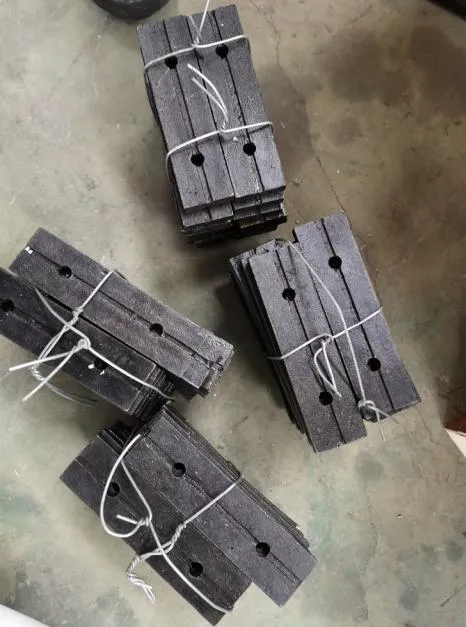

The disc grinding pulverizer machine of the PNMF series are available with disc diameter from 300 to 800 mm. These plastic pulverizer machines are high speed, precision grinders for the processing of medium hard, impact resistant and friable materials. The material to be pulverized is introduced through the centre of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one piece grinding discs or grinding segments.

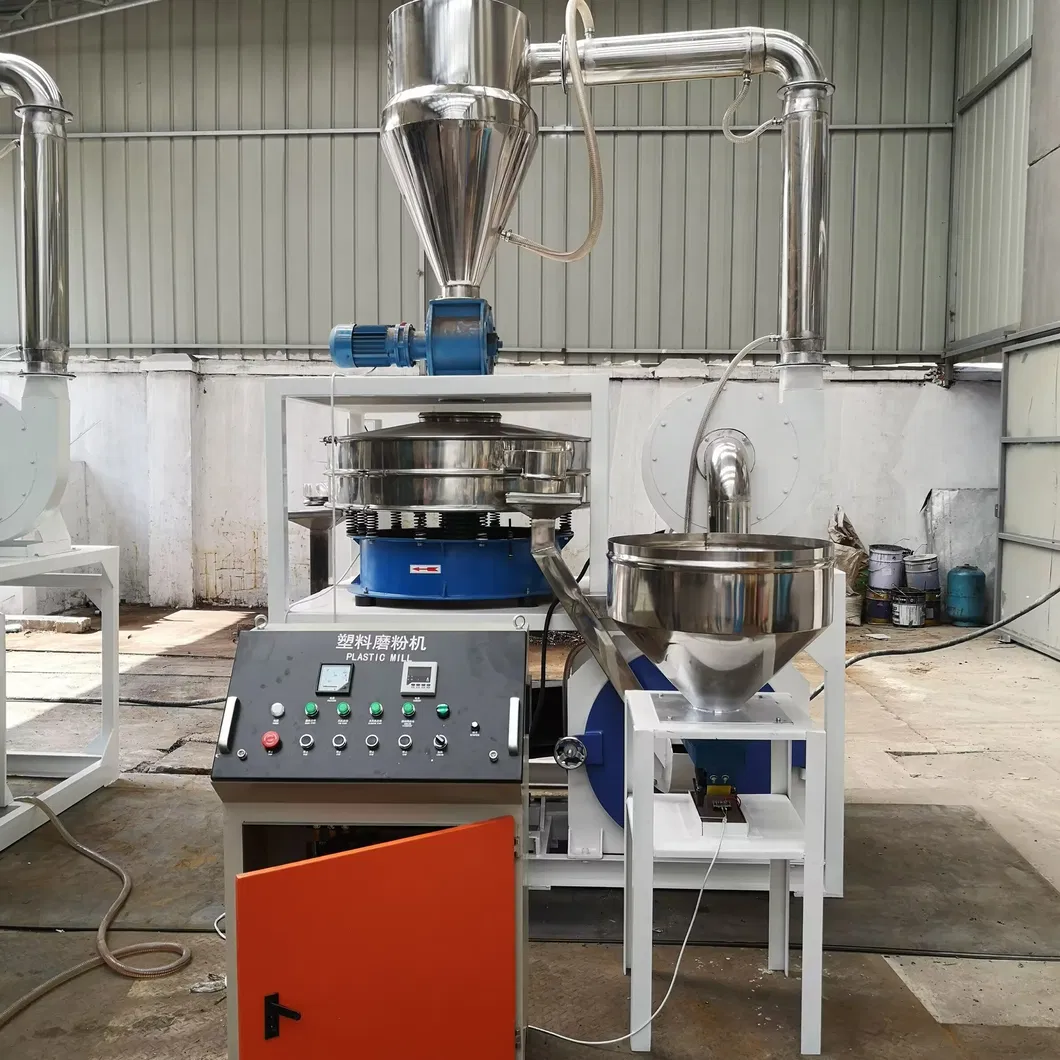

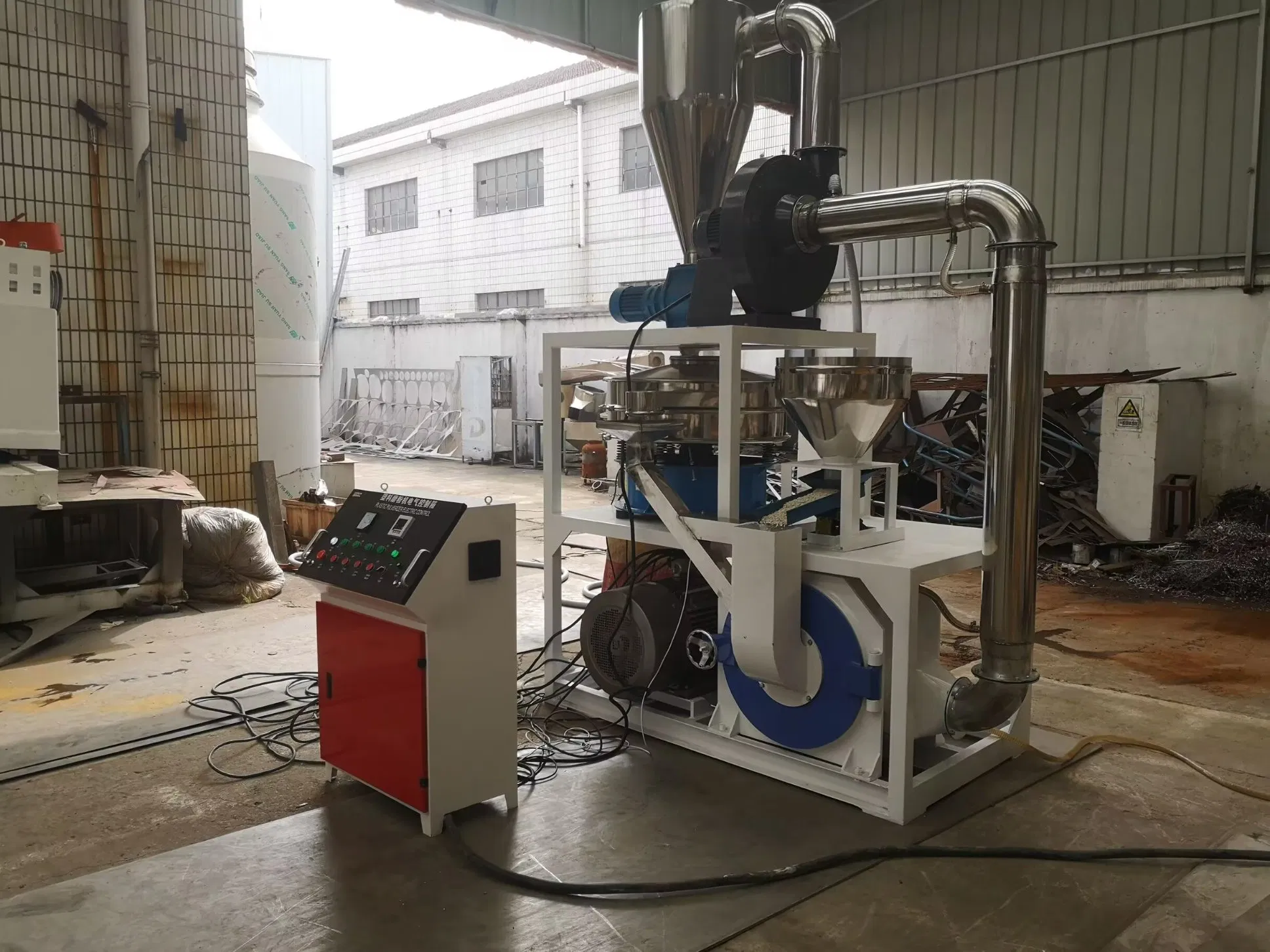

The plastic pulverizer machine is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.
According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.
| Model |
SMF-300 |
SMF-400 |
SMF-500 |
SMF-600 |
SMF-800 |
| Disc Diameter (mm) |
300mm |
400mm |
500mm |
600mm |
800mm |
| Dimension L*W*H (mm) |
3700*1500*3700 |
3800*1600*3800 |
3900*1700*3900 |
4000*1800*4000 |
4300*1900*4300 |
| Main Motor (kw) |
11-15 |
22-30 |
30-37 |
45-55 |
75-90 |
| Air Blower (kw) |
3 |
4 |
5.5 |
5.5kw |
7.5 |
| Vibrating Motor (kw) |
0.55 |
0.55 |
0.75 |
1.1 |
1.1 |
| Air Lock Motor (kw) |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
| Capacity (kg/h) |
30-50 |
50-120 |
120-200 |
200-350 |
400-600 |
Main Features of Machine

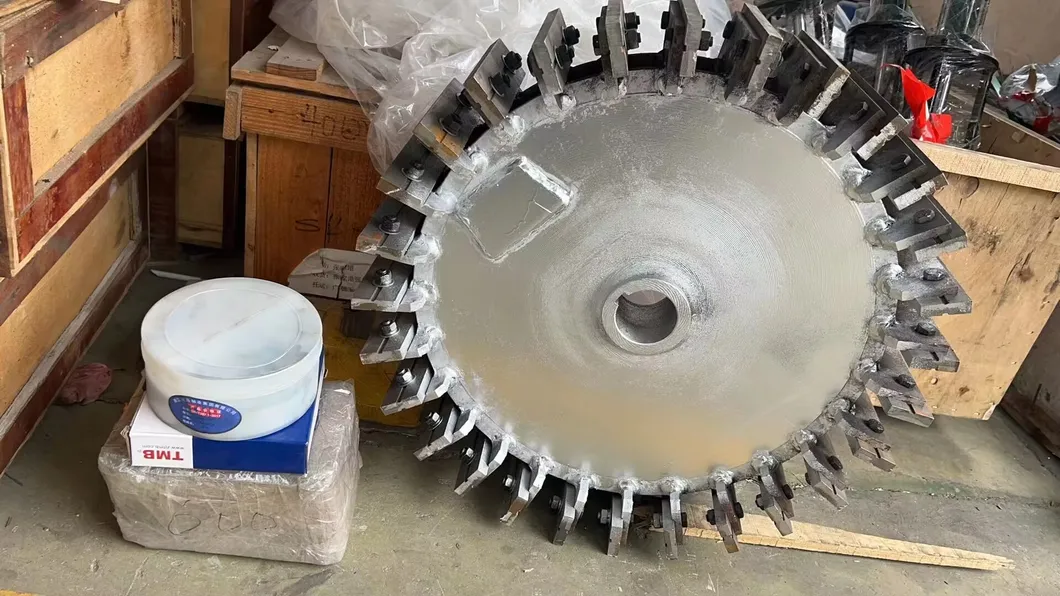

- The new disc design is with high quality, strong resistance and the life of this grinding disc is double the ordinary ones.
- The newly designed professional bearings, is with a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time of machine operation and engineering control.
- Easy installation and maintenance, just open the door to clean up.
- The whole milling process is sealed, without dust leakage.
- Full automatic design, automatically feeding, discharging and sorting.
- Grinding gap adjustment is simple, just use the feeler gauge and adjust bolts can be fine tuning.
- The mill use the water and wind double cooling system, prevent bearing and other parts from overheating.
- Using well-known brand accessories, such as Siemens motors, can work for a long time, saving the trouble of changing accessories frequently.
- With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.
Main Products

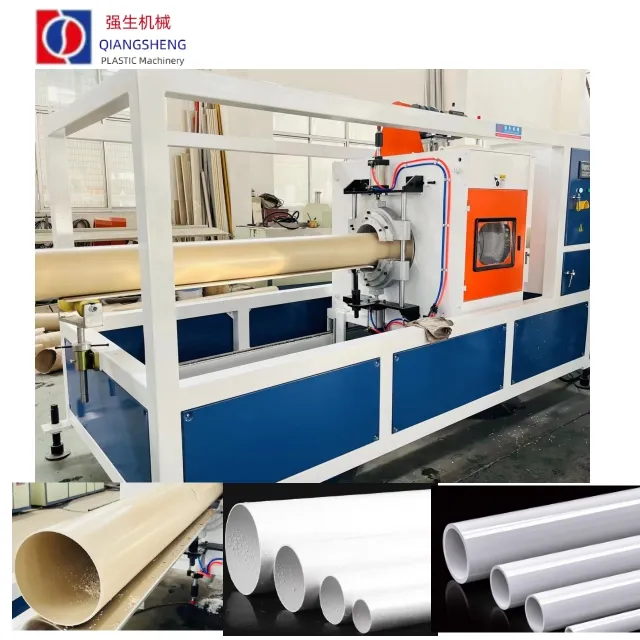

PVC Pipe Extrusion Line

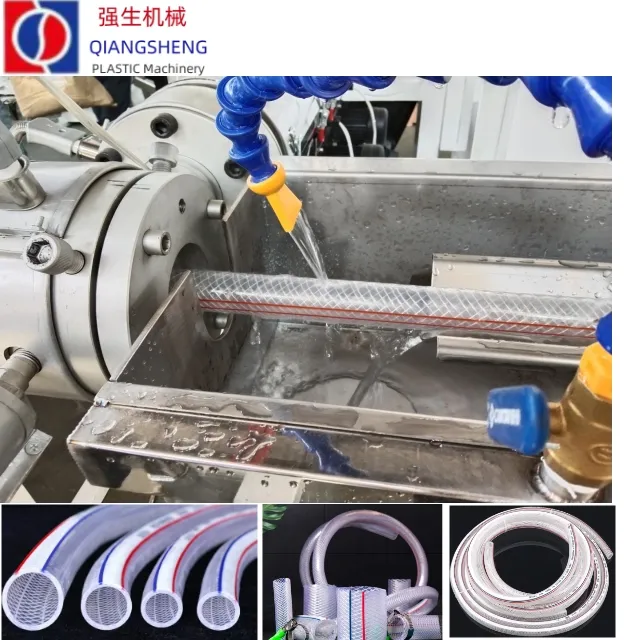

PVC Fiber Pipe/Hose Extrusion Line

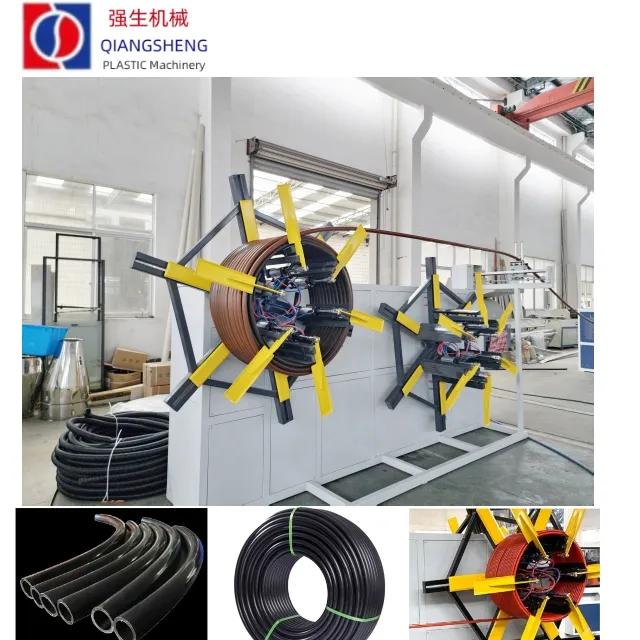

PE Two-layers Pipe Extrusion Line

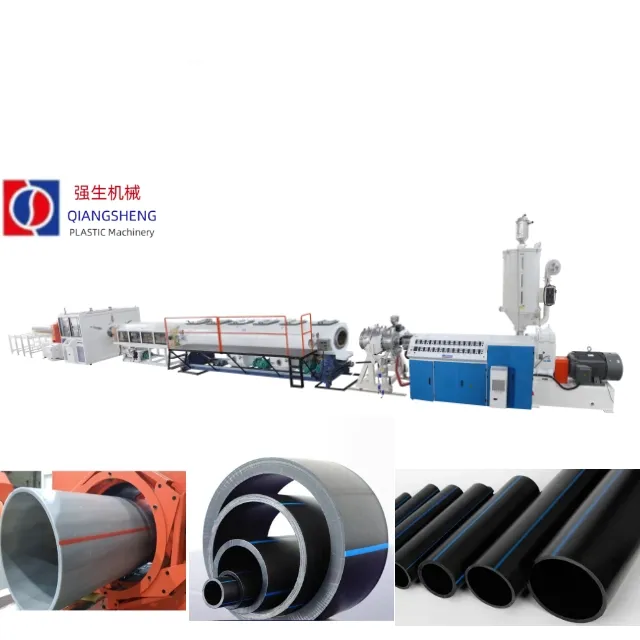

PE Pipe Extrusion Line (Large Diameter)

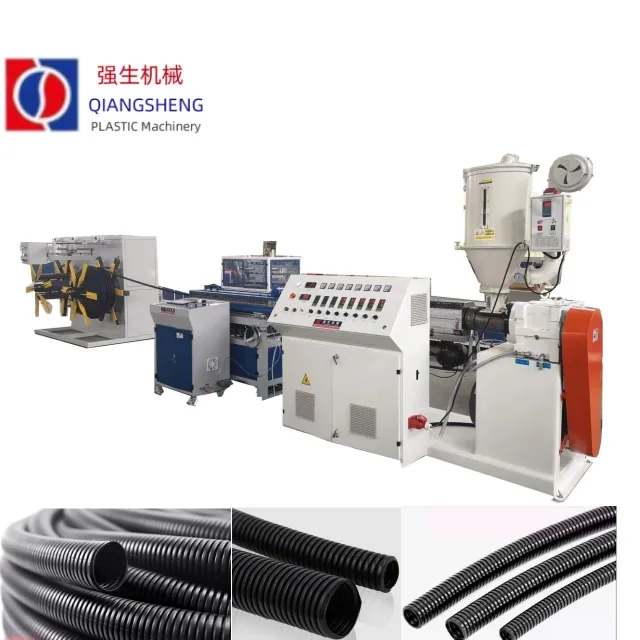

PE Corrugated Pipe Production Line

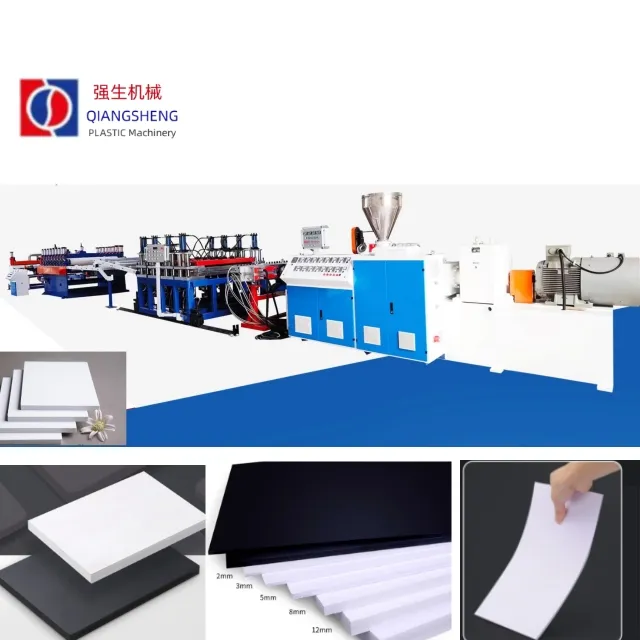

PVC Foam Board Production Line

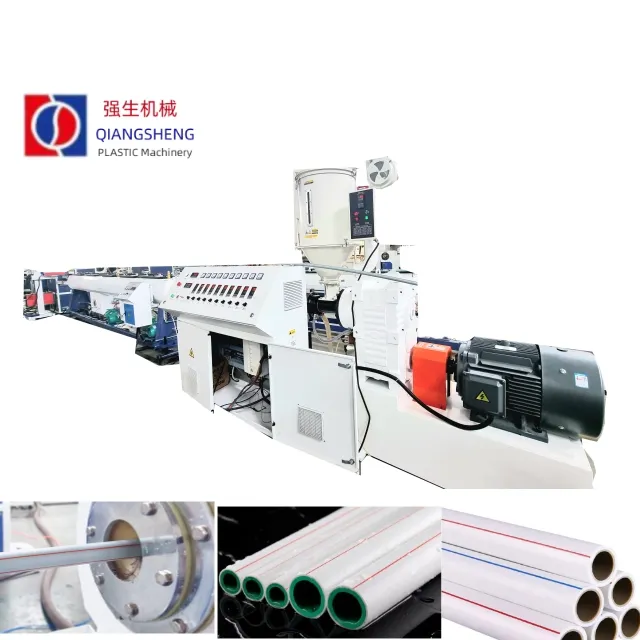

3-Layers PPR Pipe Production Line

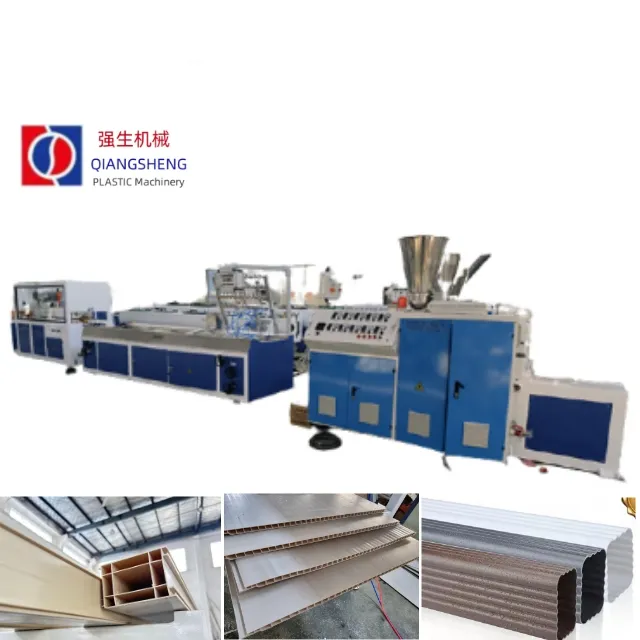

PVC Profiles & Windows Solutions
- PVC Plastic Windows Machine
- PVC Ceiling Production Line
- PVC Window Shutter Machine
- PVC Rain Gutter Machine
- PVC Corner Production Line
- PVC Great Wall Panel Machine
- PVC Cable Trunking Machine

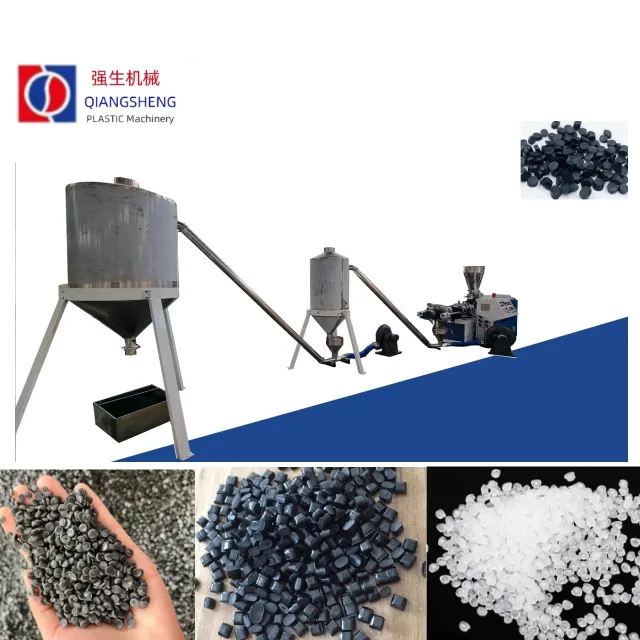

Recycling & Pelletizing Lines
- PP PE Two-stages Pelletizing Line
- PP PE One-stage Pelletizing Line
- PVC Hot-cutting Pelletizing Line
- PP PE Water Ring Pelleting Line

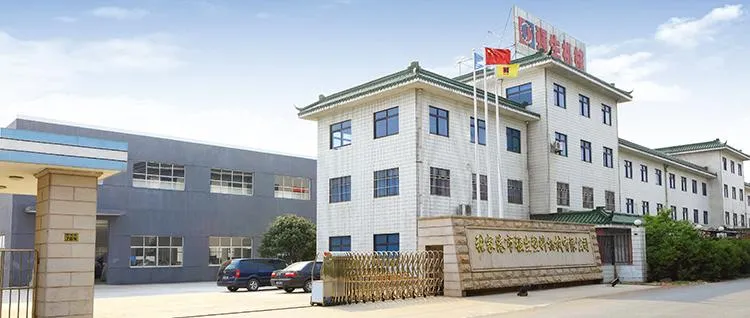

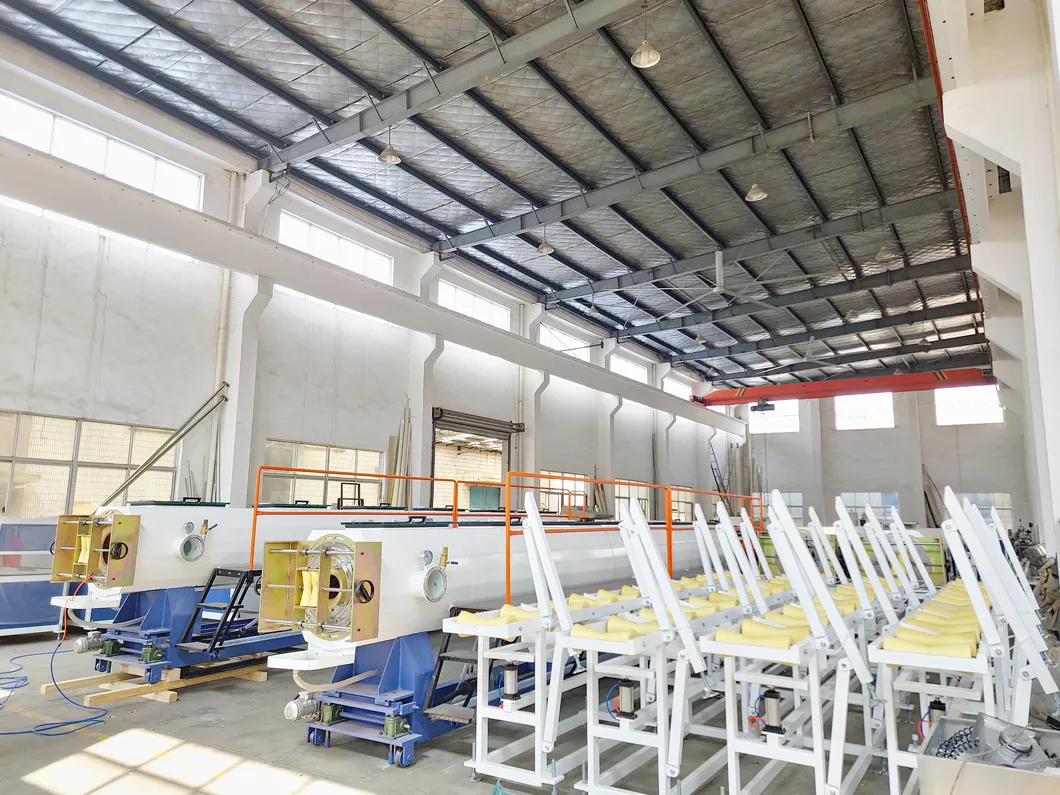

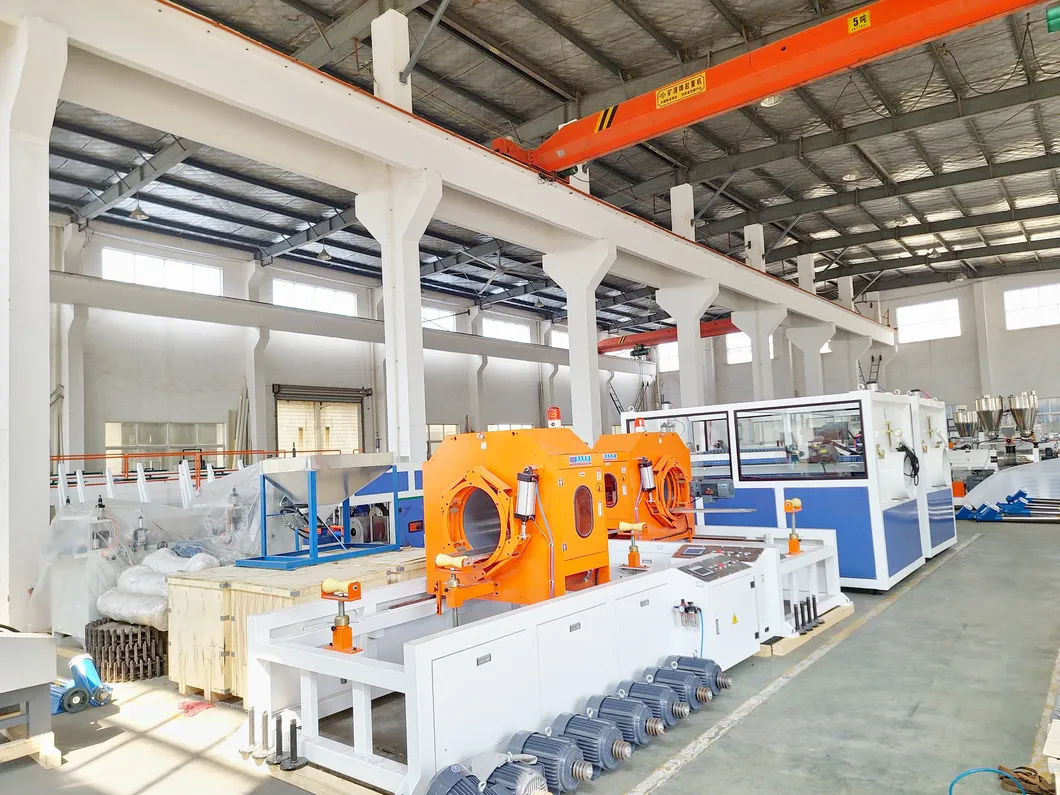

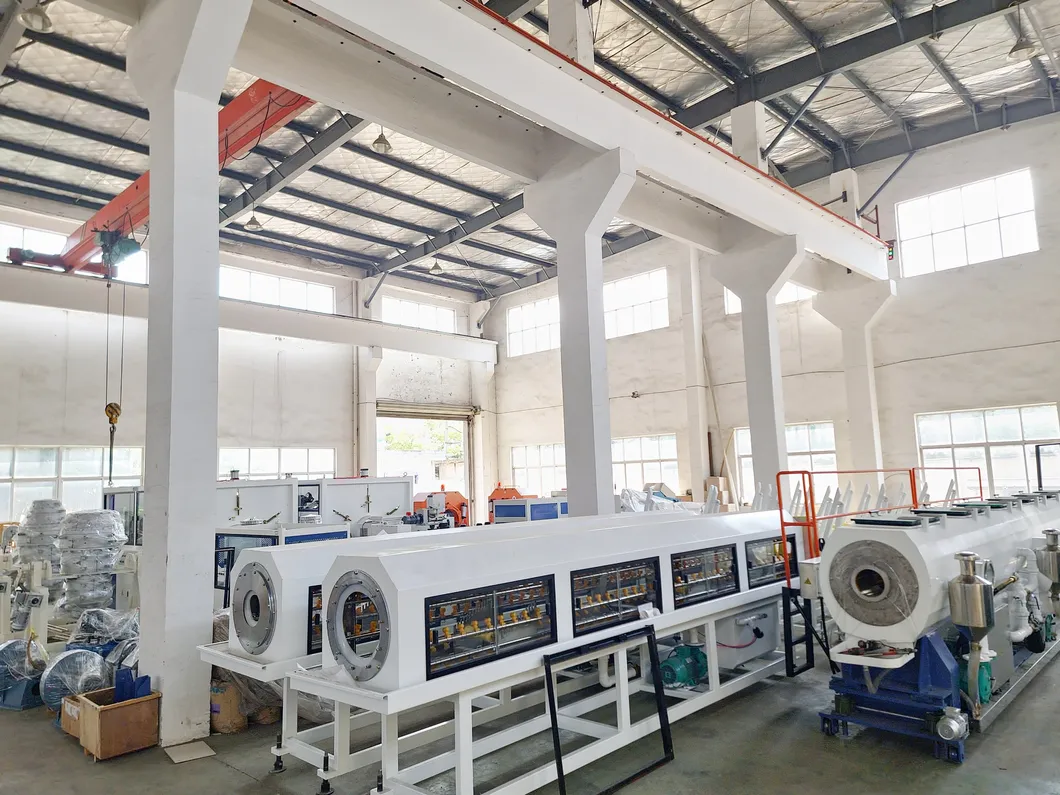

Production Facility
The main product range covers double-screw extruders, single-screw extruders, complete sets of extruding production lines and various auxiliary equipment. Specializations include PE, PP, PVC, and PP-R plastic pipe production lines, plastic profile production lines, plastic granulating systems, and plastic recycling installations.

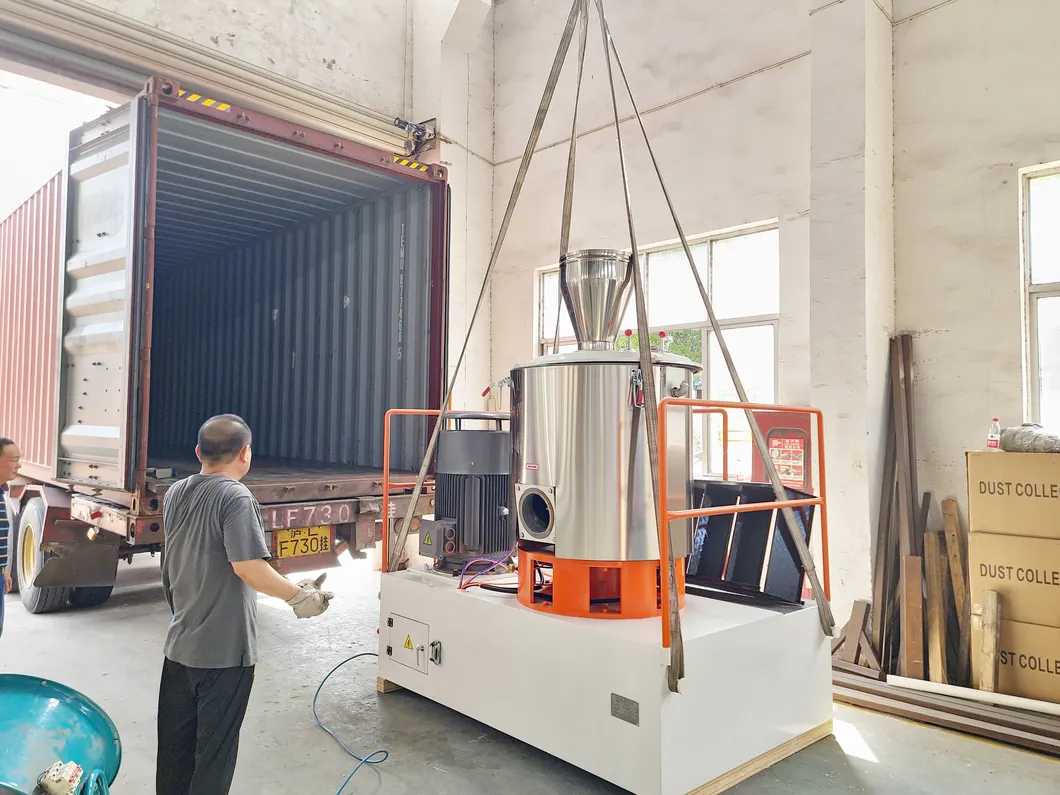

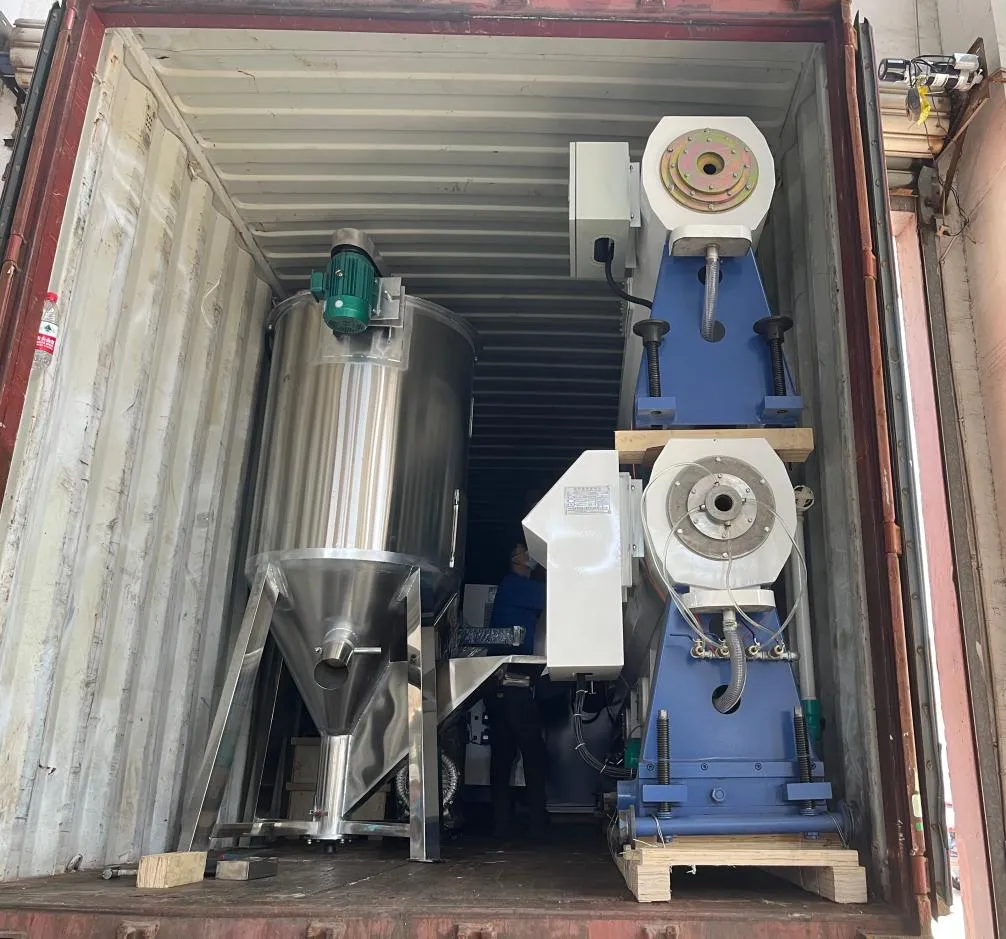

Packaging and Shipping
FAQ
What are the payment terms?
Always 30% down payment as deposit, and 70% balance paid before shipping.
What are the available payment methods?
We accept TT, L/C at sight, or online trade assurance.
Do you send engineers to our factory for installation and testing?
Yes. For every set of machinery, we will send professional engineers to your factory to assist with the installation, commissioning, and testing of the equipment.
Do you hold standard industry certificates (CE, SGS, ISO)?
Yes, we hold CE, SGS, and ISO certificates. If you require other specific certifications, we can also assist with the application process.
Are wear-out spare parts provided with the machine purchase?
Yes, we provide high-quality machines with a 1-year guarantee, along with 1 year of wear-out spare parts for free. If any issues arise that cannot be resolved remotely, our engineers are available to resolve them on-site.
What is the standard operating voltage?
The standard voltage configuration is 380V, 50Hz, 3 Phase, but it can be customized according to client requirements.
