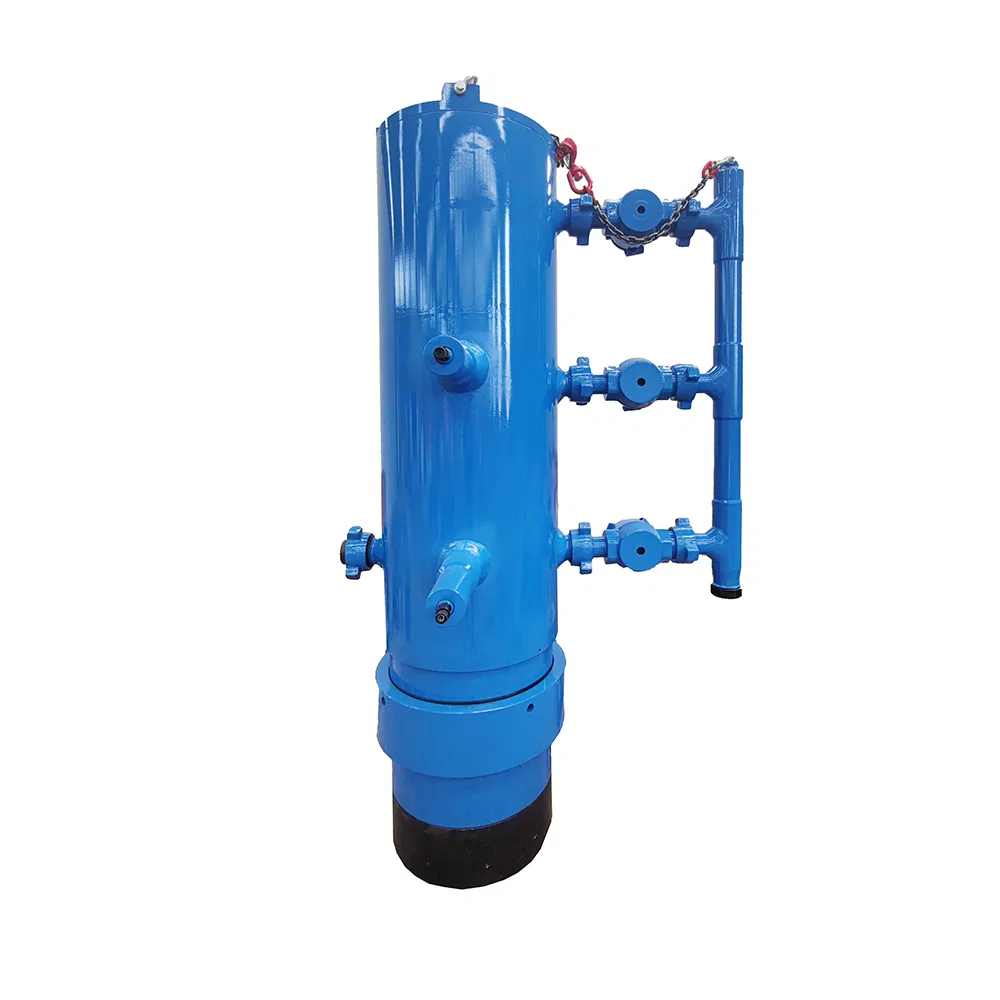

Oilwell 35MPa Btc Double Plug Cementing Head API High Performance Cementing Tool

1 / 3

Oilwell 35MPa Btc Double Plug Cementing Head API High Performance Cementing Tool

Customization:	Available
After-sales Service:	16 Year
Warranty:	16 Year

Send Inquiry

Product Description

Overview
Detailed Photos
Certifications
Packaging & Shipping
Company Profile
Our Advantages

Basic Info.

Surface Treatment Spray-Paint

Centralizer Type Semi-Rigid

Structure Automatic Reversing

Material Cast Steel

Type Casing Head

Transport Package Wood Packing

Origin China

Production Capacity 500000

Product Description

Brief Introduction

SY/T7084-2016 Cementing head is a kind of cementing tool developed according to standard SY/T7084-2016. Simple structure, easy to fix, especially the quick joint ensures convenient fixing onsite.

Product Technical Data

Name: Dual Plug Cementing Head

Mode: ST13 3/8"-1502, ST 10 3/4"-1502, ST 9 5/8"-1502, ST7"-1502, ST 5 1/2"-1502, ST 4 1/2"-1502 (35Mpa)

Rated Working Pressure: 35Mpa

Rated Temperature: -20 °C ~ 110 °C

Manifold Connection: 1502 Union

API5CT Suitable Connection Type: API5CT Standard Casing (Client Specify)

Structure

It consists of a top cap, body, manifold, stop pin, quick joint (containing locking ring), seal rubber ring, and indicator.

Installation Method

Take off the top cap of the cementing head, put the top and bottom cementing rubber plug into the cementing head, push both to the place of the stop pin, and screw the top cover.
Screw the quick joint to the top connecting collar with a tong.
Use a pneumatic hoist to hoist the cement head pipe body to the front and fast fitting joint, and use a pry bar to tighten the locking ring.
Fix the manifold and press the union ring.
Connect the cementing manifold.
Adjust the placement of the rubber plug indicator.
Shut off the top valve and middle valve, and screw in all the stop pins.
After the circulation, shut off the bottom valve, open the bottom stop pin, and open the middle valve to inject cement. Observe whether the plug indicator is up or not.
After the injection of cement, shut off the middle valve, open the top stop pin and top valve, inject water, push the top plug, and observe whether the indicator is up or not.
Build the pressure to the finish of the cementing well.
Pressure relief: unlink the quick union, unlink the quick joint with a tong, and smear oil to maintain.

Notice:

Make sure the thread is clean before screwing, and smear with sealing grease.
Pay attention to the sealing ring: smear grease, align, and screw slowly when fixing.
Tighten all connection parts to avoid leakage.

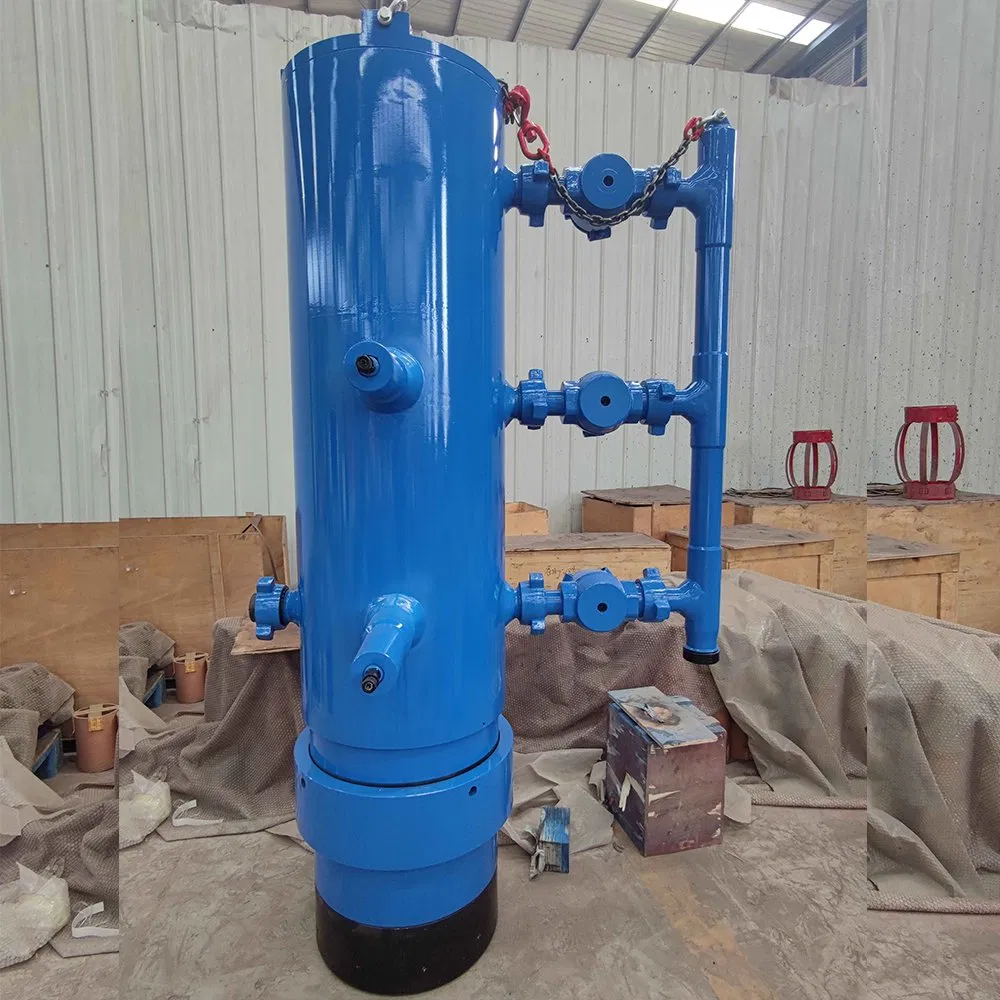

Detailed Photos

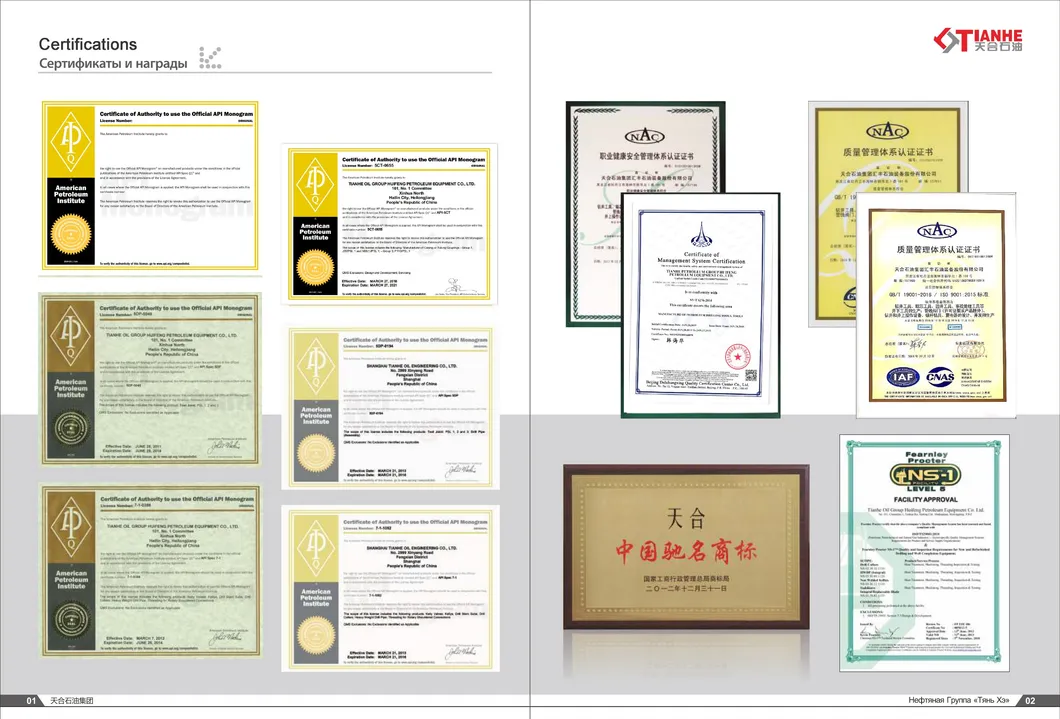

Certifications

Packaging & Shipping

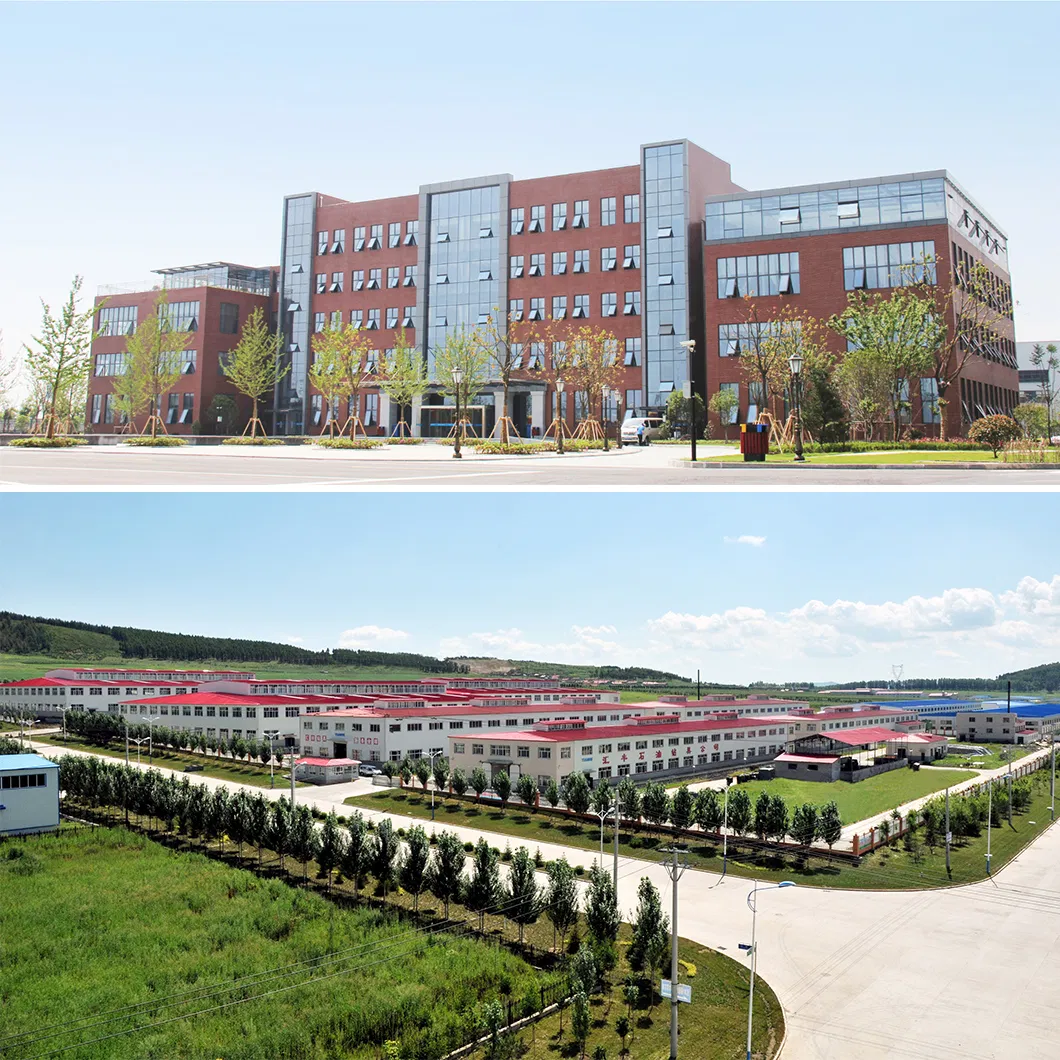

Company Profile

Our Advantages

Our principle is to offer high quality products at competitive price to benefit our customers and the industry in the long run.

We are the Leading manufacturer in China since 1973 for drilling /fishing /milling equipment for oil and gas.

We have established a complete quality control system, all products & equipments manufactured as per international standard and API standard.

Competitive Advantages

We offer high quality products at competitive price.
Shortest delivery time & Flexible payment terms.
Full range of drilling /fishing /milling equipment for oil and gas.
Timely after-sale service.

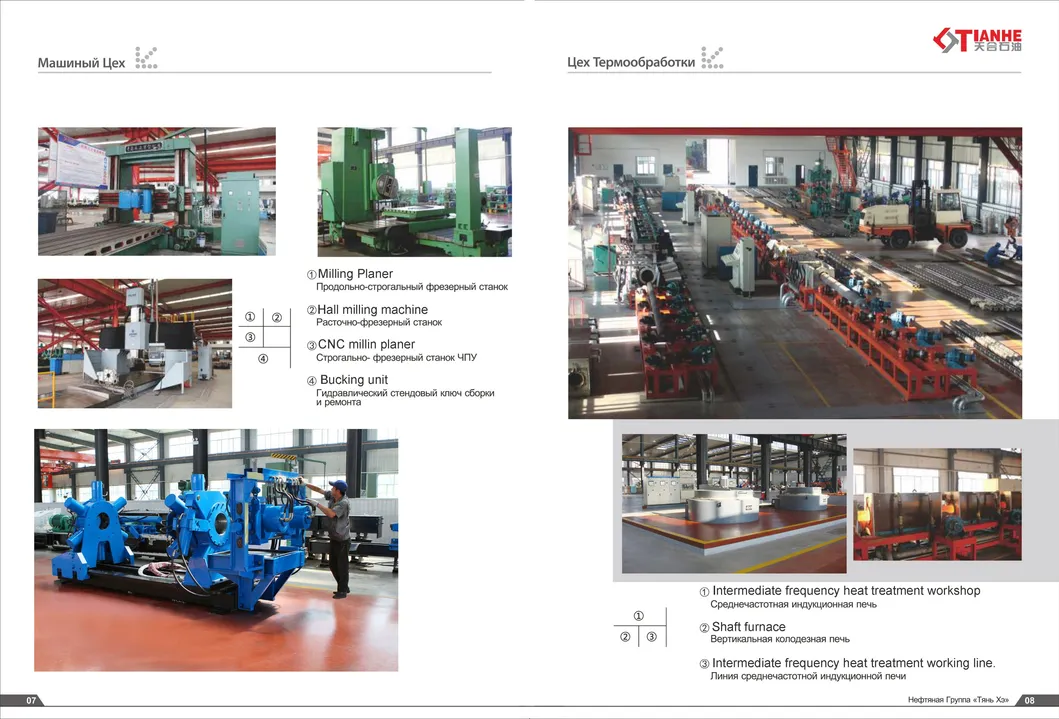

Imported International brands Machines such as Japan Mazak machining center, Austria WFL machining center etc.
Complete quality control system, offices and testing equipment.

Frequently Asked Questions (FAQ)

What standard is the Dual Plug Cementing Head manufactured under?

The cementing head is developed and manufactured according to the standard SY/T7084-2016 and standard API specifications.

What are the rated working pressure and temperature limits for this tool?

The tool has a rated working pressure of 35Mpa and is designed to operate safely within a rated temperature range of -20 °C to 110 °C.

What components are included in the structure of the cementing head?

It consists of a top cap, body, manifold, stop pin, quick joint (which contains the locking ring), seal rubber ring, and a plug indicator.

What type of connections does the manifold and casing use?

It utilizes a 1502 Union manifold connection and is compatible with API5CT standard casings (which can be specified by the client).

What precautions should be taken during installation to prevent leakage?

Ensure all threads are clean and lubricated with sealing grease before assembly. When fixing, apply grease to the sealing ring, align properly, screw slowly, and ensure all connection parts are tightly secured.

What manufacturing advantages ensure the high quality of these tools?

We utilize high-end imported international brand machinery such as Japan's Mazak machining centers and Austria's WFL machining centers, backed by a complete quality control system and strict API standards.
