Customization: Available
After-sales Service: Online
Warranty: 5 Years
Send Inquiry

Product Description

  • Overview
  • Manufacturing Equipment
  • Introduction
  • Overseas Projects
  • Raw Materials

Basic Info.

Model NO. YY-XZH-Series
Application Scope Solar Water Heater Bracket Fore & Back Leg Forming
Type Welding/Punching and More
MOQ 1 Set
Delivery 30 Days
Transport Package Nude Package for Whole Container
Specification YY-XS-3000-Series
Trademark XS
Origin Zhejiang Province, China
HS Code 8462411900
Production Capacity 500 Sets/Year

SOLAR WATER HEATER MANUFACTURING EQUIPMENT

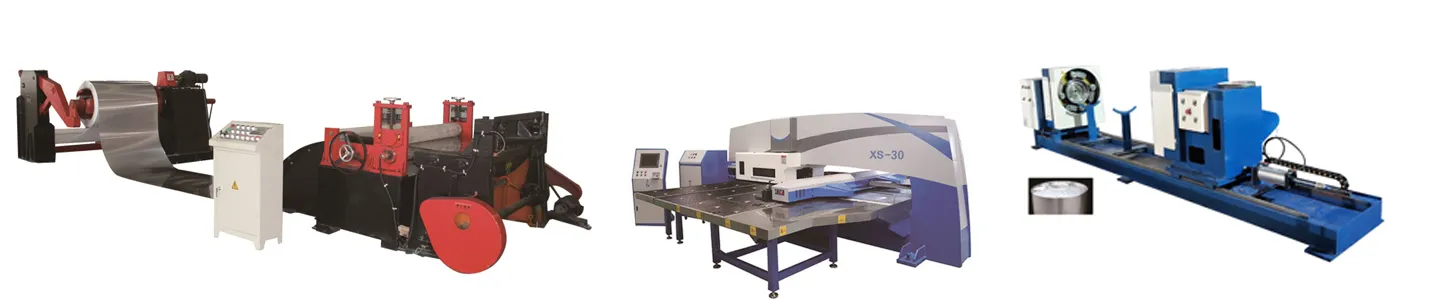

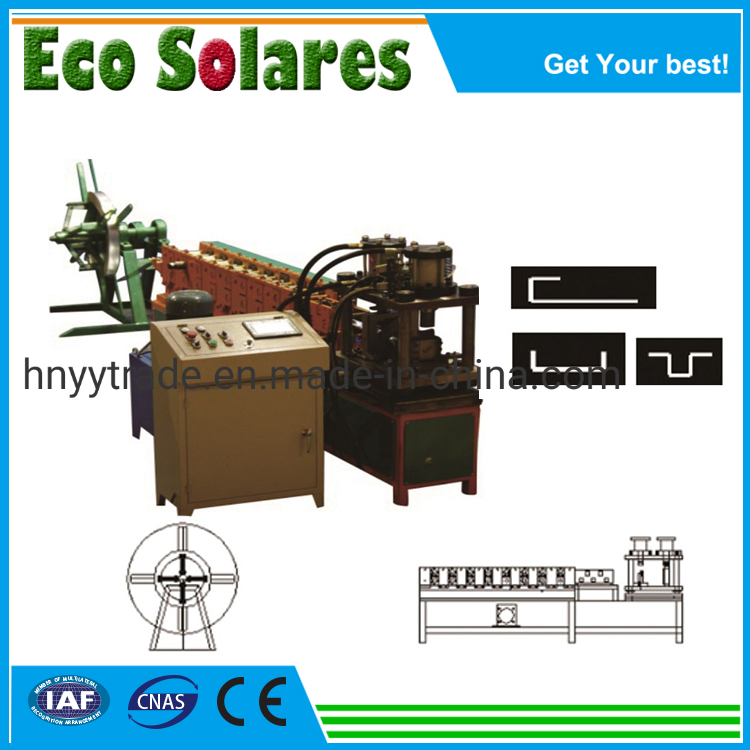

Solar Water Heater Frame Production Line Machines

BRIEF INTRODUCTION

Specializing in offering all types of solar water heater manufacturing equipment with over 20 years' experience in machinery innovation and production.

Production Lines We Provide:

  • Low Pressure Solar Water Heater Tank Production Line
  • High Pressure Solar Water Heater Tank Production Line

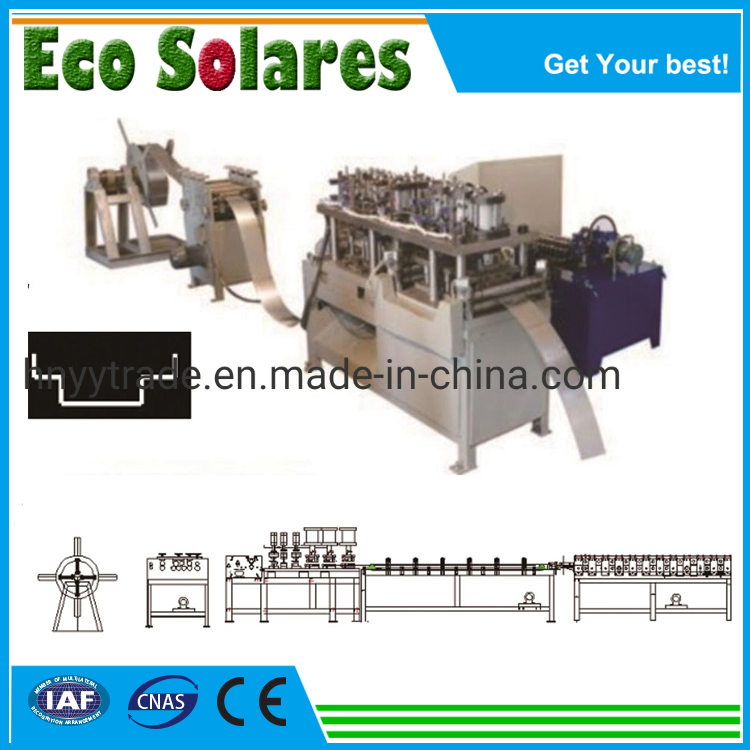

  • Solar Water Heater Bracket Production Line
  • Tank Cap Production Line
  • Corrugated Pipe Production and Annealing Line
  • Solar Collector Production Line (Flat Plate, Manifold, Heat Pipe Type)

Meanwhile, we support all overseas factories with raw materials and accessories needed for producing solar water heaters.

Solar Water Heater Tank Punching Machine Water Tank Cap Welding Line Solar Water Heater Bracket Production Line Manufacturing Machinery Welding Line Equipment Water Tank Rollers Bracket Leg Forming

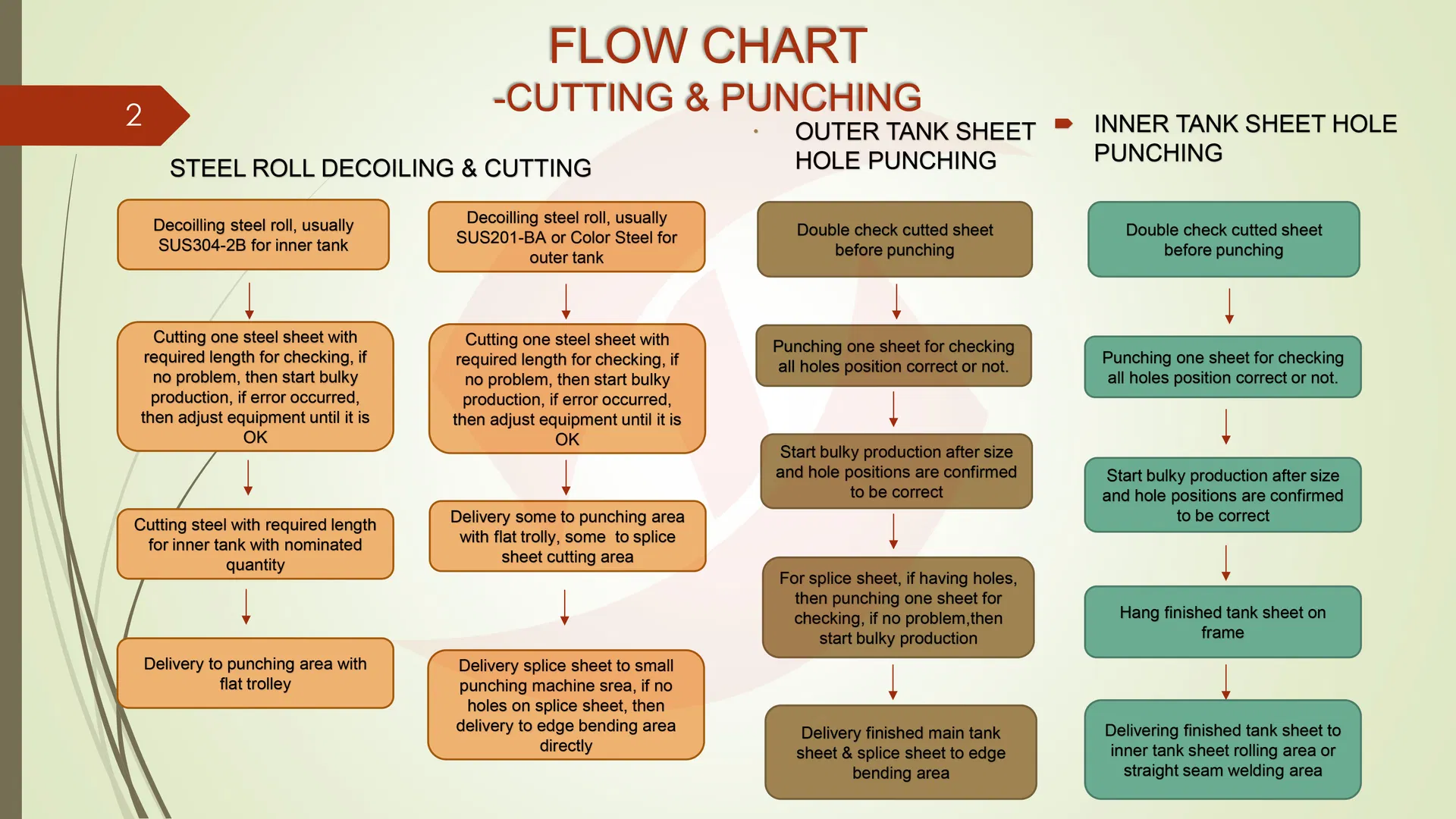

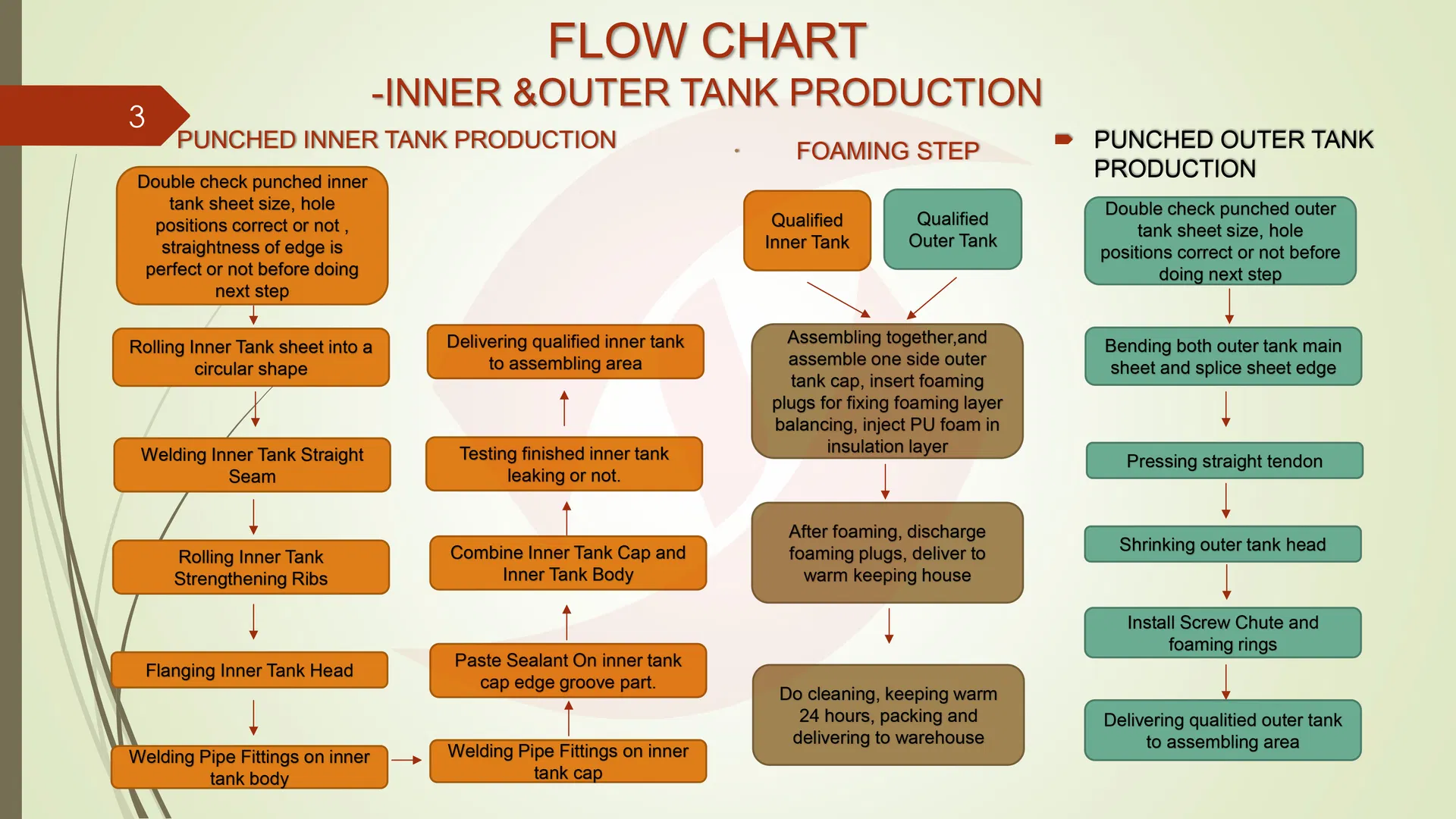

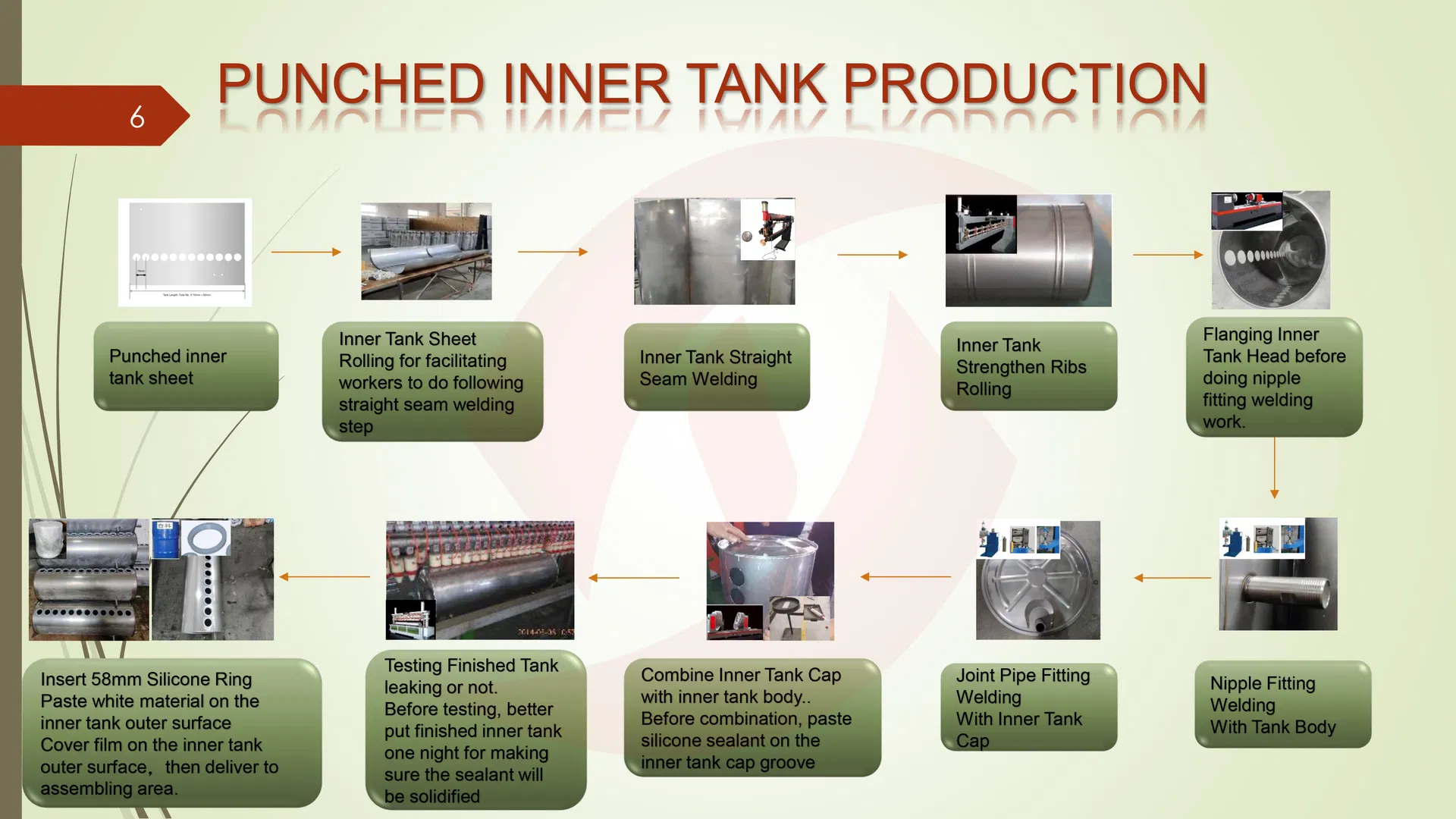

INTRODUCTION OF MANUFACTURING EQUIPMENT

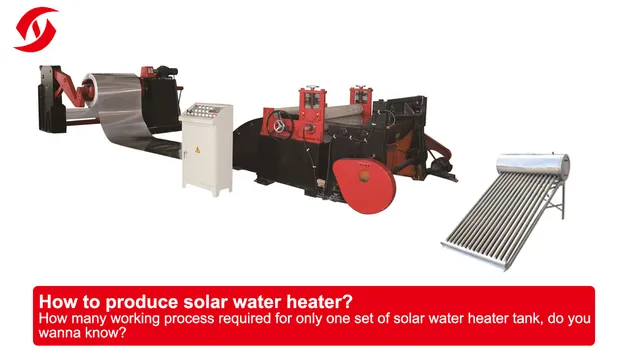

STEEL COIL DECOILING, LEVELING & CUTTING MACHINE
STEEL COIL DECOILING, LEVELING & CUTTING MACHINE
Uncoiling the Steel Coil and cutting the plate.

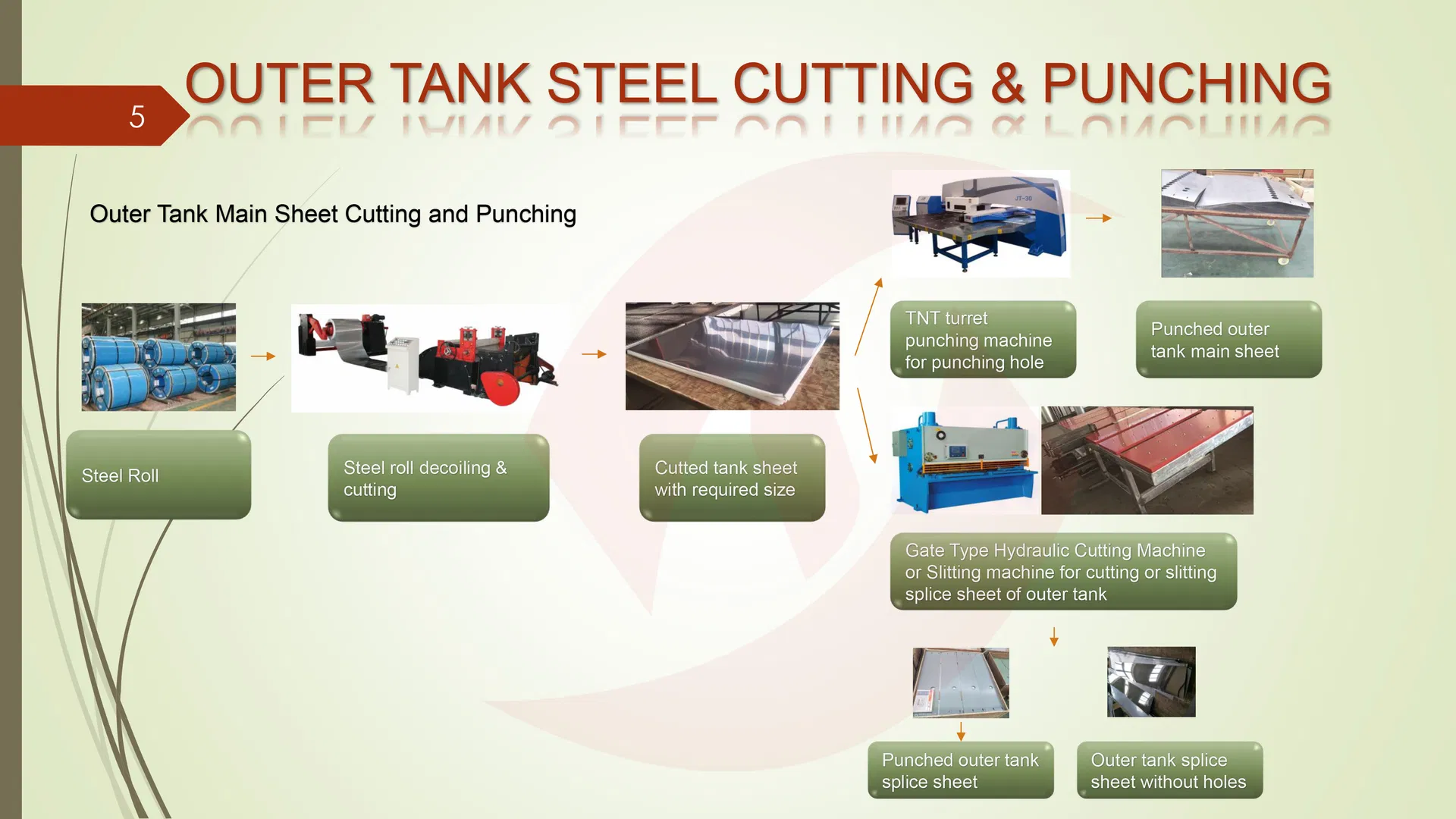

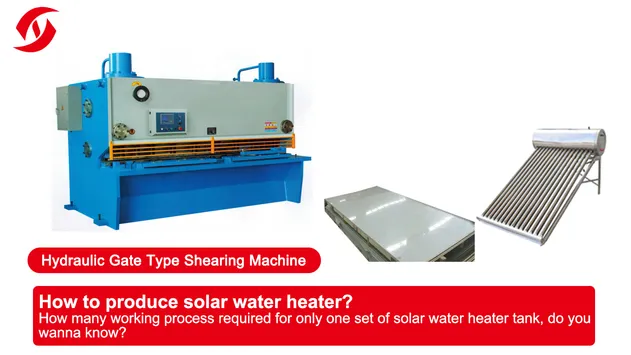

HYDRAULIC GATE TYPE SHEARING MACHINE
HYDRAULIC GATE TYPE SHEARING MACHINE
Cutting splice sheet of outer tank.

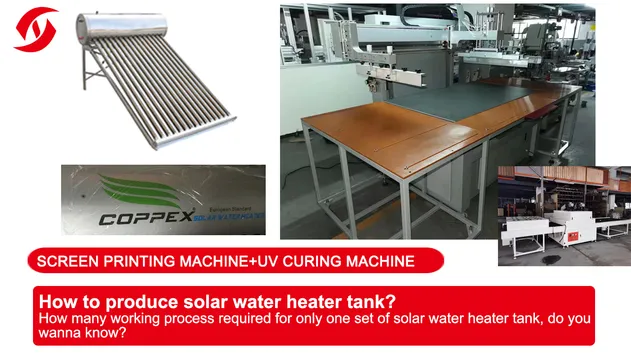

SCREEN PRINTING MACHINE+UV CURING MACHINE
SCREEN PRINTING MACHINE+UV CURING MACHINE
Printing and drying logo on outer tank sheet.

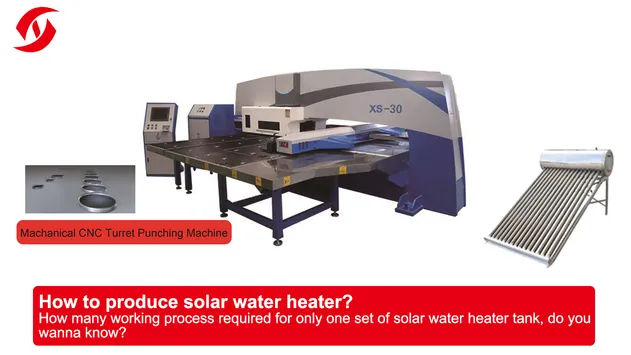

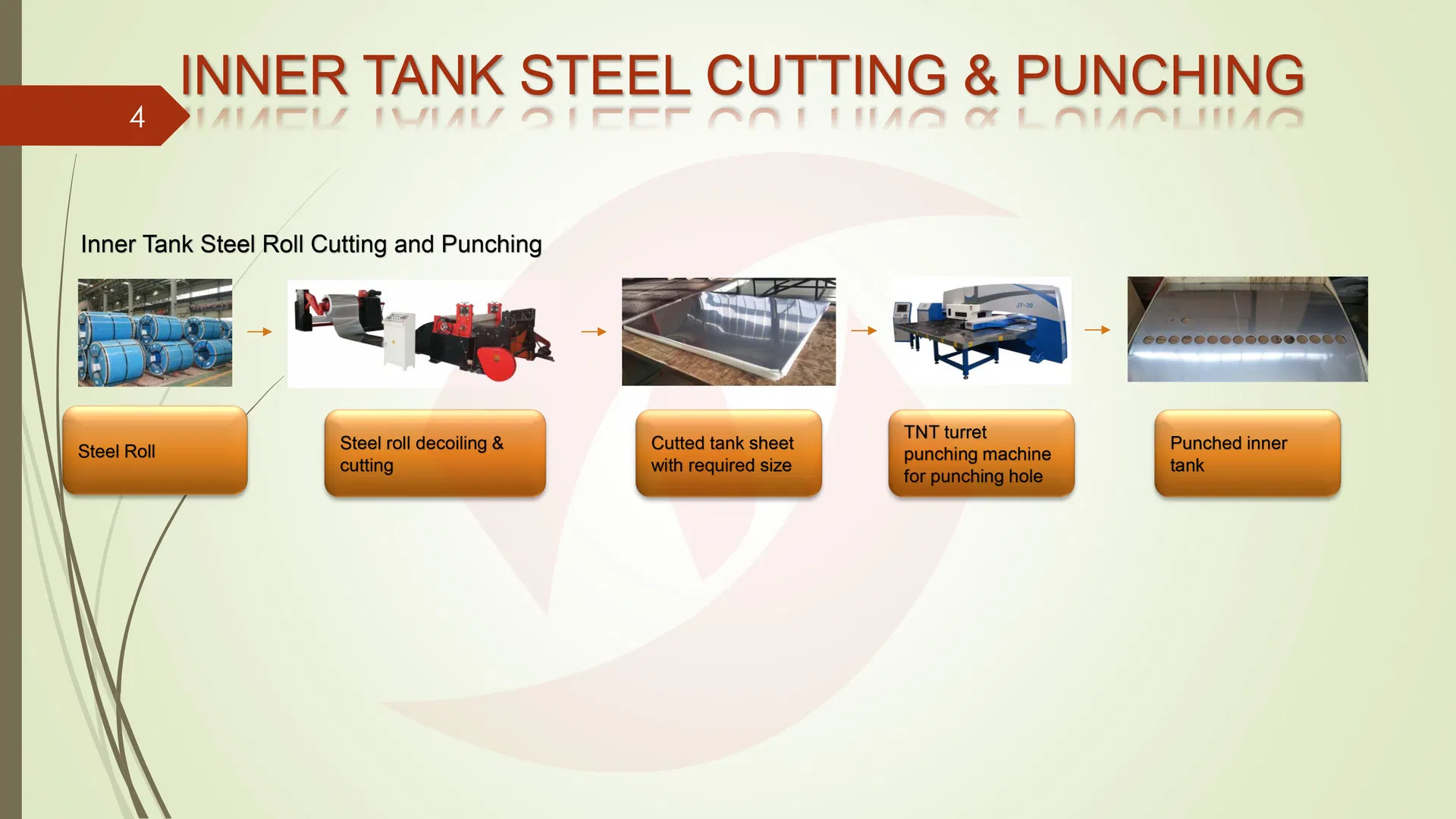

MECHANICAL CNC TURRET PUNCHING MACHINE
MECHANICAL CNC TURRET PUNCHING MACHINE
Punching Tank Holes (All holes on the inner tank body and holes on outer tank body will be all in main tank sheet).

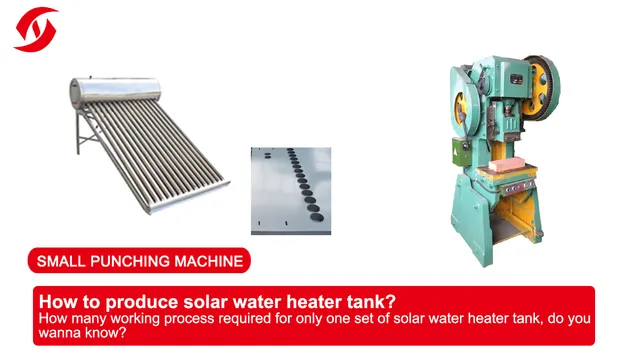

SMALL PUNCHING MACHINE
SMALL PUNCHING MACHINE
Punching holes which is on splice sheet of outer tank and function holes on tank caps.

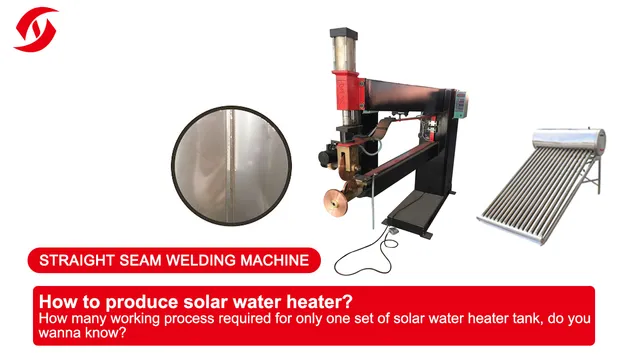

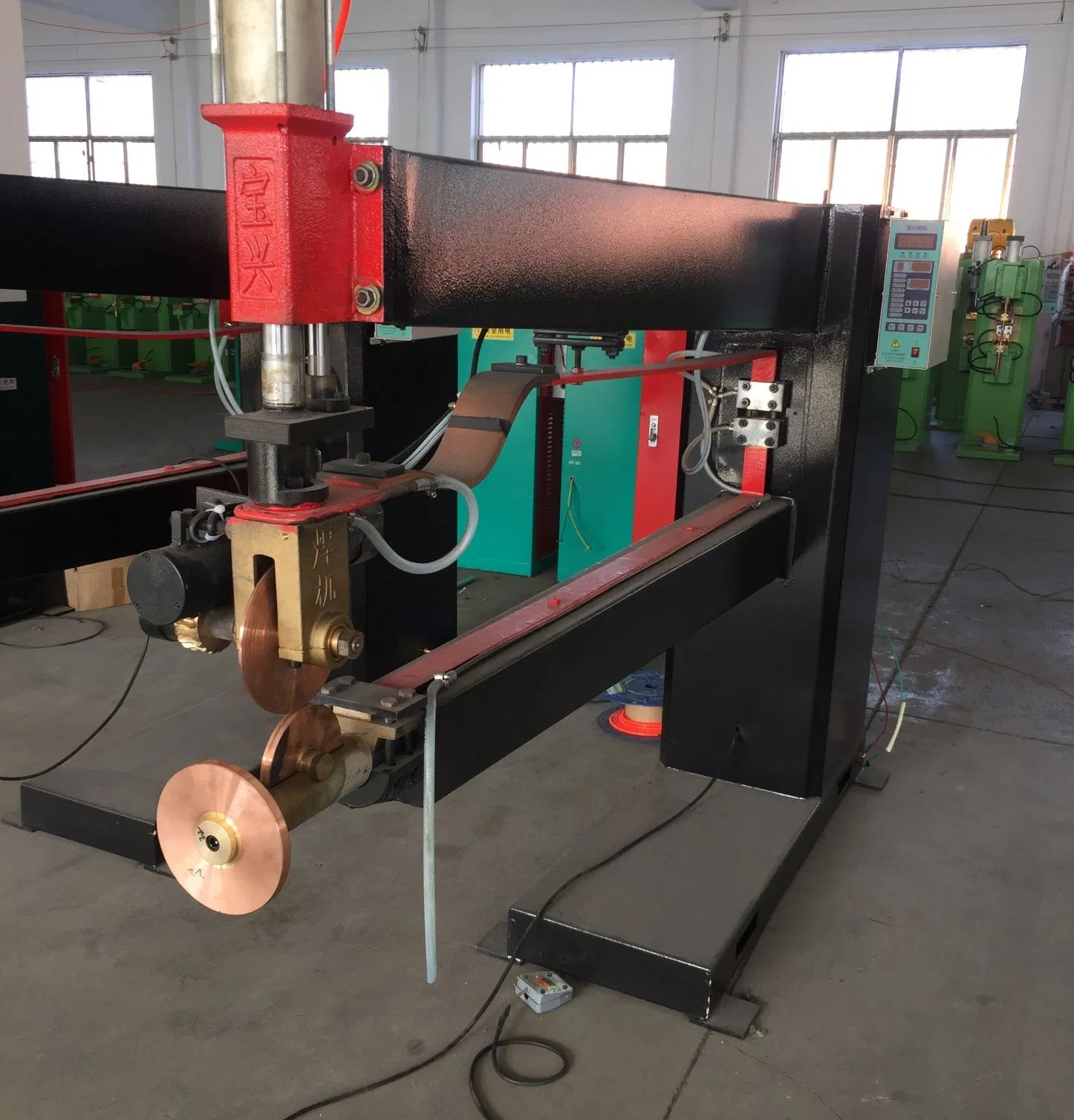

STRAIGHT SEAM WELDING MACHINE
STRAIGHT SEAM WELDING MACHINE
Welding inner tank straight seam.

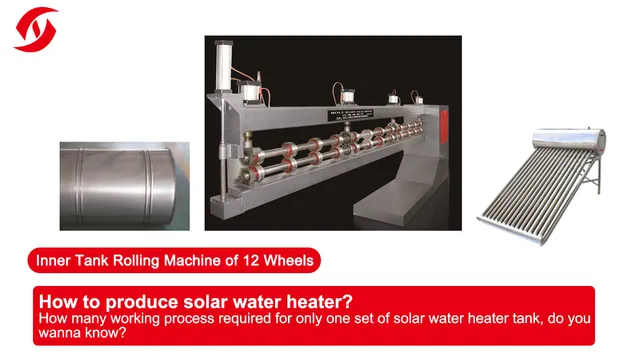

INNER TANK ROLLING MACHINE OF 12 WHEELS
INNER TANK ROLLING MACHINE OF 12 WHEELS
Enhancing the strength of the inner tanks via rolling annular convex tendons on tank surface.

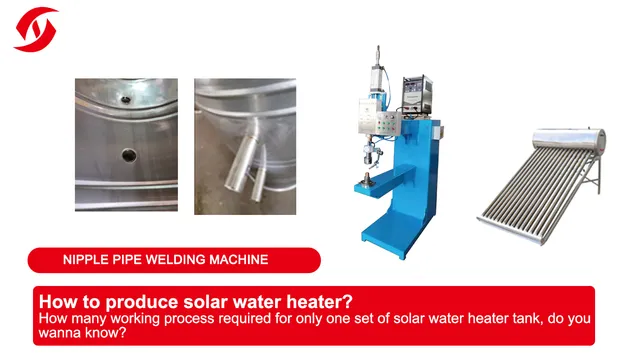

NIPPLE PIPE WELDING MACHINE
NIPPLE PIPE WELDING MACHINE
Welding the pipes with inner tank or inner tank covers.

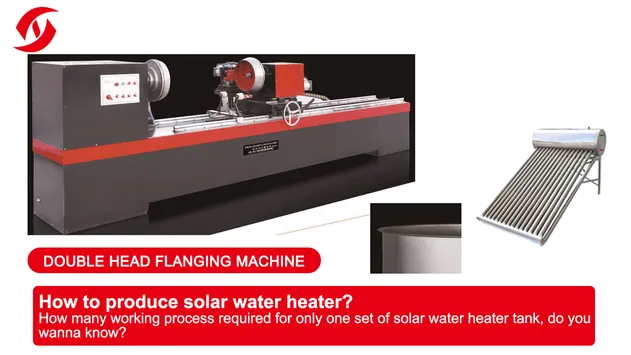

DOUBLE HEAD FLANGING MACHINE
DOUBLE HEAD FLANGING MACHINE
Flanging the inner tank double head.

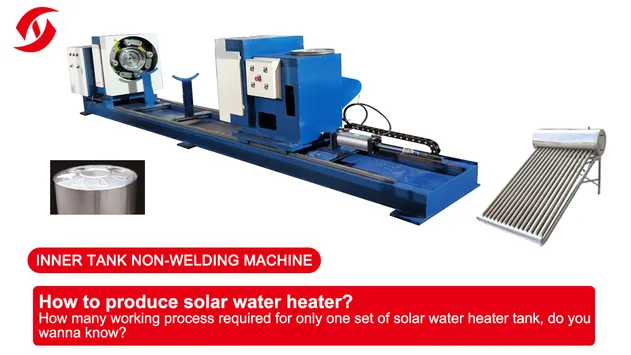

INNER TANK NON WELDING MACHINE
INNER TANK NON WELDING MACHINE
Combine the inner tank and inner tank cover with non welding technology.

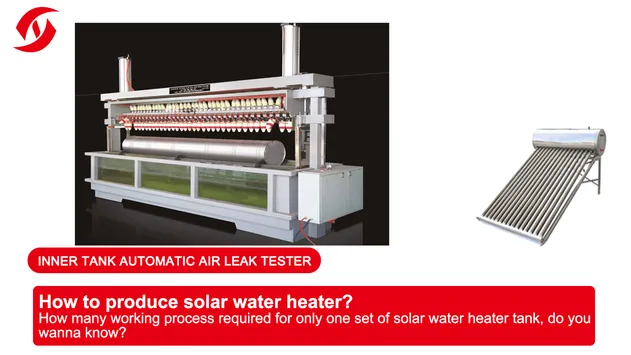

INNER TANK AUTOMATIC AIR LEAK TESTER
INNER TANK AUTOMATIC AIR LEAK TESTER
Check whether any leakage of the inner tank.

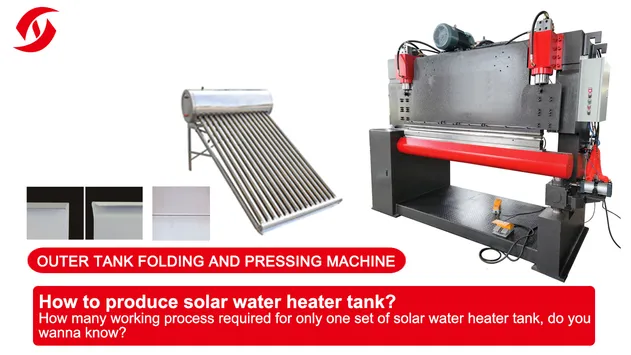

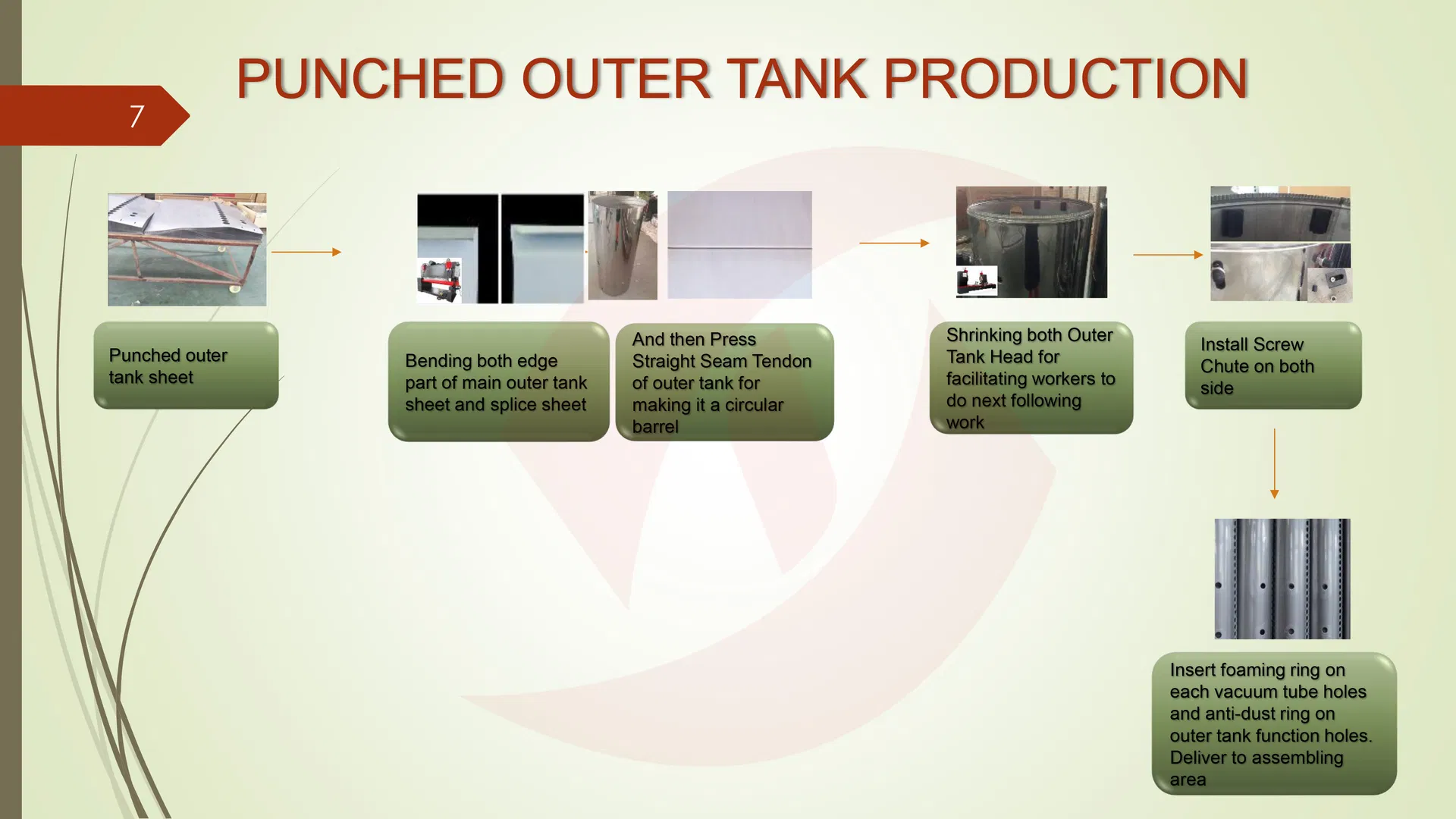

OUTER TANK FOLDING AND PRESSING MACHINE
OUTER TANK FOLDING AND PRESSING MACHINE
Bending the tank edge + Pressing straight seam.

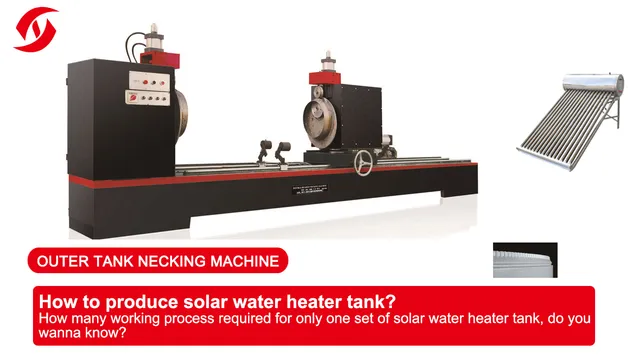

OUTER TANK NECKING MACHINE
OUTER TANK NECKING MACHINE
Making the outer tank head into toothing shape for facilitating workers to combine it with outer tank cap.

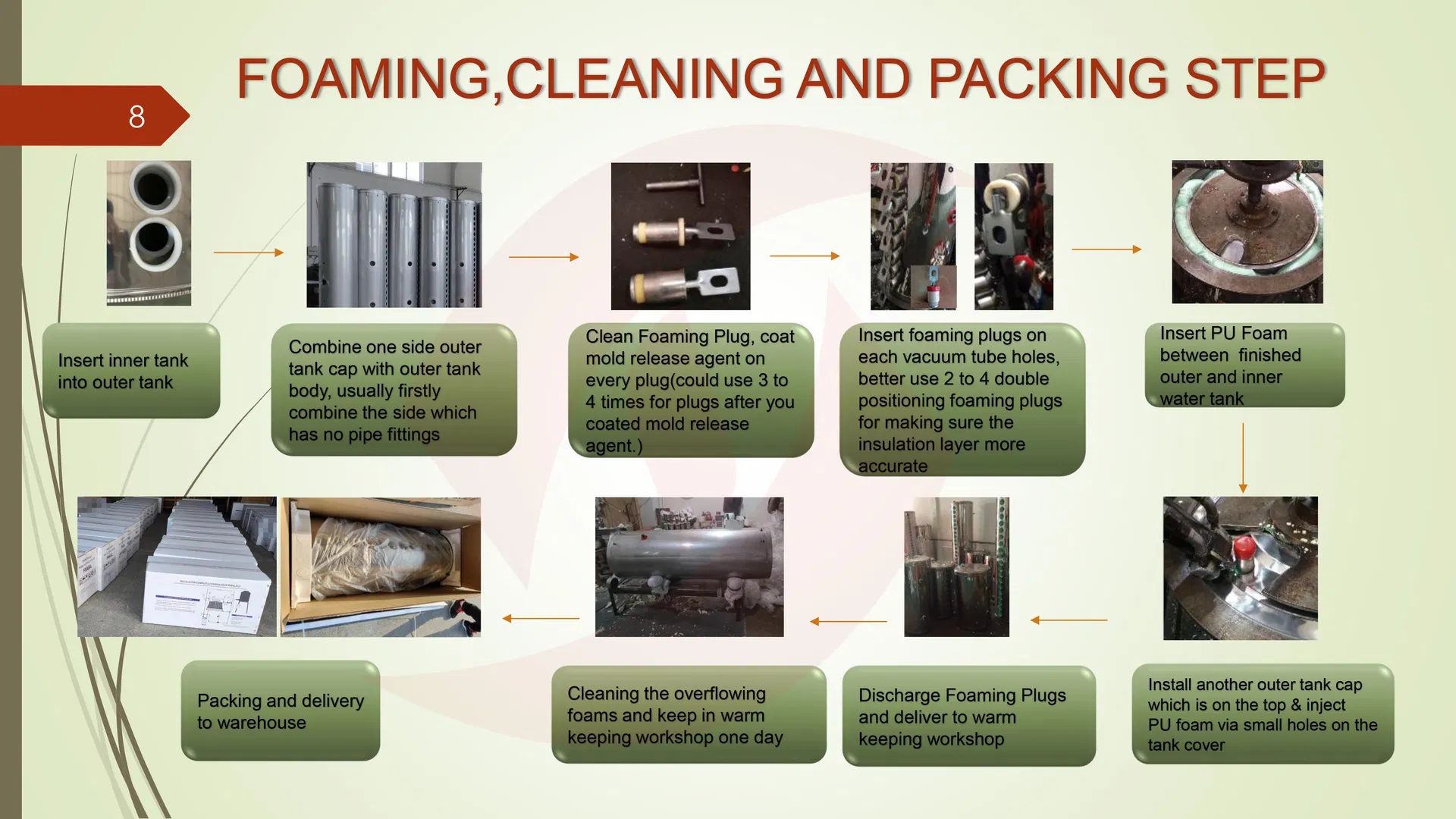

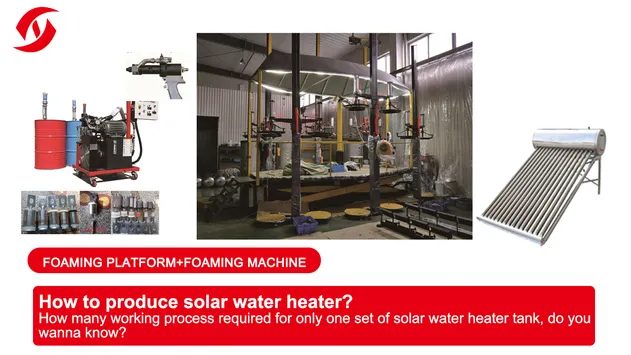

FOAMING PLATFORM AND FOAMING MACHINE
FOAMING PLATFORM AND FOAMING MACHINE
Fixing the assembled tank and inserting PU foam inside the foaming layer.

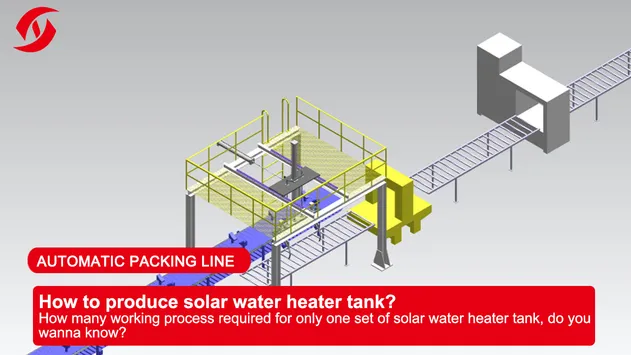

AUTOMATIC PACKING LINE
AUTOMATIC PACKING LINE
Packing the finished tanks.

PROJECT WE SUPPORTED OVERSEAS

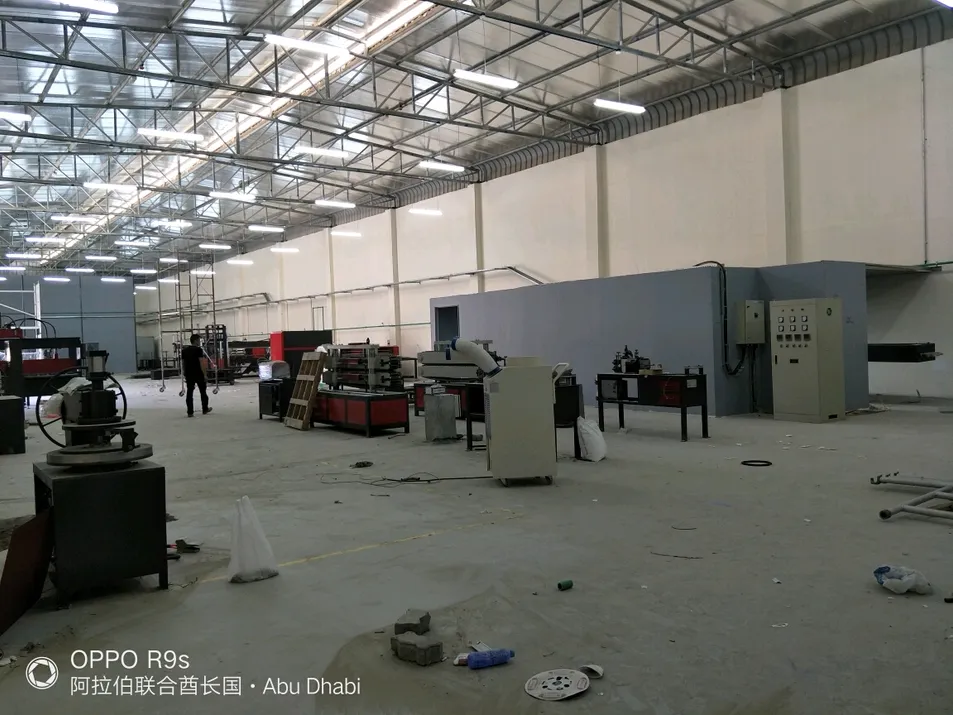

UAE Production Line
UAE PRODUCTION LINE
Complete solar water heater tank production line, corrugated pipe production and annealing line installed in Abu Dhabi, UAE.

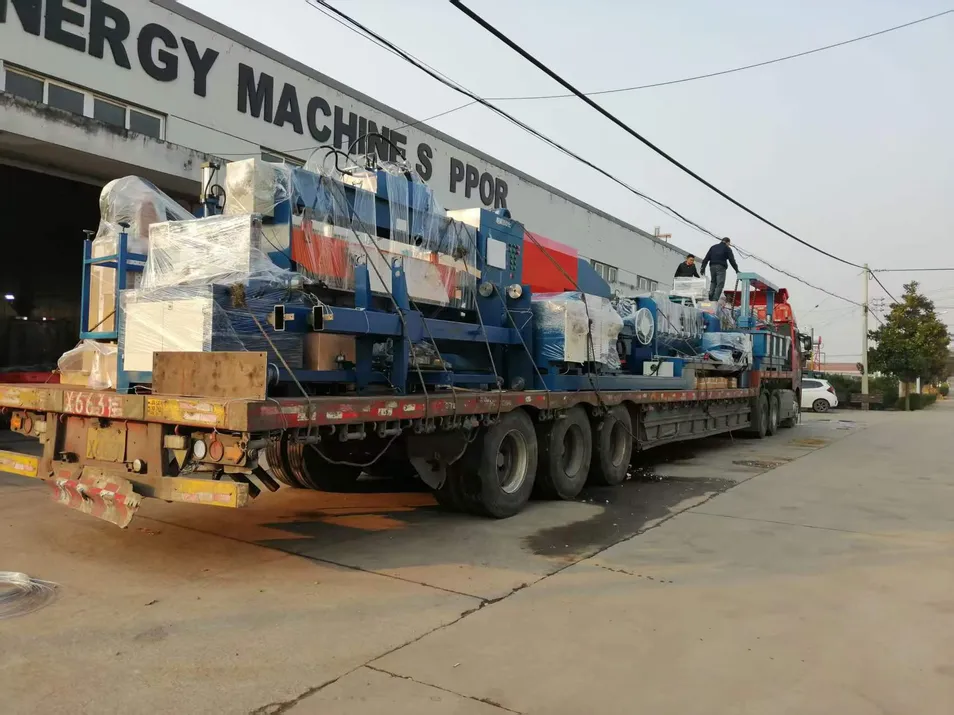

Vietnam Production Line
VIETNAM PRODUCTION LINE
Complete solar water heater tank production line delivered to Vietnam via truck.

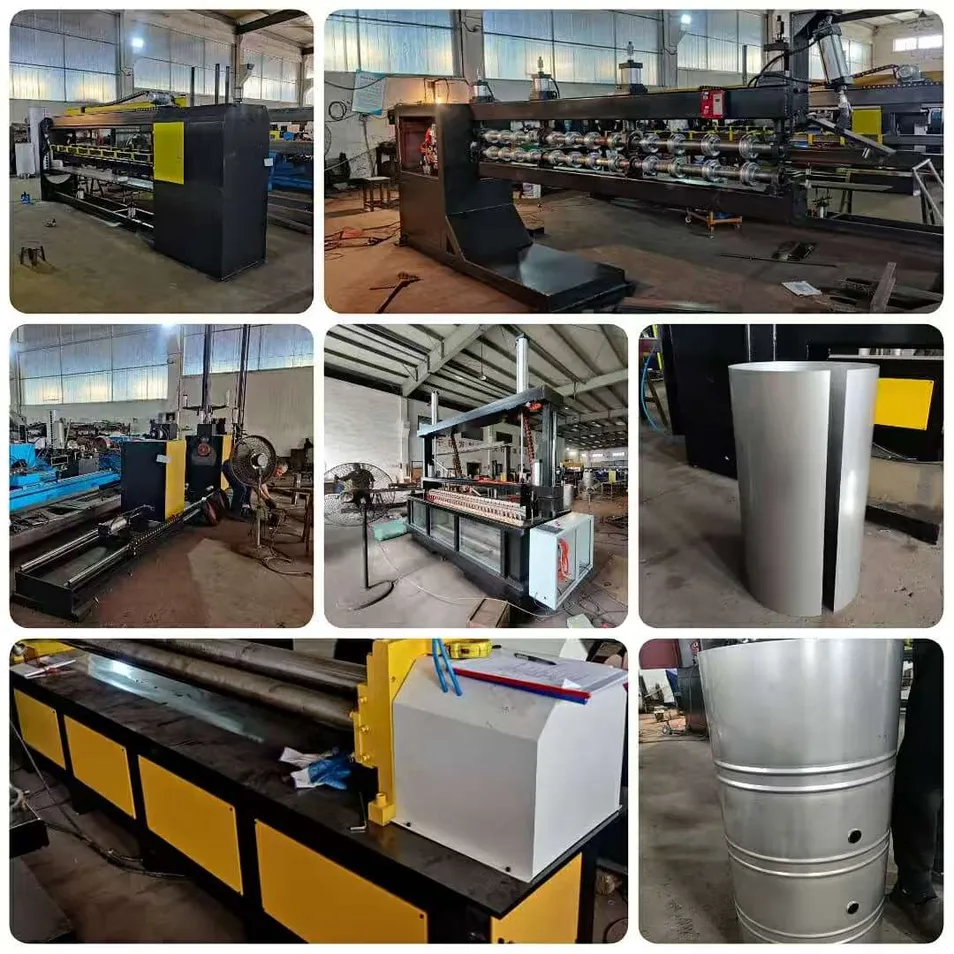

Mexico Production Line
MEXICO PRODUCTION LINE
Complete solar water heater tank production line for Mexico market.

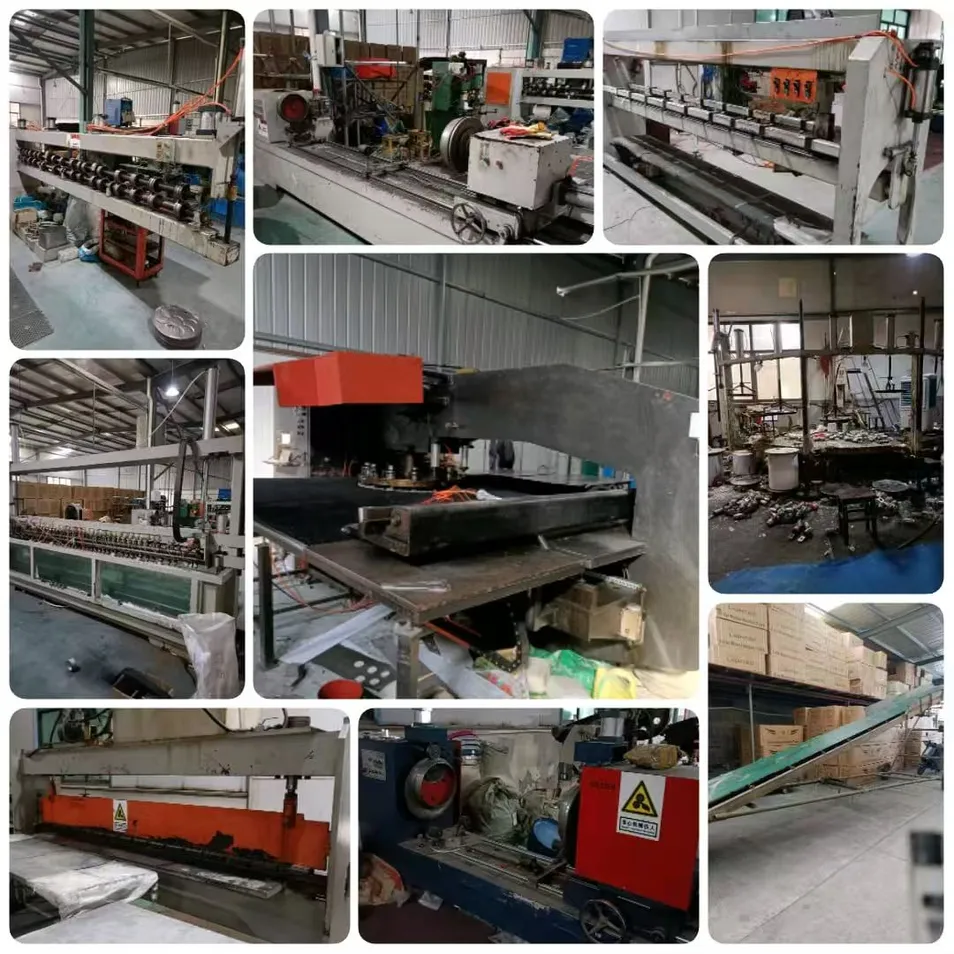

Middle East Second Hand Production Line
MIDDLE EAST SECOND HAND PRODUCTION LINE
Complete solar water heater tank second hand production line for Middle East.

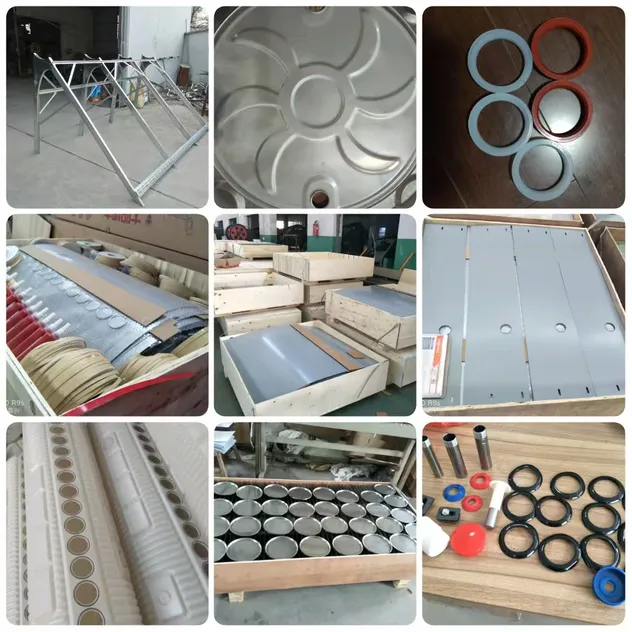

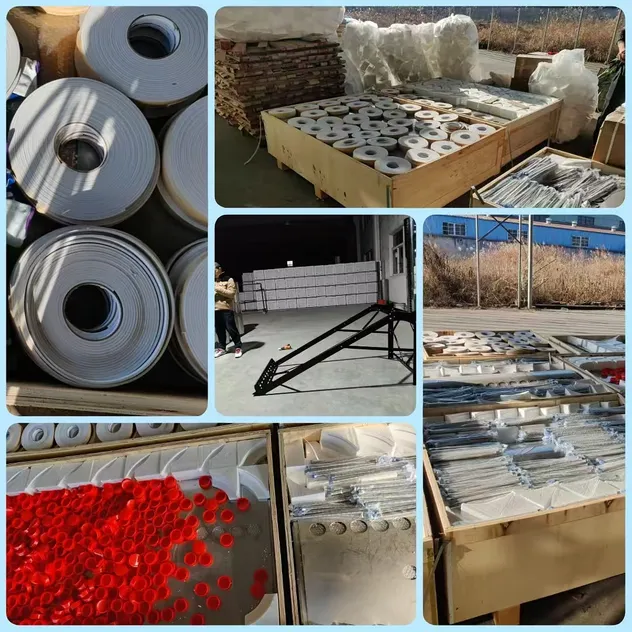

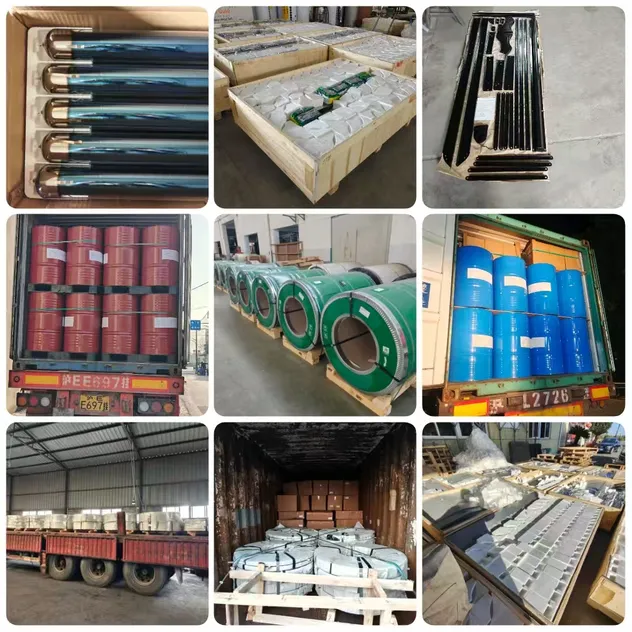

SOLAR WATER HEATER RAW MATERIALS WE SUPPORTED

Raw Material Stainless Steel Sheet Foaming Raw Materials Vacuum Tubes and Frames
RAW MATERIALS LIST REQUIRED FOR SOLAR WATER HEATER
Tank Part: -
Inner Tank: Stainless Steel Sheet with SUS304-2B, 316L; Inner Tank Cap with SUS304-2B/SUS316L Stainless Steel Material; Silicone Rings; Pipe Fittings.
Outer Tank: PVDF Coating Galvanized Steel Sheet with Pearl White, Ivory White, Silver Brushed, Silver Fluorine Titanium with High Gloss, Golden Yellow, Red, Green, etc.; SUS201-BA/SUS304-2B/SUS304-BA/SUS304 Hairline/SUS316L Stainless Steel; Outer Tank Cap; Anti-dust Rings; Bottom Decoration Cap; Heating Resistor Hole Nylon/Silicone/SUS304/SUS316L Plug & Red Plastic Cover; Heating Resistor Decoration Cover; Air Vent Cover.
Insulation Layer: POLYMERIC MDI; COMBINATION POLYETHER; MOLD RELEASE AGENT.
Frame: Galvanized Steel Type frame with color paint; SUS201 Frame; SUS304 Frame; Alloy Aluminum Frame.
Vacuum Tube: Cu/SS-ALN/ALN, Three target magnetron sputtering plating.
Optional Accessories: Assistant Tank, Electric Backup Heater, Check Valve, Magnesium Rod, etc.
Frequently Asked Questions
Q1: What are the main machine options available for solar water heater tank production?
We offer specialized production lines for both Low Pressure and High Pressure solar water heater tanks, as well as separate manufacturing setups for outer tanks, inner tanks, and tank cap fabrication.
Q2: Can you supply both the machinery and the raw materials required for production?
Yes, we provide complete, integrated support. Besides installing the manufacturing machines, we can source and supply all necessary raw materials, including stainless steel sheets (SUS304-2B/316L), PVDF coated sheets, polyurethane foaming agents (MDI/Polyether), and optional accessories like electric backup heaters and magnesium rods.
Q3: How do you verify the quality and leak prevention of the manufactured inner tanks?
Our production line includes an Inner Tank Automatic Air Leak Tester and uses specialized non-welding technology to combine the inner tank body with the cover safely, ensuring leak-proof sealing under testing.
Q4: What is the typical lead time for delivery of a full machinery line?
The delivery time is typically 30 days from project confirmation. Standard shipping is arranged using nude packaging optimized for safe container loading.
Q5: Do you provide support for setting up manufacturing plants overseas?
Yes. We have a proven track record of supporting factories worldwide, having delivered and successfully installed complete production lines in regions such as the UAE (Abu Dhabi), Vietnam, Mexico, and the Middle East.
