Specializing in offering all types of solar water heater manufacturing equipment. Over 20 years' experience in machinery innovation and production.
At present we provide:
Meanwhile, we support all overseas factories with raw materials and accessories needed for producing solar water heaters.

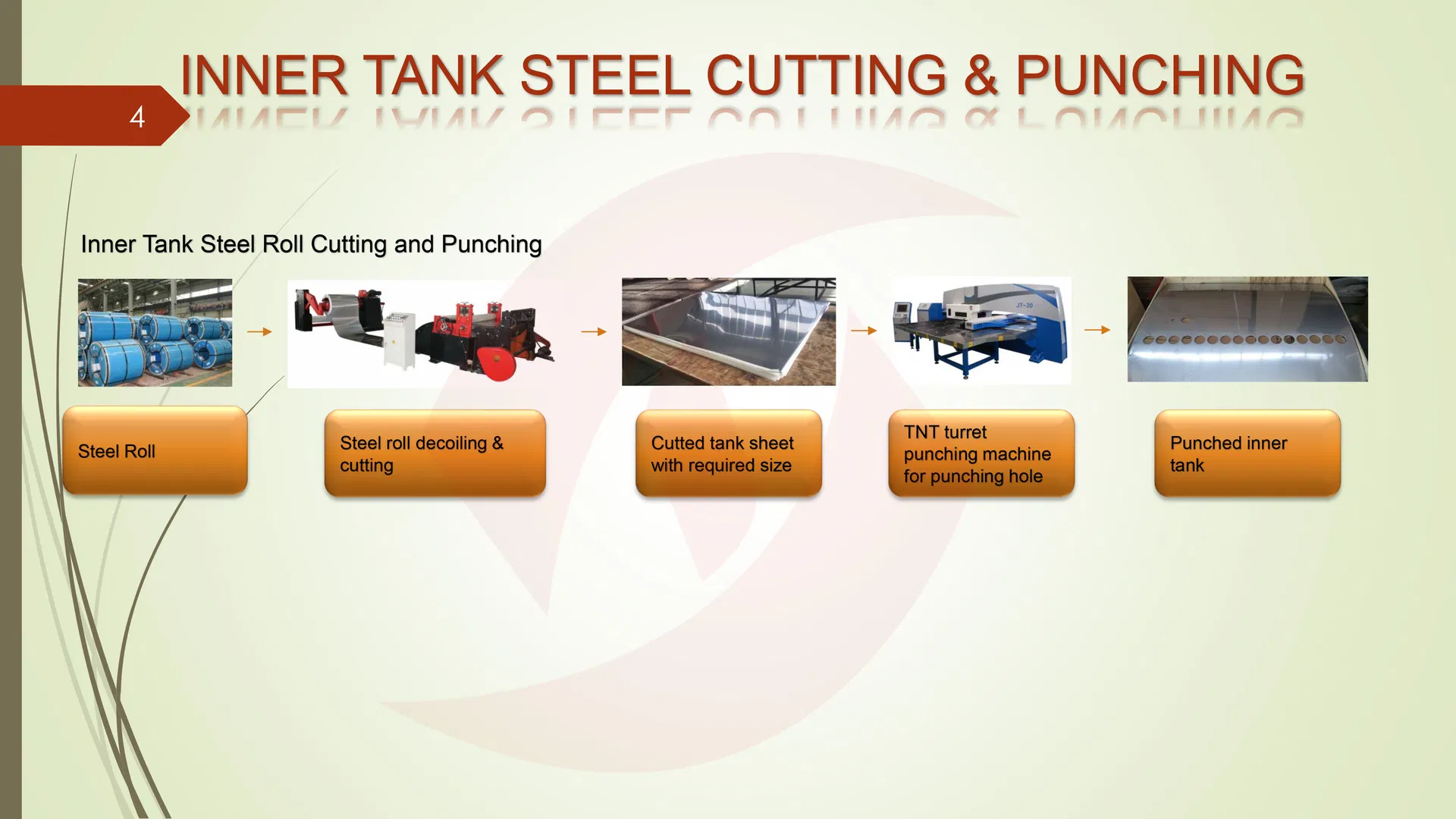

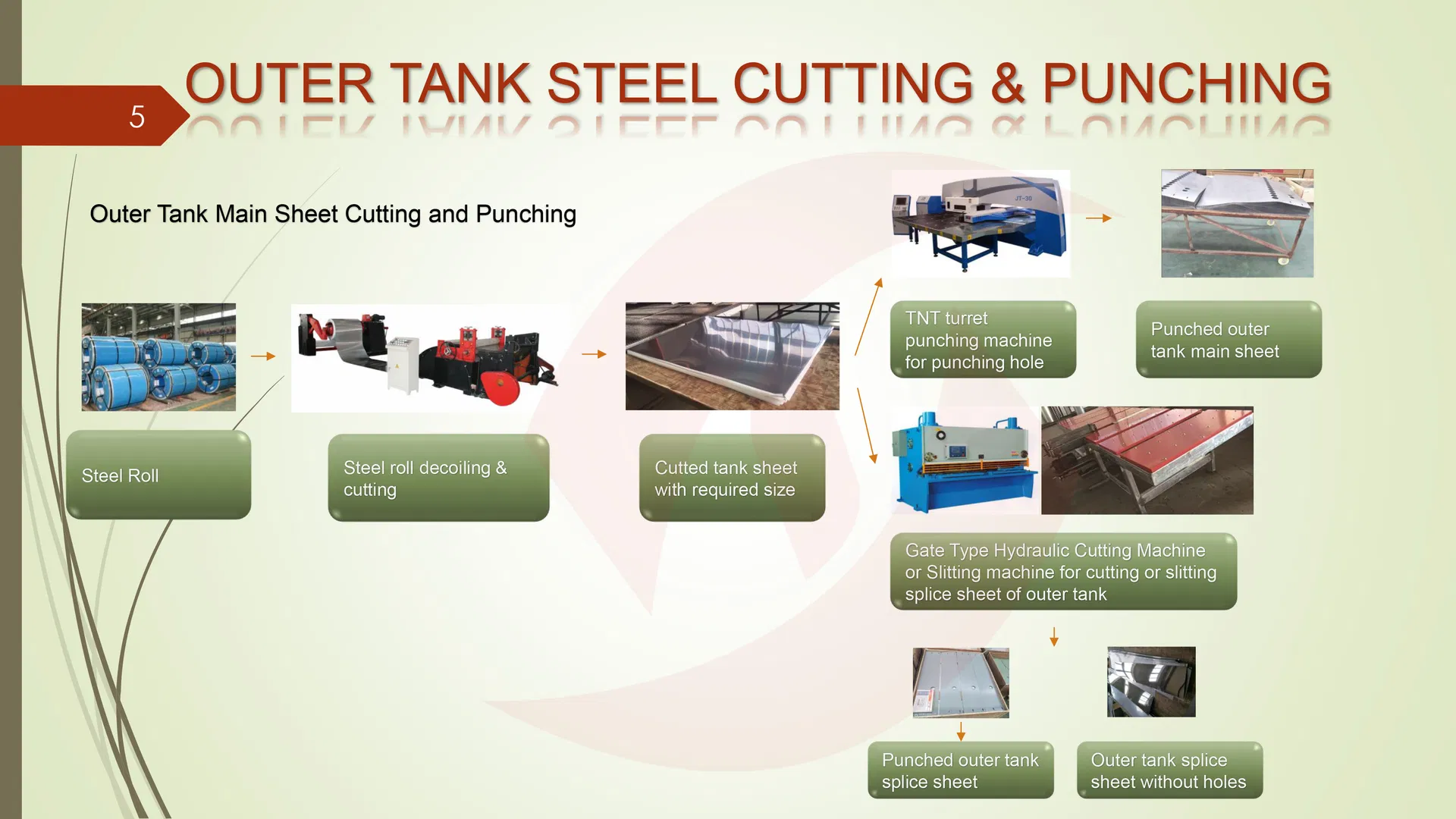

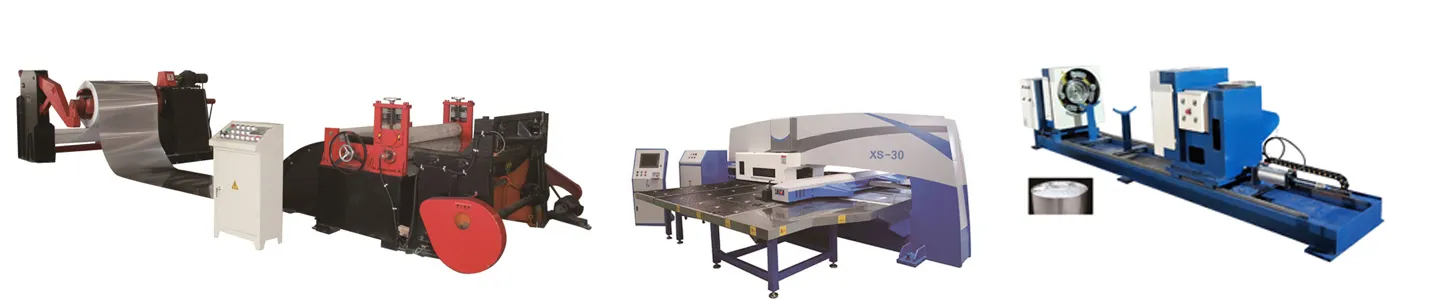

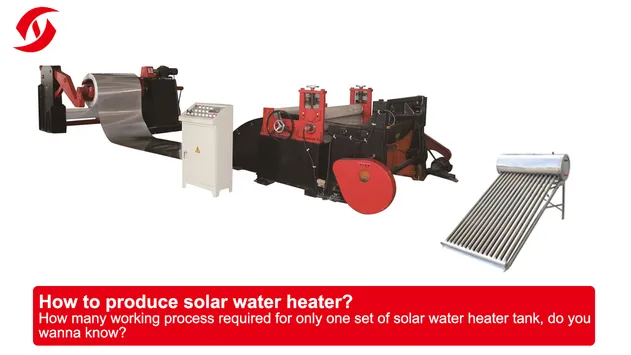

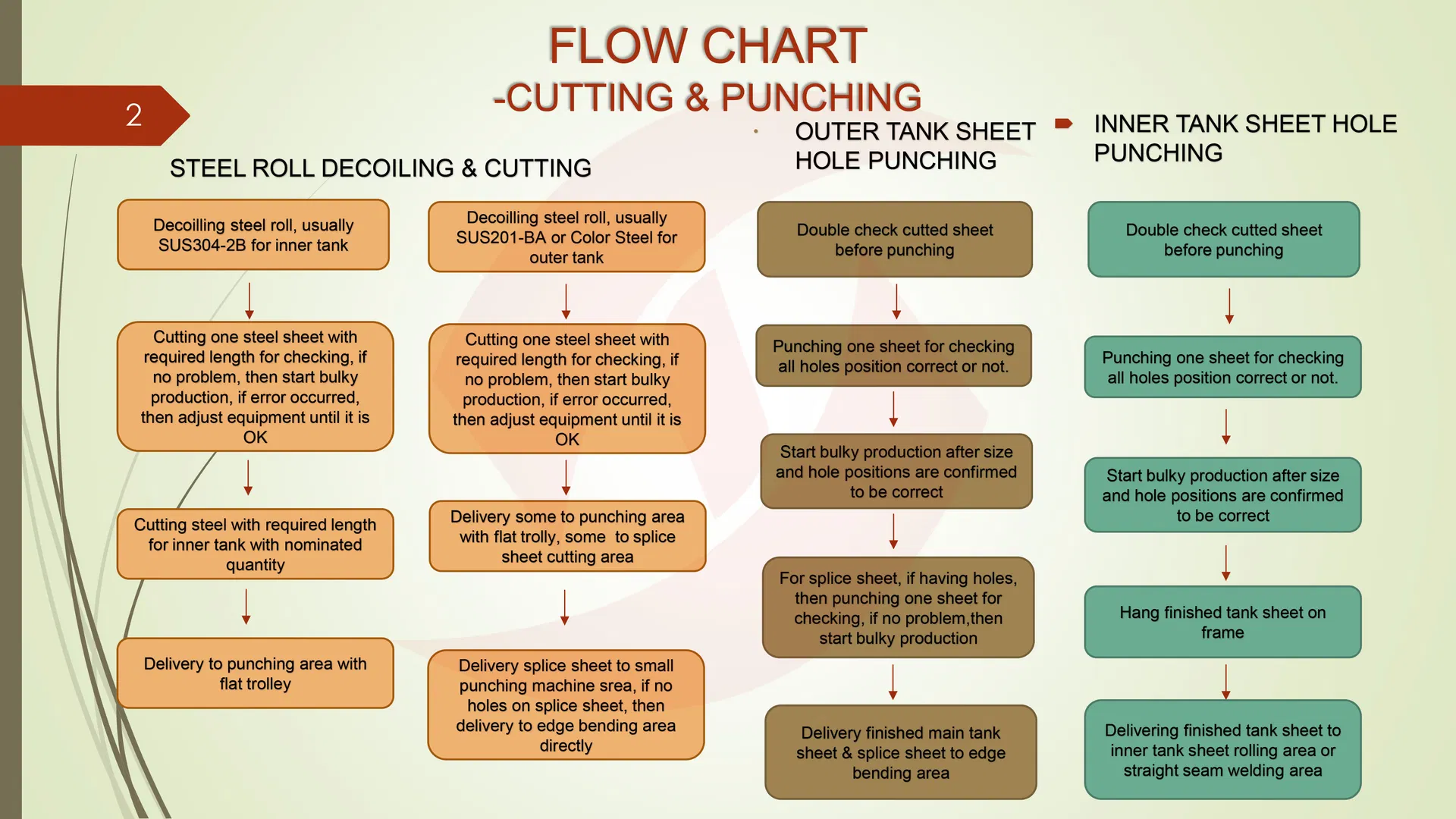

Uncoiling the steel coil and cutting the plate to length.

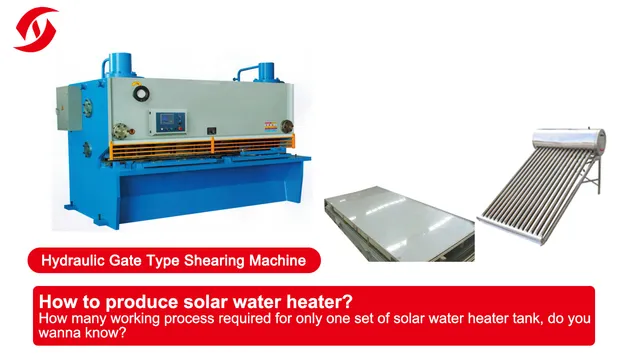

Cutting splice sheets for the outer tank.

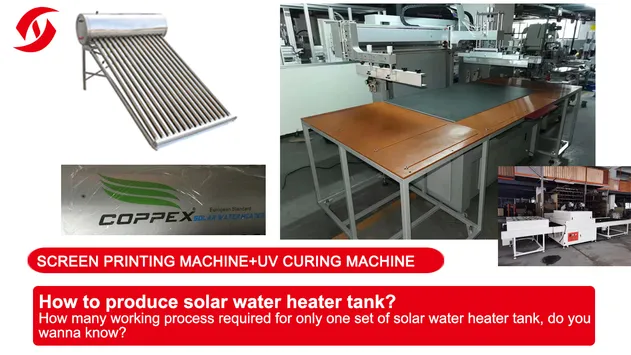

Printing and drying the brand logo on the outer tank sheet.

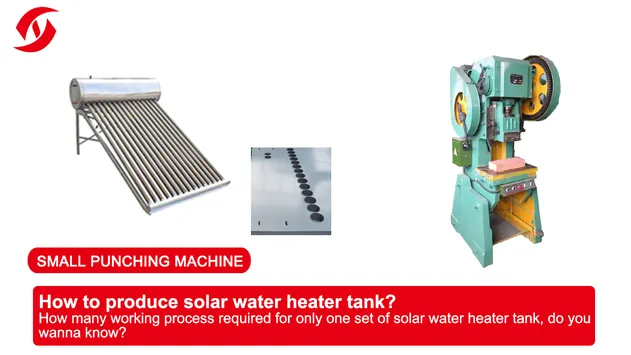

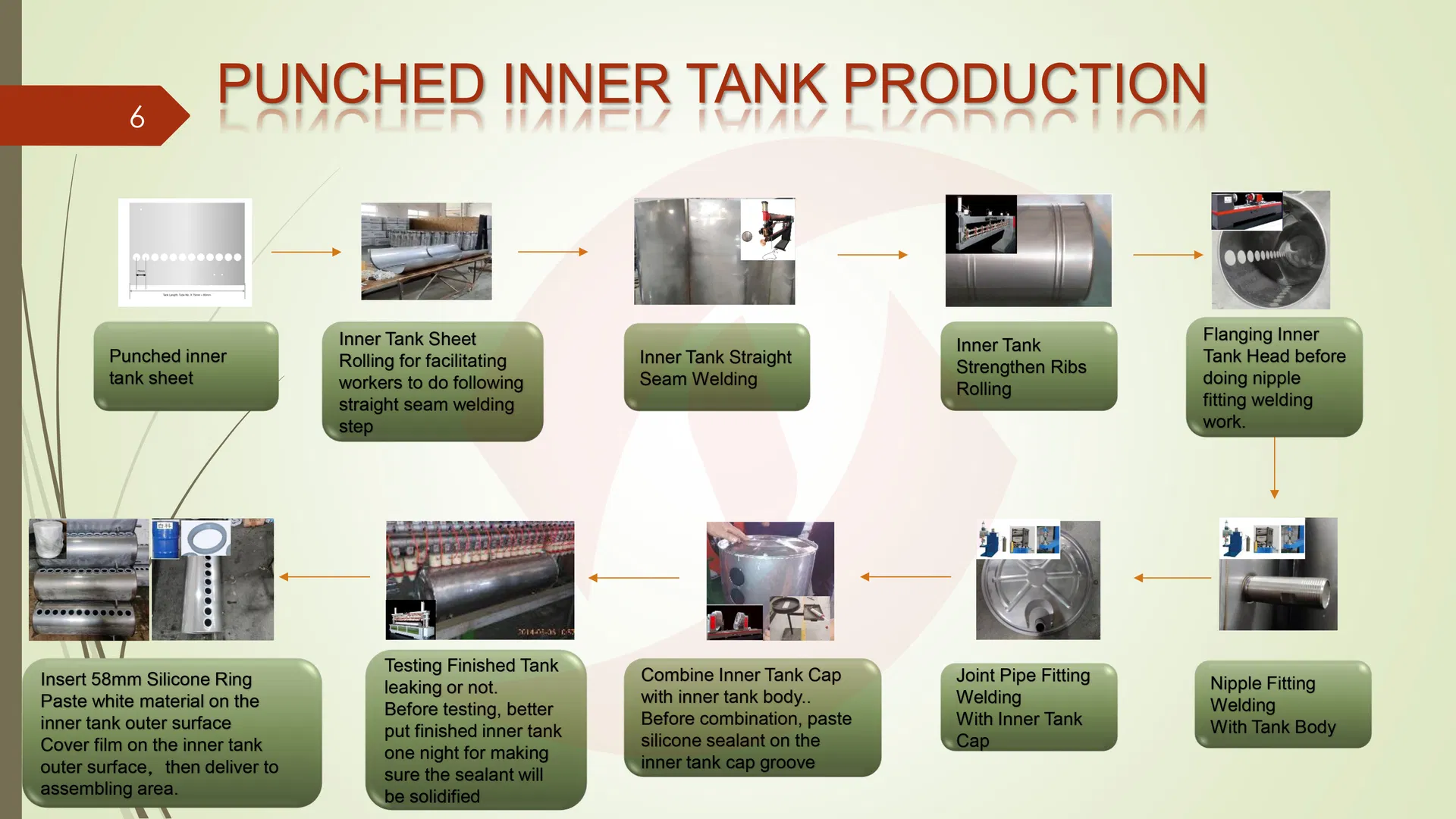

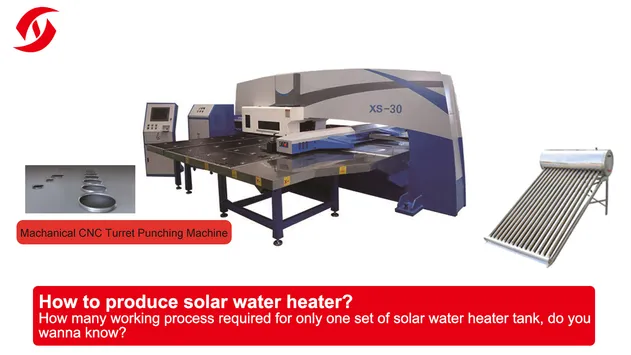

Punching tank holes. All holes on the inner and outer tank bodies will be set in the main tank sheet.
Punching holes in the outer tank splice sheets and function holes in the tank caps.

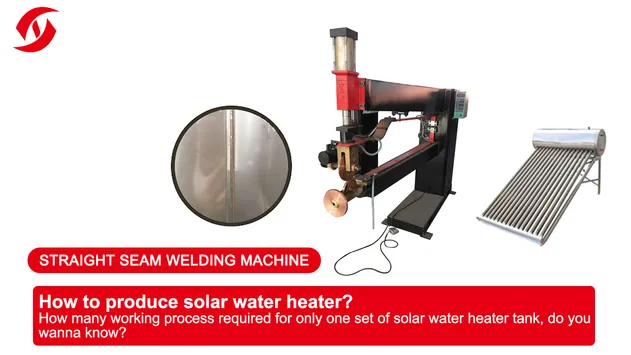

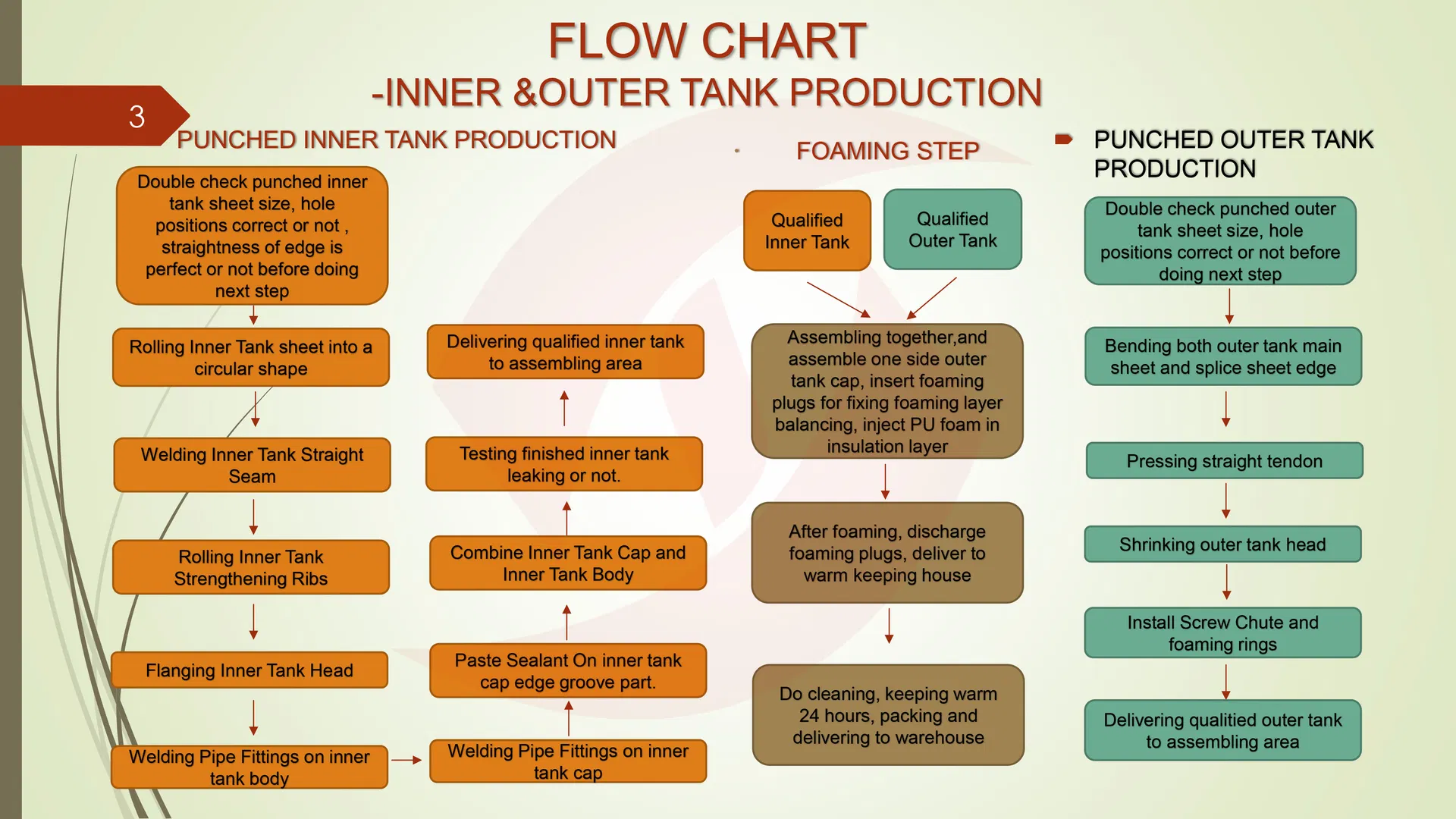

Welding the straight seams of the inner tank.

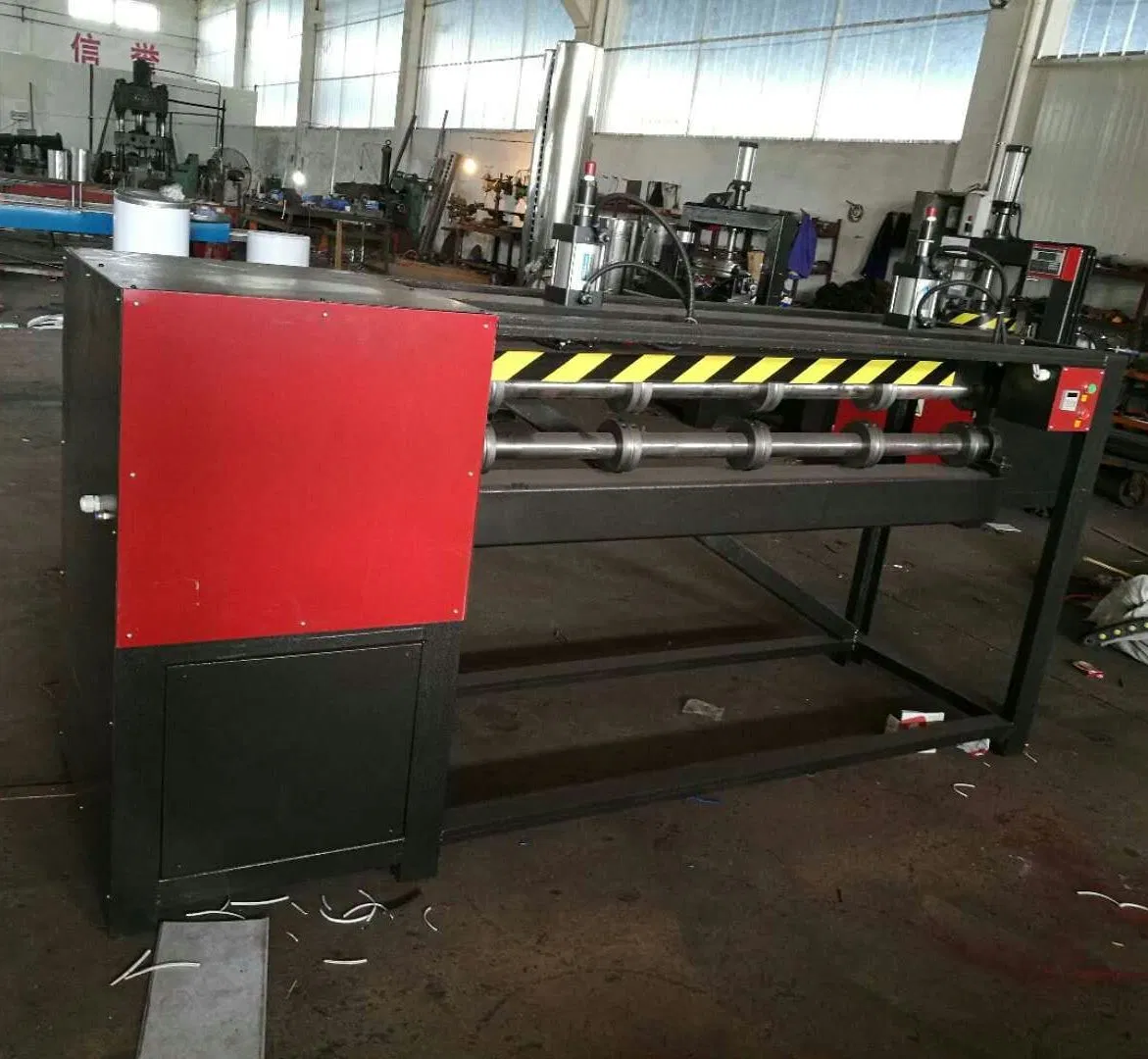

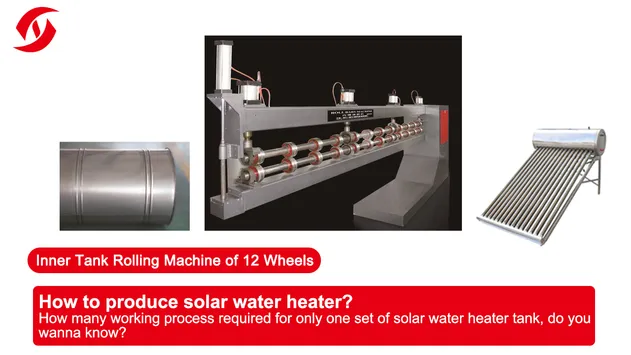

Enhancing the strength of the inner tanks by rolling annular convex tendons on the tank surface.

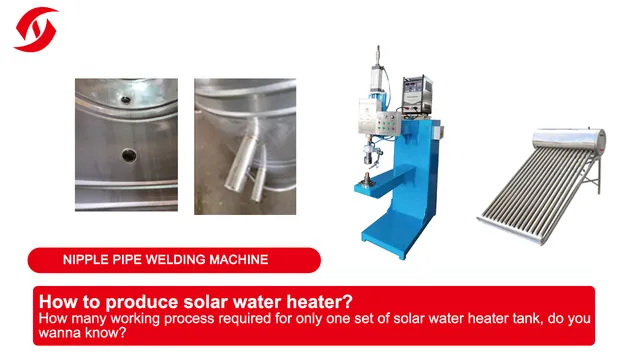

Welding connection pipes directly with the inner tank body or inner tank covers.

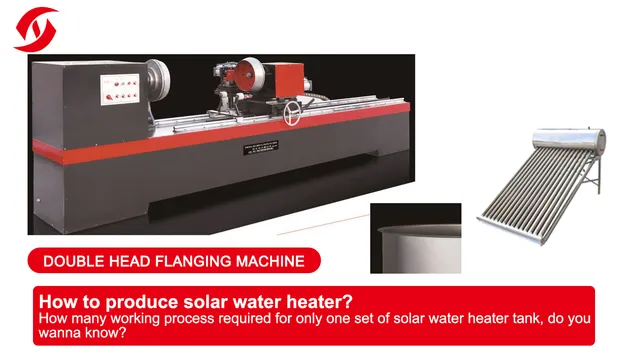

Flanging both ends of the inner tank concurrently.

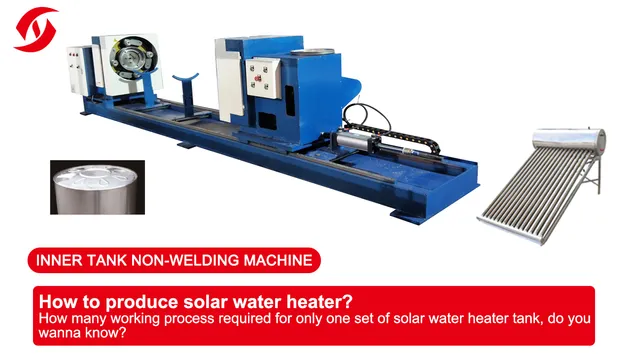

Combining the inner tank body and inner tank covers using advanced non-welding technology.

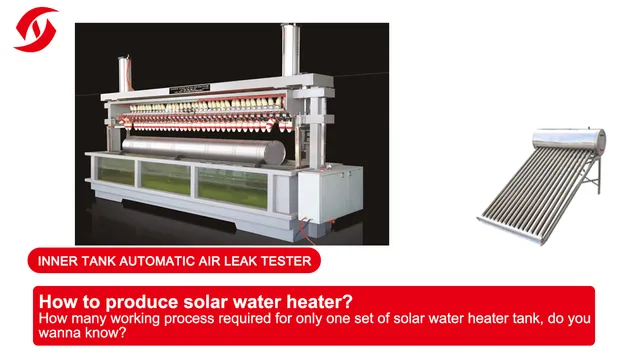

Verifying structural integrity to check for any leaks in the inner tank.

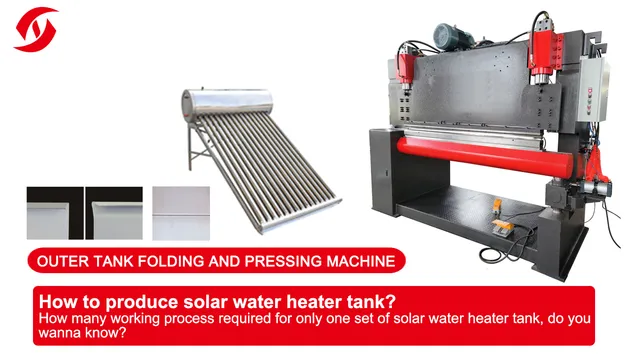

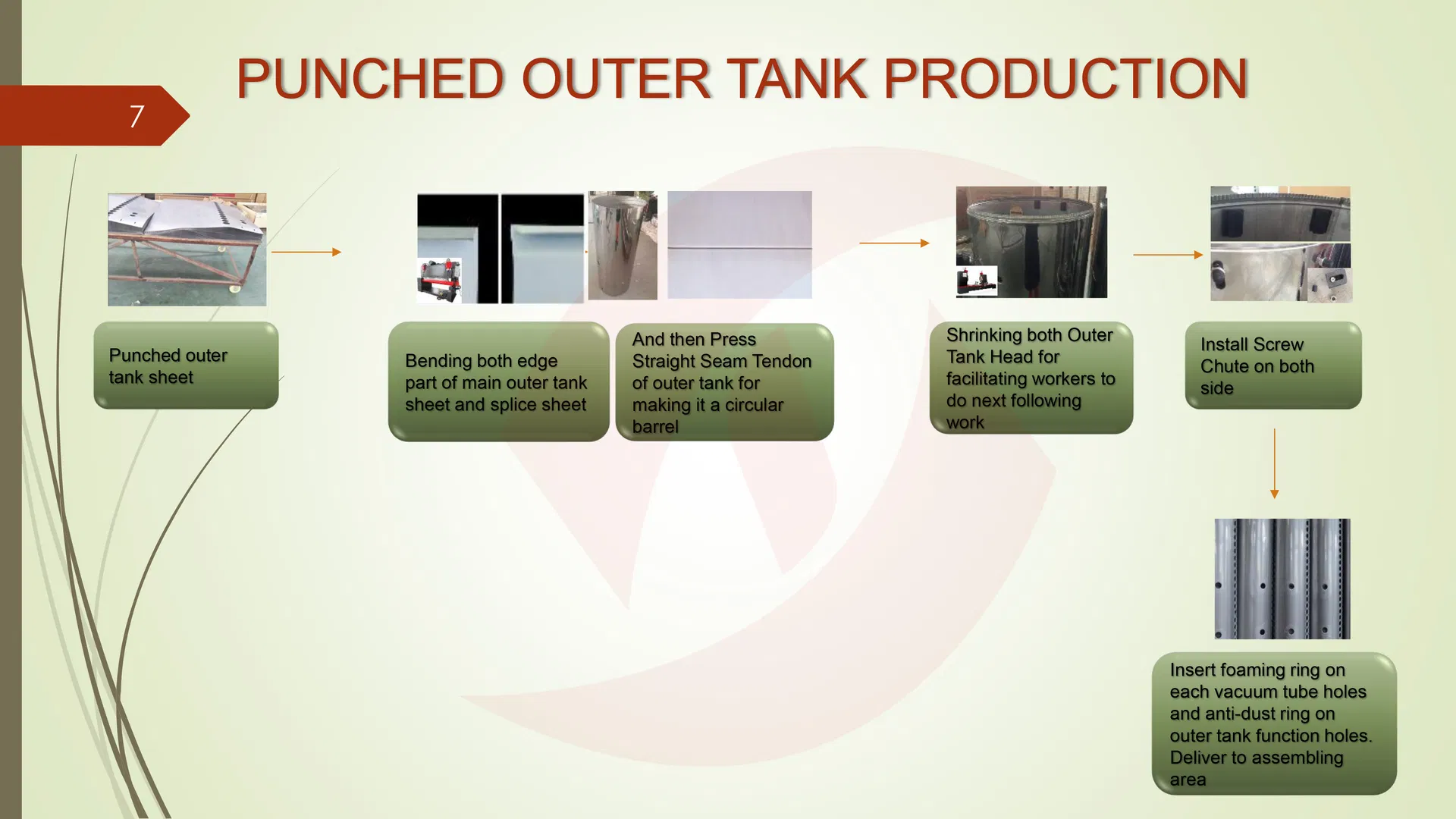

Bending the tank edge and pressing the straight seam for solid assembly.

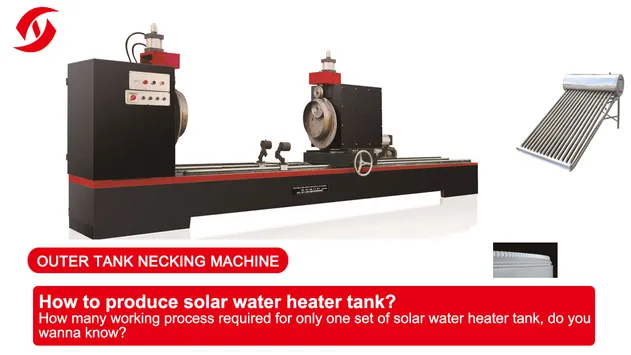

Forming the outer tank head into a toothed pattern, facilitating manual outer tank cap integration.

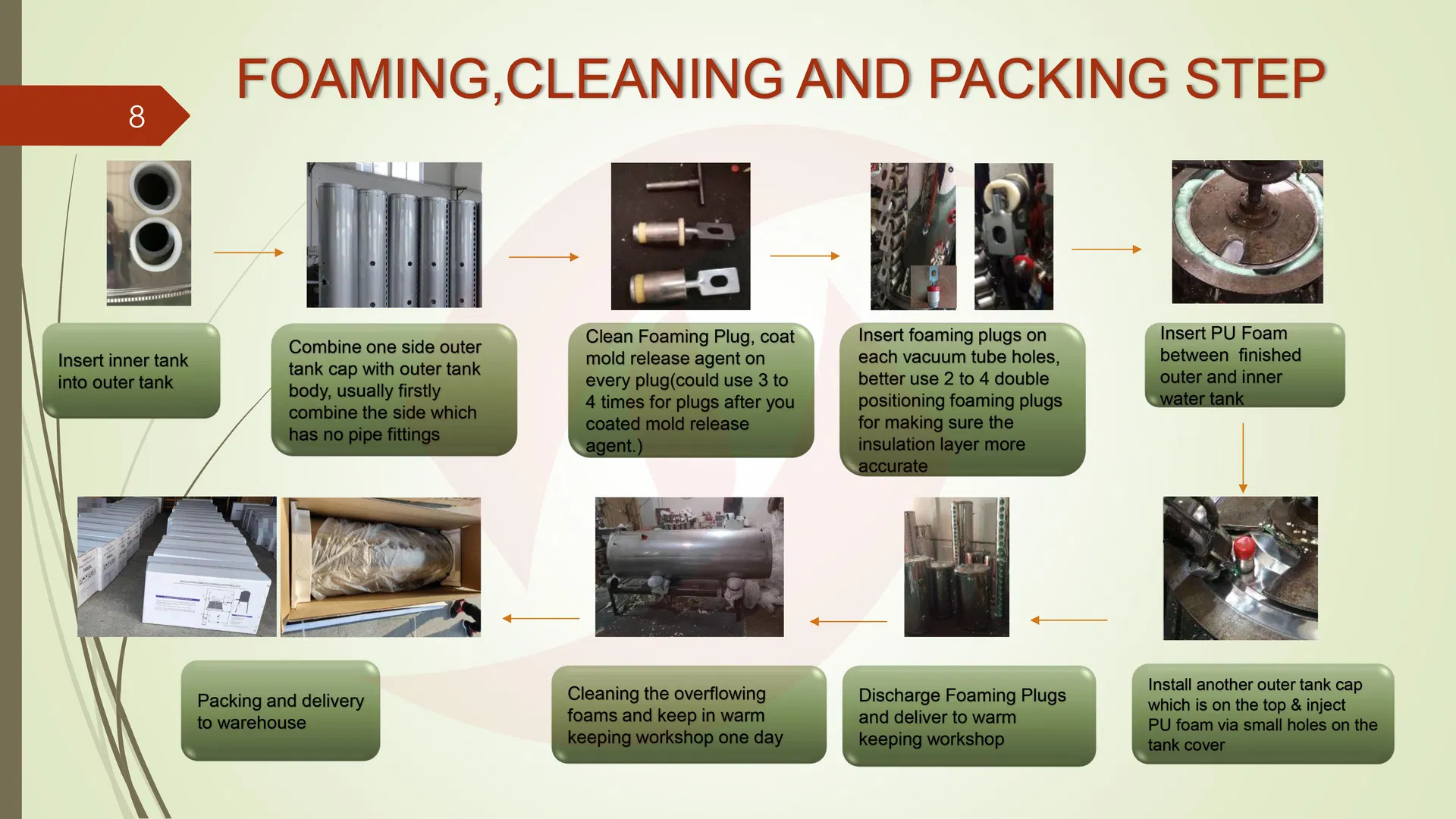

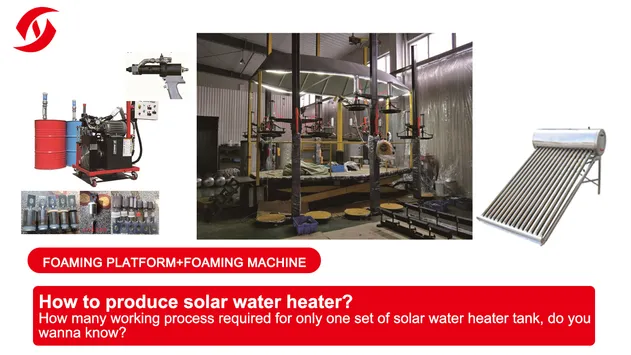

Securing the assembled tank and injecting high-density PU foam into the insulation layer.

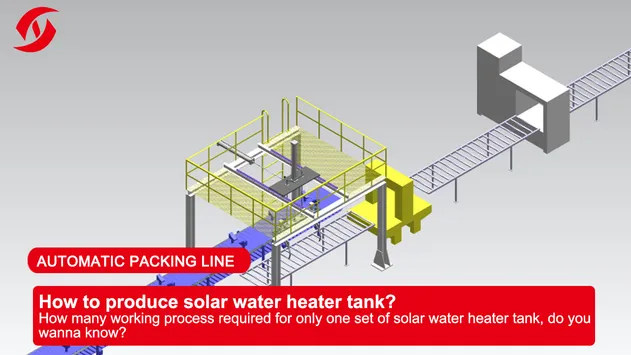

Finalized packing process for completed solar water heater tanks.

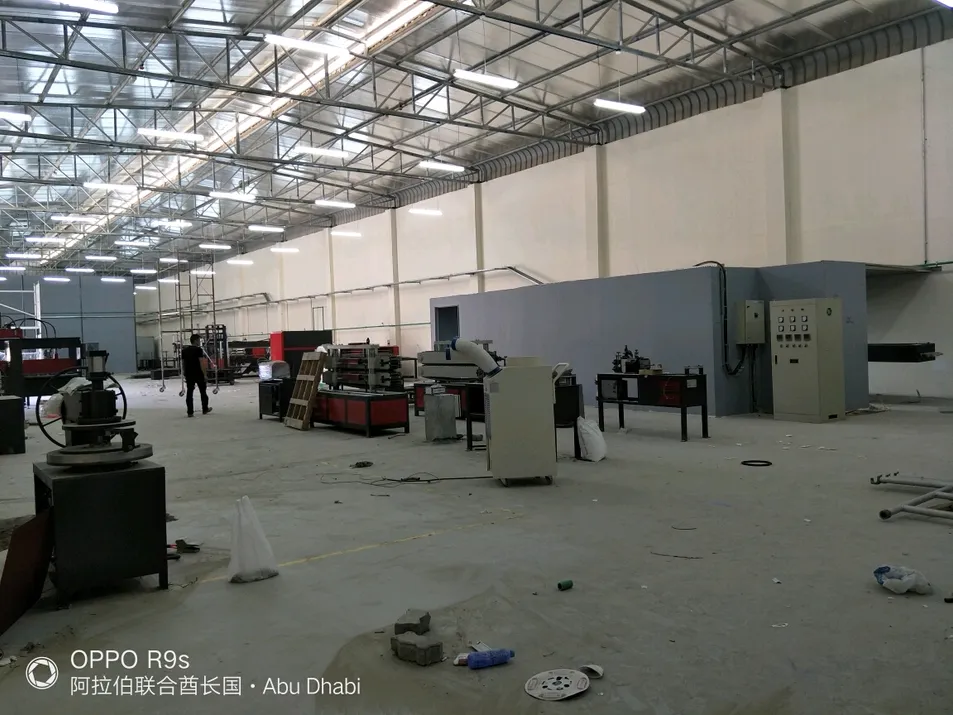

Complete solar water heater tank production line, corrugated pipe production, and annealing line installed in Abu Dhabi, UAE.

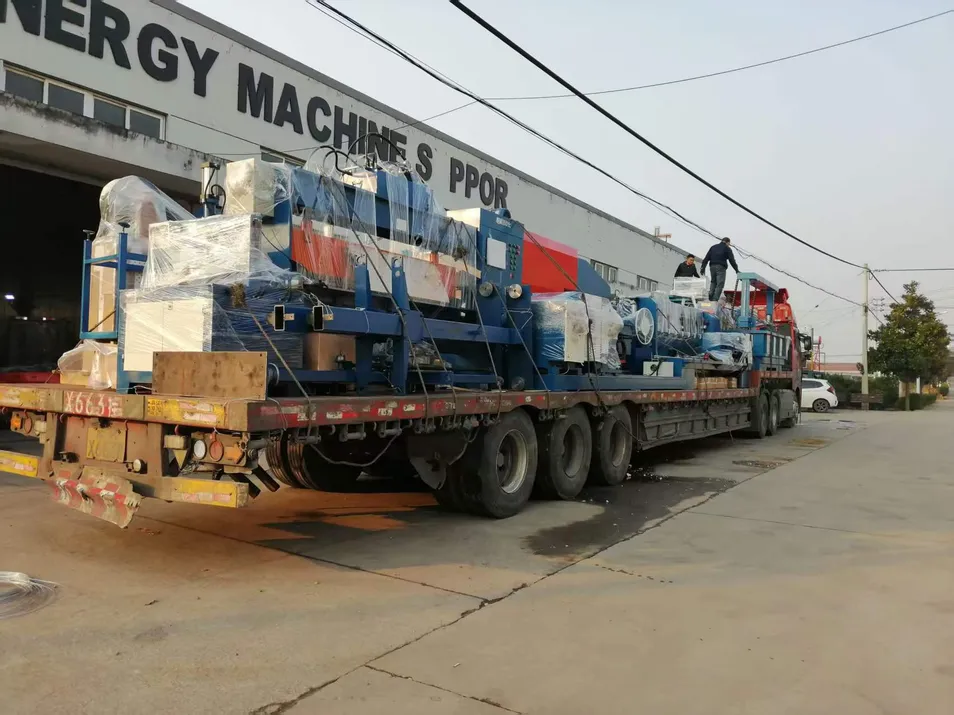

Complete solar water heater tank production line delivered directly to Vietnam via overland logistics.

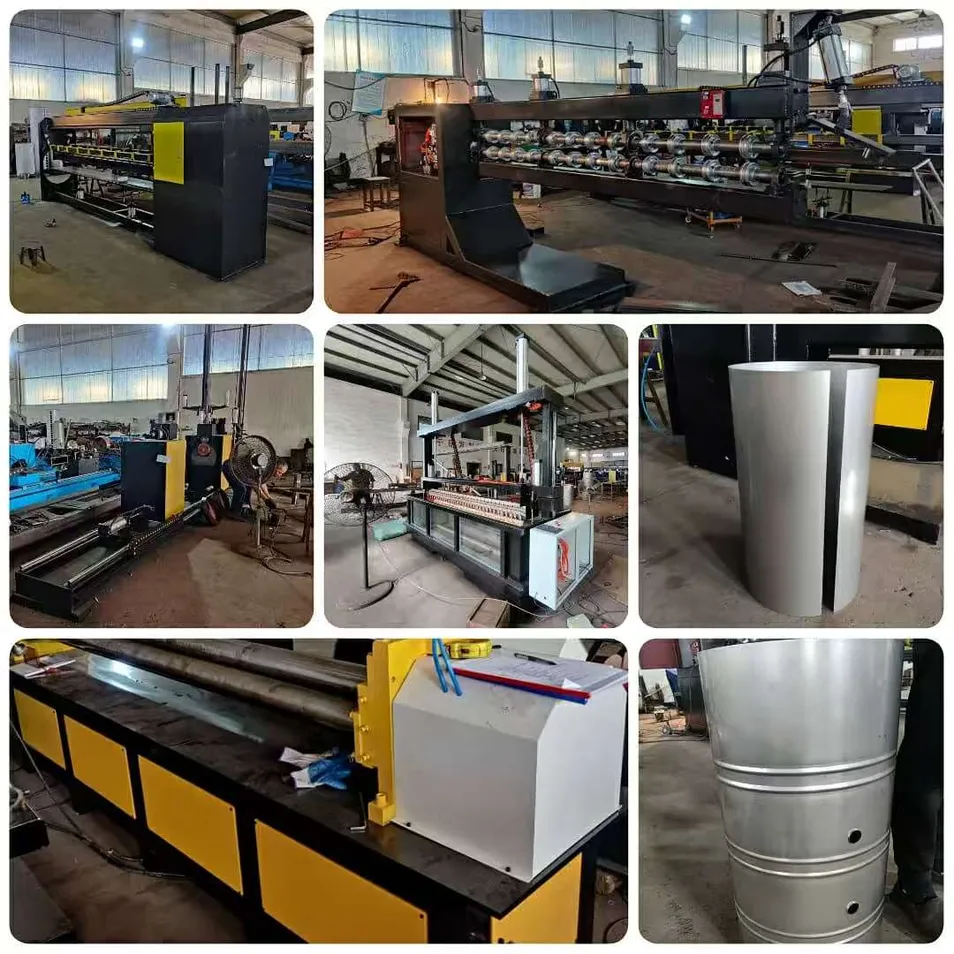

Complete solar water heater tank production line customized for the Mexico market.

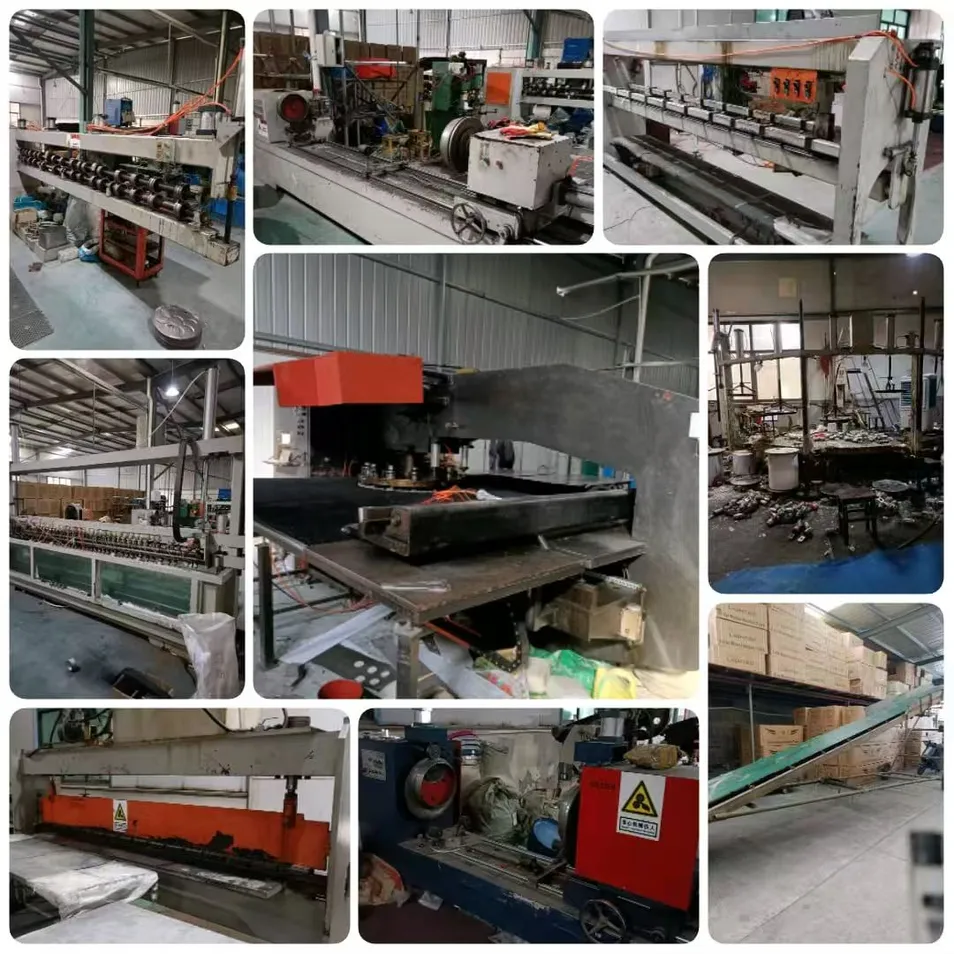

Complete second-hand solar water heater tank production line rebuilt for the Middle East market.

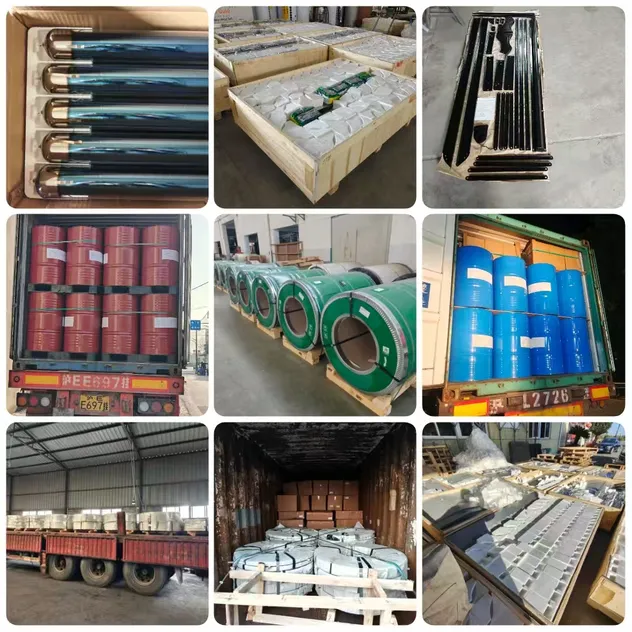

| RAW MATERIALS LIST REQUIRED FOR SOLAR WATER HEATER | |
|---|---|
| Tank Parts | |

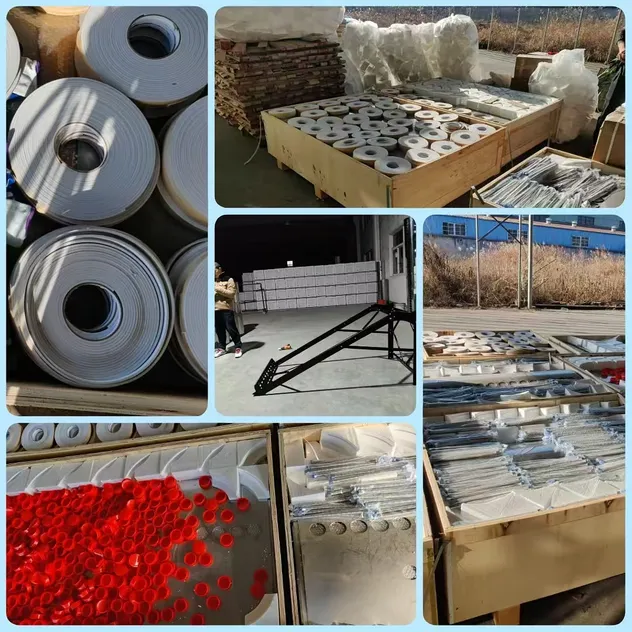

| Inner Tank | Stainless Steel Sheets (SUS304-2B, 316L), Inner Tank Caps (SUS304-2B/SUS316L), Silicone Rings, Pipe Fittings |

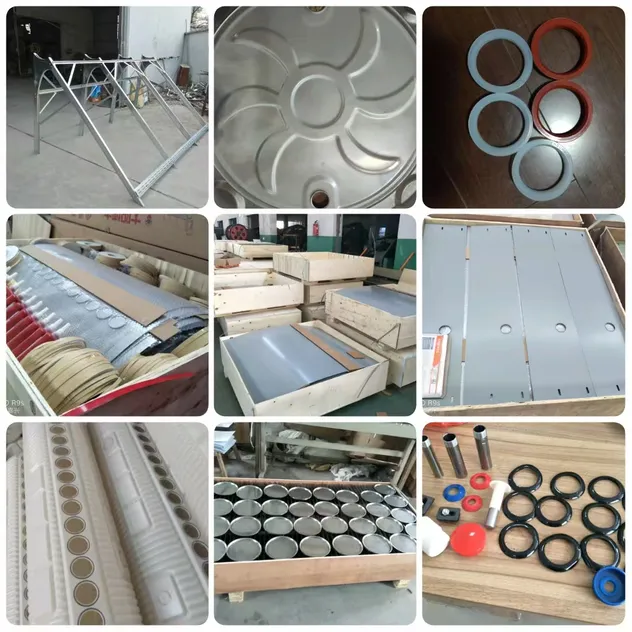

| Outer Tank | PVDF Coating Galvanised Steel Sheets (Pearl White, Ivory White, Silver Brushed, Silver Fluorine Titanium with High Gloss, Golden Yellow, Red, Green, etc.), SUS201-BA/SUS304-2B/SUS304-BA/SUS304 Hairline/SUS316L Stainless Steel, Outer Tank Caps, Anti-dust Rings, Bottom Decoration Caps, Heating Resistor Hole Nylon/Silicone/SUS304/SUS316L Plugs & Red Plastic Covers, Heating Resistor Decoration Covers, Air Vent Covers |
| Insulation Layer | POLYMERIC MDI, COMBINATION POLYETHER, MOLD RELEASE AGENT |
| Frame | Galvanised Steel Type frames with color paint, SUS201 Frames, SUS304 Frames, Alloy Aluminum Frames |
| Vacuum Tube | Cu/SS-ALN/ALN, Three-target magnetron sputtering plating |
| Optional Accessories | Assistant Tanks, Electric Backup Heaters, Check Valves, Magnesium Rods, etc. |

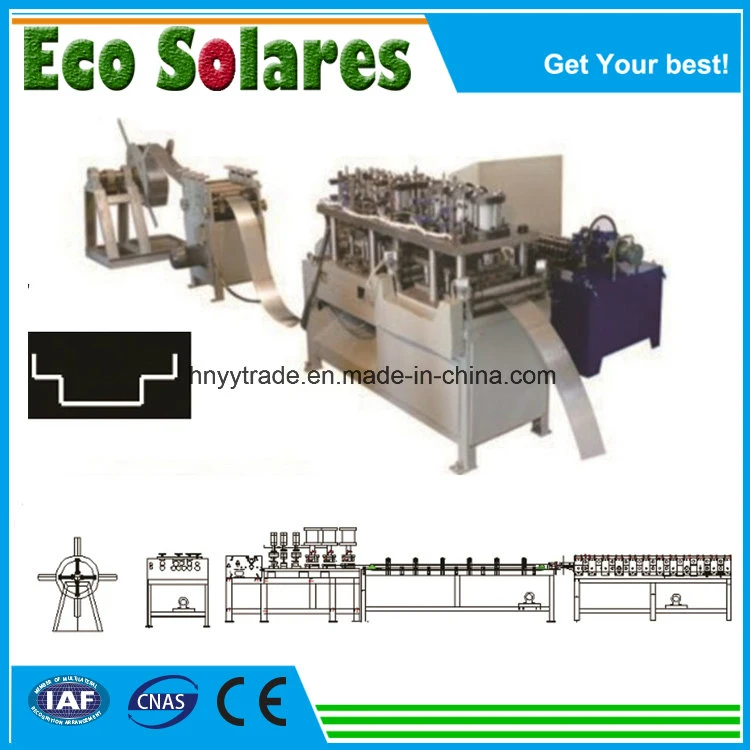

A1: We provide a comprehensive range of machinery including Low and High Pressure Solar Water Heater Tank Production Lines, Solar Water Heater Bracket Production Lines, Tank Cap Production Lines, Corrugated Pipe Production and Annealing Lines, and Solar Collector Production Lines (Flat Plate, Manifold, and Heat Pipe Types).
A2: Yes, we support overseas production plants with all required raw materials and accessories, including stainless steel sheets (SUS304-2B, 316L), PVDF coating galvanised steel sheets, Polymeric MDI, Combination Polyether, frame components, vacuum tubes, and electrical backup heaters.
A3: Our equipment lines incorporate strict quality control systems, such as the Inner Tank Automatic Air Leak Tester, which processes automated leak-detection runs to ensure zero defects before the foaming and packaging stages.
A4: Yes. We have extensively supported overseas projects globally, setting up complete manufacturing lines in regions like Abu Dhabi (UAE), Vietnam, Mexico, and the Middle East.
A5: Under standard operational configurations, the production setups have a capacity of up to 500 sets per year, tailored to match industrial output requirements.
A6: We offer both Automatic Straight Seam Welding Machines and advanced Inner Tank Non-Welding Machines, depending on the specifications of the tank line design you choose.
