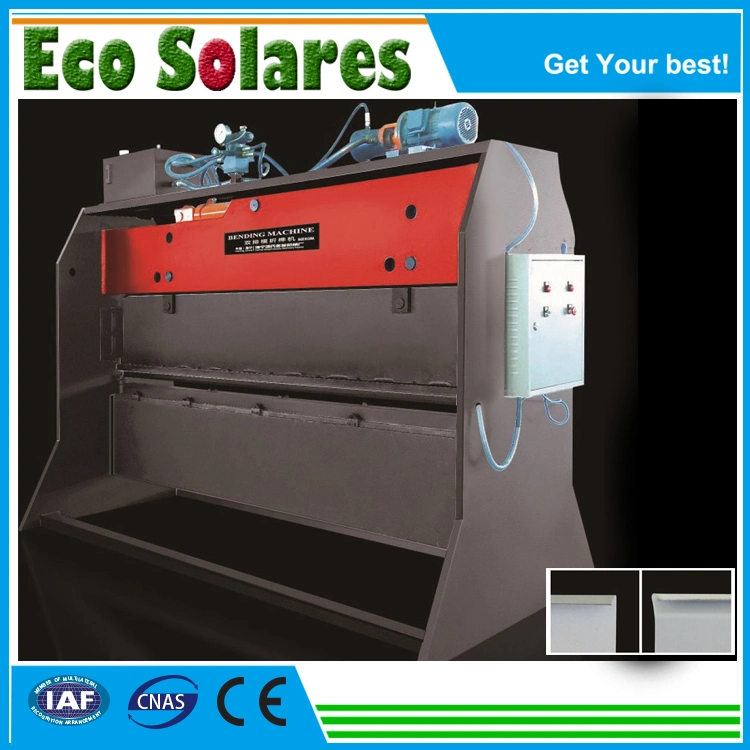

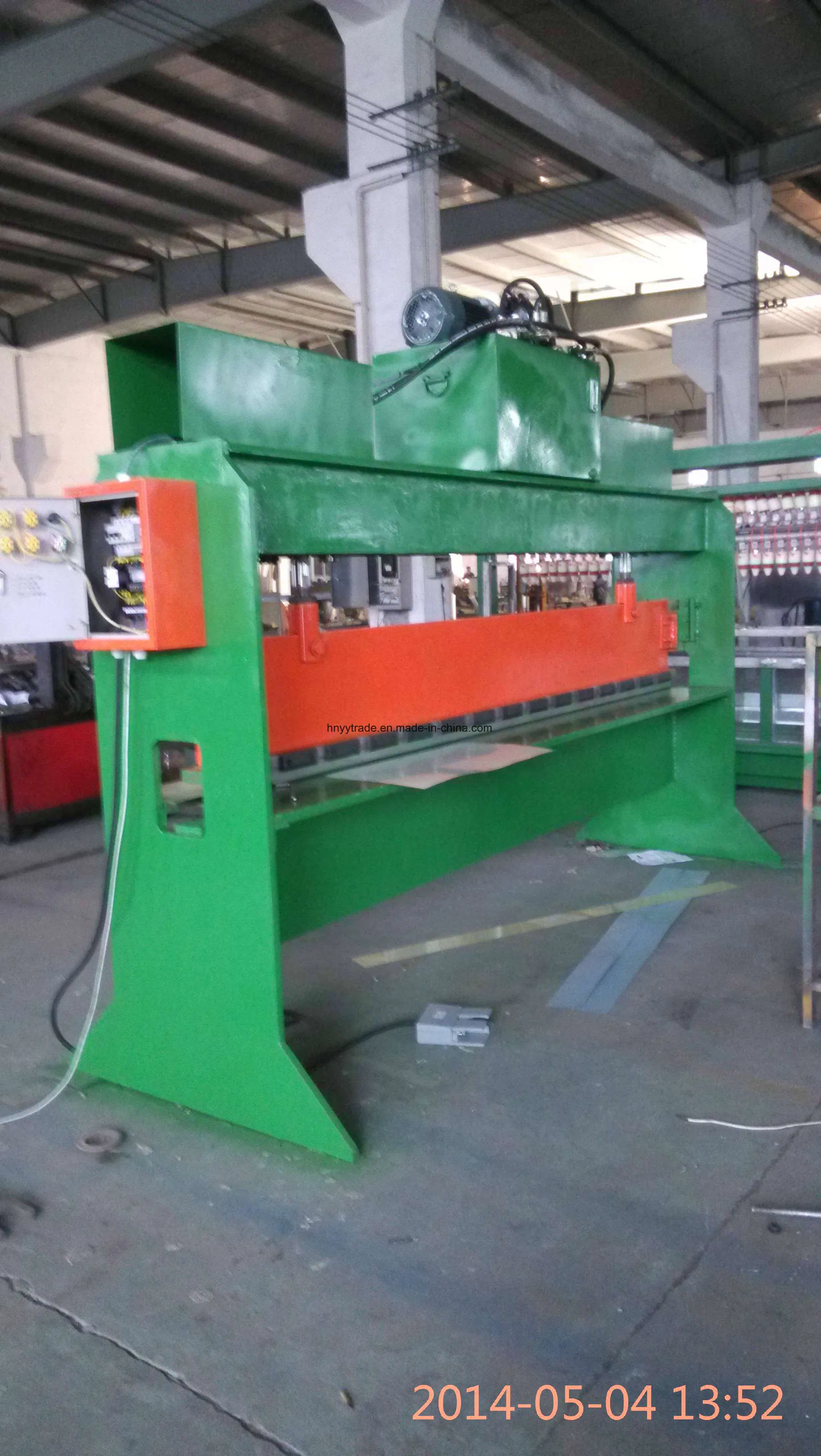

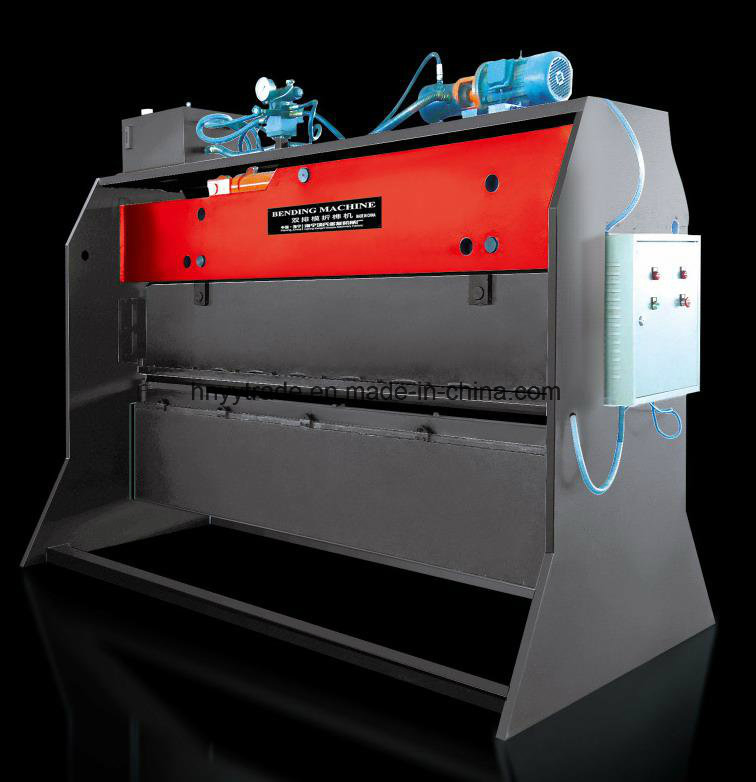

Solar Water Heater Outer Tank Production Line--Double Row Die Bending Machine

1 / 5

Solar Water Heater Outer Tank Production Line--Double Row Die Bending Machine

Customization:	Available
After-sales Service:	Yes
Warranty:	Yes

Send Inquiry

Product Description

Overview
SOLAR WATER HEATER MANUFACTURING EQUIPMENT
INTRODUCTION OF MANUFACTURING EQUIPMENT
PROJECT WE SUPPORTED OVERSEAS
SOLAR WATER HEATER RAW MATERIALS WE SUPPORTED

Basic Info.

Model NO.

YY-XS-3000

Application Scope

Outer Tank Edge Bending

Transport Package

Nude Package for Whole Container

Specification

YY-XS-3000

HS Code

8462299000

Production Capacity

500 Sets/Year

Solar Water Heater Manufacturing Equipment

Brief Introduction

Specializing in offering all type of solar water heater manufacturing equipments.
Over 20 Years' experience in machinery innovation and production.
At present we provide:
- Low Pressure Solar Water Heater Tank Production Line.
- High Pressure Solar Water Heater Tank Production Line.
- Solar Water Heater Bracket Production Line.
- Tank Cap production line.
- Corrugated Pipe Production and Annealing Line.
- Solar Collector Production Line-Flat Plate Solar Collector, Manifold and Heat Pipe Type.
Meanwhile, we support all overseas factories with raw material and accessories needed for producing solar water heaters.

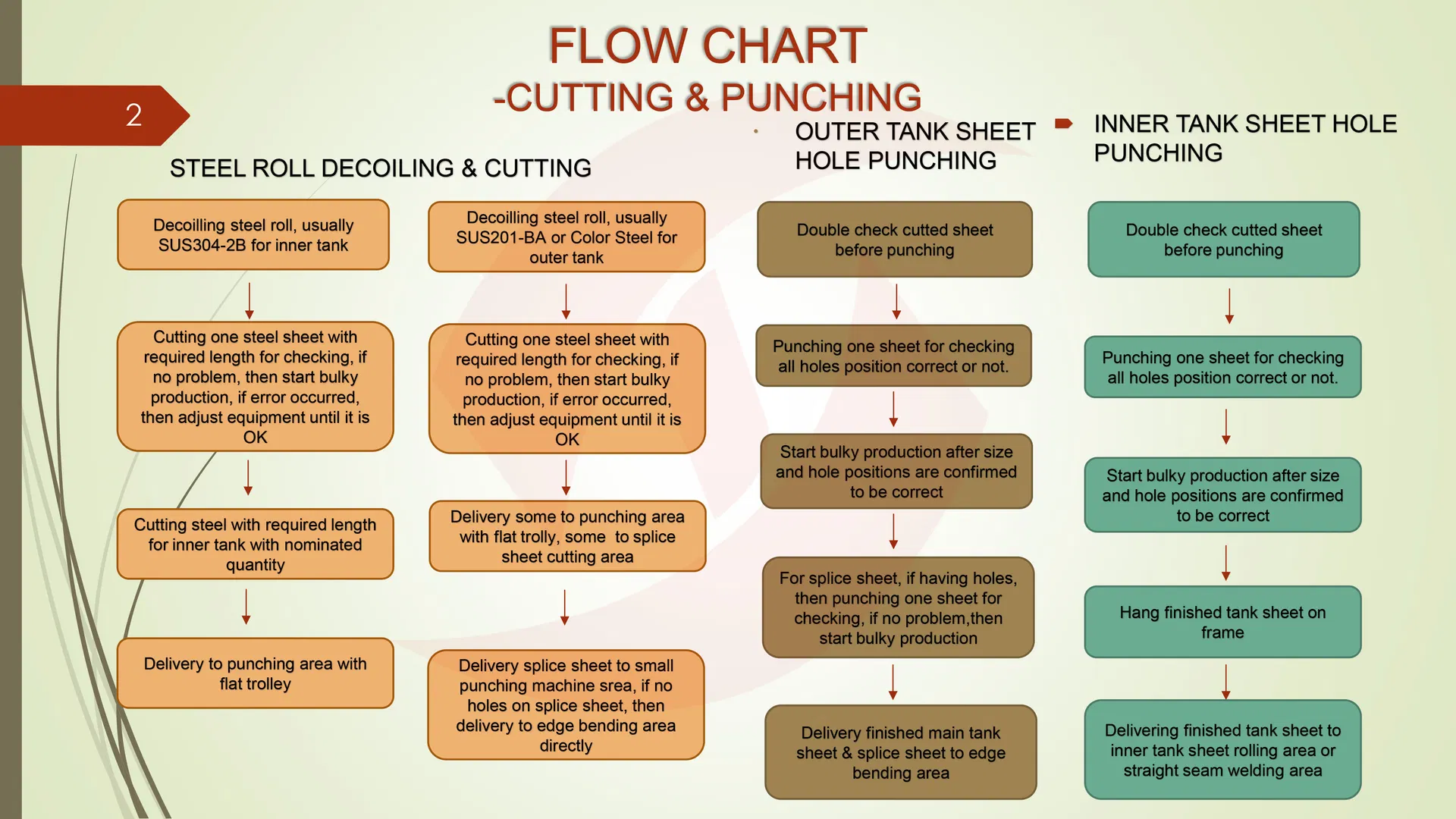

Solar Water Heater Outer Tank Production Line Detail 1

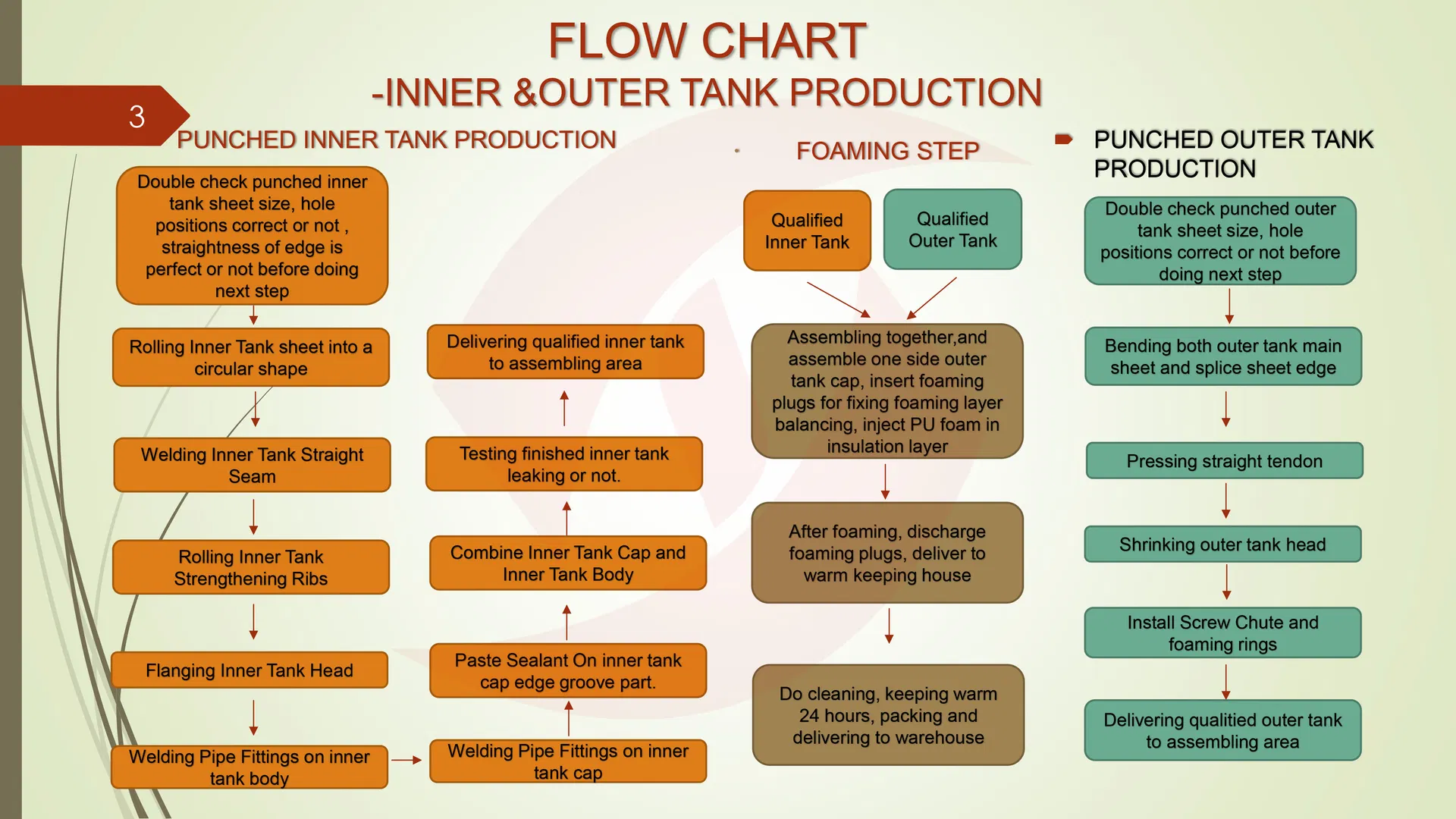

Solar Water Heater Outer Tank Production Line Detail 2

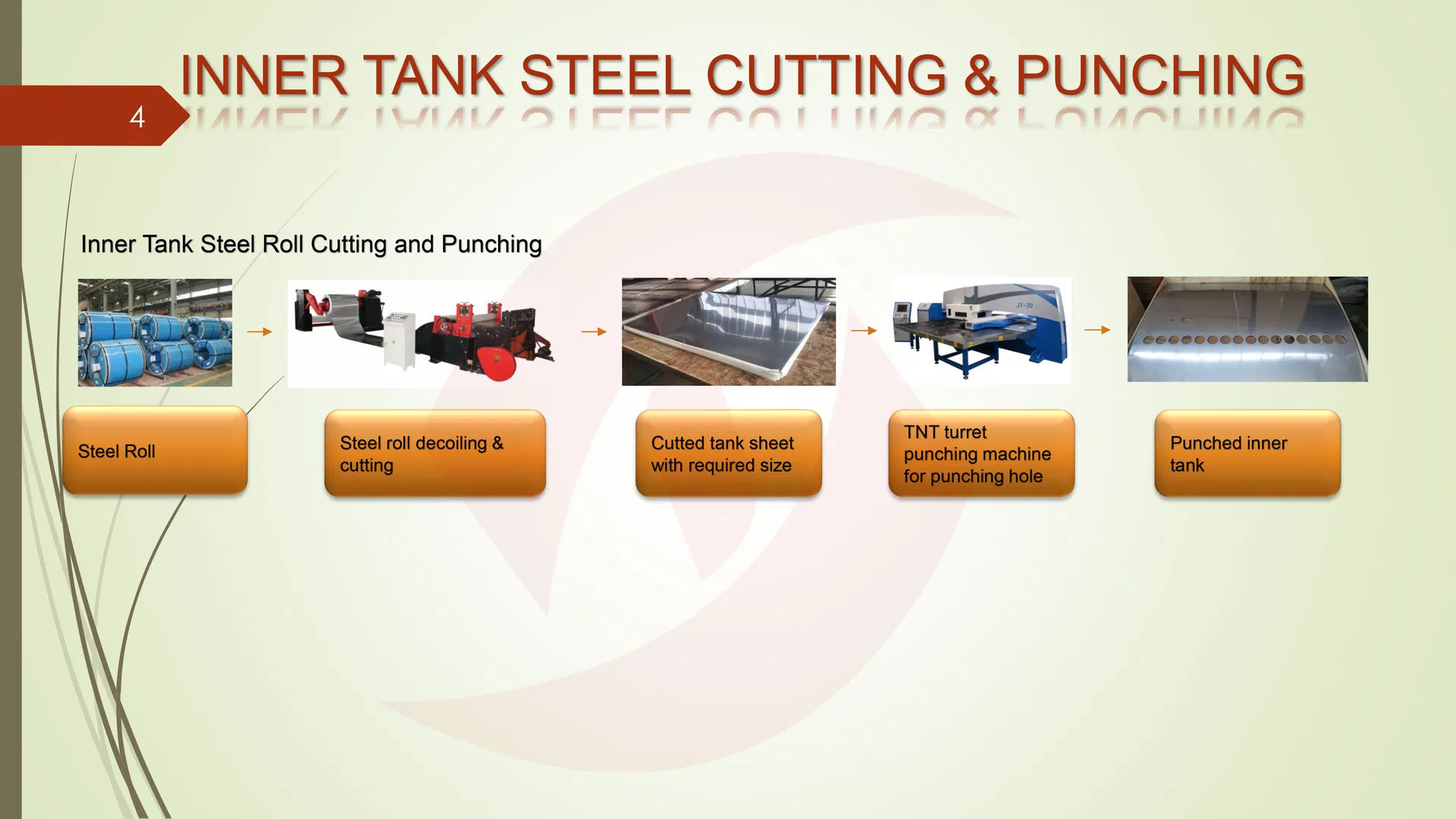

Solar Water Heater Outer Tank Production Line Detail 3

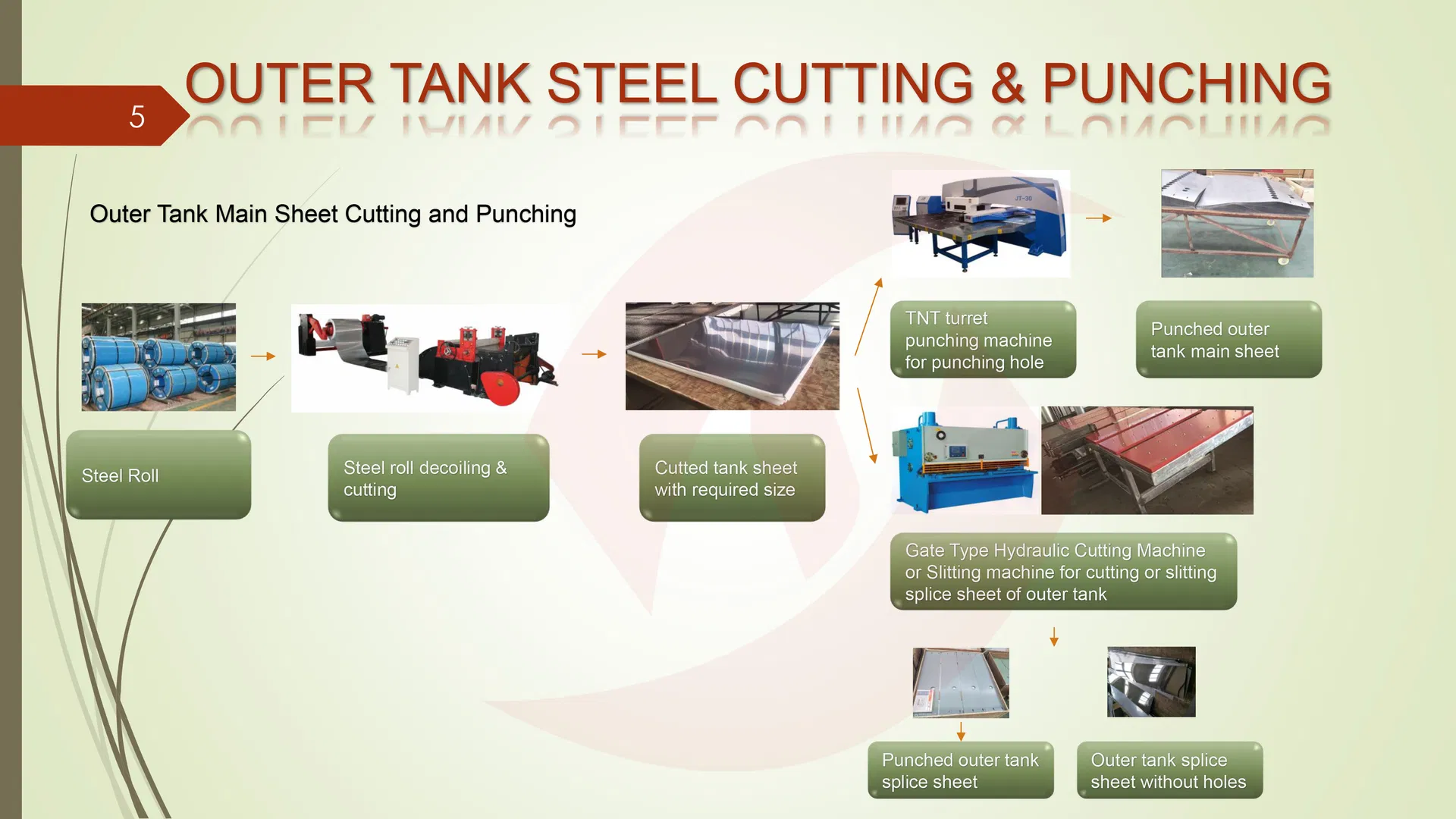

Solar Water Heater Outer Tank Production Line Detail 4

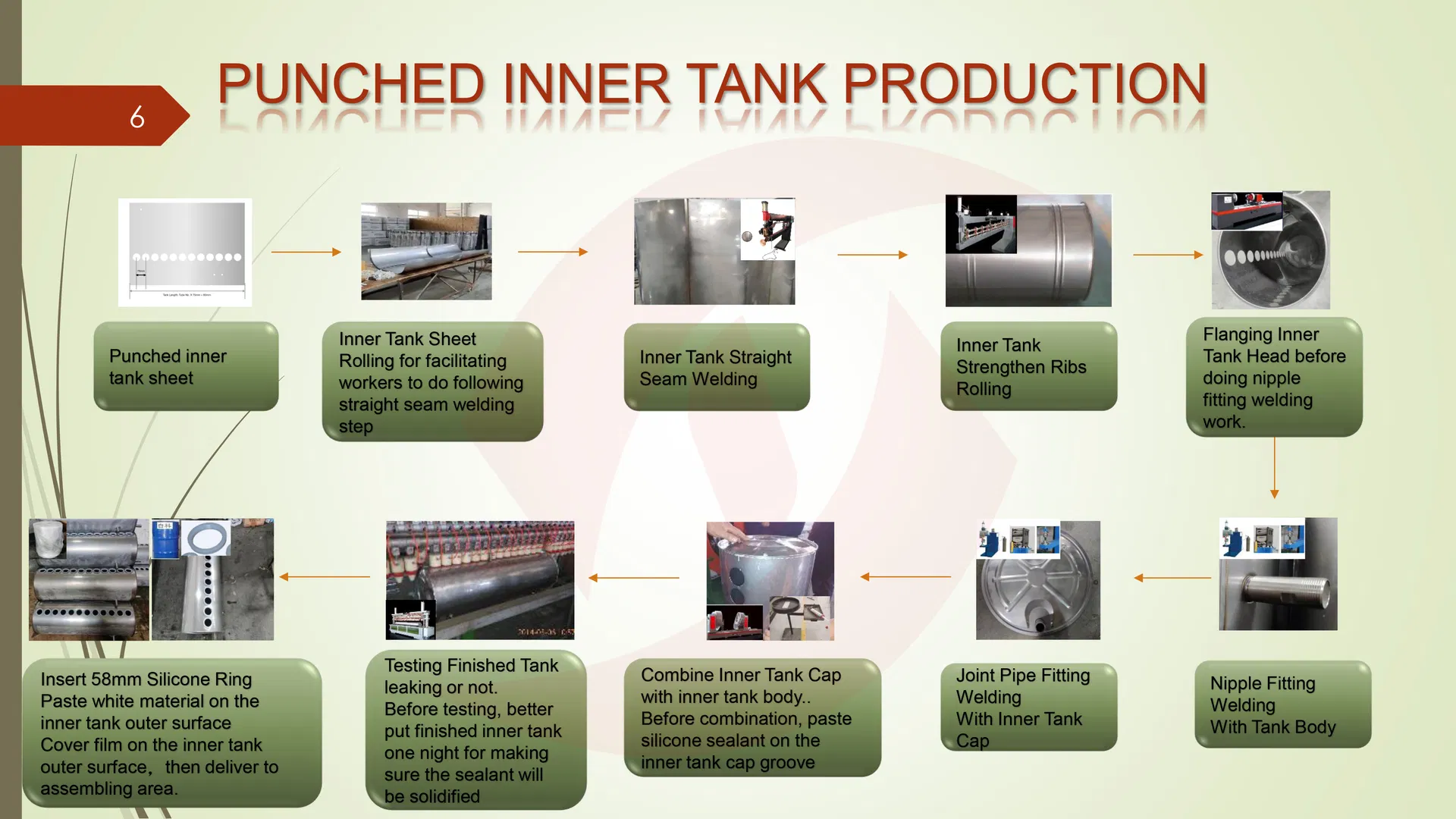

Solar Water Heater Outer Tank Production Line Detail 5

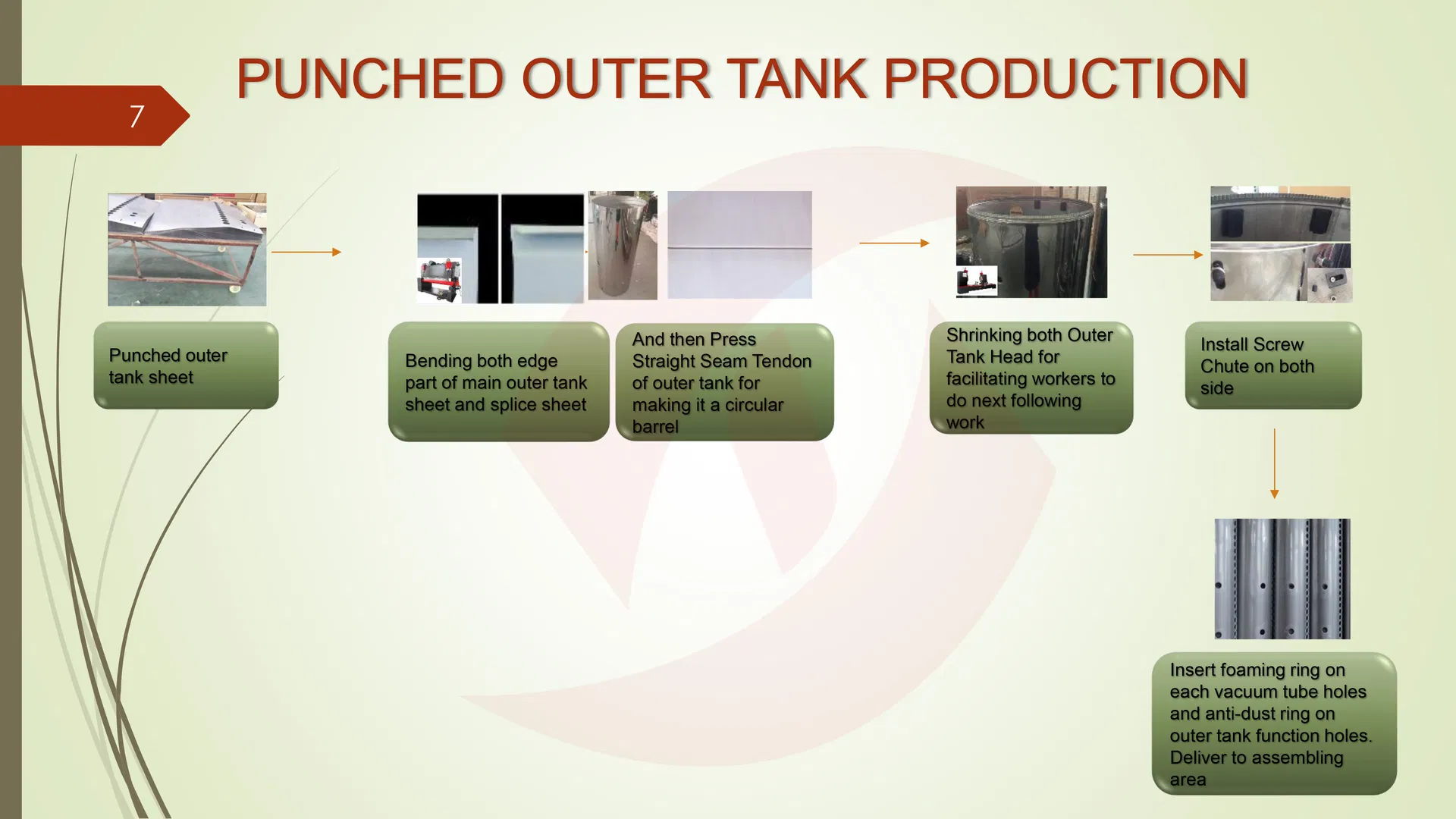

Solar Water Heater Outer Tank Production Line Detail 6

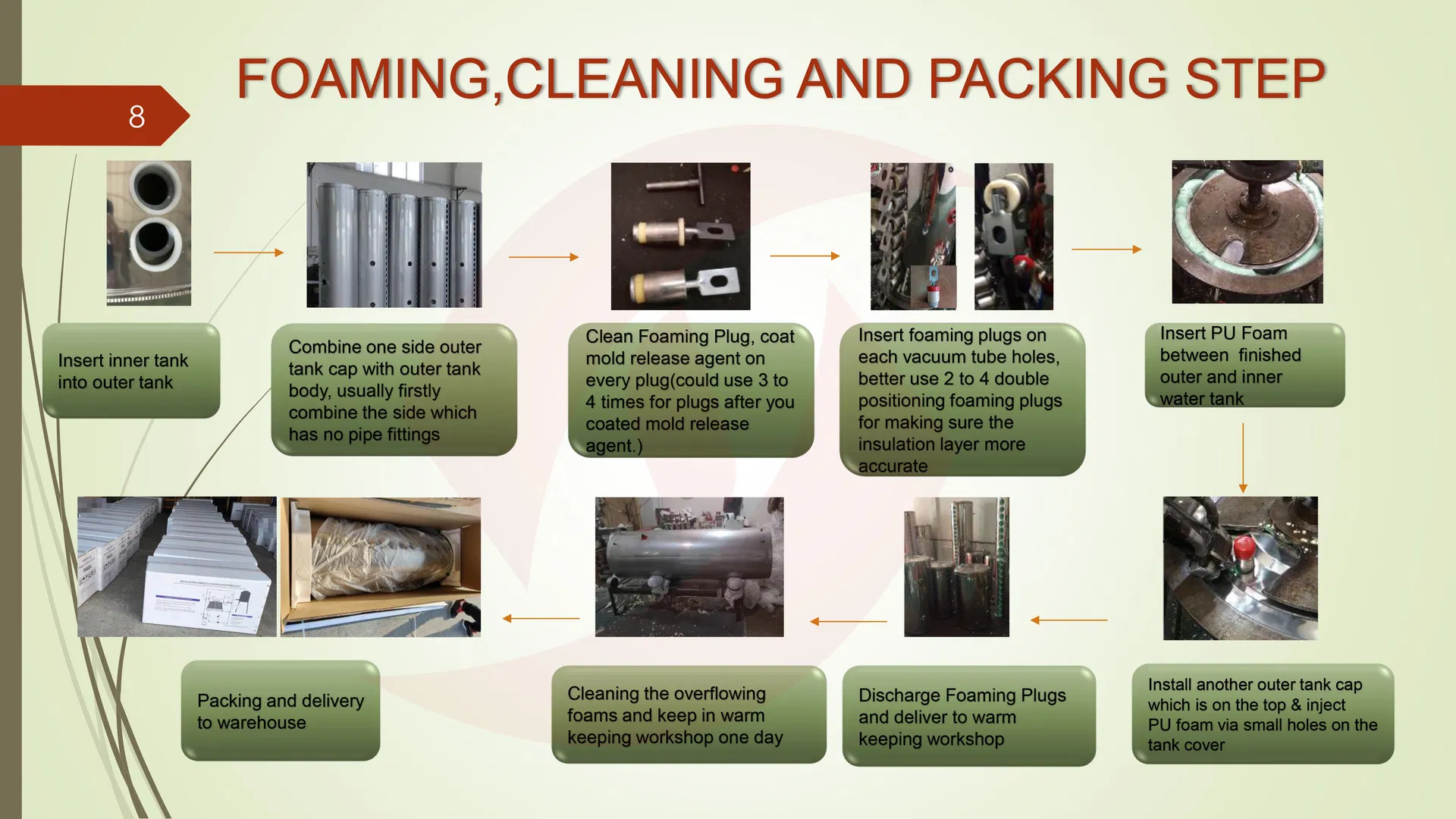

Solar Water Heater Outer Tank Production Line Detail 7

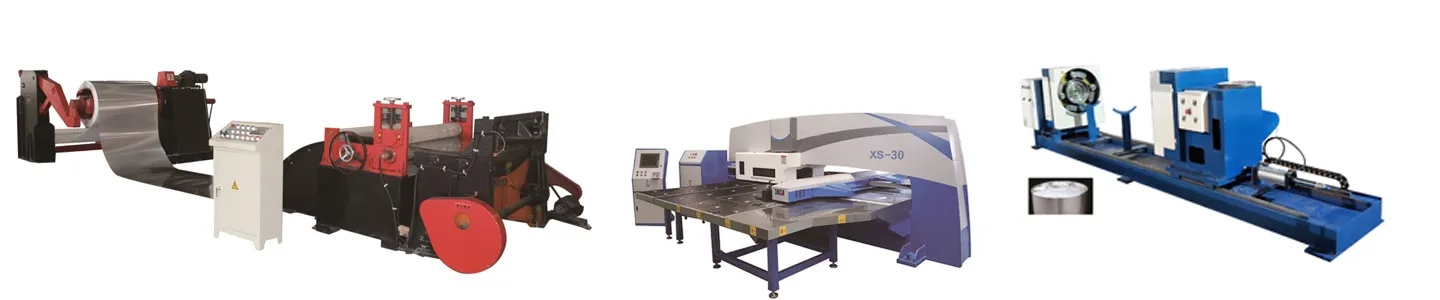

Introduction of Manufacturing Equipment

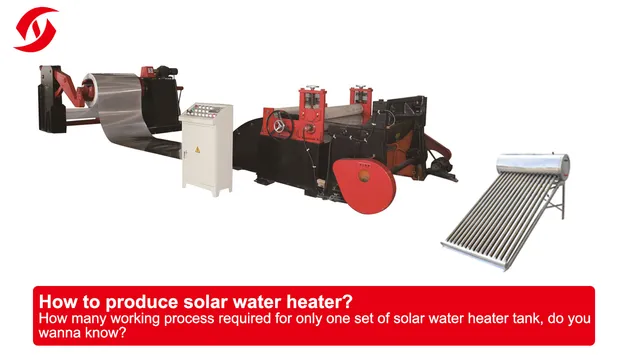

STEEL COIL DECOILING, LEVELING & CUTTING MACHINE

Uncoiling the Steel Coil and cutting the plate.

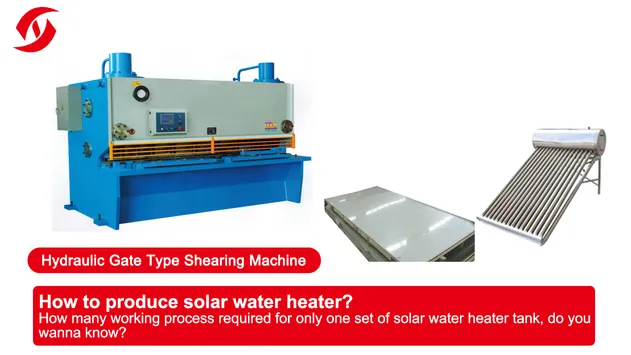

HYDRAULIC GATE TYPE SHEARING MACHINE

Cutting splice sheet of outer tank.

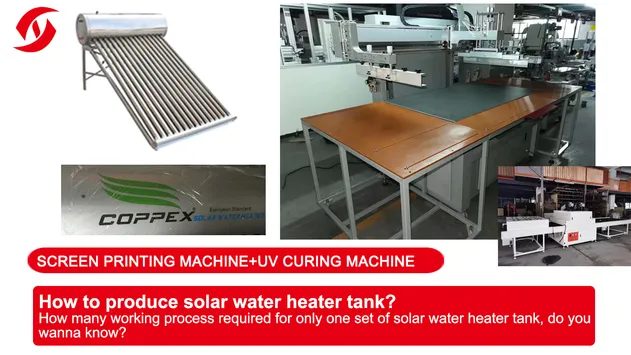

SCREEN PRINTING MACHINE + UV CURING MACHINE

Printing and drying logo on outer tank sheet.

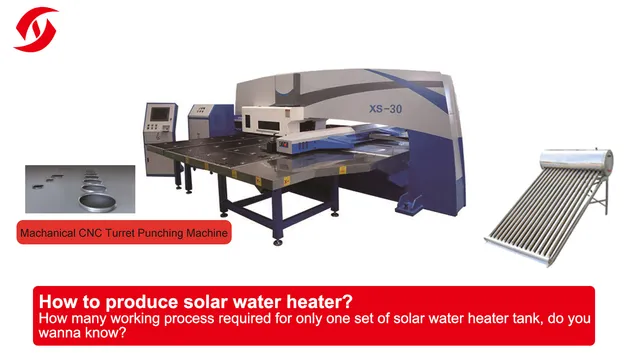

MECHANICAL CNC TURRET PUNCHING MACHINE

Punching Tank Holes (All holes on the inner tank body and holes on outer tank body will be all in main tank sheet).

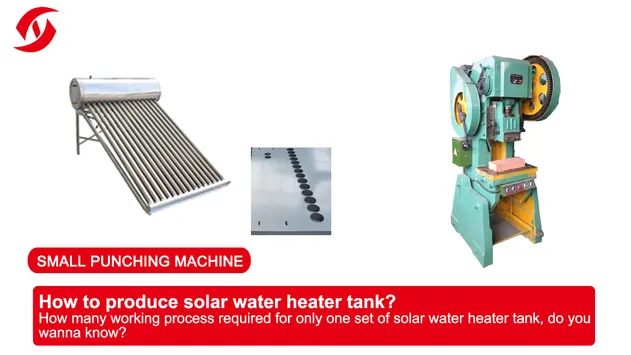

SMALL PUNCHING MACHINE

Punching holes which is on splice sheet of outer tank and function holes on tank caps.

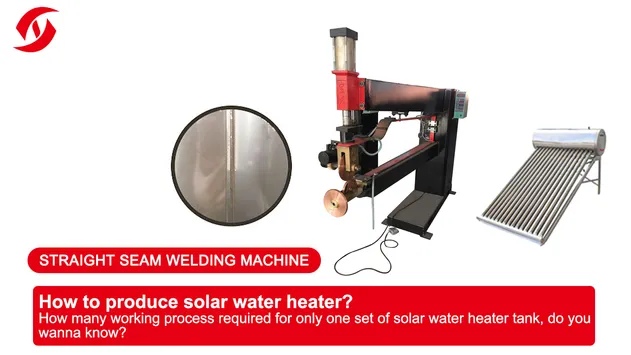

STRAIGHT SEAM WELDING MACHINE

Welding inner tank straight seam.

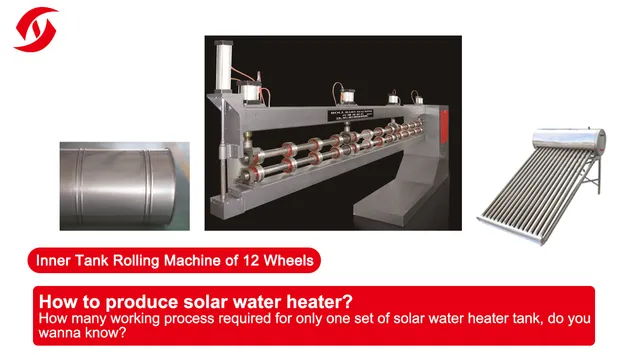

INNER TANK ROLLING MACHINE OF 12 WHEELS

Enhancing the strength of the inner tanks via rolling annular convex tendons on tank surface.

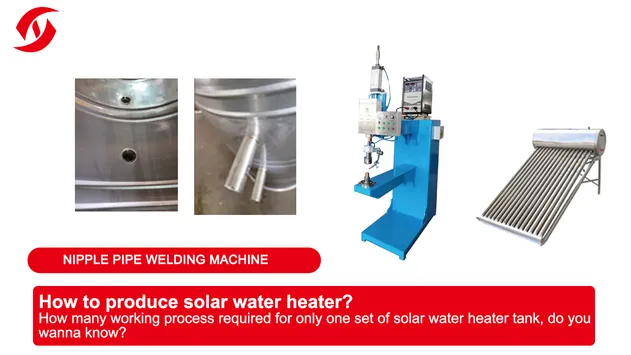

NIPPLE PIPE WELDING MACHINE

Welding the pipes with inner tank or inner tank covers.

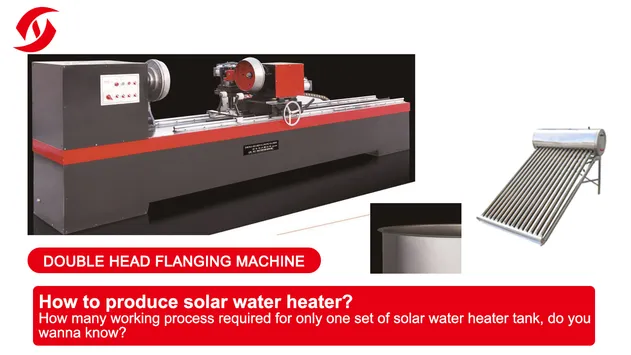

DOUBLE HEAD FLANGING MACHINE

Flanging the inner tank double head.

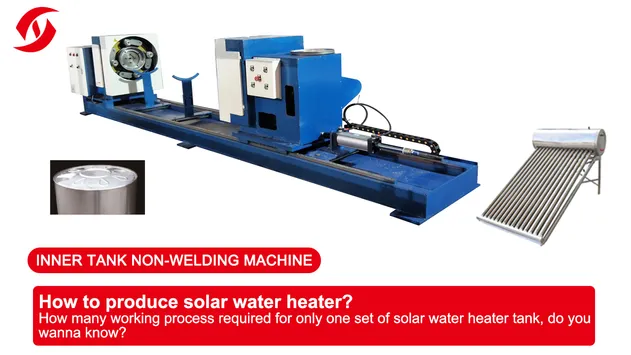

INNER TANK NON WELDING MACHINE

Combine the inner tank and inner tank cover with non welding technology.

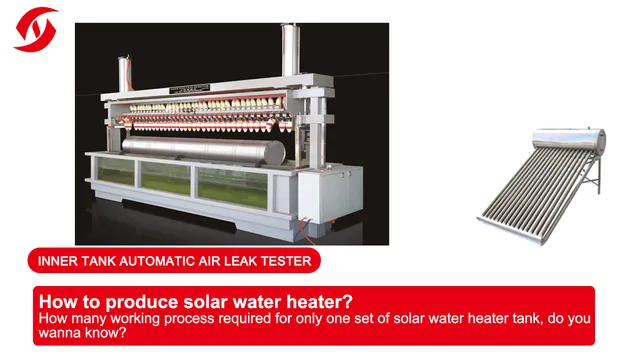

INNER TANK AUTOMATIC AIR LEAK TESTER

Check whether any leakage of the inner tank.

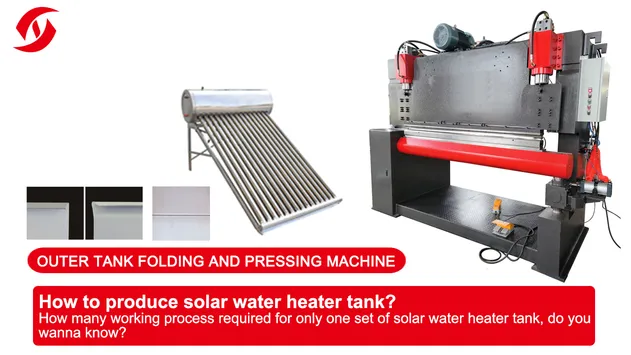

OUTER TANK FOLDING AND PRESSING MACHINE

Bending the tank edge + Pressing straight seam.

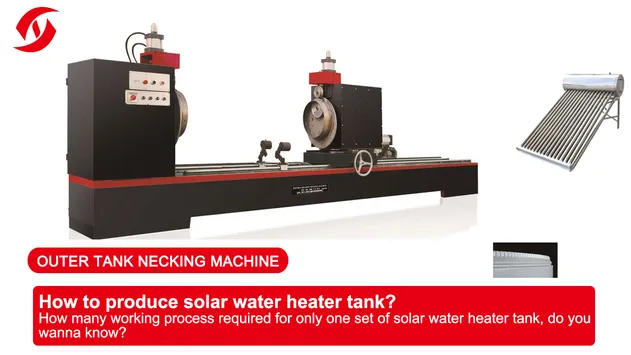

OUTER TANK NECKING MACHINE

Making the outer tank head into toothing shape for facilitating workers to combine it with outer tank cap.

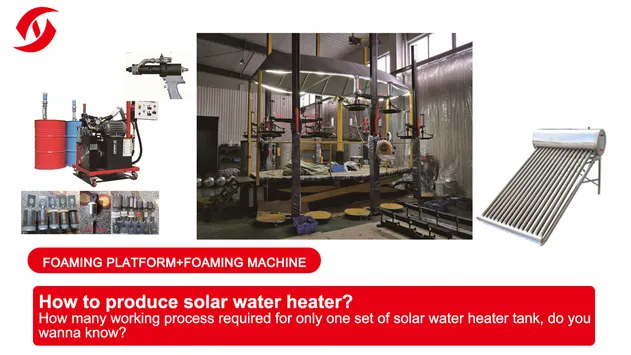

FOAMING PLATFORM AND FOAMING MACHINE

Fixing the assembled tank and inserting PU foam inside the foaming layer.

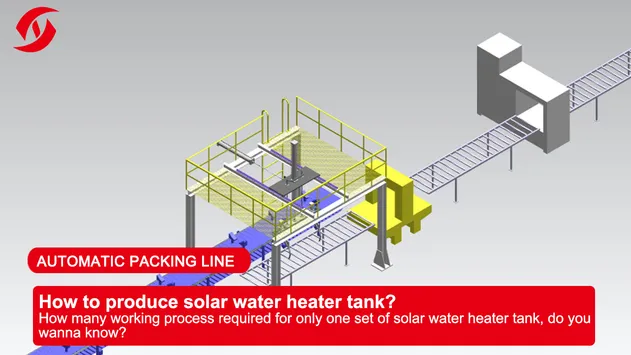

AUTOMATIC PACKING LINE

Packing the finished tanks.

Project We Supported Overseas

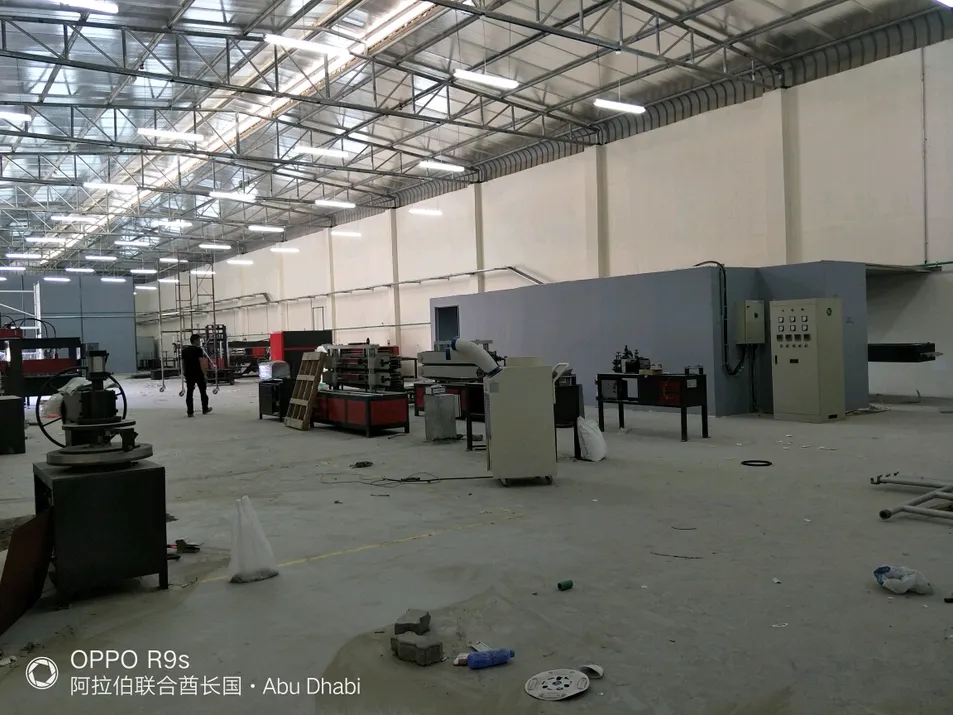

UAE PRODUCTION LINE

Complete solar water heater tank production line, corrugated pipe production and annealing line installed in Abu Dhabi, UAE.

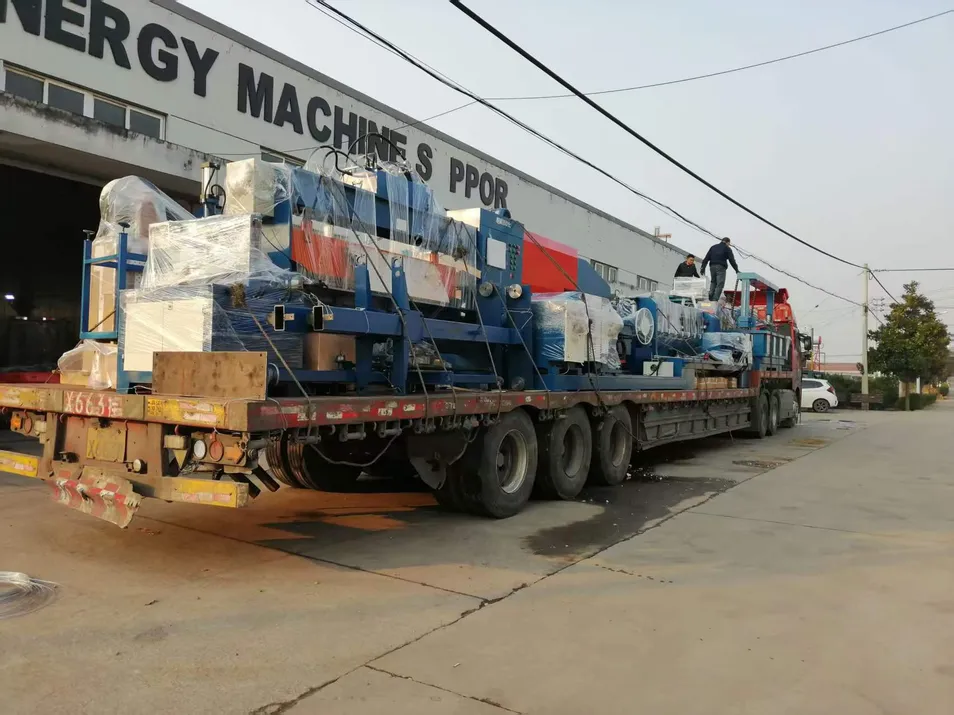

VIETNAM PRODUCTION LINE

Complete solar water heater tank production line delivered to Vietnam via truck.

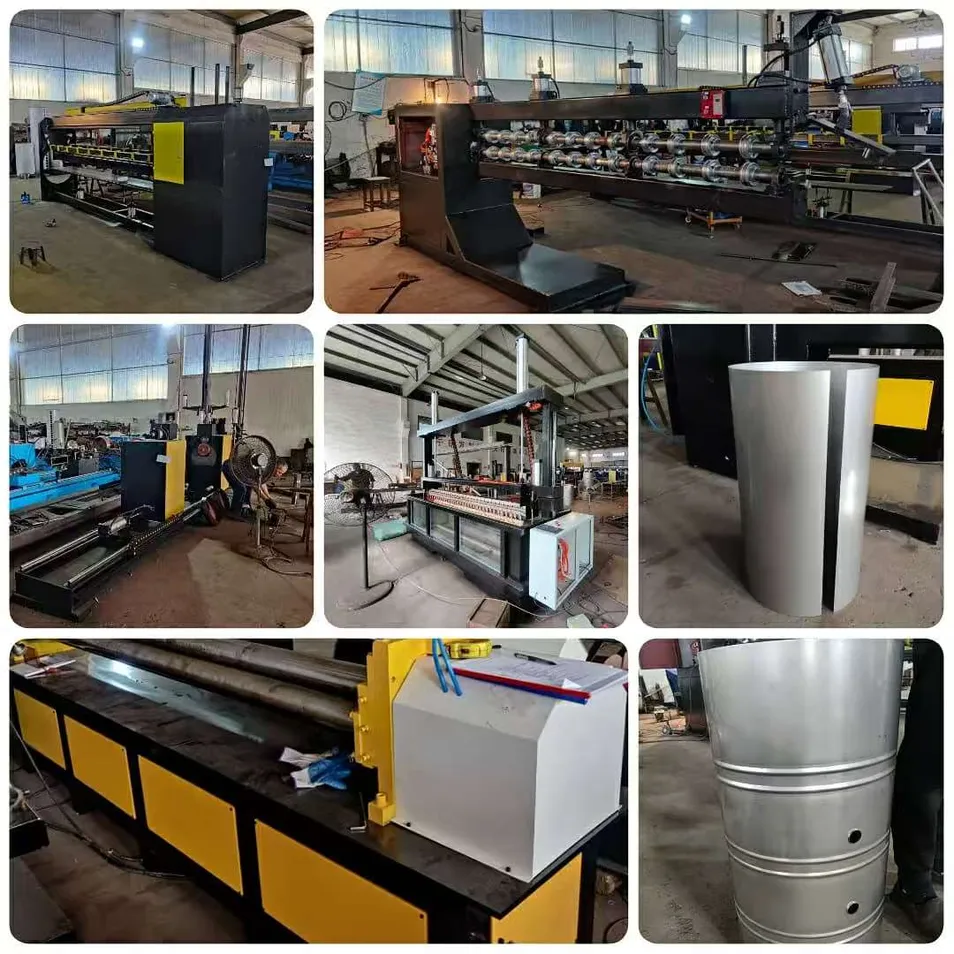

MEXICO PRODUCTION LINE

Complete solar water heater tank production line for Mexico market.

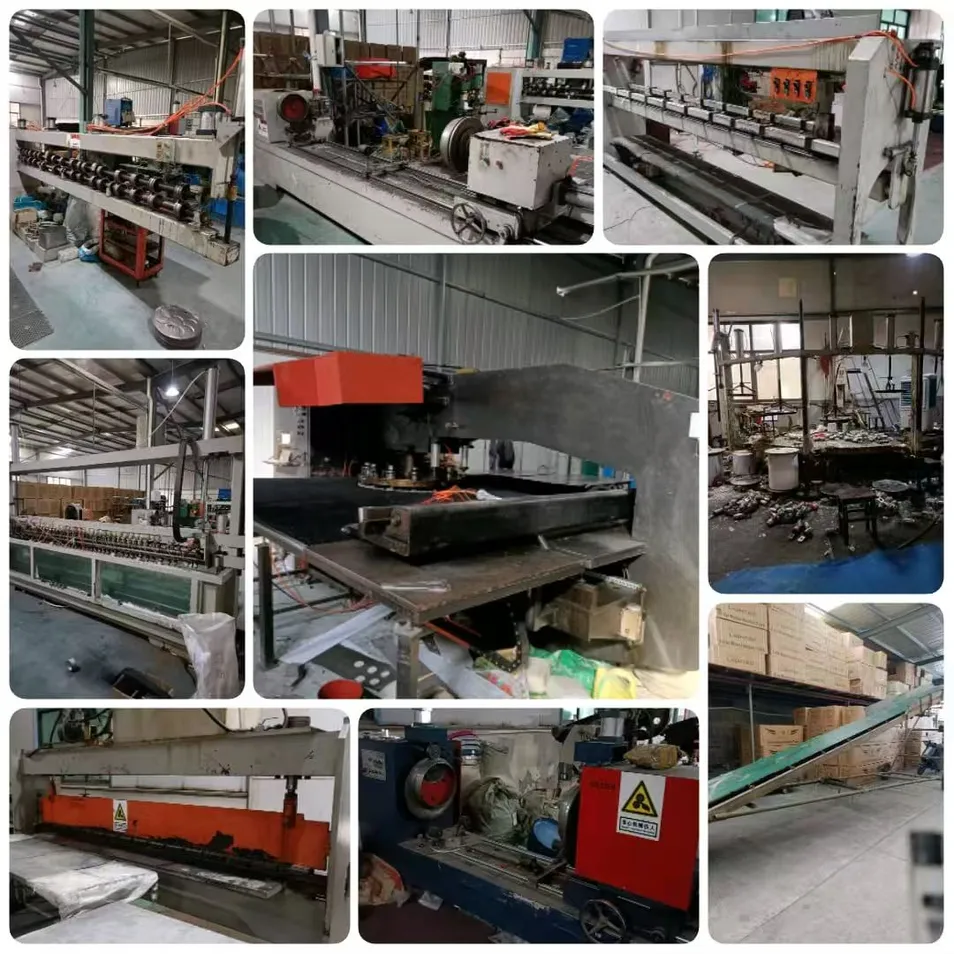

MIDDLE EAST SECOND HAND PRODUCTION LINE

Complete solar water heater tank second hand production line for Middle East.

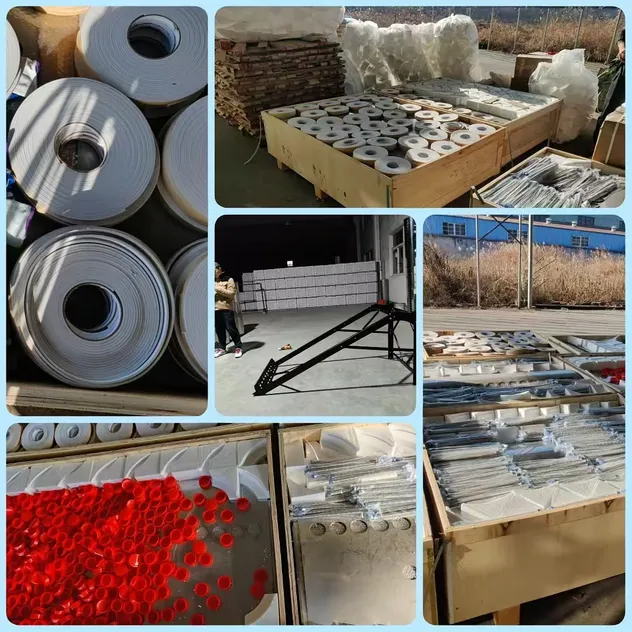

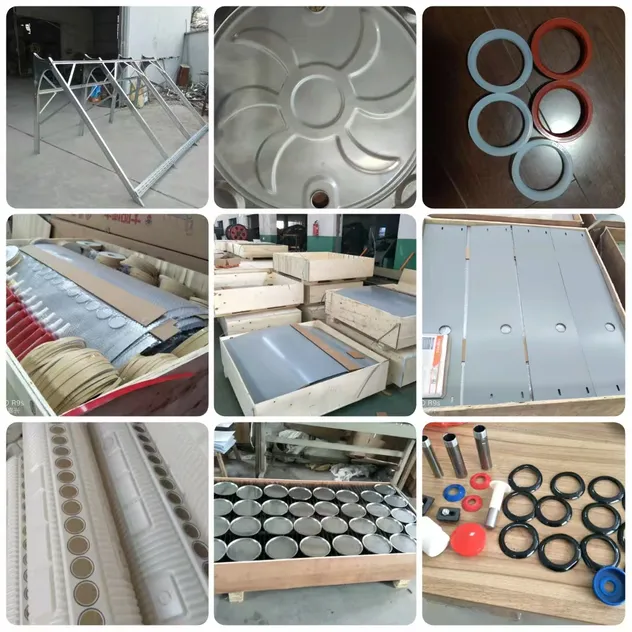

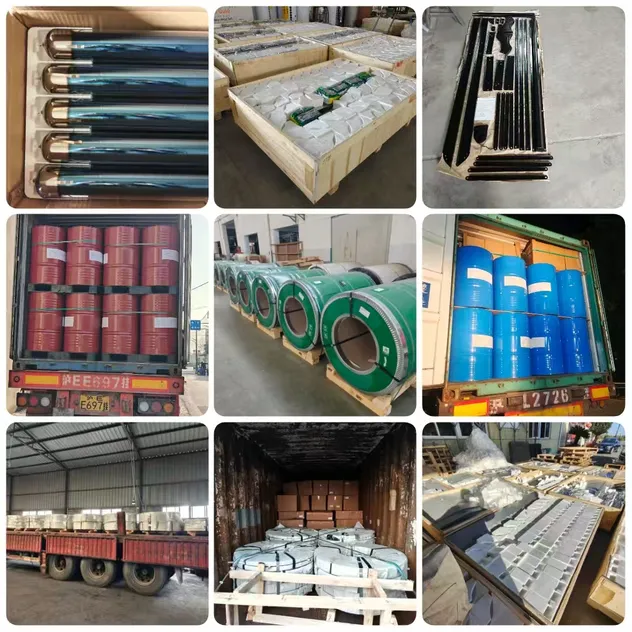

Solar Water Heater Raw Materials We Supported

RAW MATERIALS LIST REQUIRED FOR SOLAR WATER HEATER
Inner Tank	Stainless Steel Sheet with SUS304-2B, 316L; Inner Tank Cap with SUS304-2B/SUS316L Stainless Steel Material; Silicone Rings; Pipe Fittings.
Outer Tank	PVDF Coating Galvanised Steel Sheet with Pearl White, Ivory White, Silver Brushed, Silver Fluorine Titanium with High Gloss, Golden Yellow, Red, Green, etc.; SUS201-BA/SUS304-2B/SUS304-BA/SUS304 Hairline/SUS316L Stainless Steel; Outer Tank Cap; Anti-dust Rings; Bottom Decoration Cap; Heating Resistor Hole Nylon/Silicone/SUS304/SUS316L Plug & Red Plastic Cover; Heating Resistor Decoration Cover; Air Vent Cover.
Insulation Layer	POLYMERIC MDI; COMBINATION POLYETHER; MOLD RELEASE AGENT.
Frame	Galvanised Steel Type frame with color paint; SUS201 Frame; SUS304 Frame; Alloy Aluminum Frame.
Vacuum Tube	Cu/SS-ALN/ALN, Three target magnetron sputtering plating.
Optional Accessories	Assistant Tank, Electric Backup Heater, Check Valve, Magnesium Rod, etc.

Frequently Asked Questions (FAQ)

What types of solar water heater production lines do you offer?

We specialize in providing Low Pressure Solar Water Heater Tank Production Lines, High Pressure Solar Water Heater Tank Production Lines, Solar Water Heater Bracket Production Lines, Tank Cap Production Lines, Corrugated Pipe Production and Annealing Lines, and Solar Collector Production Lines (Flat Plate, Manifold, and Heat Pipe Types).

Do you support international clients with raw materials and accessories?

Yes. We support overseas factories by supplying all necessary raw materials and accessories required for solar water heater production, including inner tank sheets, outer tank sheets, insulation chemicals, frames, vacuum tubes, and optional accessories.

Which materials are supported for the inner and outer tank construction?

For inner tanks, we support SUS304-2B and SUS316L stainless steel. For outer tanks, we offer PVDF Coating Galvanised Steel in various colors, as well as SUS201-BA, SUS304-2B, SUS304-BA, SUS304 Hairline, and SUS316L stainless steel.

What is the application scope and capacity of model YY-XS-3000?

The Model YY-XS-3000 is designed for Solar Water Heater Outer Tank Edge Bending. It has a production capacity of 500 sets per year.

What machinery is included in the tank manufacturing line?

The production line features specialized machines including: Steel Coil Decoiling, Leveling & Cutting Machines, Shearing Machines, CNC Turret Punching Machines, Straight Seam Welding Machines, Inner Tank Rolling Machines, Double Head Flanging Machines, Non-welding Machines, Leak Testers, Necking Machines, and Foaming Platforms.

Where have your production lines been installed overseas?

We have supported various overseas installations, including complete production lines and corrugated pipe systems in the UAE (Abu Dhabi), Vietnam, Mexico, and second-hand production lines in the Middle East.
